KitchenAid
Microwave/Hood Combo

Model # KMHP519ESS5 Official KitchenAid microwave/hood combo

Here are the diagrams and repair parts for Official KitchenAid KMHP519ESS5 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Gaoxin-hvd C W11222648
#26

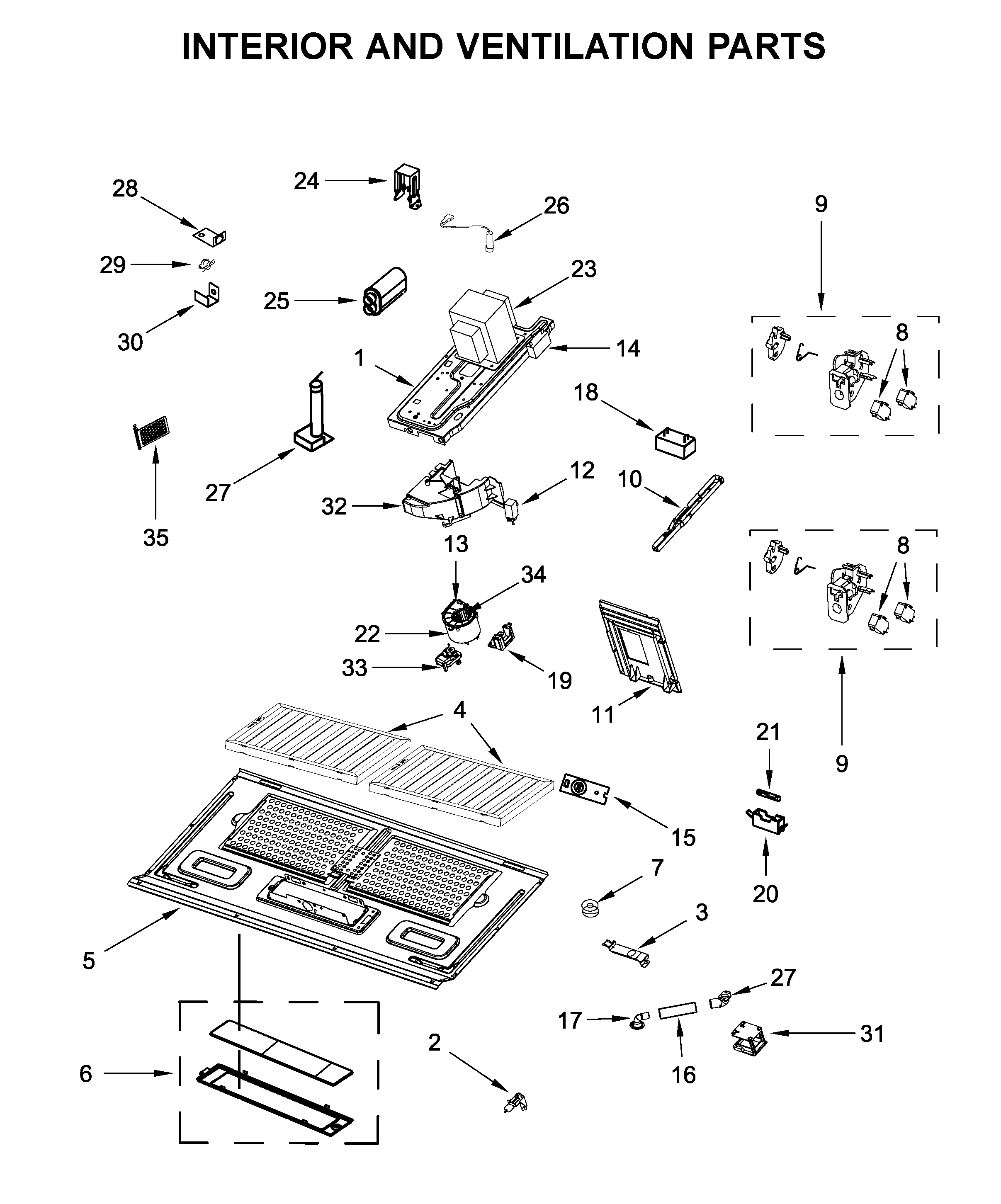

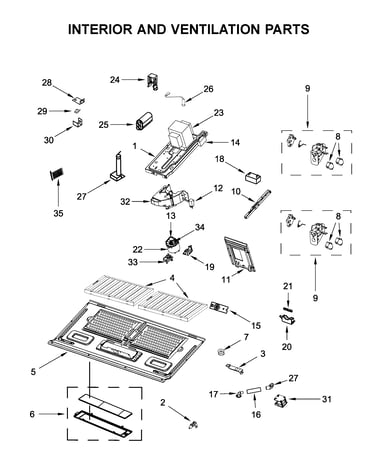

Interior and ventilation parts diagram

Gaoxin-hvd c

Part #W11222648

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W11222648. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Assembly, Interlock (includes Switches) W11187757
#9

Interior and ventilation parts diagram

Assembly, interlock (includes switches)

Part #W11187757

Replaced by #W11197766

?
Manufacturer substitution
This part replaces W11187757. Substitute parts can look different from the original.
BEST SELLER
$19.97 |
9% OFF Phone Price : $21.97
In Stock
Turntable Motor W10466420
#7

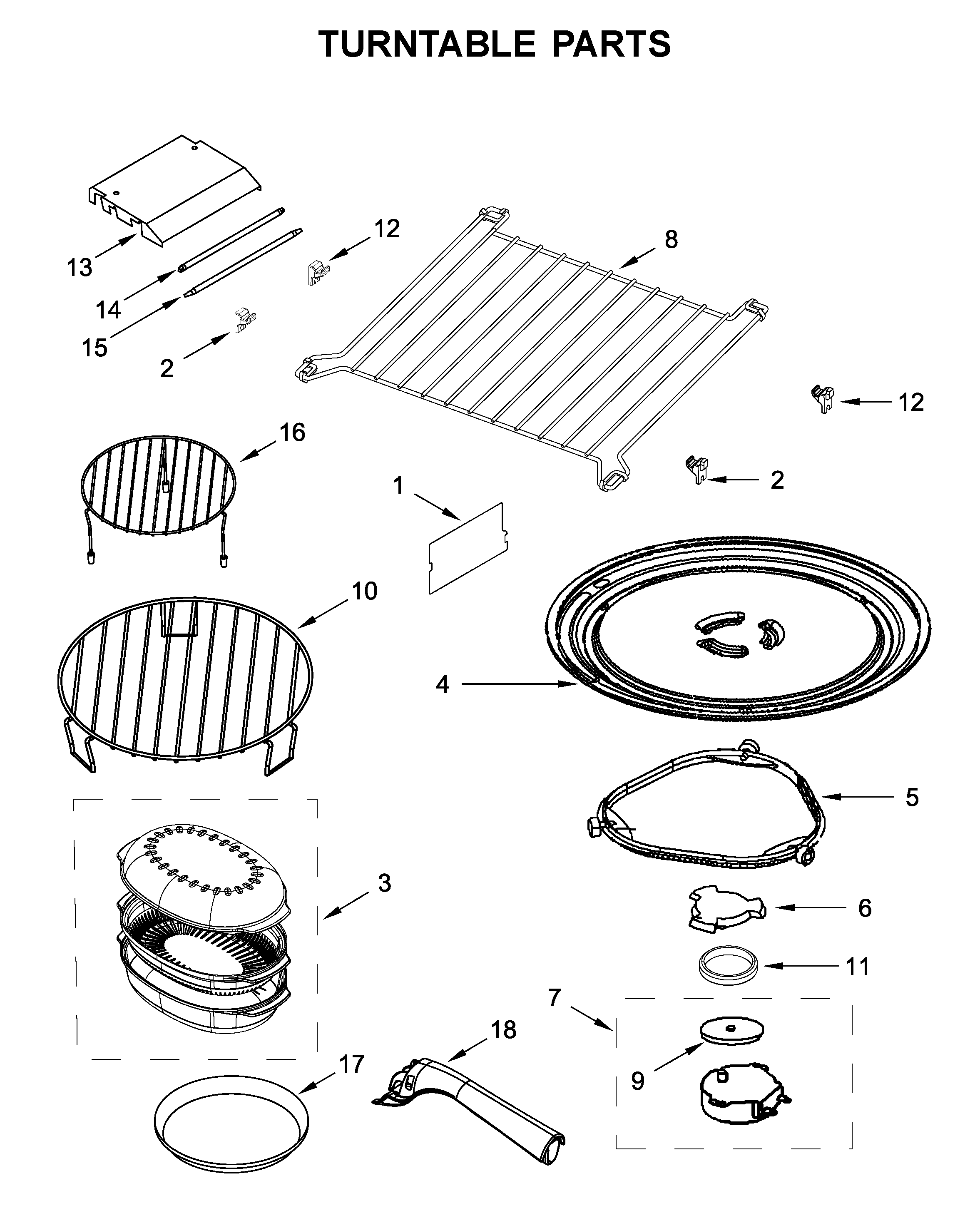

Turntable parts diagram

Turntable motor

Part #W10466420

Replaced by #WPW10466420

?
Manufacturer substitution
This part replaces W10466420. Substitute parts can look different from the original.
BEST SELLER
$32.16 |
16% OFF Phone Price : $38.16
In Stock
Filter 8206230
#8

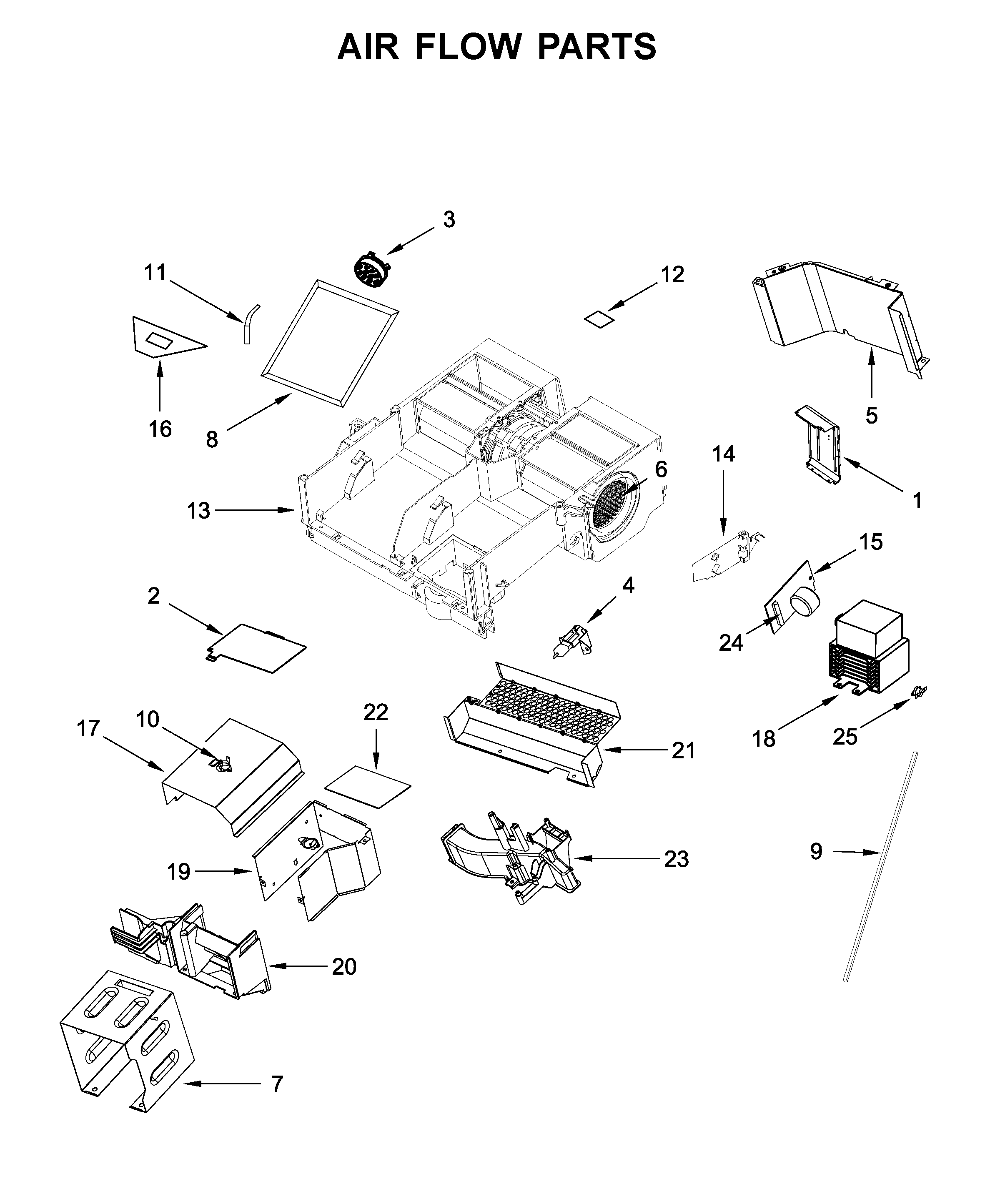

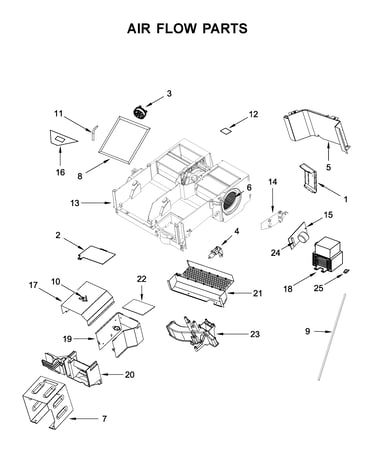

Air flow parts diagram

Filter

Part #8206230

Replaced by #8206230A

?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
BEST SELLER
$11.14 |
15% OFF Phone Price : $13.14
In Stock
Microwave Surface Light Bulb (replaces W10208564, W10618217, W10892536, W11414610) W10709921
Microwave surface light bulb (replaces w10208564, w10618217, w10892536, w11414610)

Part #W10709921

$15.38 |
12% OFF Phone Price : $17.38
In Stock
Microwave Glass Turntable Tray W10531726
#4

Turntable parts diagram

Microwave glass turntable tray

Part #W10531726

Replaced by #W11402532

?
Manufacturer substitution
This part replaces W10531726. Substitute parts can look different from the original.
$34.39 |
15% OFF Phone Price : $40.39
In Stock
Microwave Installation Template W10190018
#NI

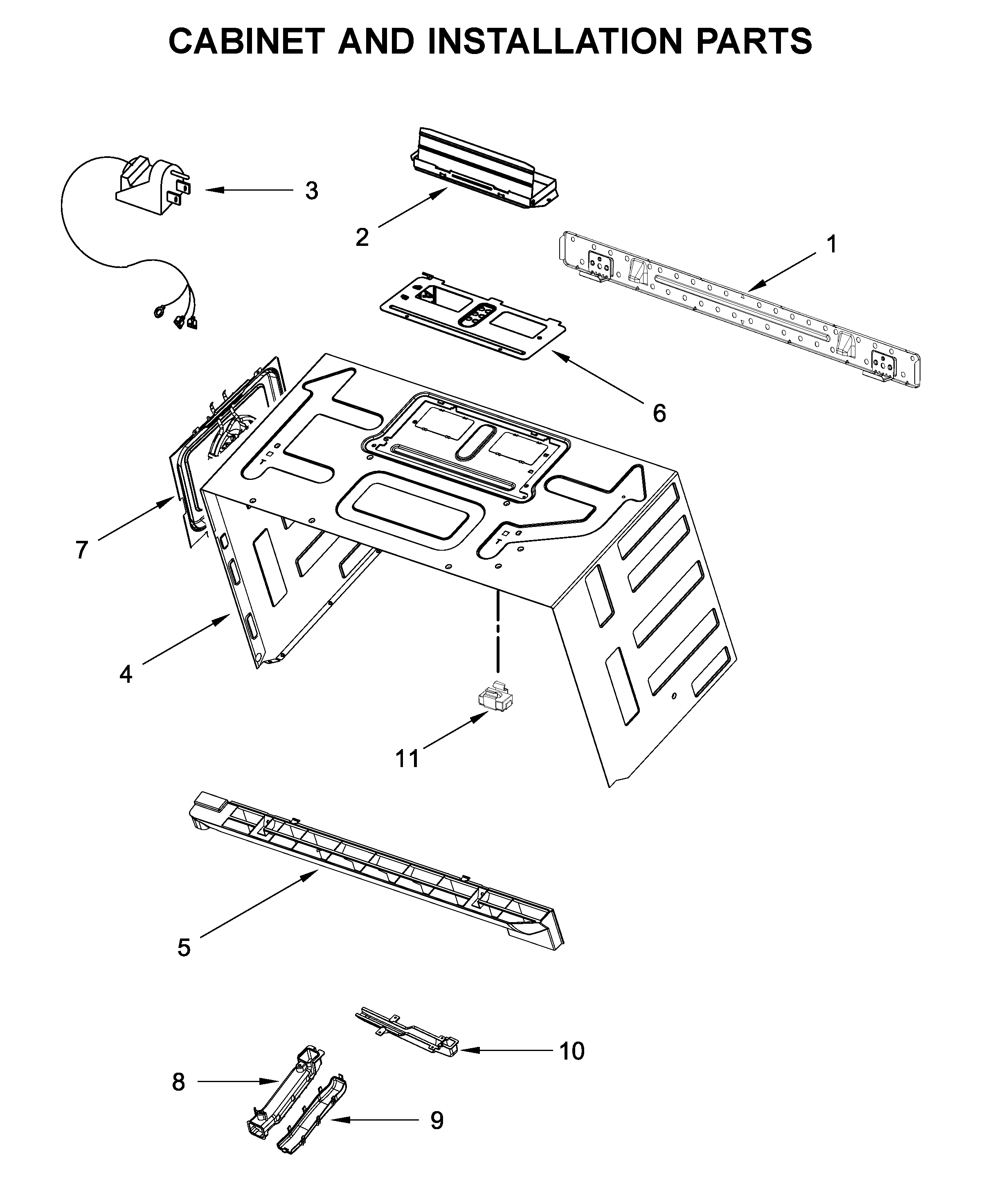

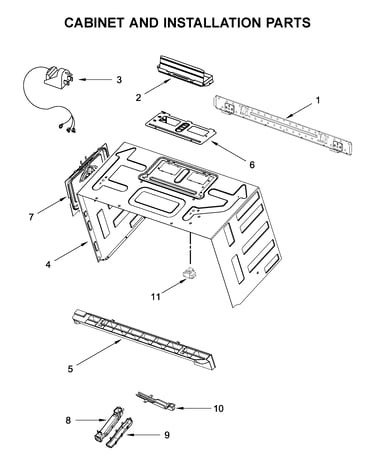

Cabinet and installation parts diagram

Microwave installation template

Part #W10190018

This item is not returnable
$6.39 |
14% OFF Phone Price : $7.39
In Stock
Microwave Screw 8169704
#NI

Cabinet and installation parts diagram

Microwave screw

Part #8169704

Replaced by #WP8169704

?
Manufacturer substitution
This part replaces 8169704. Substitute parts can look different from the original.
This item is not returnable
$5.07 |
16% OFF Phone Price : $6.07
In Stock
Microwave Door Handle Mounting Bracket W10540736
#8

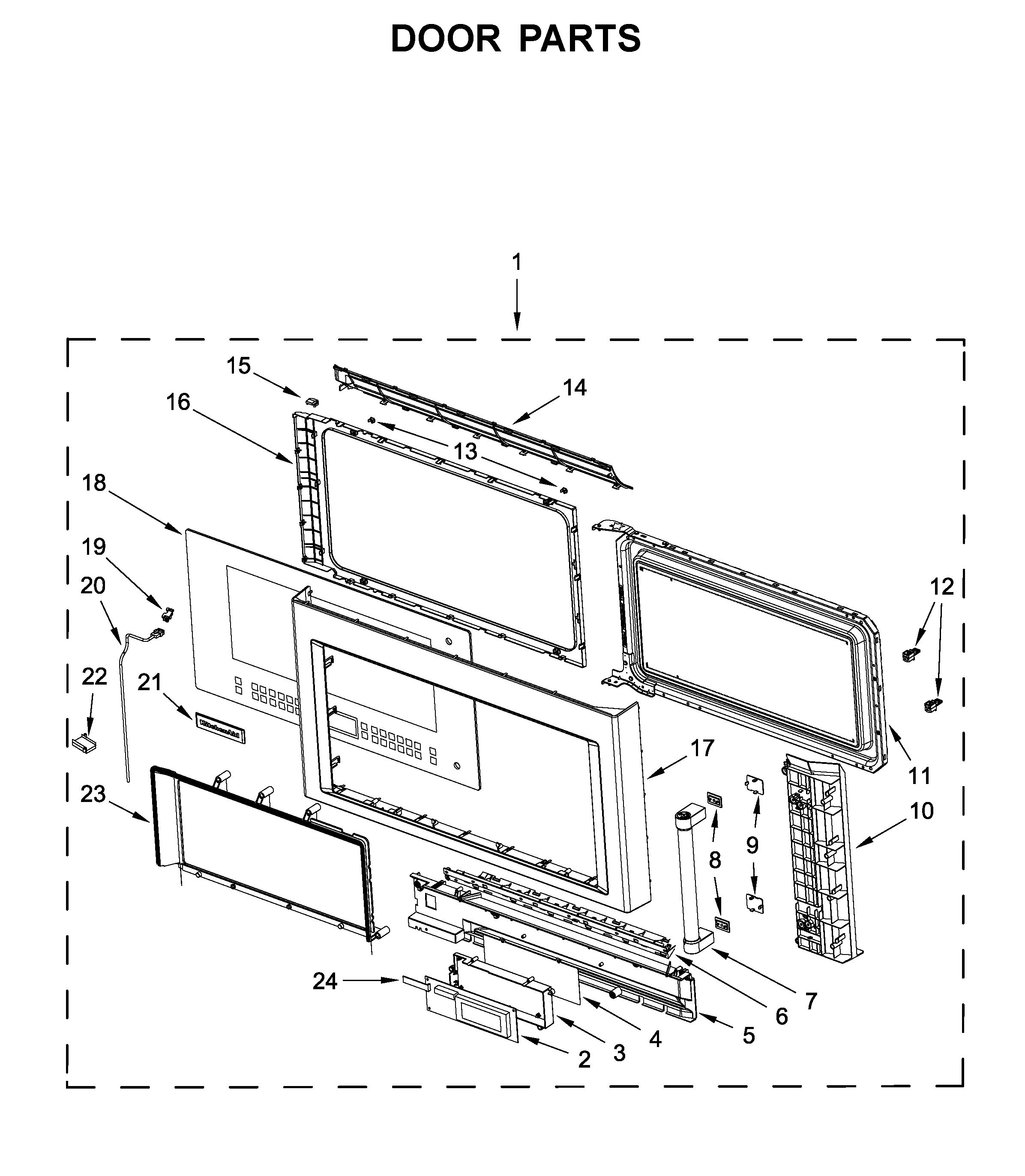

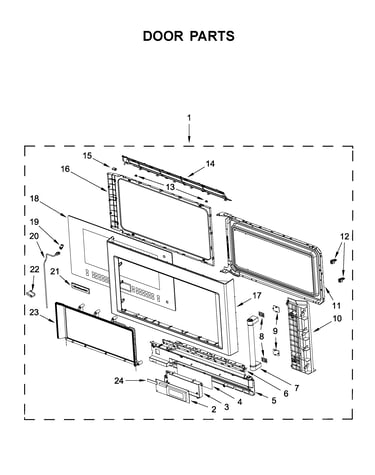

Door parts diagram

Microwave door handle mounting bracket

Part #W10540736

Replaced by #W11590575

?
Manufacturer substitution
This part replaces W10540736. Substitute parts can look different from the original.
$13.22
In Stock
Microwave Installation Hardware Kit (replaces W10811221) W10821385
#NI

Cabinet and installation parts diagram

Microwave installation hardware kit (replaces w10811221)

Part #W10821385

$52.18 |
10% OFF Phone Price : $58.18
In Stock
