Canon
Digital Camcorder

Model # HG21 Official Canon camcorder

Here are the diagrams and repair parts for Official Canon HG21 camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

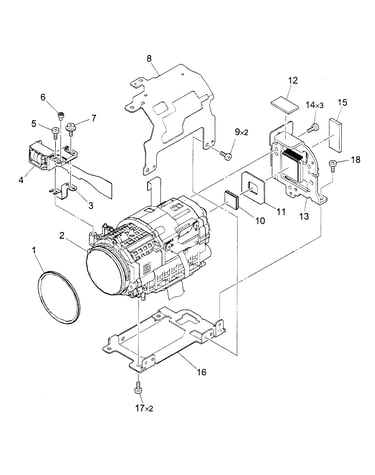

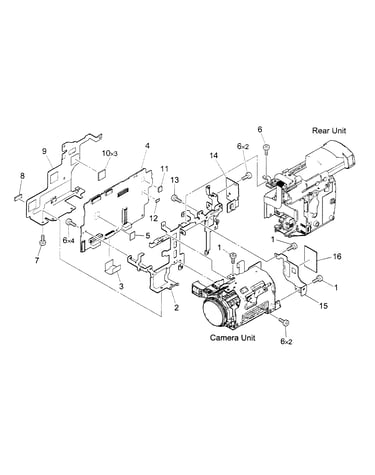

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Lens Cap,r DA3-5267-000
#6

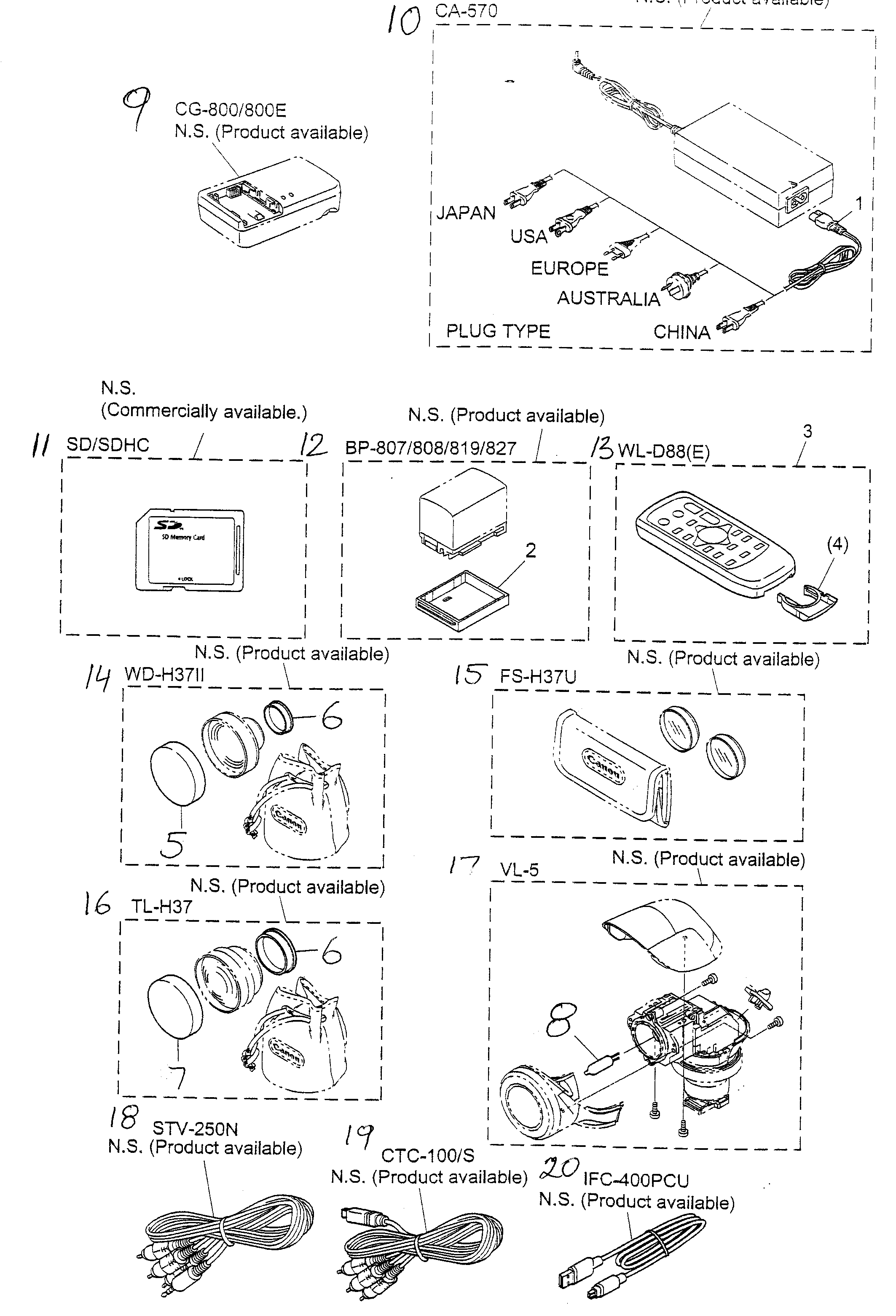

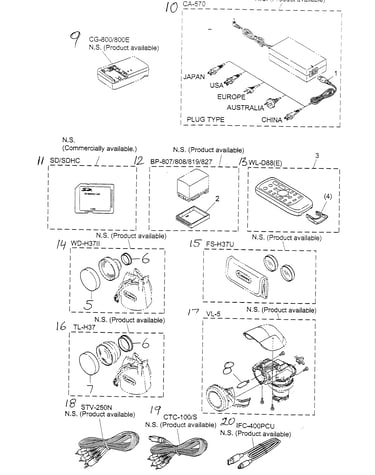

Accessory diagram

Lens cap,r

Part #DA3-5267-000

The manufacturer no longer makes this part, and there's no substitute part

Screw XA4-9170-407
Screw

Part #XA4-9170-407

The manufacturer no longer makes this part, and there's no substitute part

Screw XA4-9170-357
#13

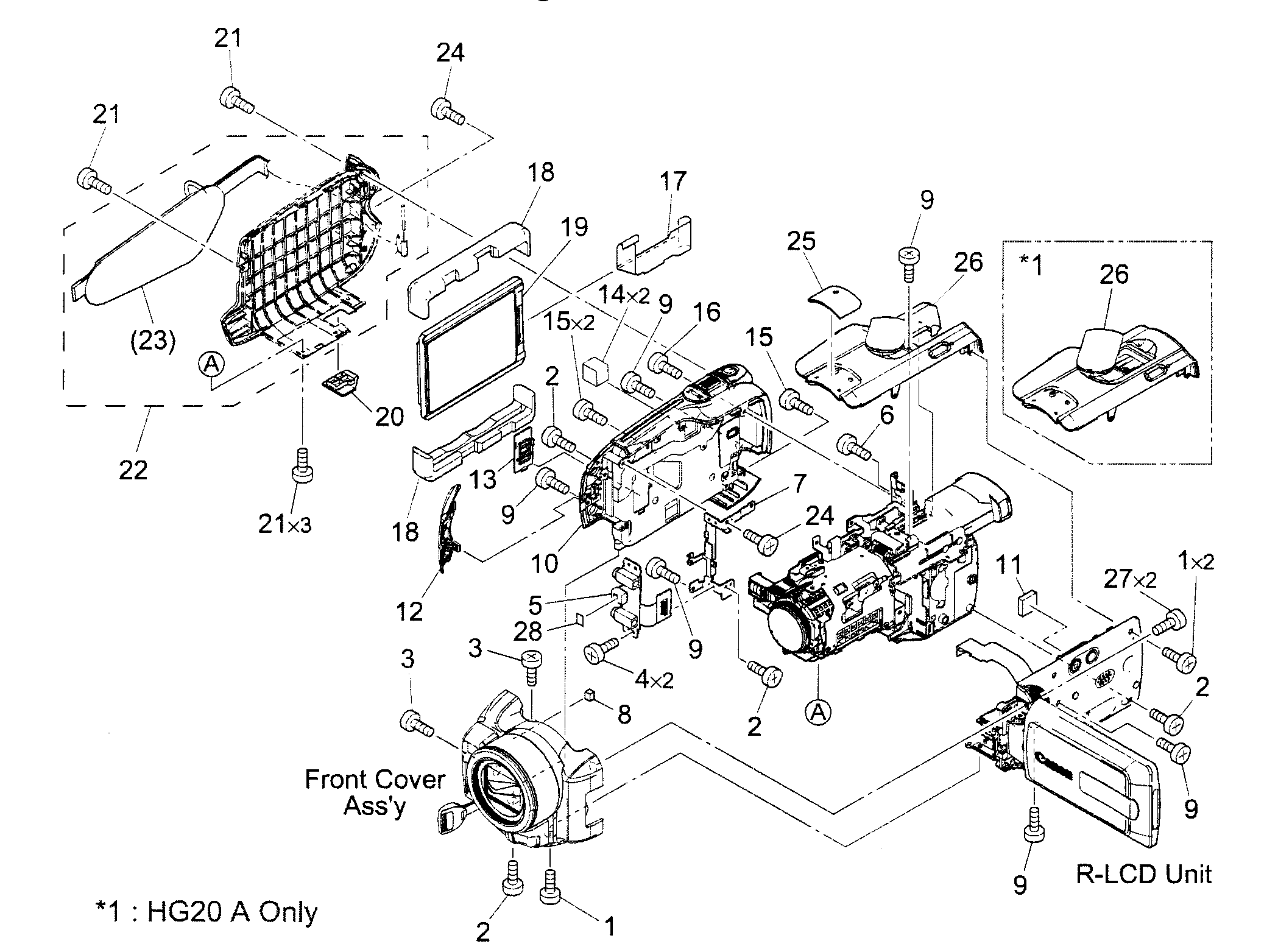

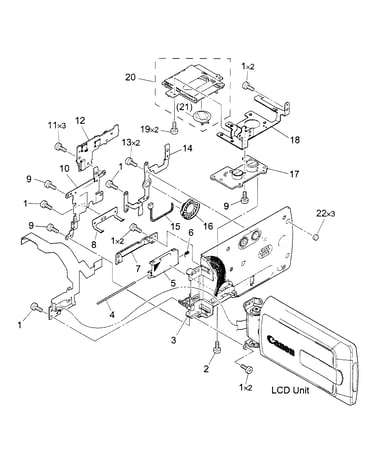

Right assy diagram

Screw

Part #XA4-9170-357

The manufacturer no longer makes this part, and there's no substitute part

Screw XA4-9170-607
#15

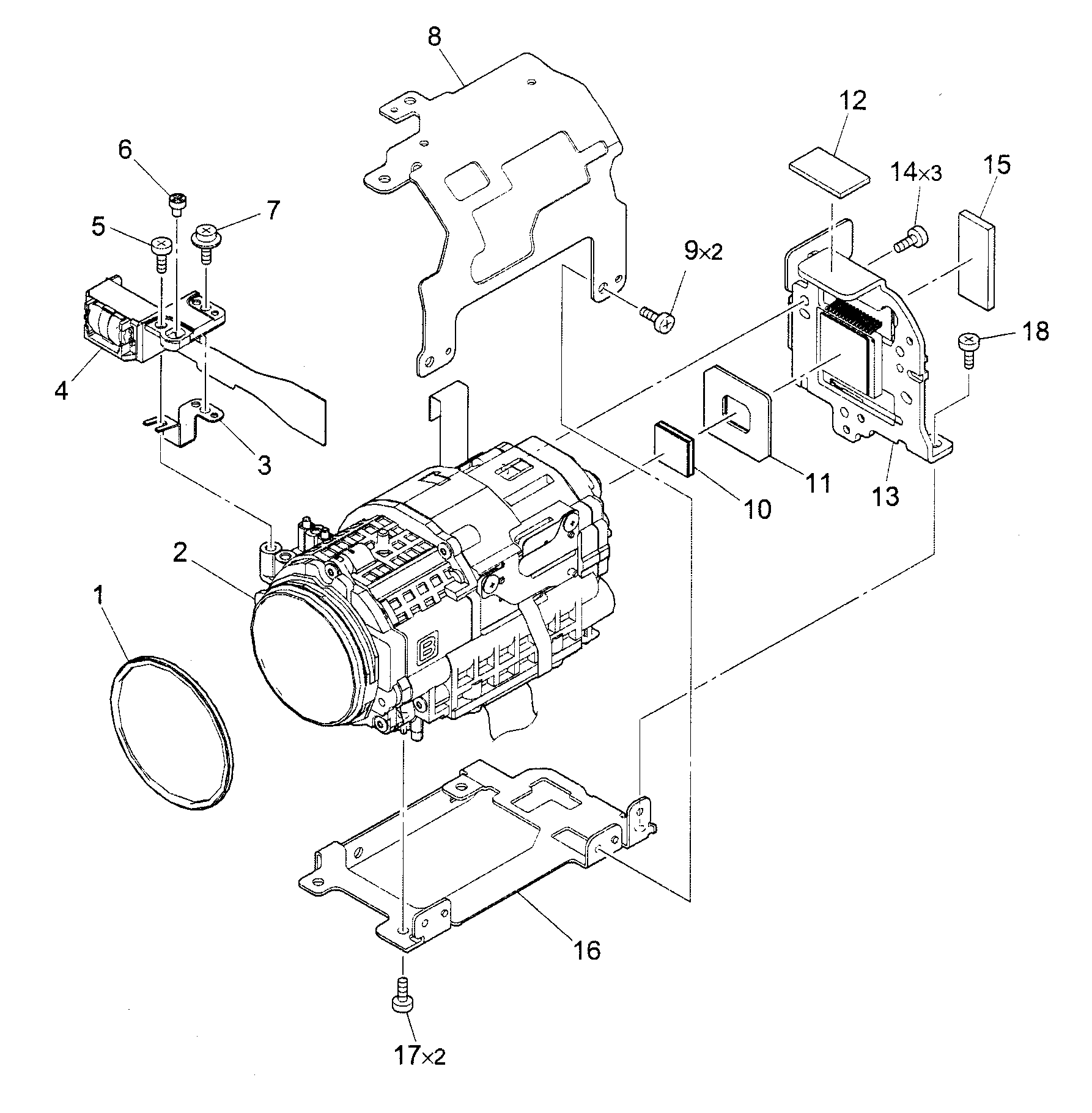

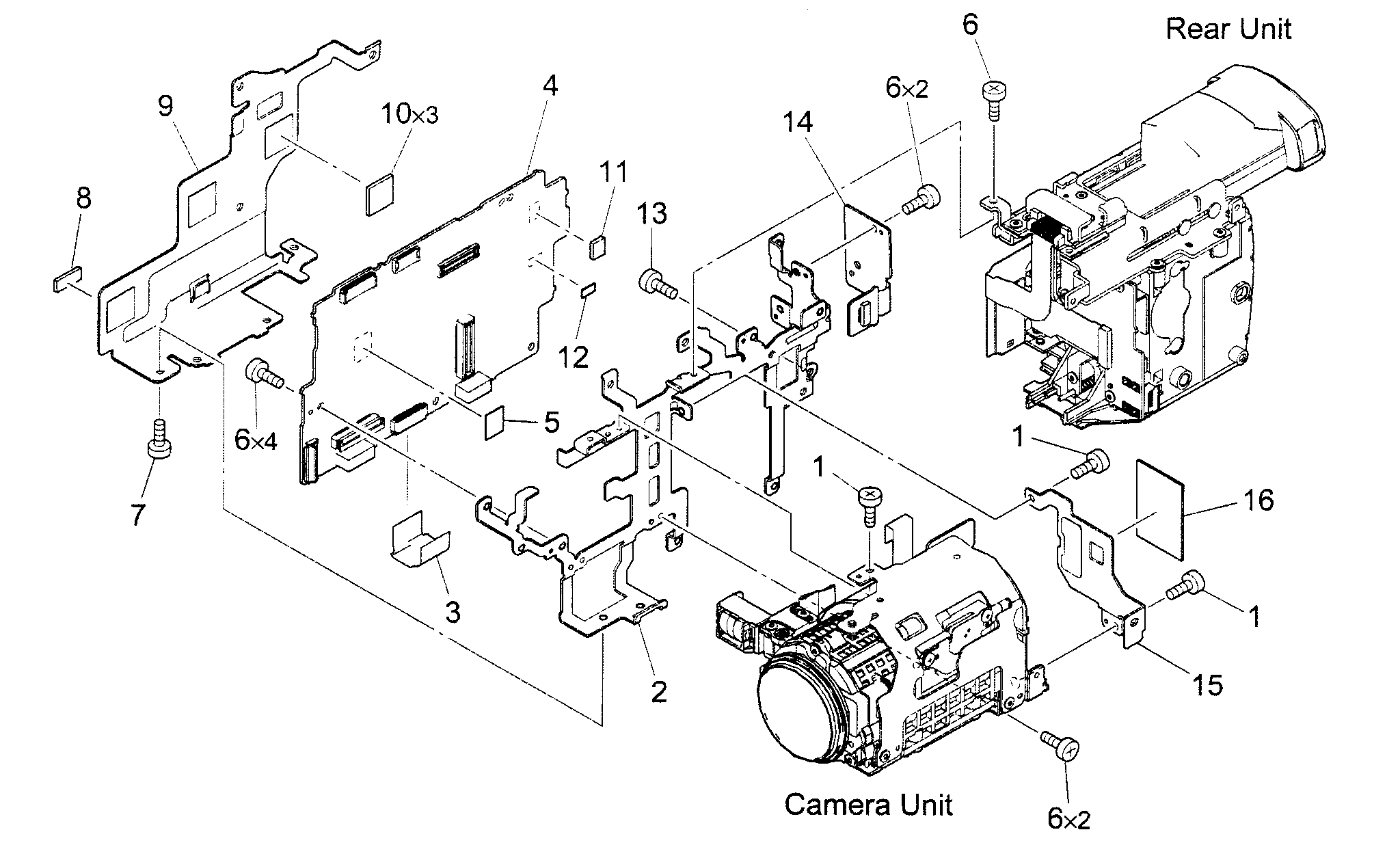

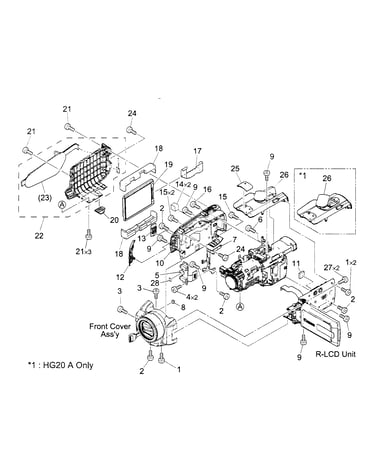

Casing parts 1 diagram

Screw

Part #XA4-9170-607

The manufacturer no longer makes this part, and there's no substitute part

Lcd Camera View Finder WG2-5297-000
#11

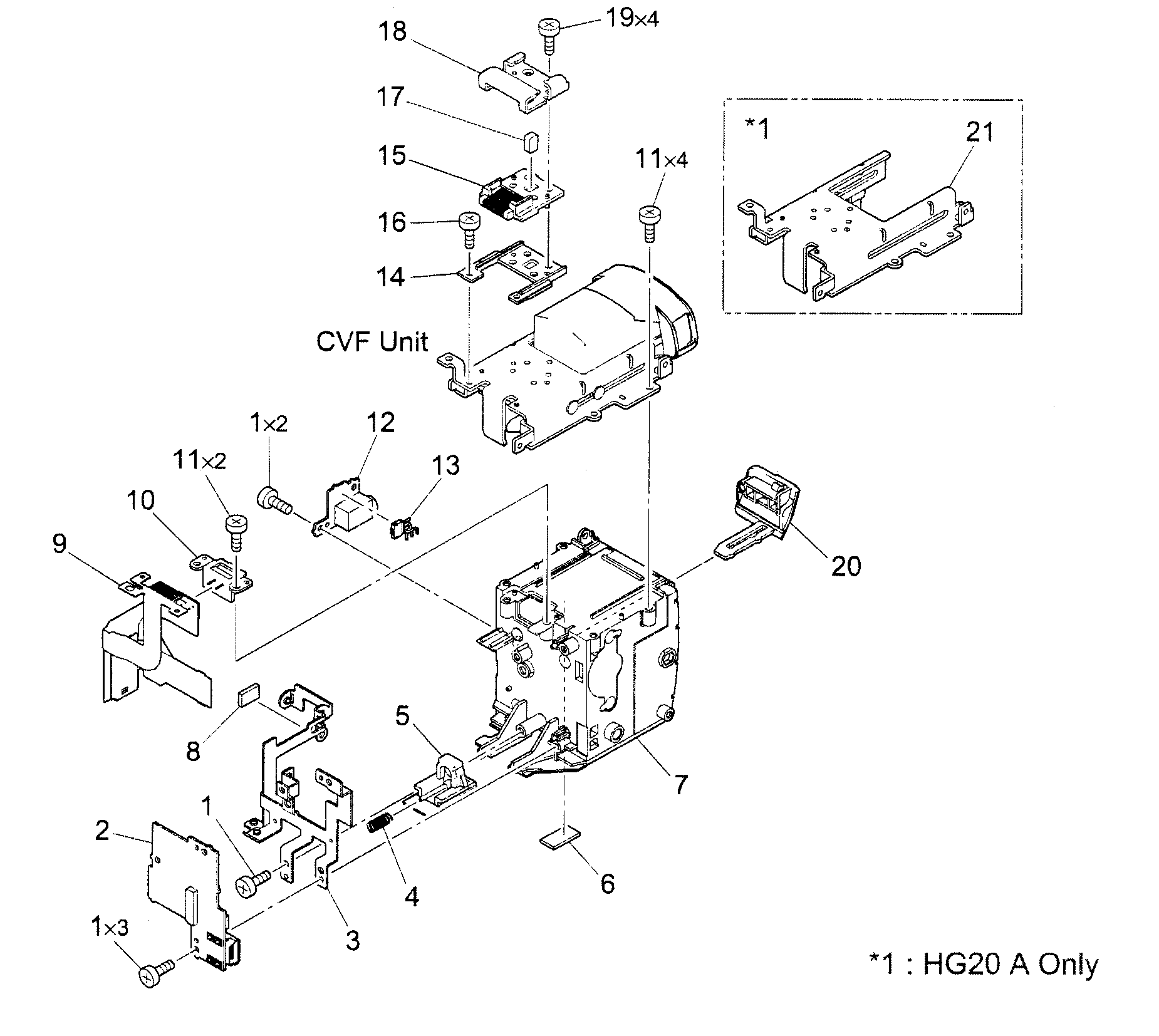

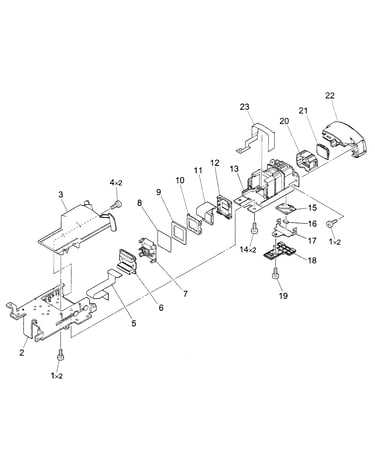

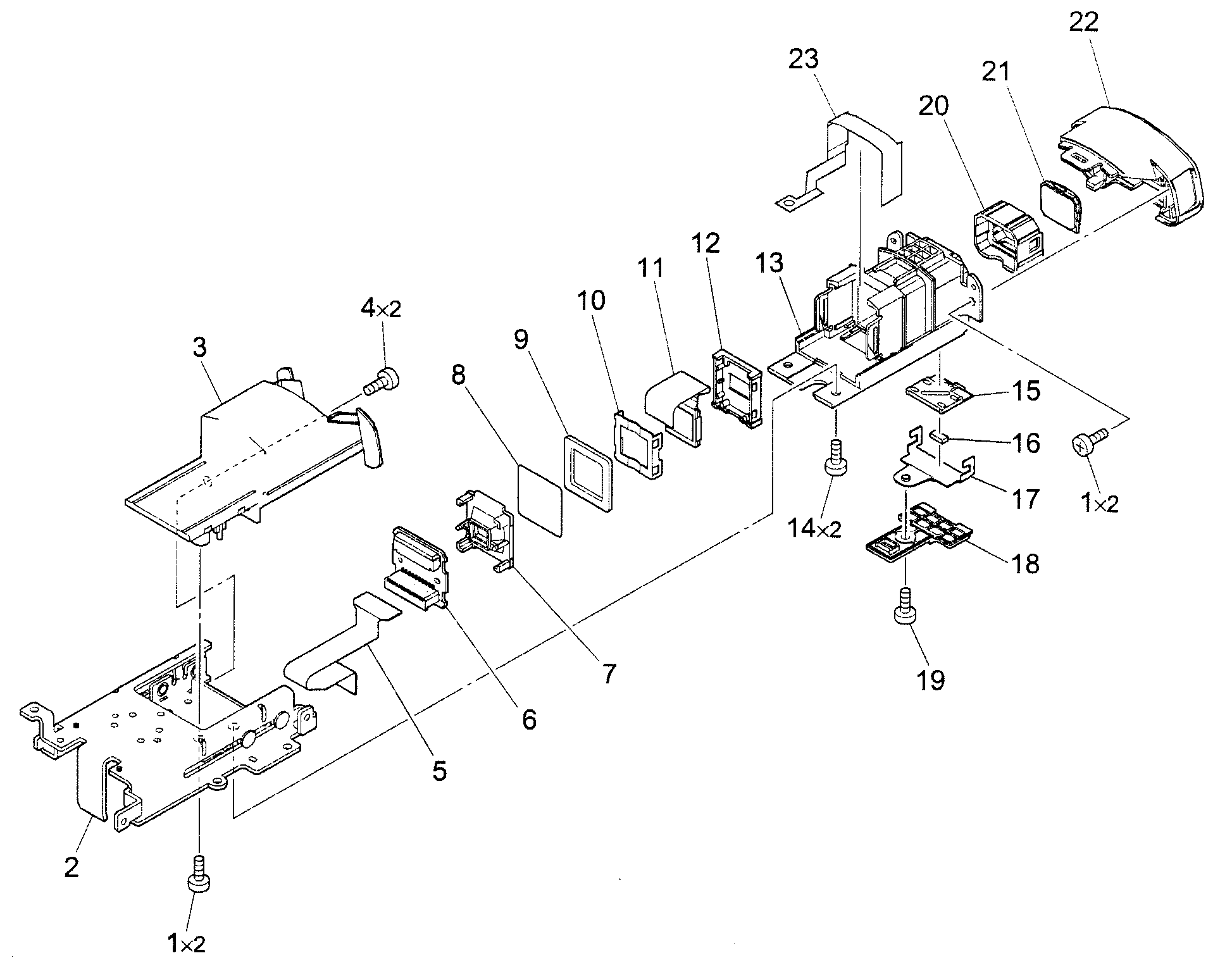

Cvf assy diagram

Lcd camera view finder

Part #WG2-5297-000

The manufacturer no longer makes this part, and there's no substitute part

Terminal DG3-2438-000
#10

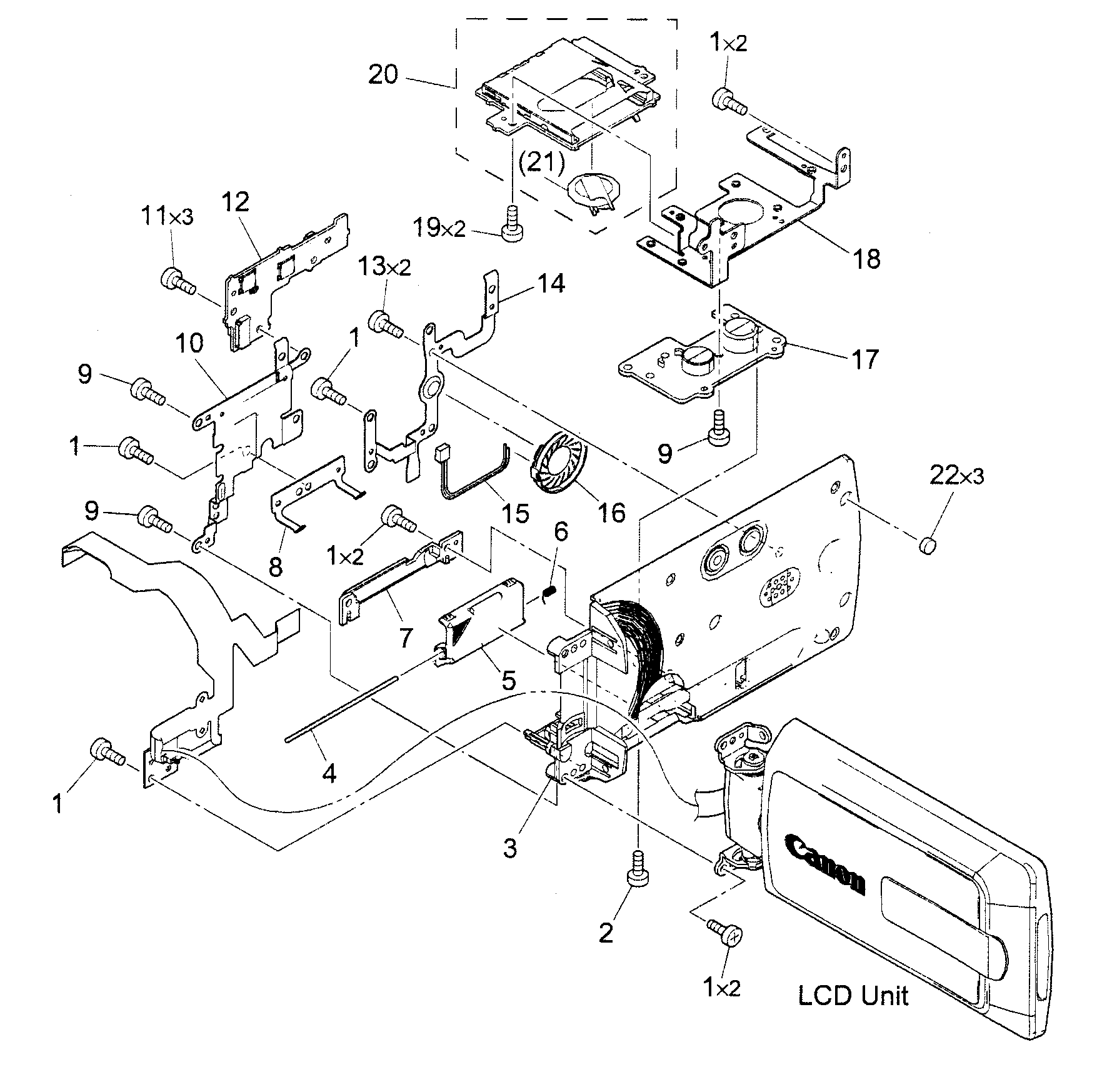

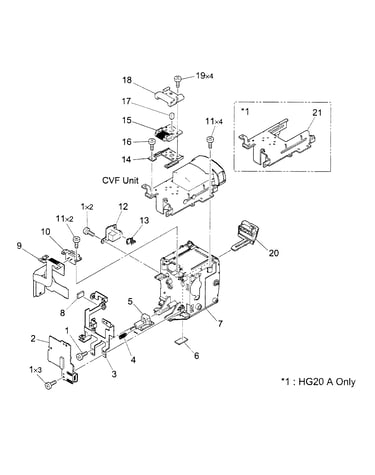

Rear assy diagram

Terminal

Part #DG3-2438-000

The manufacturer no longer makes this part, and there's no substitute part

Screw XA4-9170-507
#4

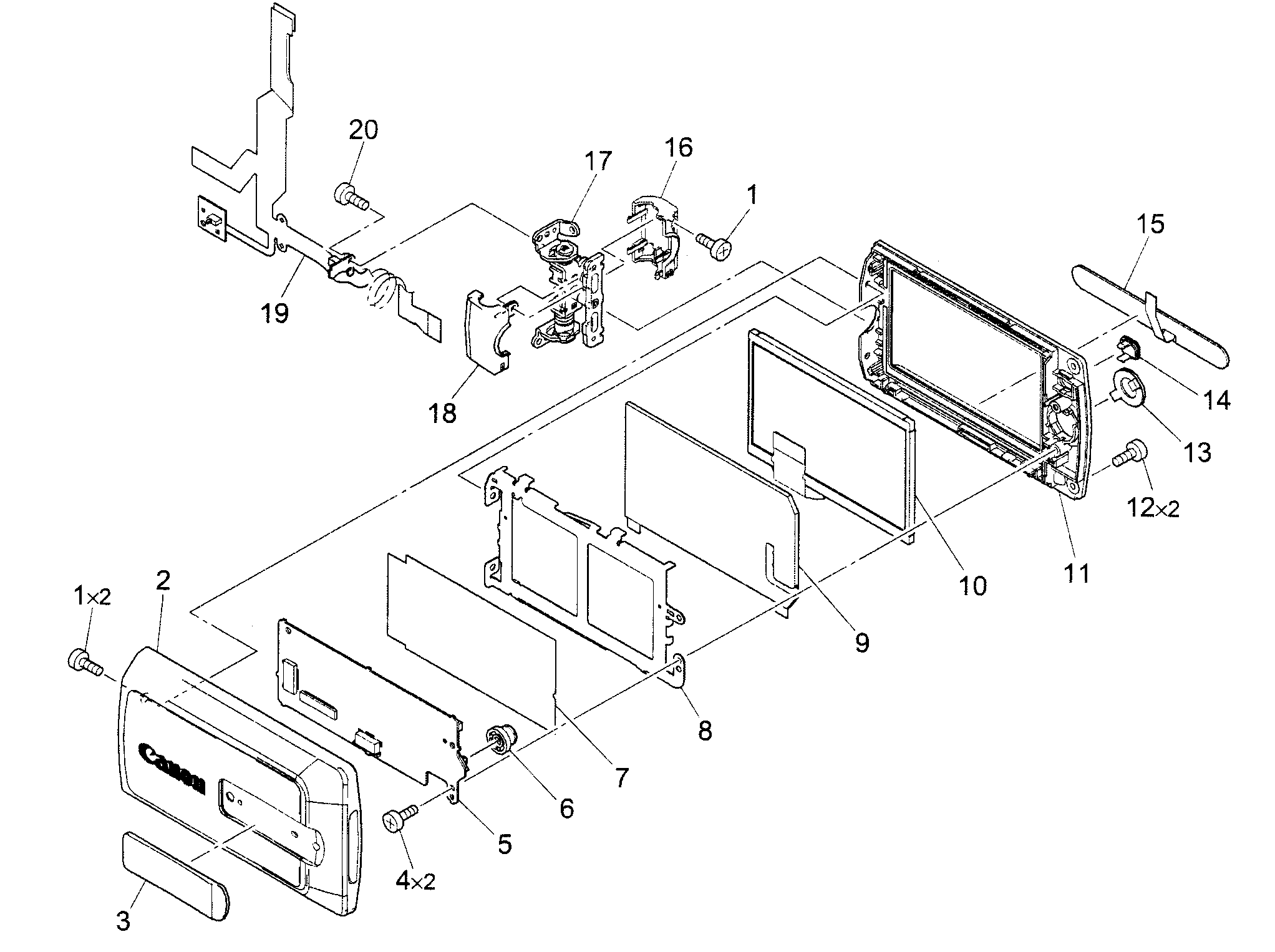

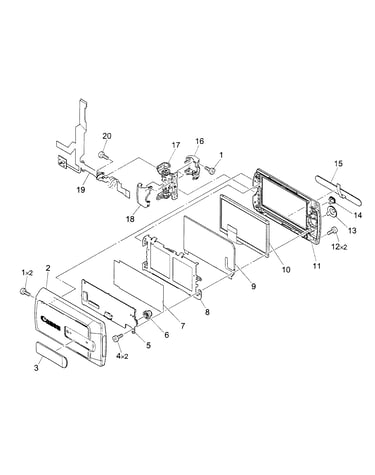

Lcd assy diagram

Screw

Part #XA4-9170-507

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Speaker WR1-5137-000
#16

Right assy diagram

Camcorder speaker

Part #WR1-5137-000

The manufacturer no longer makes this part, and there's no substitute part

Screw XA4-9170-557
#5

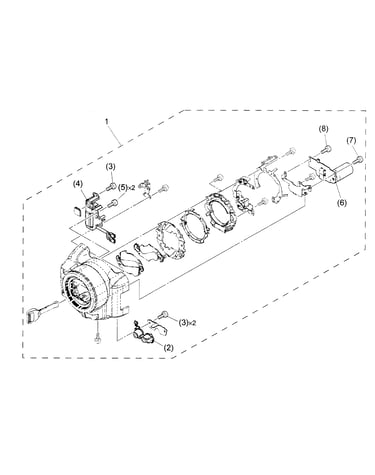

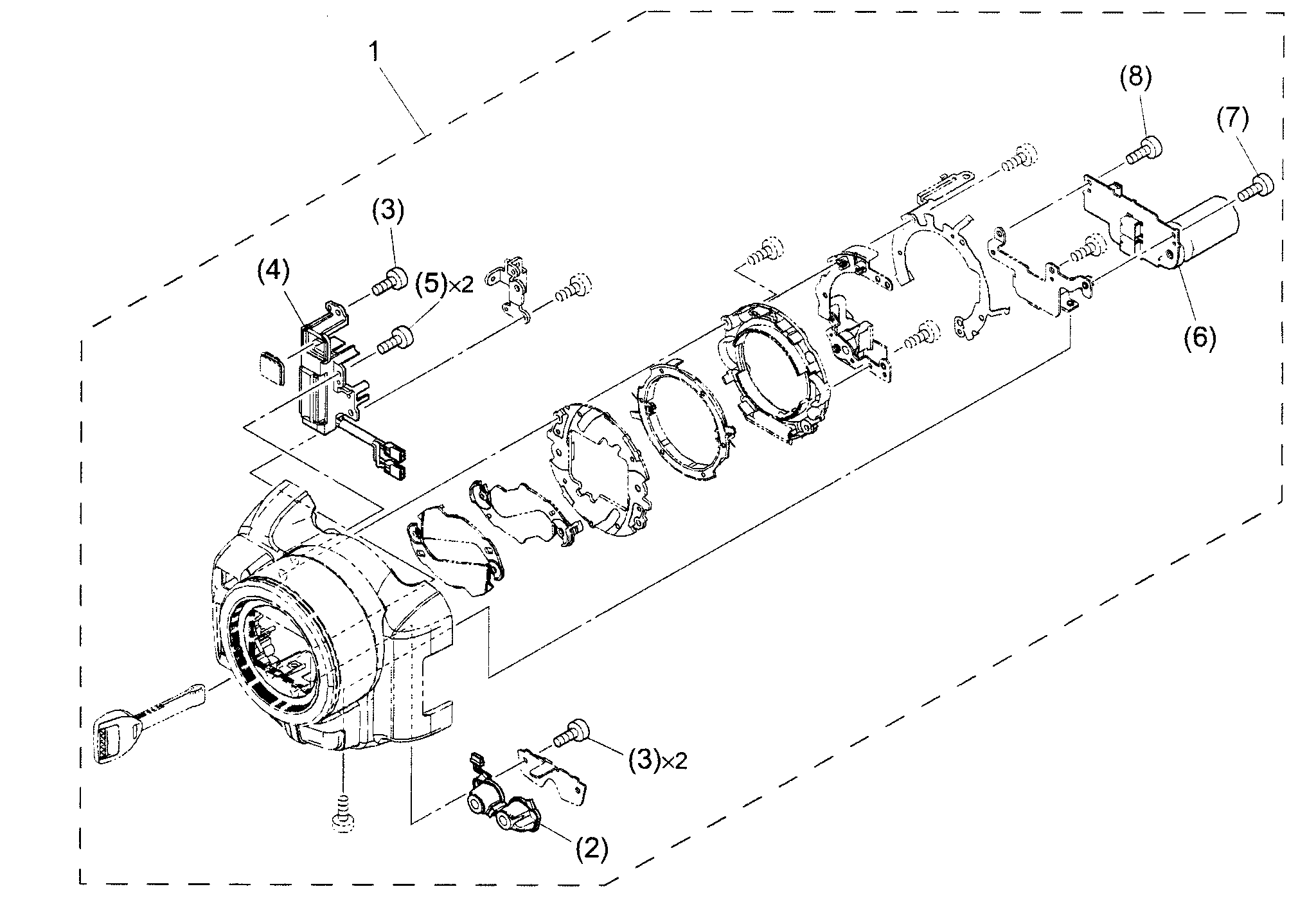

Front assy diagram

Screw

Part #XA4-9170-557

The manufacturer no longer makes this part, and there's no substitute part

Lens YN1-3901-000
#21

Cvf assy diagram

Lens

Part #YN1-3901-000

The manufacturer no longer makes this part, and there's no substitute part
