Model # 25HBR330A0030010 Official Carrier air conditioner

Here are the diagrams and repair parts for Official Carrier 25HBR330A0030010 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

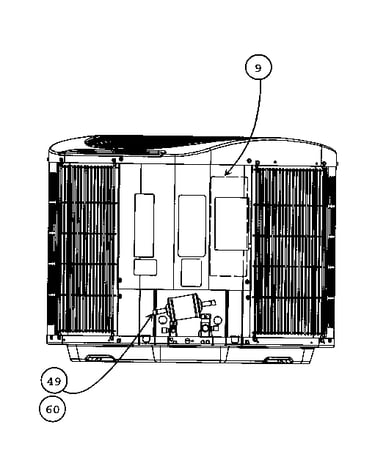

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Central Air Conditioner Start Capacitor (replaces Hc95de088, P281-8805) P281-8806
#NI

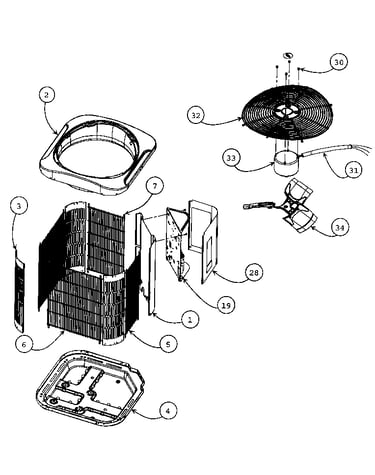

Cabinet parts diagram

Central air conditioner start capacitor (replaces hc95de088, p281-8805)

Part #P281-8806

$55.42
In Stock
Central Air Conditioner Condenser Fan Motor HC34GE240
#NI

Cabinet parts diagram

Central air conditioner condenser fan motor

Part #HC34GE240

$400.13 |
$12.00 OFF Phone Price : $412.13
In Stock
Lug HY90AZ009
#27

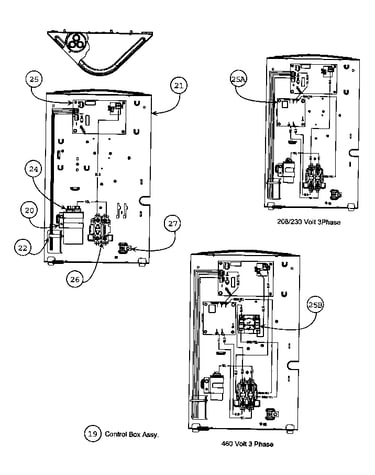

Control box diagram
