Kenmore
Boiler

Model # 229965560 Official Kenmore 6-section natural gas fixed boiler

Here are the diagrams and repair parts for Official Kenmore 229965560 6-section natural gas fixed boiler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Draft Blower 433-00-511
#10

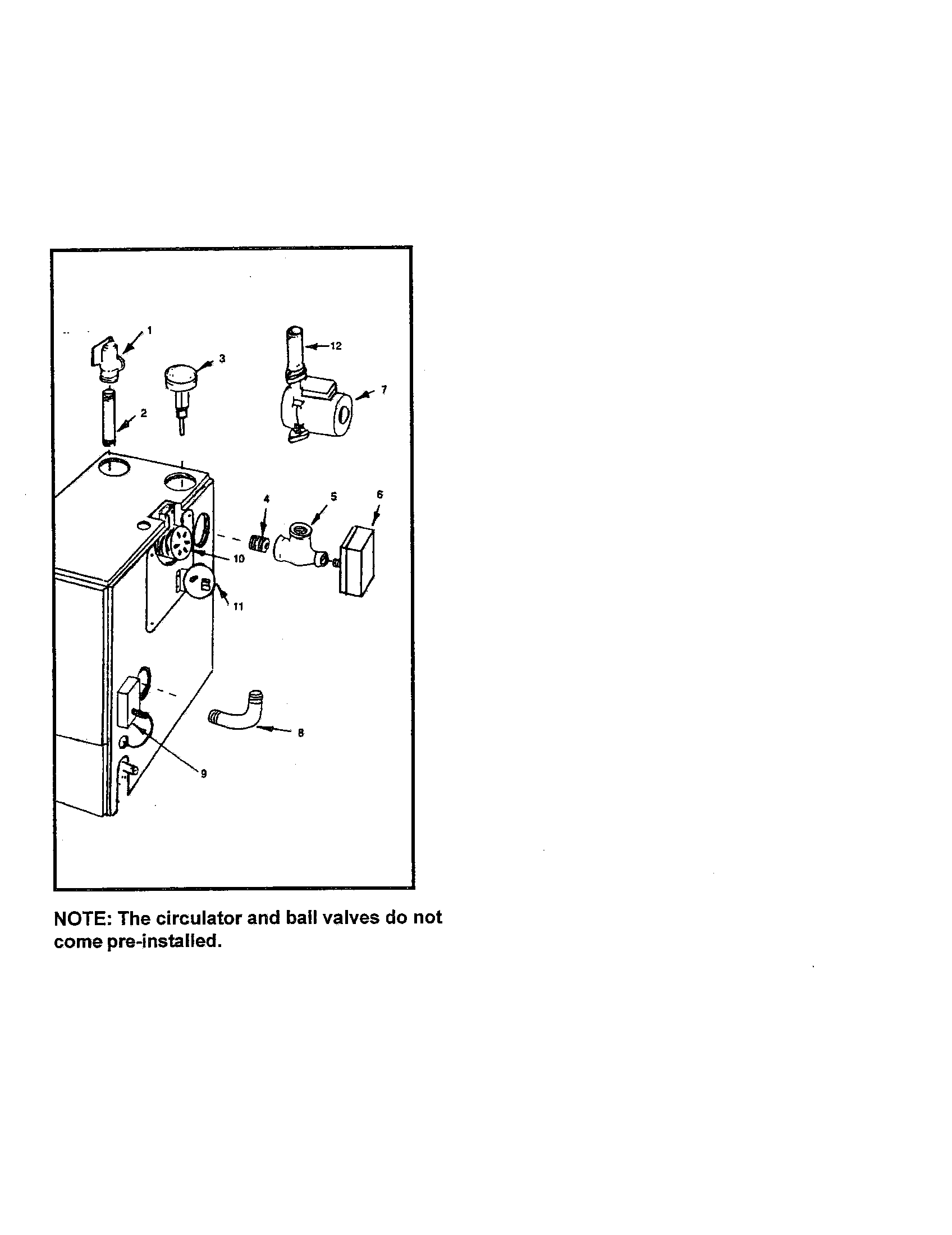

Boilers control and piping diagram

Draft blower

Part #433-00-511

Replaced by #2272156

?
Manufacturer substitution
This part replaces 433-00-511. Substitute parts can look different from the original.
$432.43 |
$12.00 OFF Phone Price : $444.43
In Stock
Burner 146-62-092
#7

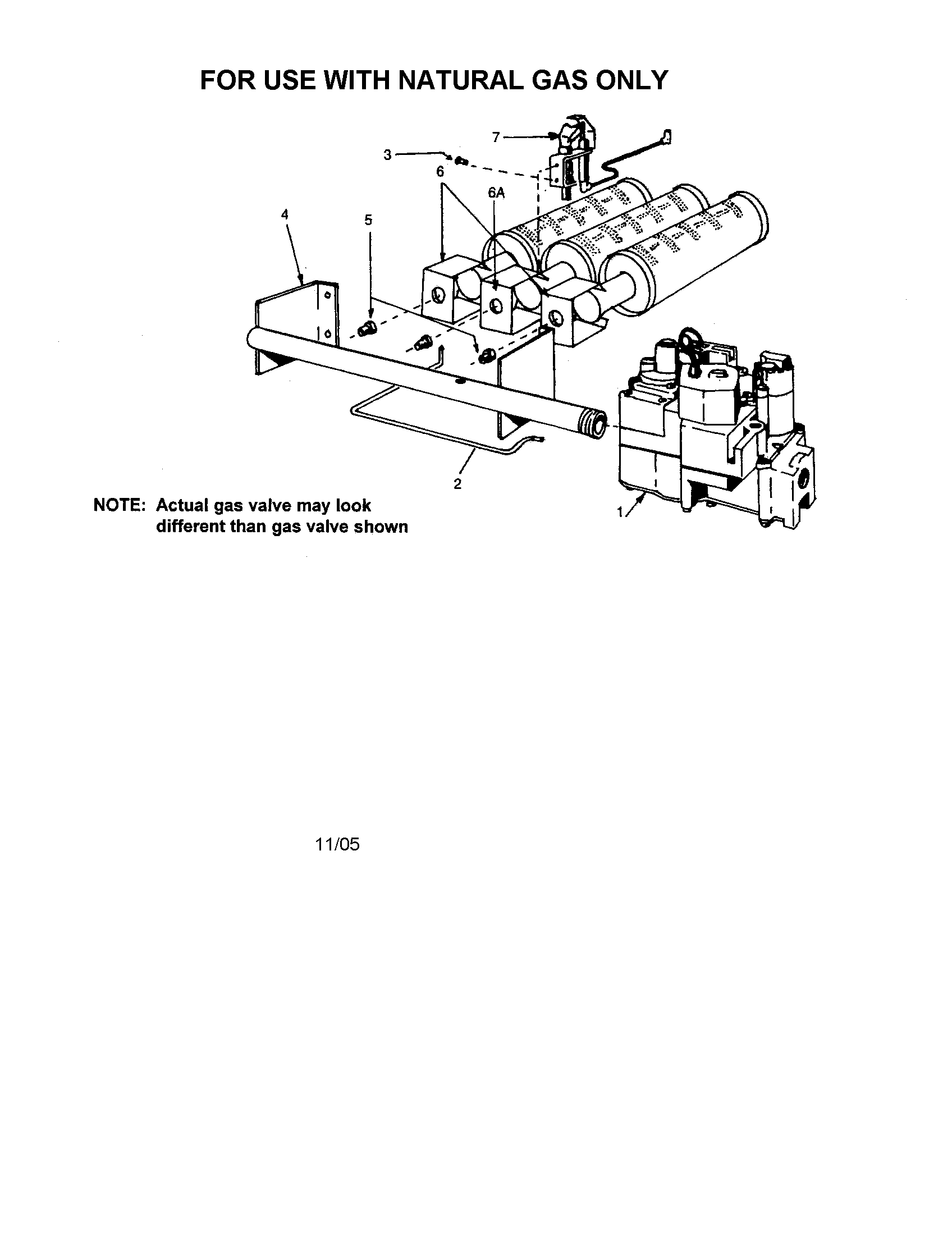

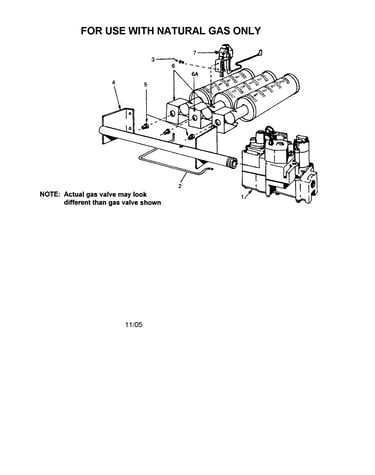

Natural gas burner and manifold diagram

Burner

Part #146-62-092

Replaced by #240011102

?
Manufacturer substitution
This part replaces 146-62-092. Substitute parts can look different from the original.
$62.99 |
9% OFF Phone Price : $68.99
In Stock
Relief Valve 146-22-011
#1

Boilers control and piping diagram

Relief valve

Part #146-22-011

Replaced by #10-408-05

?
Manufacturer substitution
This part replaces 146-22-011. Substitute parts can look different from the original.
$44.77 |
12% OFF Phone Price : $50.77
In Stock
Gas Valve 146-62-058
#1

Natural gas burner and manifold diagram

Gas valve

Part #146-62-058

The manufacturer no longer makes this part, and there's no substitute part

Circulator 146-26-043
#12

Boilers control and piping diagram

Circulator

Part #146-26-043

Replaced by #103251

?
Manufacturer substitution
This part replaces 146-26-043. Substitute parts can look different from the original.
$224.79 |
5% OFF Phone Price : $236.79
In Stock
Switch 146-23-007
#3

Boilers control and piping diagram

Switch

Part #146-23-007

Replaced by #240005245

?
Manufacturer substitution
This part replaces 146-23-007. Substitute parts can look different from the original.
$73.51
In Stock
Boiler Burner Roll-out Limit Switch (replaces 146-29-002-60) 146-29-002

#NI06

All parts diagram

Boiler burner roll-out limit switch (replaces 146-29-002-60)

Part #146-29-002

The manufacturer no longer makes this part, and there's no substitute part

Boiler Pressure Switch (replaces 146-55-002-60, 14655006) 146-55-006
#11

Boilers control and piping diagram

Boiler pressure switch (replaces 146-55-002-60, 14655006)

Part #146-55-006

The manufacturer no longer makes this part, and there's no substitute part

Tee 146-93-049
#5

Boilers control and piping diagram

Tee

Part #146-93-049

The manufacturer no longer makes this part, and there's no substitute part

Bs Inltn Rr 146-14-126
#6B

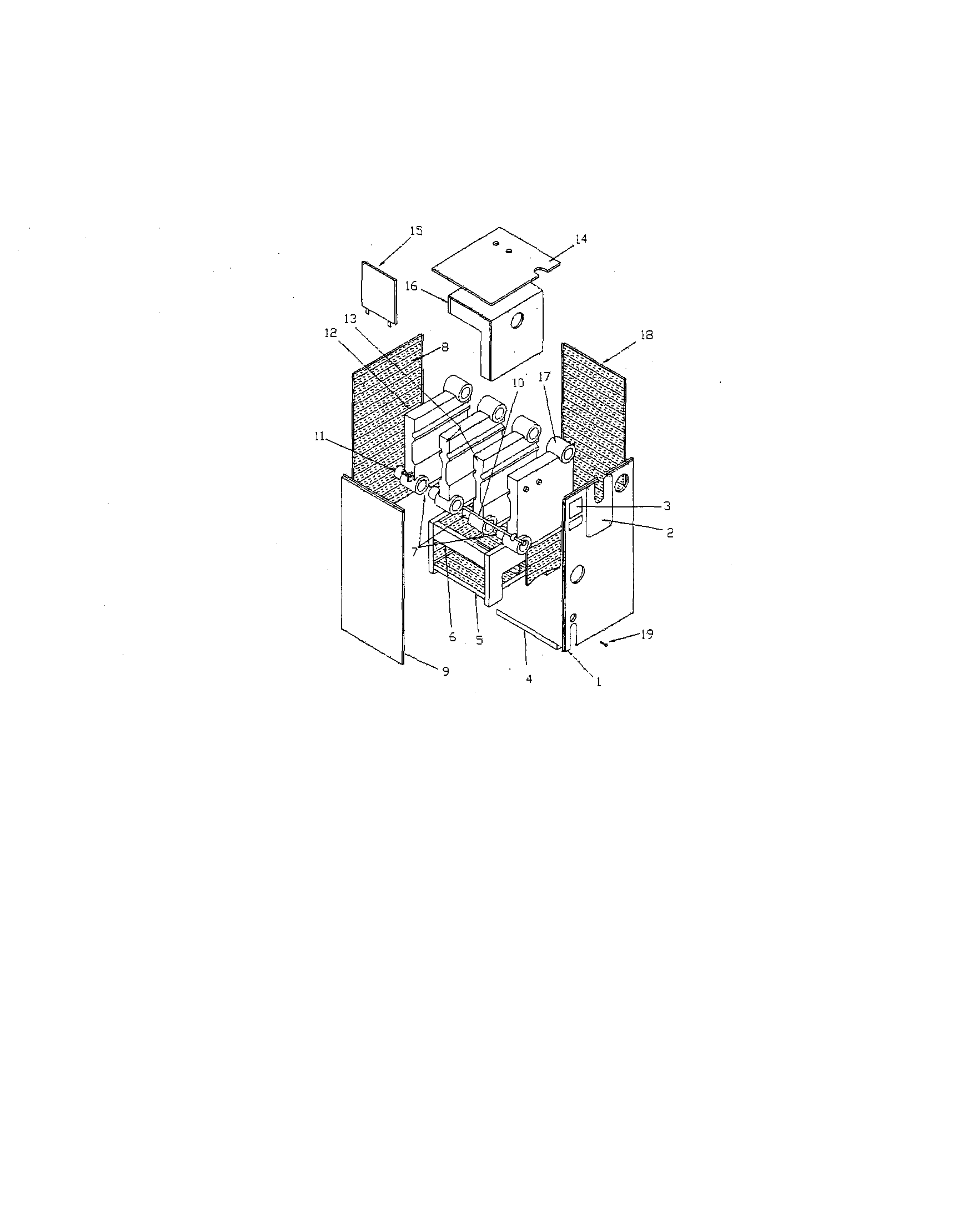

Induced draft boilers diagram

Bs inltn rr

Part #146-14-126

The manufacturer no longer makes this part, and there's no substitute part
