Model # 917347-3000 Official Craftsman transaxle

Here are the diagrams and repair parts for Official Craftsman 917347-3000 transaxle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search

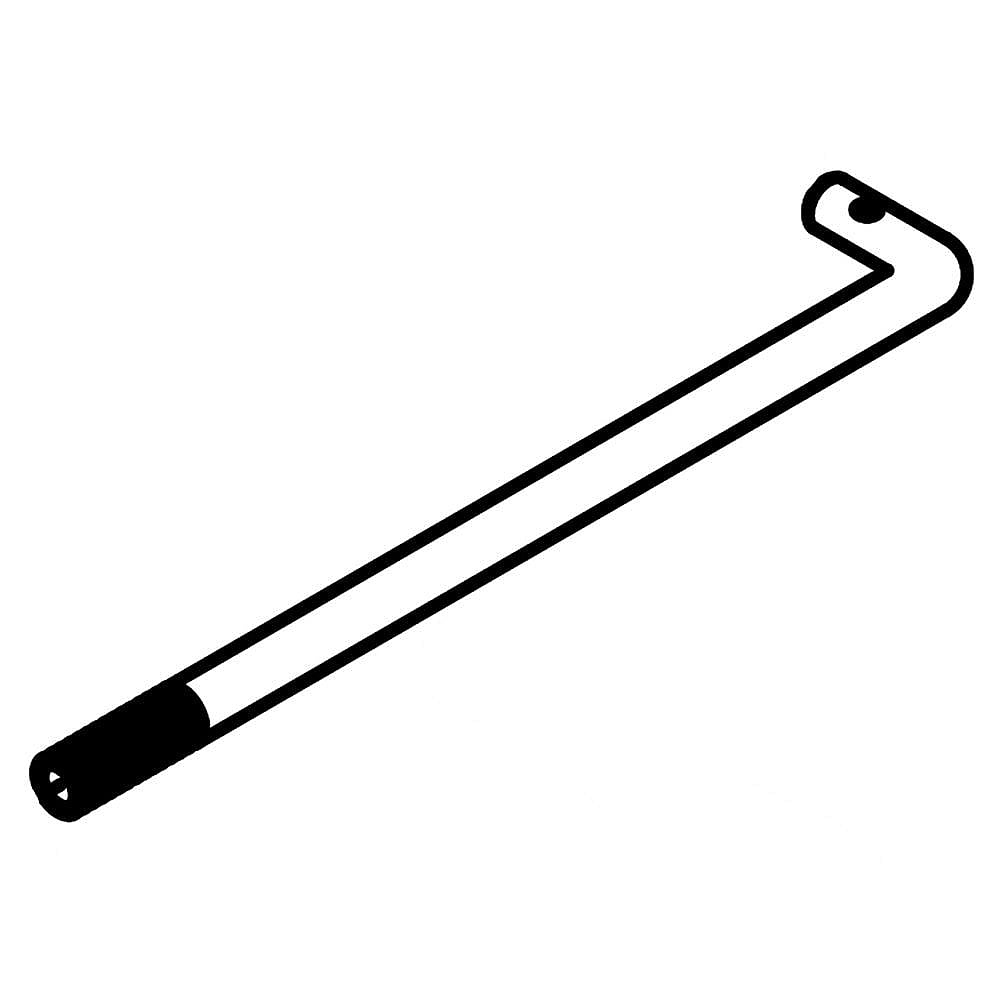

ALL PARTS
Showing 10 of 117 parts  |
Lawn Tractor Transaxle Sealant 178322
#79

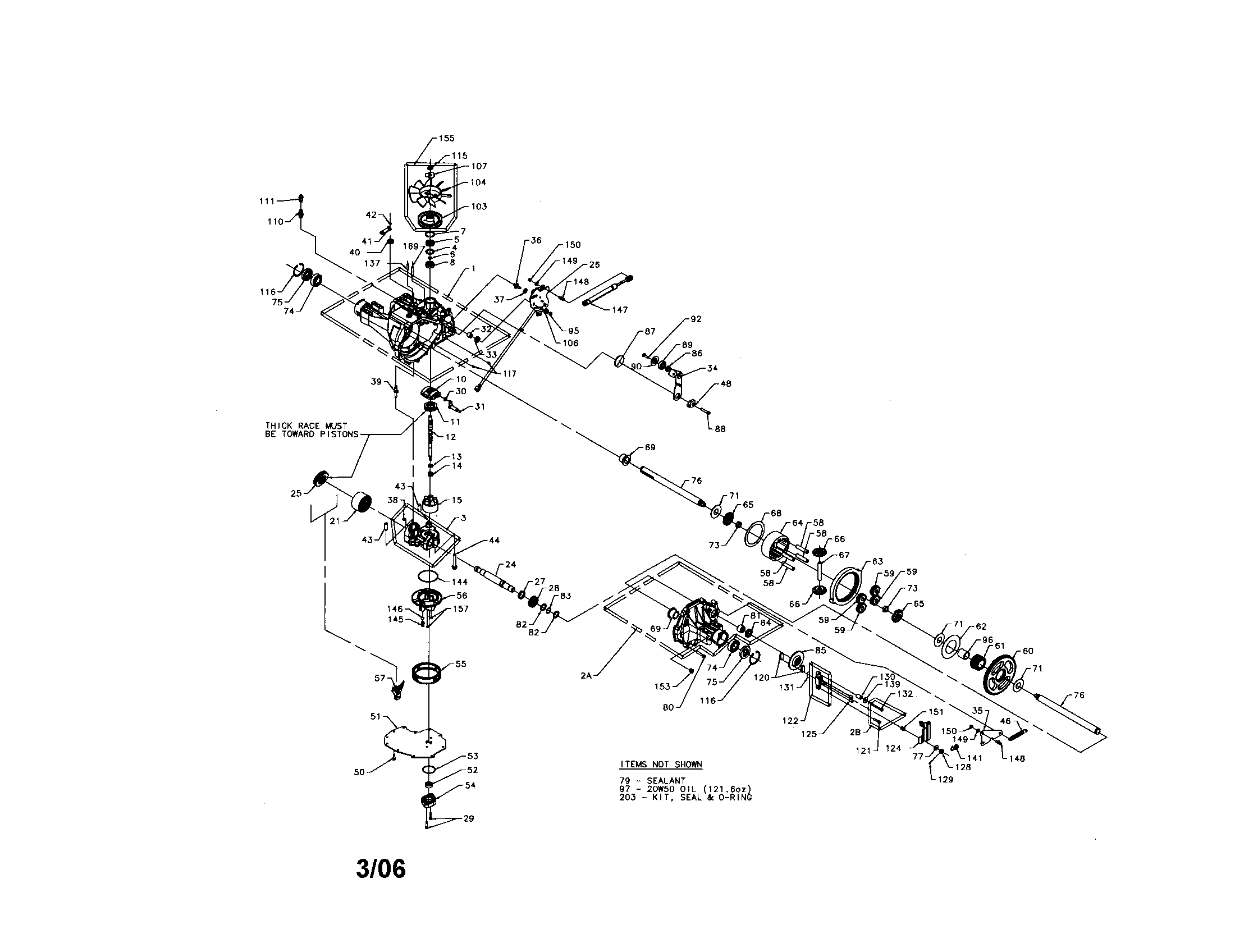

Transaxle diagram

Lawn tractor transaxle sealant

Part #178322

$76.42
In Stock
Screw O-ring 169548
#157

Transaxle diagram

Screw o-ring

Part #169548

Replaced by #583031901

?
Manufacturer substitution
This part replaces 169548. Substitute parts can look different from the original.
$10.26
In Stock
Spacer.lockn 178786
#90

Transaxle diagram

Spacer.lockn

Part #178786

Replaced by #583090301

?
Manufacturer substitution
This part replaces 178786. Substitute parts can look different from the original.
$13.69
In Stock
Seal.1" (507 161157
#75

Transaxle diagram

Seal.1" (507

Part #161157

Replaced by #583000201

?
Manufacturer substitution
This part replaces 161157. Substitute parts can look different from the original.
$24.09 |
20% OFF Phone Price : $30.09
In Stock
Spacer #2371 170411
#130

Transaxle diagram

Spacer #2371

Part #170411

Replaced by #583001201

?
Manufacturer substitution
This part replaces 170411. Substitute parts can look different from the original.
This item is not returnable
$11.97
In Stock
Bearing.30x5 173159
#11

Transaxle diagram

Bearing.30x5

Part #173159

Replaced by #532150771

?
Manufacturer substitution
This part replaces 173159. Substitute parts can look different from the original.
$39.98
In Stock
Ball Stud 178802
#148

Transaxle diagram

Ball stud

Part #178802

Replaced by #583090801

?
Manufacturer substitution
This part replaces 178802. Substitute parts can look different from the original.
$20.54
In Stock
Filter 178321
#55

Transaxle diagram

Filter

Part #178321

Replaced by #583087401

?
Manufacturer substitution
This part replaces 178321. Substitute parts can look different from the original.
$94.27 |
6% OFF Phone Price : $100.27
In Stock
Bolt.hex.1/4 193020
#132

Transaxle diagram

Bolt.hex.1/4

Part #193020

Replaced by #584281401

?
Manufacturer substitution
This part replaces 193020. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Damper 404264
#147

Transaxle diagram

Damper

Part #404264

Replaced by #583290101

?
Manufacturer substitution
This part replaces 404264. Substitute parts can look different from the original.
$188.54 |
6% OFF Phone Price : $200.54
In Stock
