Model # WF45T6200AW/US-03 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WF45T6200AW-US-03 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

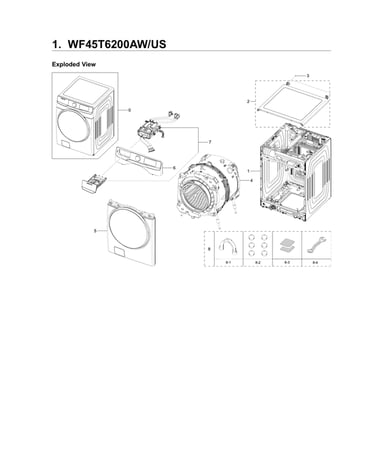

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Washer Drain Pump Assembly DC97-20621A
#9

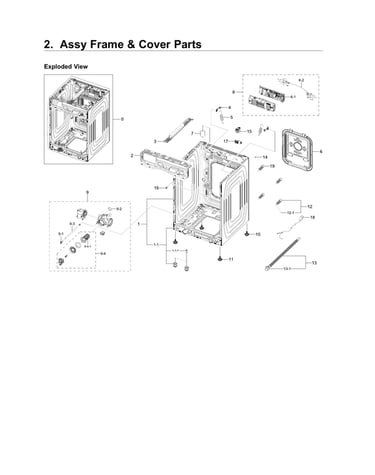

Frame & cover parts assy diagram

Washer drain pump assembly

Part #DC97-20621A

BEST SELLER
$117.08 |
9% OFF Phone Price : $129.08
In Stock
Washer Counterweight DC67-00999A
#3

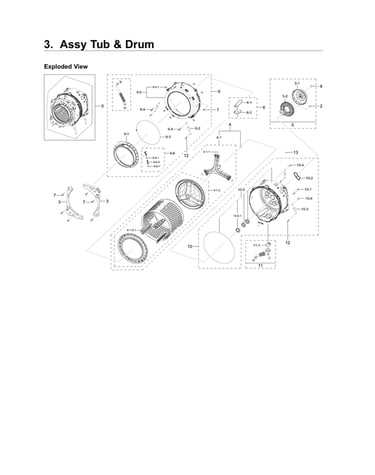

Tub & drum assy diagram

Washer counterweight

Part #DC67-00999A

BEST SELLER
This item is not returnable
$120.27 |
9% OFF Phone Price : $132.27
In Stock
Washer Water Inlet Valve (replaces Dc62-30314h) DC62-30314K
#2-2-2

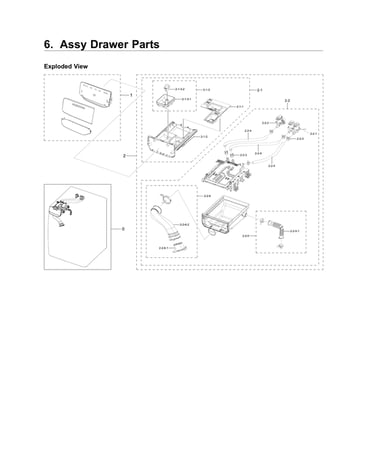

Drawer parts assy diagram

Washer water inlet valve (replaces dc62-30314h)

Part #DC62-30314K

BEST SELLER
$61.69 |
9% OFF Phone Price : $67.69
In Stock
Washer Shock Absorber DC66-00470D
Washer shock absorber

Part #DC66-00470D

BEST SELLER
$50.08 |
11% OFF Phone Price : $56.08
In Stock
Washer Door Boot DC64-03788A
#9-1

Tub & drum assy diagram

Washer door boot

Part #DC64-03788A

BEST SELLER
$72.77 |
8% OFF Phone Price : $78.77
In Stock
Washer Door Boot Spring Clamp DC97-04973B
#6

Front parts assy diagram

Washer door boot spring clamp

Part #DC97-04973B

BEST SELLER
$10.94 |
15% OFF Phone Price : $12.94
In Stock
Washer Outer Front Tub DC97-21466A
#9-5

Tub & drum assy diagram

Washer outer front tub

Part #DC97-21466A

BEST SELLER
This item is not returnable
$126.71 |
9% OFF Phone Price : $138.71
In Stock
Washer Door Boot Spring Clamp DC97-04981F
#9-3

Tub & drum assy diagram

Washer door boot spring clamp

Part #DC97-04981F

BEST SELLER
$18.75 |
10% OFF Phone Price : $20.75
In Stock
Washer Bolt (replaces 6011-001491) DC60-40137A
#4-1-1

Tub & drum assy diagram

Washer bolt (replaces 6011-001491)

Part #DC60-40137A

BEST SELLER
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Washer Door Lock Switch DC34-00028A
#8

Front parts assy diagram

Washer door lock switch

Part #DC34-00028A

BEST SELLER
$88.26 |
6% OFF Phone Price : $94.26
In Stock
