Compact Refrigerator

Model # TAX2SNCWH Official GE refrigerator - c series

Here are the diagrams and repair parts for Official GE TAX2SNCWH refrigerator - c series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Power Cor WR23X420
#4

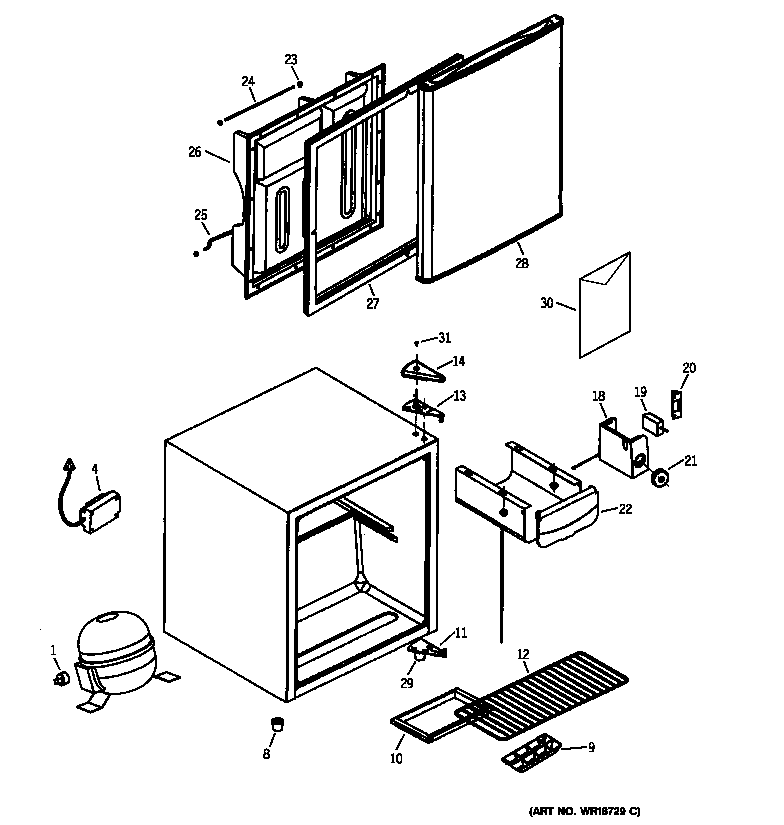

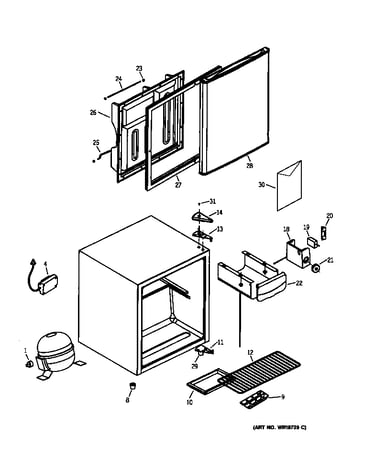

Refrigerator diagram

Power cor

Part #WR23X420

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X420. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Ptc Relay WR7X10027
#1

Refrigerator diagram

Refrigerator ptc relay

Part #WR7X10027

$52.49
In Stock
Refrigerator Hinge, Upper WR13X10073
#13

Refrigerator diagram

Refrigerator hinge, upper

Part #WR13X10073

$17.99
In Stock
Refrigerator Owner's Manual 49-6075
#30B

Refrigerator diagram

Refrigerator owner's manual

Part #49-6075

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Liner WR77X10028
#26

Refrigerator diagram

Refrigerator door liner

Part #WR77X10028

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Use And Care Manual 31-51312
#30A

Refrigerator diagram

Refrigerator use and care manual

Part #31-51312

The manufacturer no longer makes this part, and there's no substitute part

Short Fro WR2X10437
#29

Refrigerator diagram

Short fro

Part #WR2X10437

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Hinge WR13X10072
#11

Refrigerator diagram

Refrigerator hinge

Part #WR13X10072

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Temperature WR17X10569
#18

Refrigerator diagram

Refrigerator temperature

Part #WR17X10569

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ice Tray WR30X10010
#9

Refrigerator diagram

Refrigerator ice tray

Part #WR30X10010

The manufacturer no longer makes this part, and there's no substitute part
