Model # MXS55PDATS Official Maytag commercial washer

Here are the diagrams and repair parts for Official Maytag MXS55PDATS commercial washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

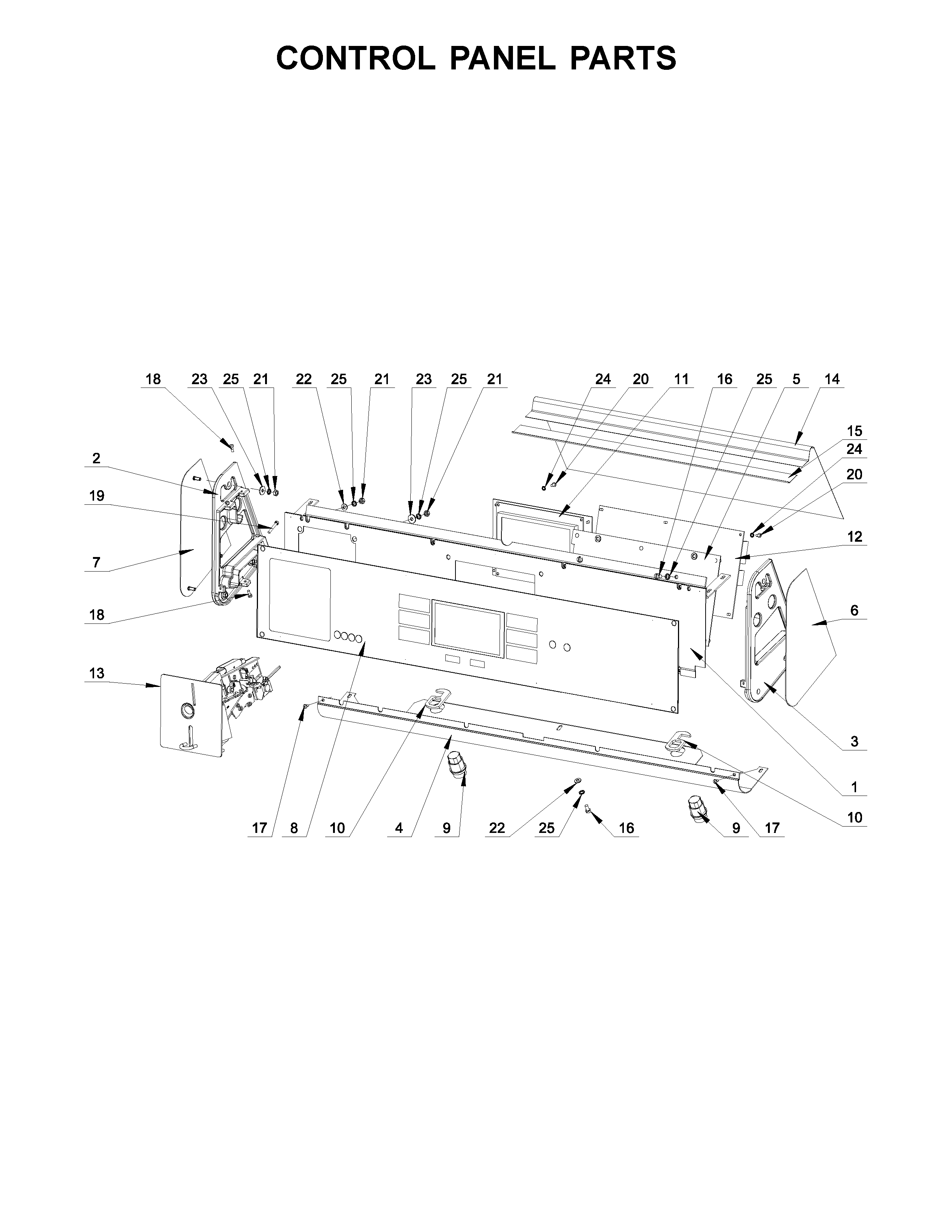

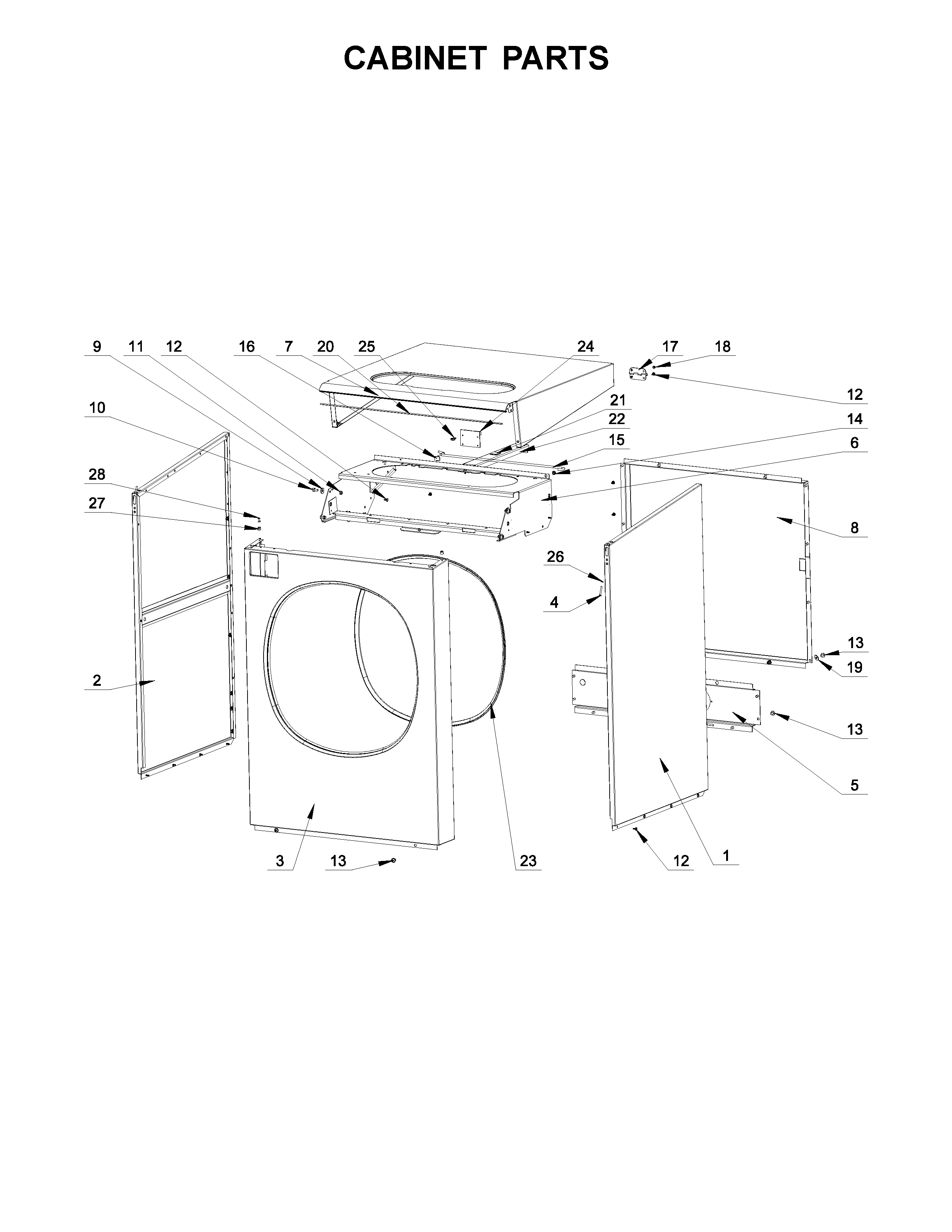

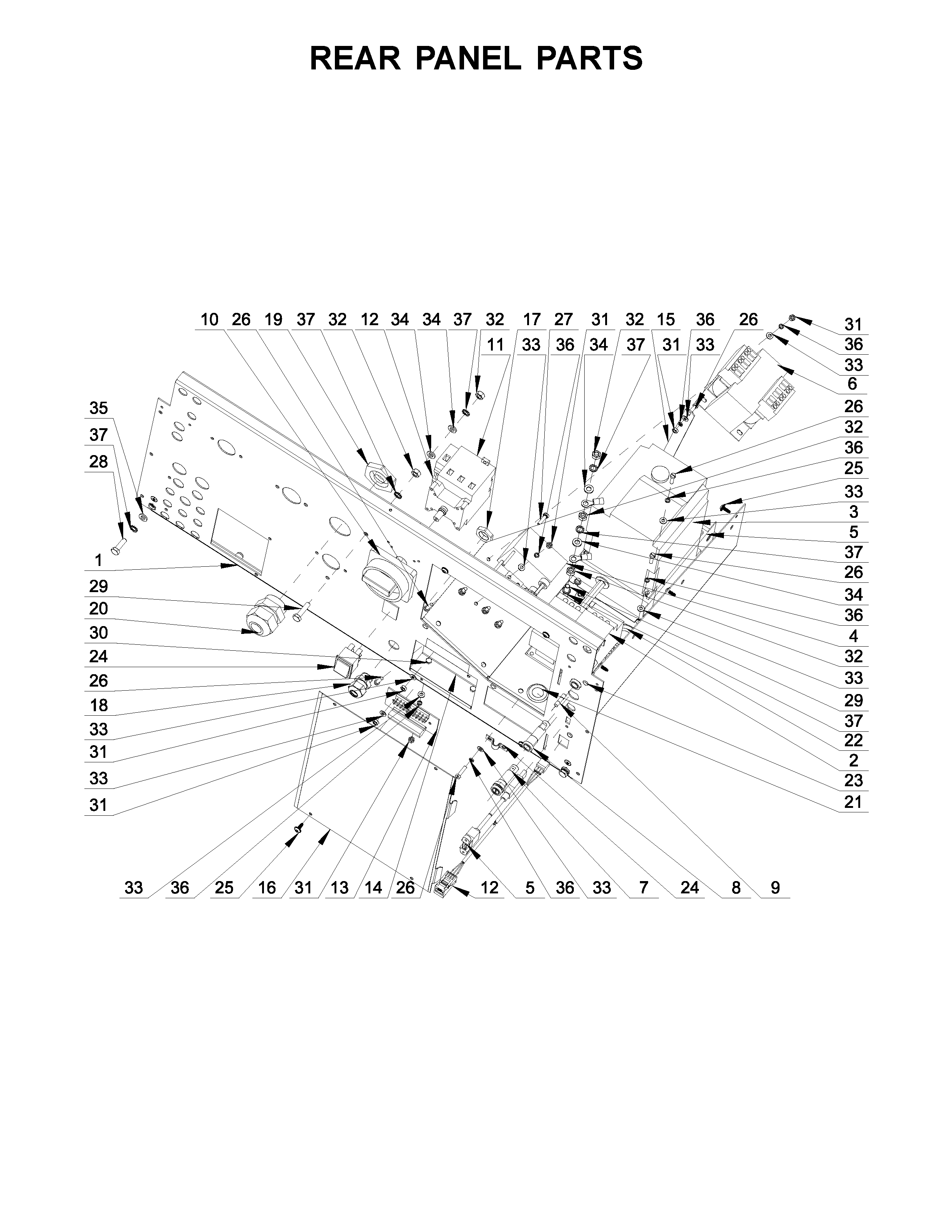

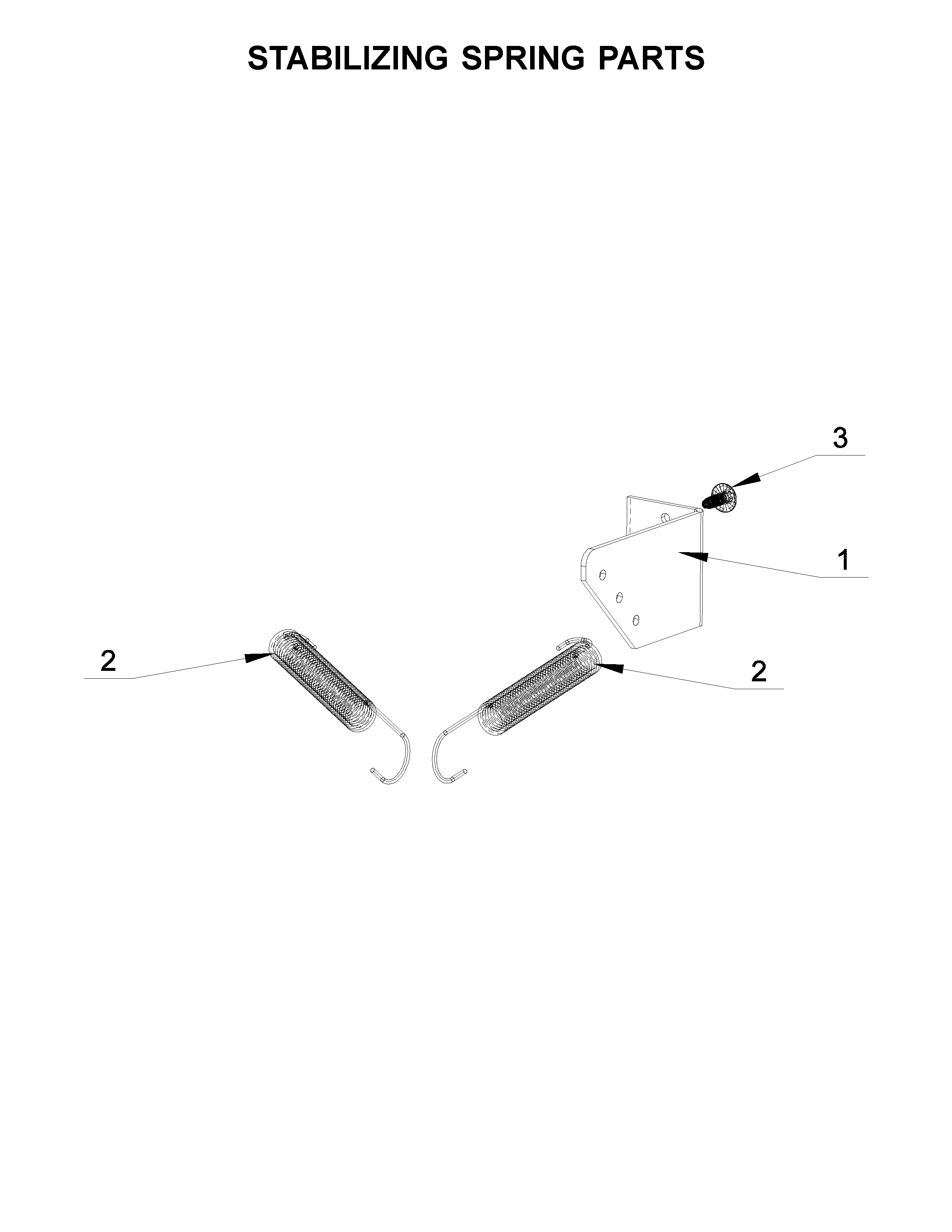

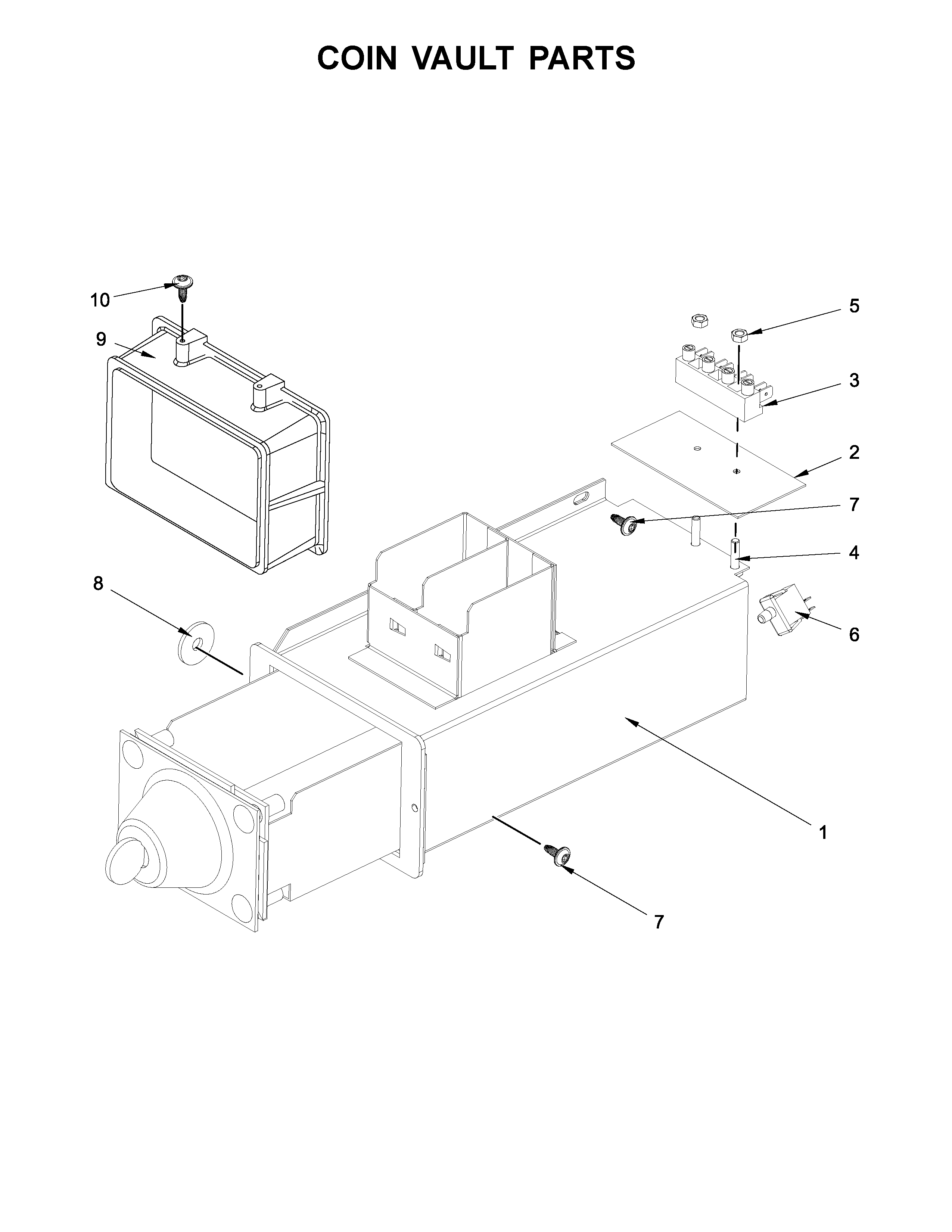

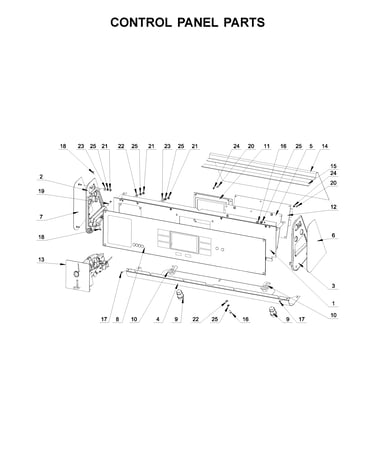

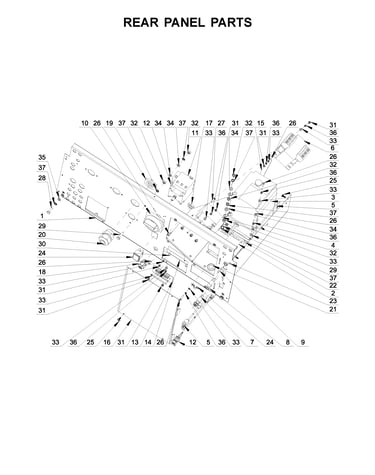

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 296 parts  |
Clamp W10712805
#19

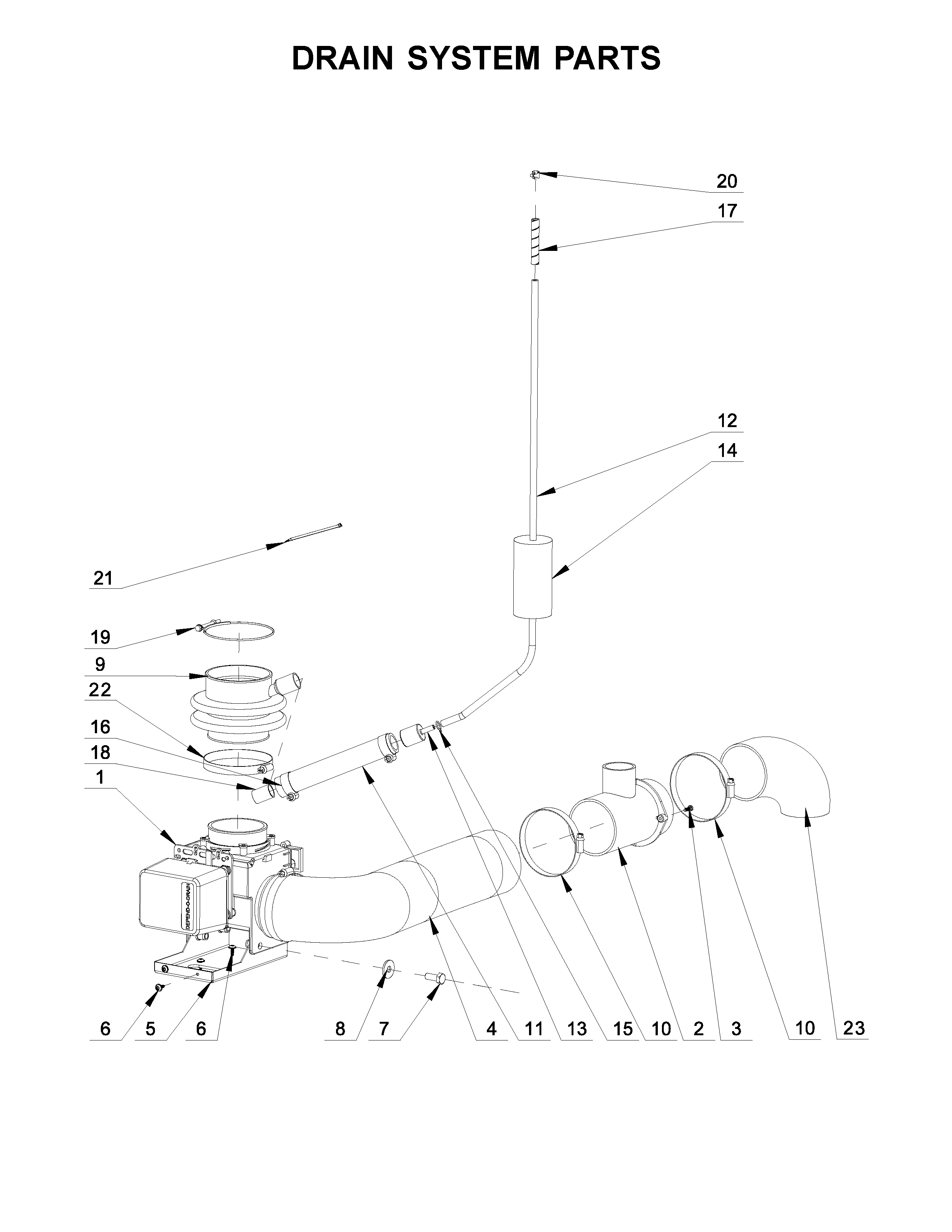

Drain system parts diagram

Clamp

Part #W10712805

Replaced by #WP696392

?
Manufacturer substitution
This part replaces W10712805. Substitute parts can look different from the original.
This item is not returnable
$5.89 |
15% OFF Phone Price : $6.89
In Stock
Hinge W10712306
#4

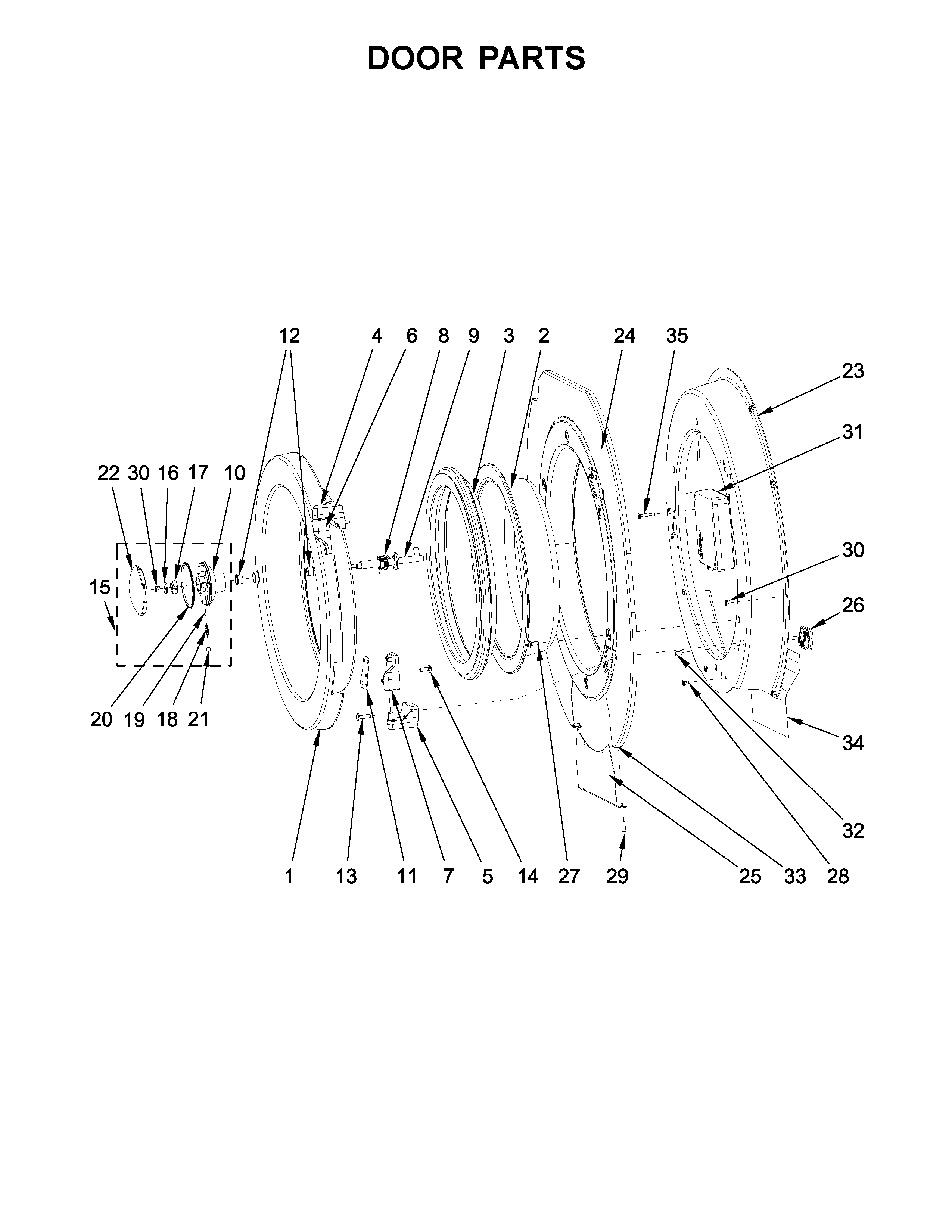

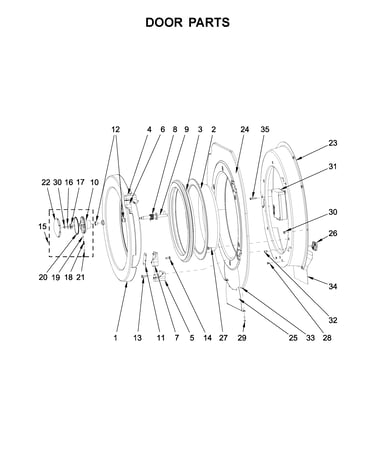

Door parts diagram

Hinge

Part #W10712306

$15.18
In Stock
Coil W10713170
#3

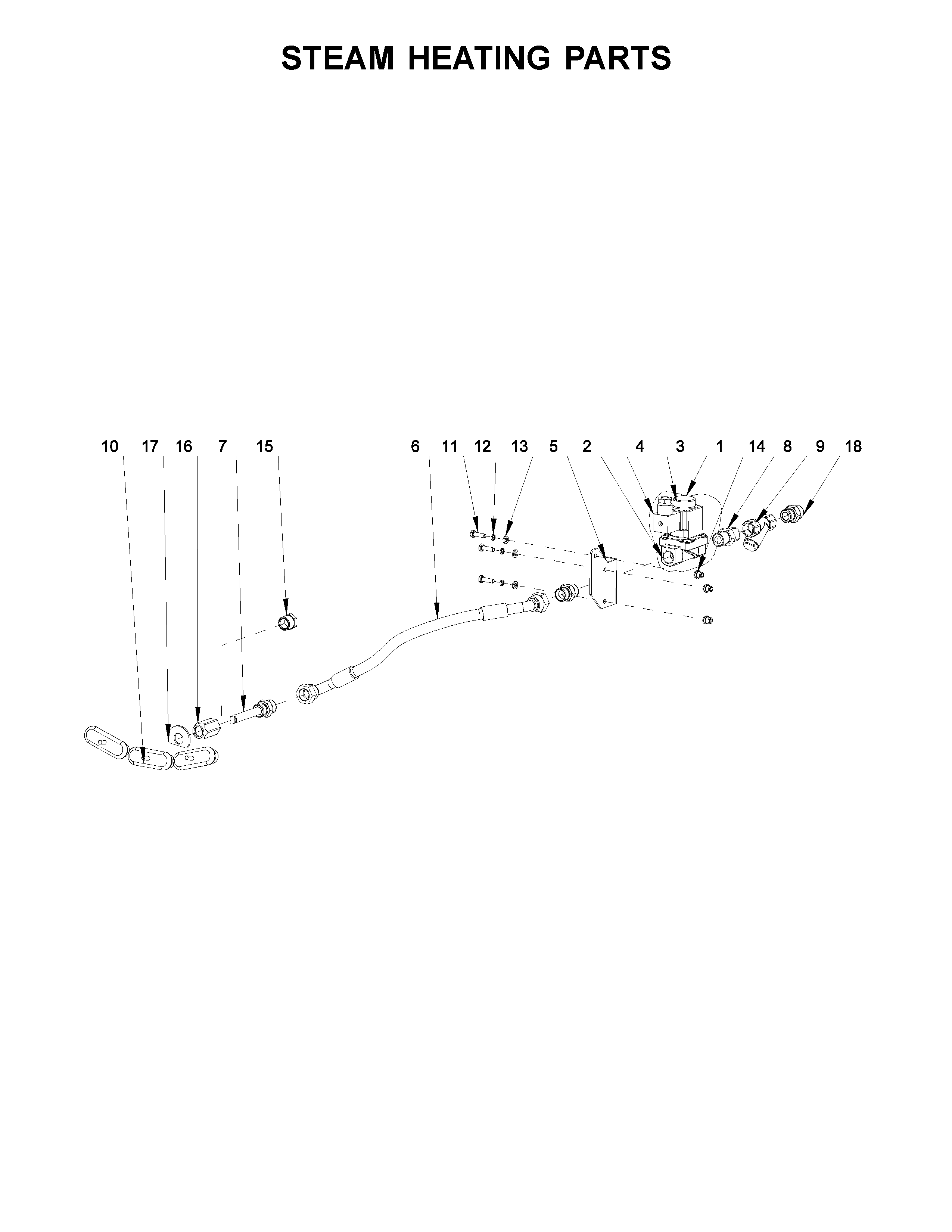

Steam heating parts diagram

Coil

Part #W10713170

$437.93
In Stock
Door And Lock Holder Complete W10712358
#23

Door parts diagram

Door and lock holder complete

Part #W10712358

$364.53
In Stock
Spring W10711742
#2

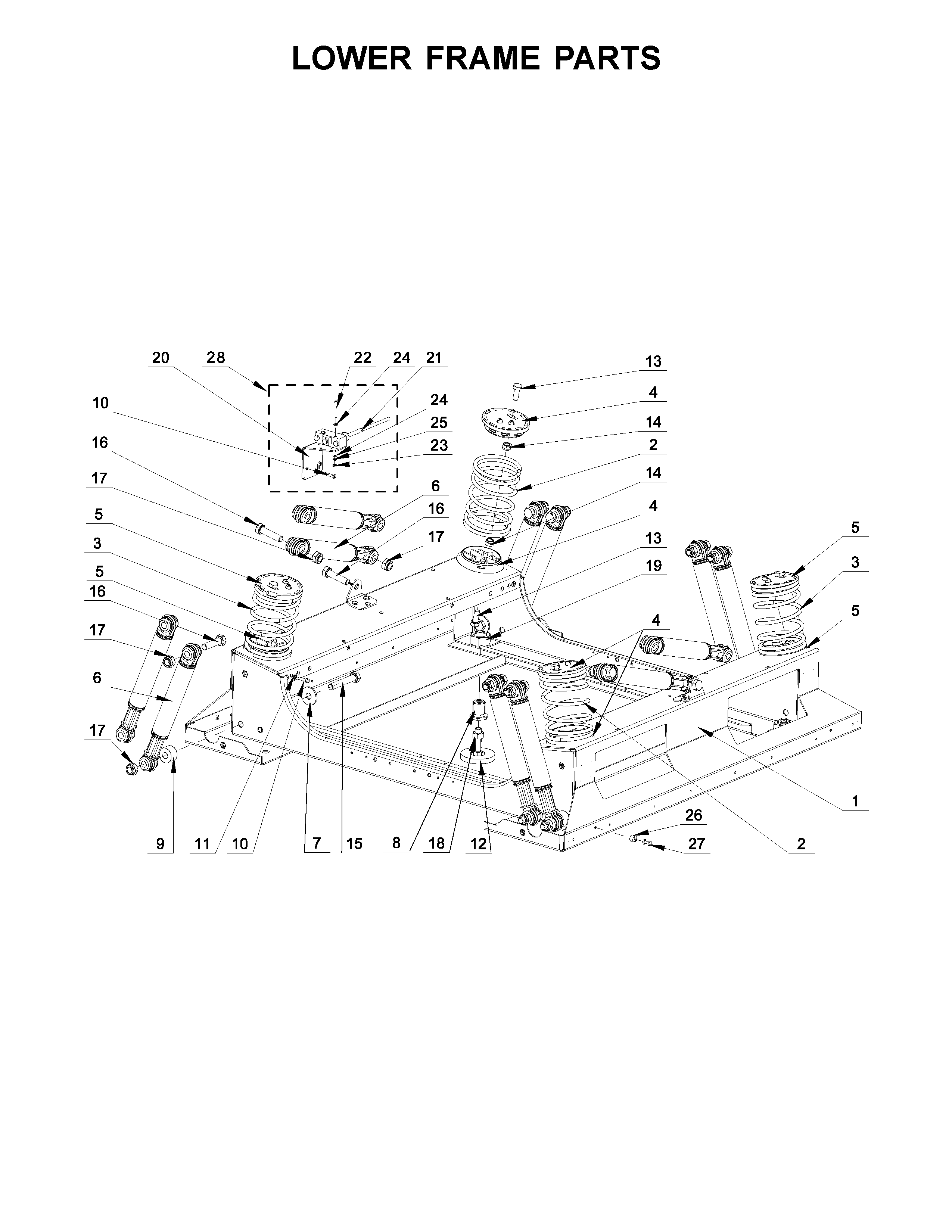

Lower frame parts diagram

Spring

Part #W10711742

$130.04
In Stock
Sensor W10747780
#22

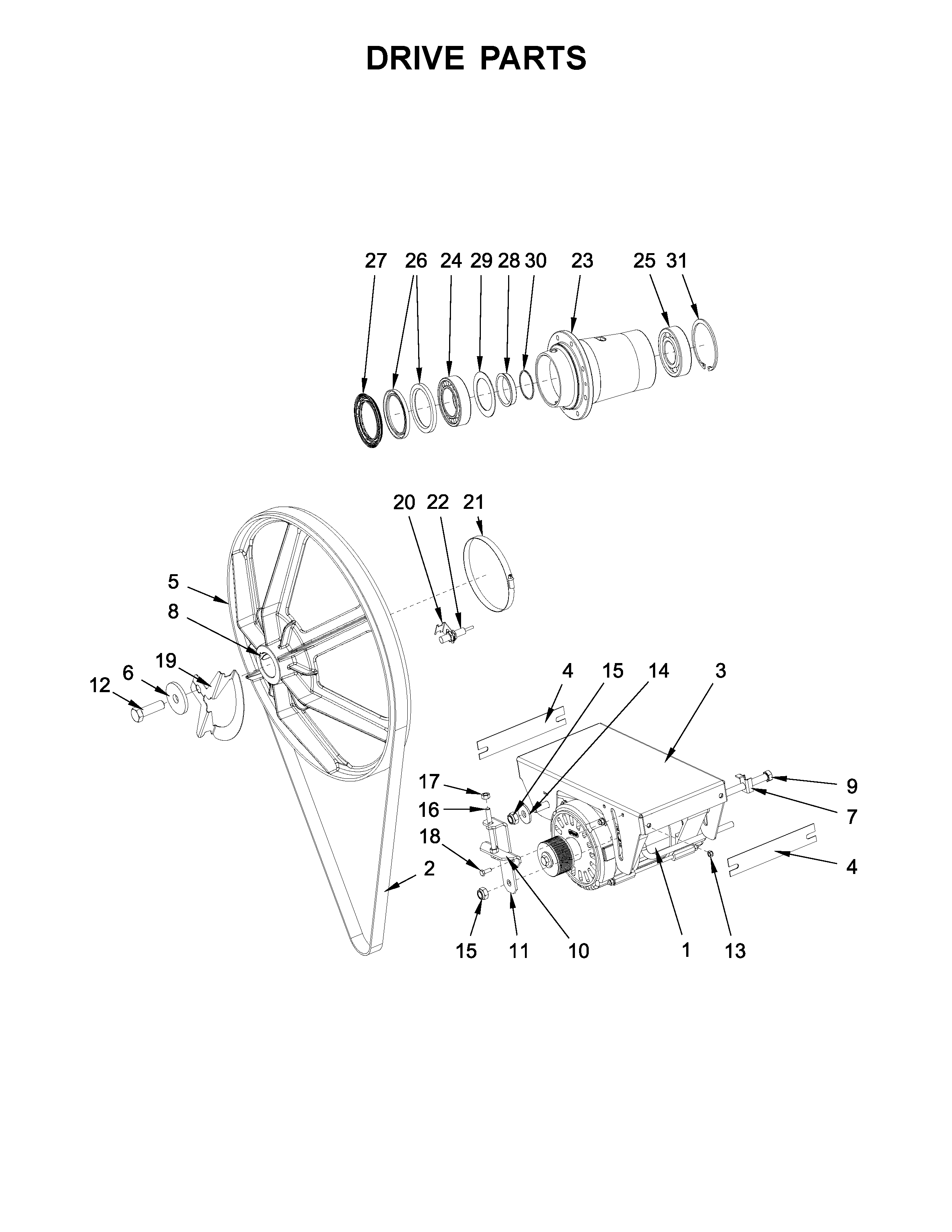

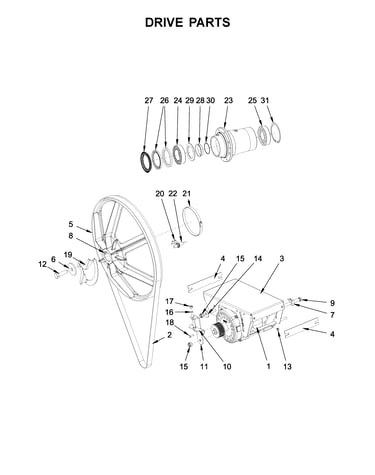

Drive parts diagram

Sensor

Part #W10747780

$144.22
In Stock
12.25kg Weight W10711727
#5

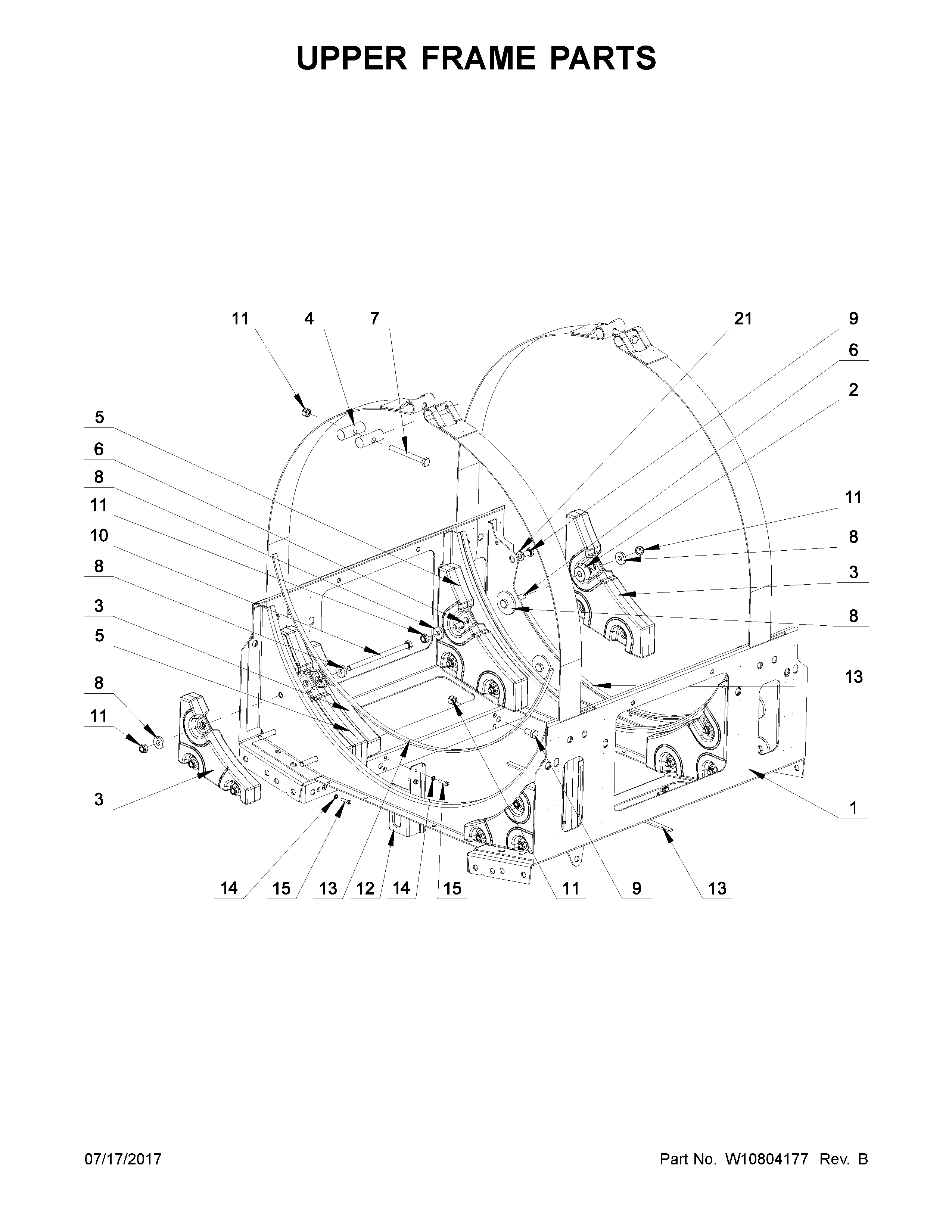

Upper frame parts diagram

12.25kg weight

Part #W10711727

$134.53
In Stock
Commercial Washer Water Temperature Seal W10712713
#23

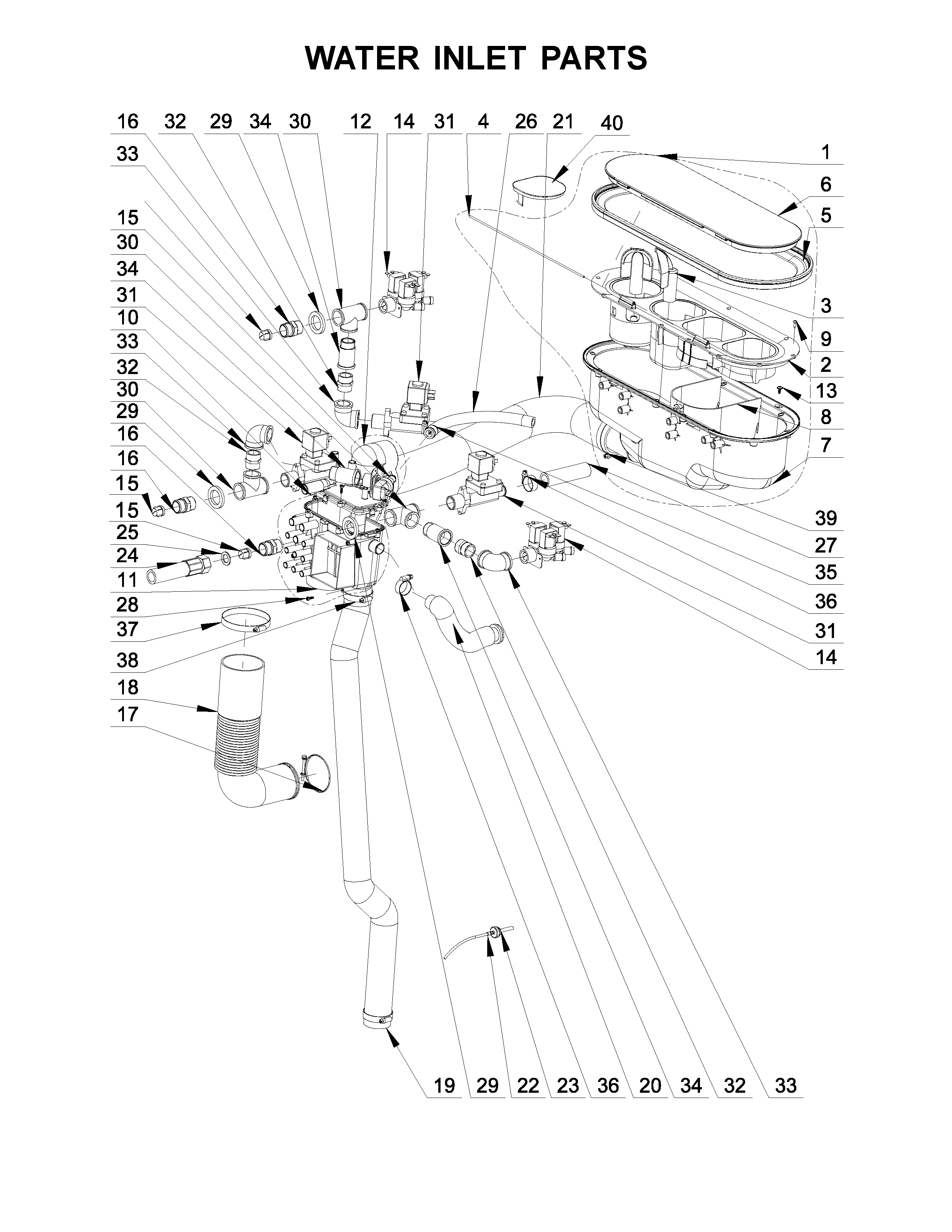

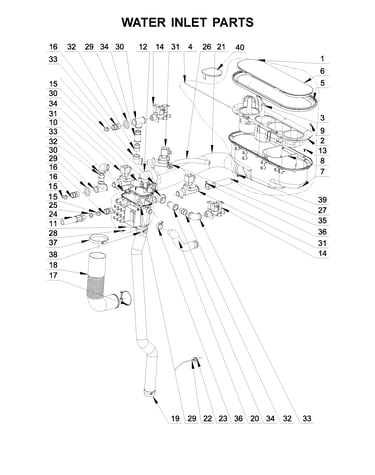

Water inlet parts diagram

Commercial washer water temperature seal

Part #W10712713

$10.64
In Stock
Elbow Pipe W10712742
#21

Water inlet parts diagram

Elbow pipe

Part #W10712742

$106.51
In Stock
External Tub -complete, Steam Heating W10713383
#2

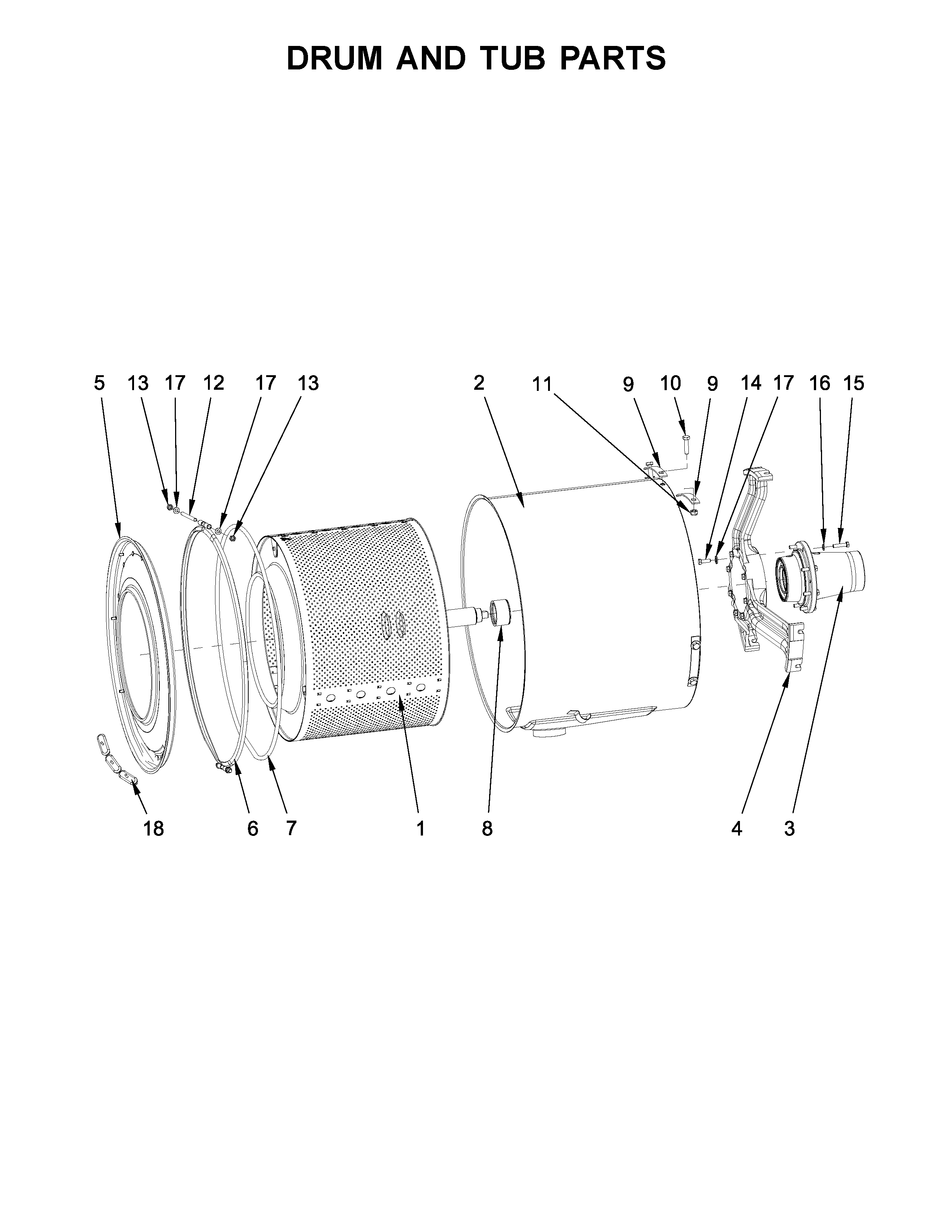

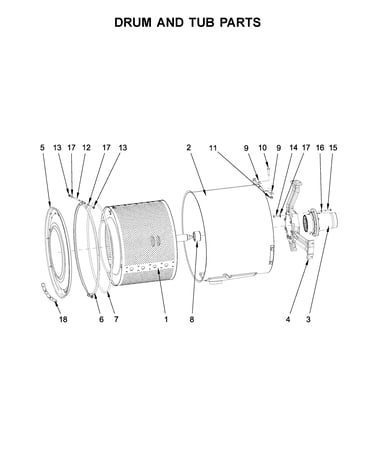

Drum and tub parts diagram

External tub -complete, steam heating

Part #W10713383

$1822.82
In Stock
