Briggs & Stratton
Lawn & Garden Engine

Model # 12J802-2324-E1 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 12J802-2324-E1 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

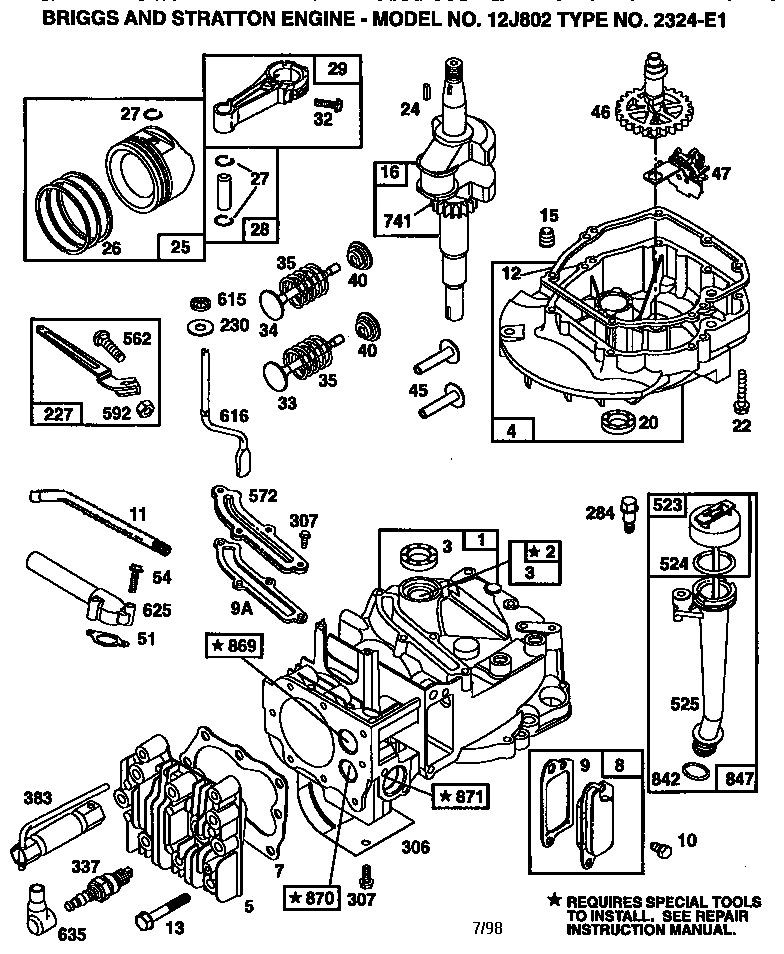

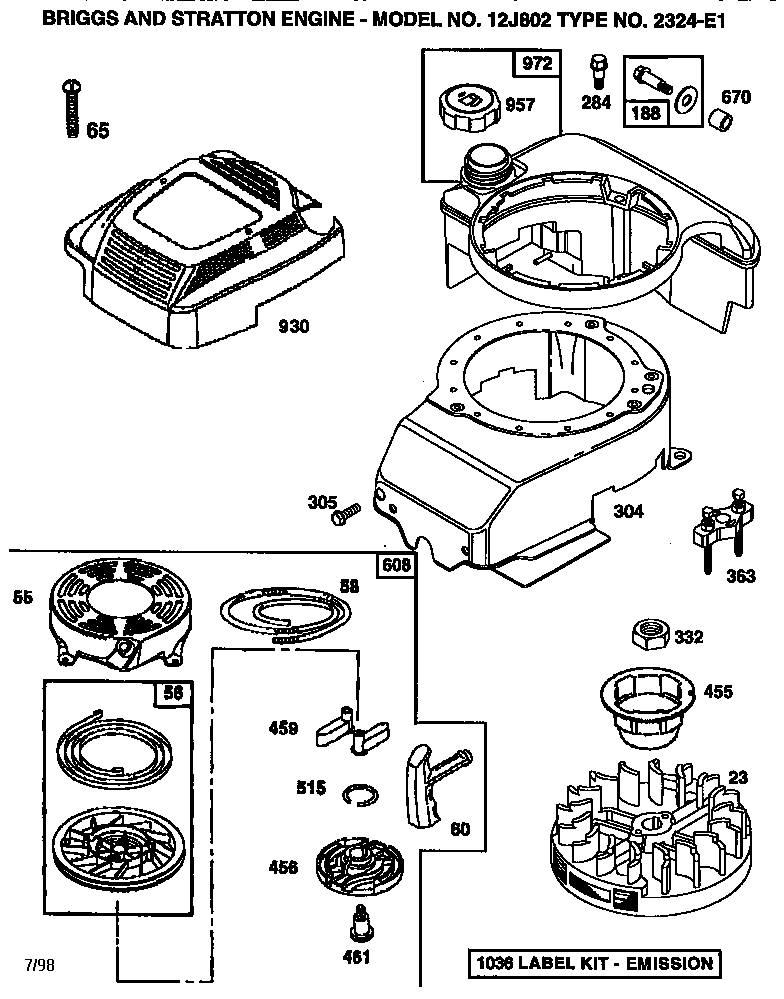

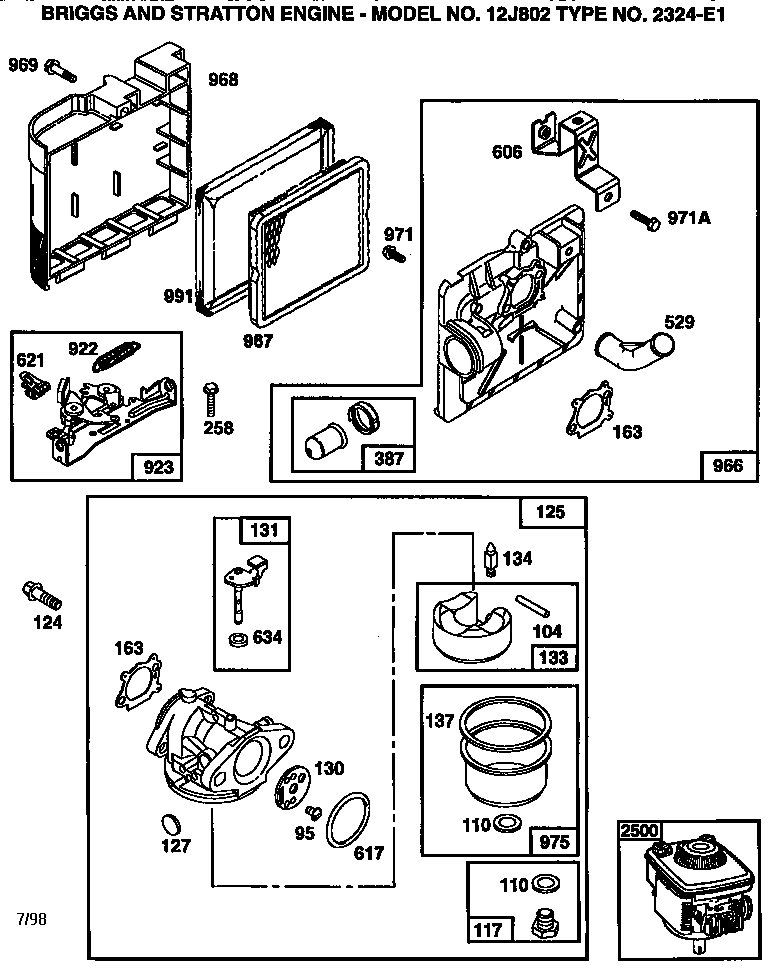

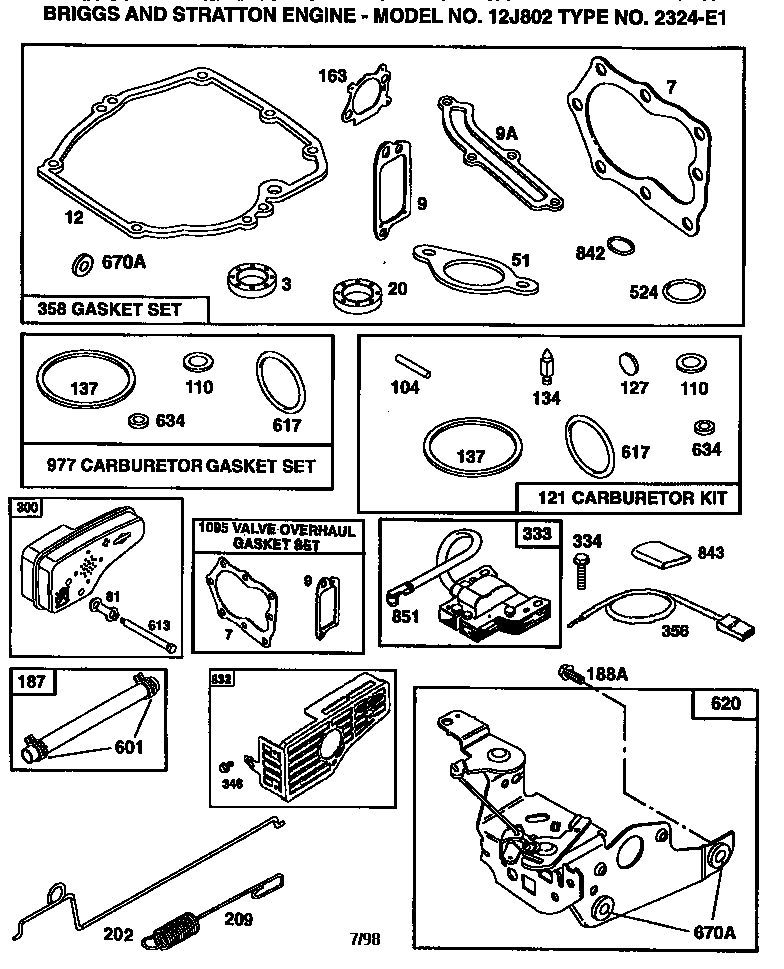

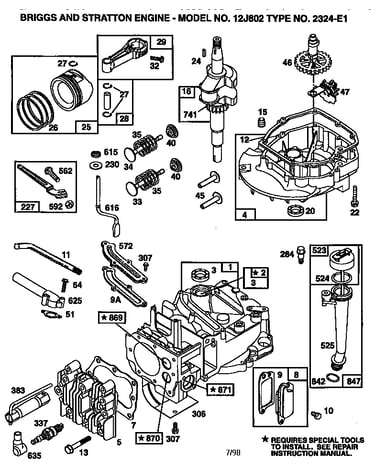

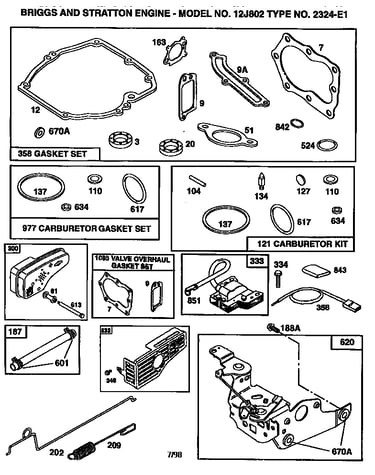

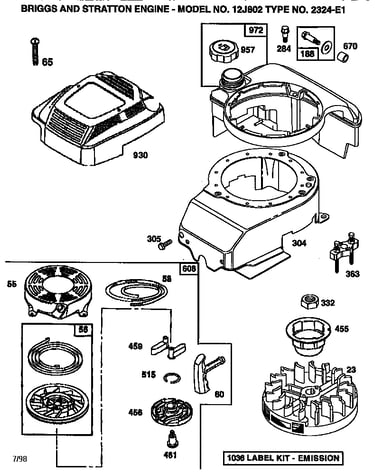

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Lawn & Garden Equipment Engine Air Filter 491588

#967

All parts diagram

Lawn & garden equipment engine air filter

Part #491588

Replaced by #491588S

?
Manufacturer substitution
This part replaces 491588. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$9.24 |
10% OFF Phone Price : $10.24
In Stock
Carburetor Primer 496115

#387

All parts diagram

Carburetor primer

Part #496115

Replaced by #694395

?
Manufacturer substitution
This part replaces 496115. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.24 |
16% OFF Phone Price : $6.24
In Stock
Lawn & Garden Equipment Engine Carburetor Rebuild Kit (replaces 493762, 498261) 498260

#121

All parts diagram

Lawn & garden equipment engine carburetor rebuild kit (replaces 493762, 498261)

Part #498260

BEST SELLER
$24.53 |
20% OFF Phone Price : $30.53
In Stock
Gasket Set-c 498261

#977

All parts diagram

Gasket set-c

Part #498261

Replaced by #498260

?
Manufacturer substitution
This part replaces 498261. Substitute parts can look different from the original.
BEST SELLER
$24.53 |
20% OFF Phone Price : $30.53
In Stock
Fuel Pipe 492790

#187

All parts diagram

Fuel pipe

Part #492790

Replaced by #791766

?
Manufacturer substitution
This part replaces 492790. Substitute parts can look different from the original.
BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Tank 495224

#972

All parts diagram

Tank

Part #495224

Replaced by #699374

?
Manufacturer substitution
This part replaces 495224. Substitute parts can look different from the original.
BEST SELLER
$58.46 |
9% OFF Phone Price : $64.46
In Stock
Lawn & Garden Equipment Engine Recoil Starter Pulley (replaces 263074, 281504, Bs-498144) 498144

#56

All parts diagram

Lawn & garden equipment engine recoil starter pulley (replaces 263074, 281504, bs-498144)

Part #498144

BEST SELLER
$23.76 |
20% OFF Phone Price : $29.76
In Stock
Lawn & Garden Equipment Engine Recoil Starter (replaces Bs-497680) 497680

#608

All parts diagram

Lawn & garden equipment engine recoil starter (replaces bs-497680)

Part #497680

BEST SELLER
$93.54 |
6% OFF Phone Price : $99.54
In Stock
Grip-str Rpe 281434

#60

All parts diagram

Grip-str rpe

Part #281434

Replaced by #281434S

?
Manufacturer substitution
This part replaces 281434. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.34 |
14% OFF Phone Price : $7.34
In Stock
Lawn & Garden Equipment Engine Carburetor Float (replaces Bs-398187) 398187

#133

All parts diagram

Lawn & garden equipment engine carburetor float (replaces bs-398187)

Part #398187

This item is not returnable
$11.96 |
14% OFF Phone Price : $13.96
In Stock
