Treadmill

Model # 831297570 Official Image treadmill

Here are the diagrams and repair parts for Official Image 831297570 treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Treadmill Safety Key (replaces 125589, 153017) 119038

#42

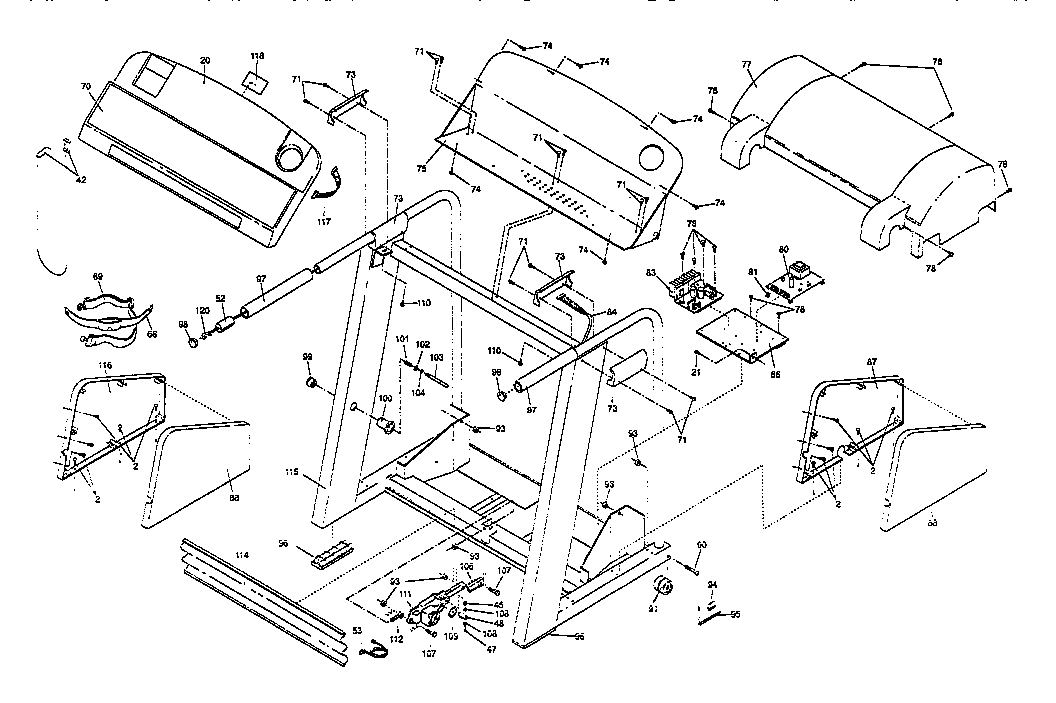

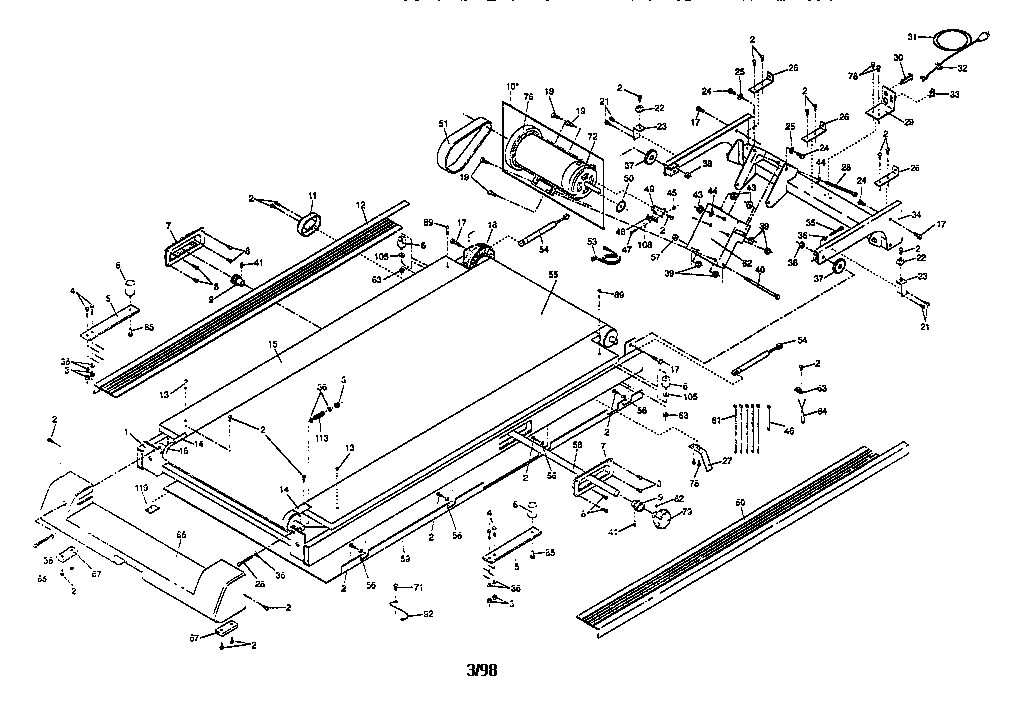

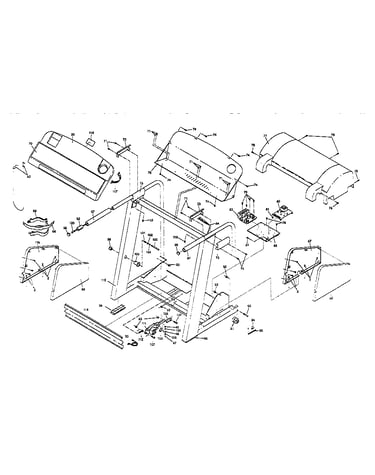

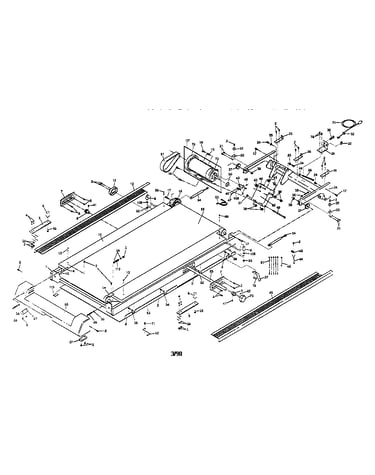

All parts diagram

Treadmill safety key (replaces 125589, 153017)

Part #119038

BEST SELLER
This item is not returnable
$3.14 |
24% OFF Phone Price : $4.14
In Stock
Treadmill Circuit Breaker, 15-amp (replaces 031103, 127202, 173322) 109382

#30

All parts diagram

Treadmill circuit breaker, 15-amp (replaces 031103, 127202, 173322)

Part #109382

This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Treadmill Incline Wheel 132314

#91

All parts diagram

Treadmill incline wheel

Part #132314

This item is not returnable
$2.16
In Stock
Exercise Equipment Screw 013576

#110

All parts diagram

Exercise equipment screw

Part #013576

This item is not returnable
$2.16
In Stock
Fix Kit 145155

#NI

All parts diagram

Fix kit

Part #145155

This item is not returnable
$2.16
In Stock
Bkt,elect,mt 137477

#86

All parts diagram

Bkt,elect,mt

Part #137477

$12.99
In Stock
Wire,14awg,1 103823

#NI

All parts diagram

Wire,14awg,1

Part #103823

This item is not returnable
$2.49
In Stock
Proform Screw 013466

#4

All parts diagram

Proform screw

Part #013466

This item is not returnable
$2.16
In Stock
Toyostove Ground Wire, 8-in (green) 102634

#92

All parts diagram

Toyostove ground wire, 8-in (green)

Part #102634

This item is not returnable
$2.16
In Stock
Exercise Equipment Flat Washer 014041

#105

All parts diagram

Exercise equipment flat washer

Part #014041

This item is not returnable
$2.16
In Stock
