Model # 167415800 Official Sears swimming pool

Here are the diagrams and repair parts for Official Sears 167415800 swimming pool, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

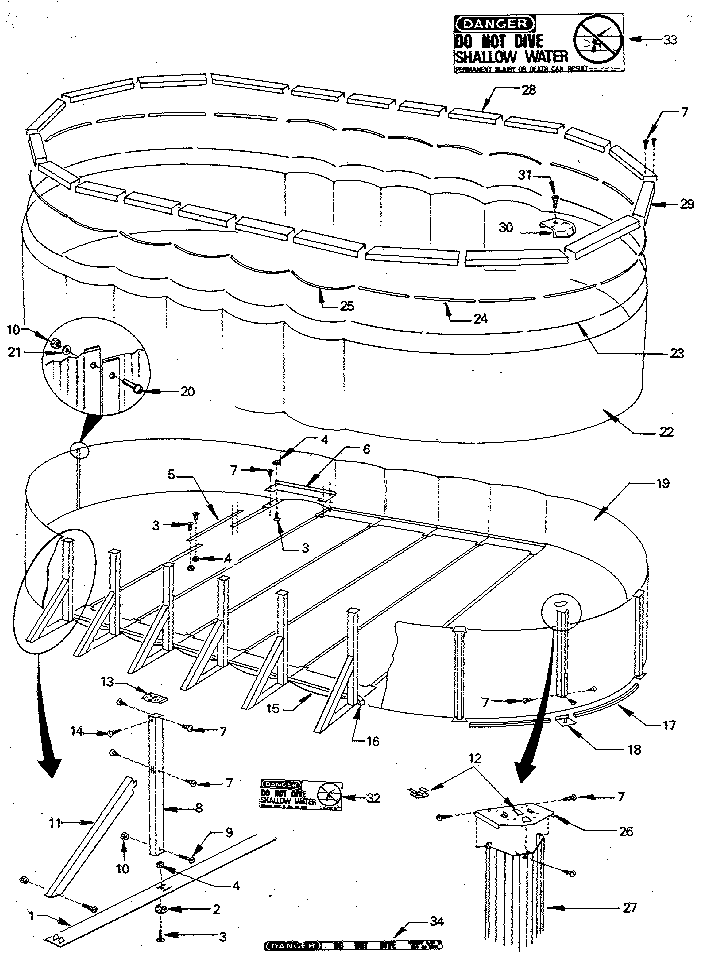

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
1/4 Flt Wshr 0523804S
#21

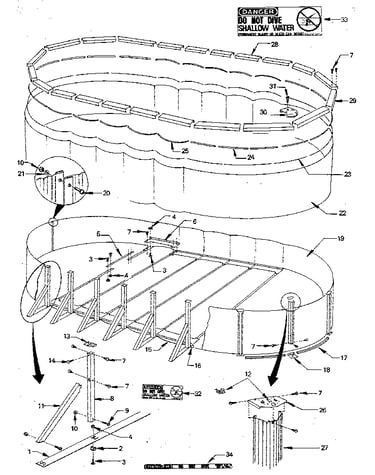

Replacement parts diagram

1/4 flt wshr

Part #0523804S

The manufacturer no longer makes this part, and there's no substitute part

Liner 7121402
#22

Replacement parts diagram

Liner

Part #7121402

The manufacturer no longer makes this part, and there's no substitute part

Rim 7052439H
#17

Replacement parts diagram

Rim

Part #7052439H

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 0513816
#4

Replacement parts diagram

Hex nut

Part #0513816

The manufacturer no longer makes this part, and there's no substitute part

Stabilizer 7052619H
#24

Replacement parts diagram

Stabilizer

Part #7052619H

The manufacturer no longer makes this part, and there's no substitute part

Plate 7031039H
#26

Replacement parts diagram

Plate

Part #7031039H

The manufacturer no longer makes this part, and there's no substitute part

Foot Plate 7041339H
#18

Replacement parts diagram

Foot plate

Part #7041339H

The manufacturer no longer makes this part, and there's no substitute part

Sign 7405540
#33

Replacement parts diagram

Sign

Part #7405540

The manufacturer no longer makes this part, and there's no substitute part

Screw 0543837
#7

Replacement parts diagram

Screw

Part #0543837

The manufacturer no longer makes this part, and there's no substitute part

Coping 7403860
#23

Replacement parts diagram

Coping

Part #7403860

The manufacturer no longer makes this part, and there's no substitute part
