Water Pump

Model # 390262653 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 390262653 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Slinger C69-2
#2

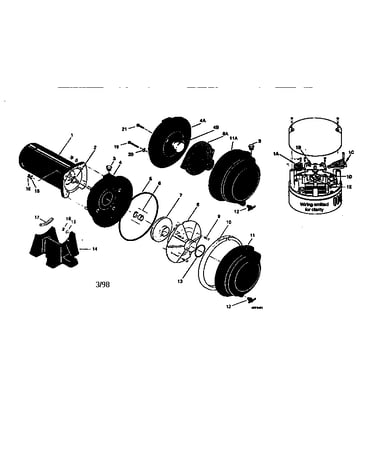

230v 60 cy/1ph 2 hp diagram

Slinger

Part #C69-2

Replaced by #17351-0009

?
Manufacturer substitution
This part replaces C69-2. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
Back Order
Pump Shaft Seal U109-6A
#6

230v 60 cy/1ph 2 hp diagram

Pump shaft seal

Part #U109-6A

Replaced by #U109-6B

?
Manufacturer substitution
This part replaces U109-6A. Substitute parts can look different from the original.
$106.69 |
10% OFF Phone Price : $118.69
Back Order
Cap Screw U30-77SS
#19

230v 60 cy/1ph 2 hp diagram

Cap screw

Part #U30-77SS

$8.77
In Stock
Screw C30-51SS

#NI

All parts diagram

Screw

Part #C30-51SS

$17.16
In Stock
Pad Motor C35-11
#17

230v 60 cy/1ph 2 hp diagram

Pad motor

Part #C35-11

This item is not returnable
$6.27
In Stock
Pump Body, Rear C103-189P
#4A

230v 60 cy/1ph 2 hp diagram

Pump body, rear

Part #C103-189P

$350.65
In Stock
Pump Motor Base C4-42P
#14

230v 60 cy/1ph 2 hp diagram

Pump motor base

Part #C4-42P

$118.62
In Stock
Pump Impeller C105-214PFA
#7

230v 60 cy/1ph 2 hp diagram

Pump impeller

Part #C105-214PFA

$217.78 |
5% OFF Phone Price : $229.78
In Stock
Pump Trap Body C176-62PA
#11A

230v 60 cy/1ph 2 hp diagram

Pump trap body

Part #C176-62PA

$255.92 |
$12.00 OFF Phone Price : $267.92
In Stock
Pump Start Switch Governor U18-128
#1D

230v 60 cy/1ph 2 hp diagram

Pump start switch governor

Part #U18-128

$214.50 |
5% OFF Phone Price : $226.50
In Stock
