Upright Freezer

Model # 25321211101 Official Kenmore freezer

Here are the diagrams and repair parts for Official Kenmore 25321211101 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Filter Drier 216634500
#4

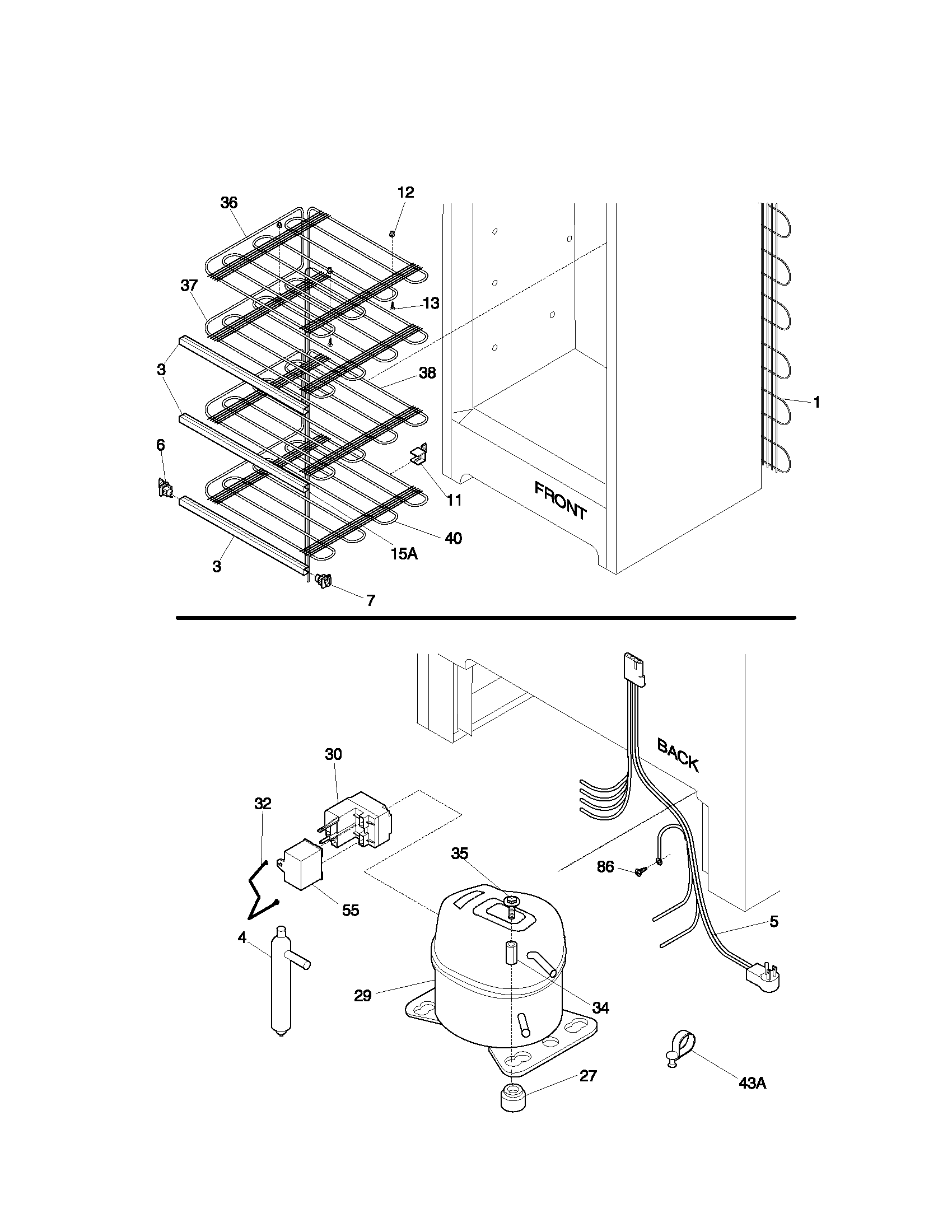

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Door Closer Bearing 216503300
#26

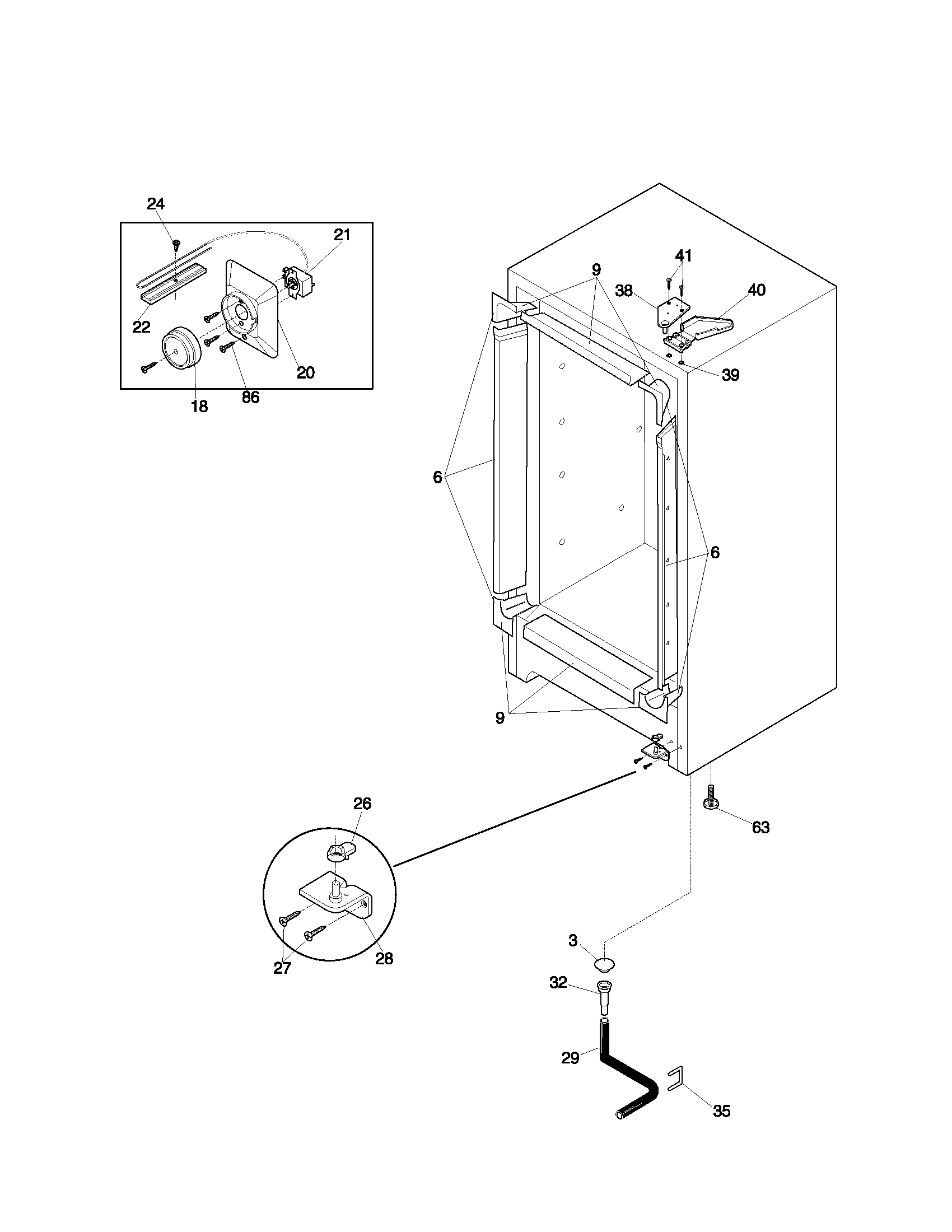

Cabinet diagram

Freezer door closer bearing

Part #216503300

BEST SELLER
This item is not returnable
$8.49 |
11% OFF Phone Price : $9.49
In Stock
Capacitor 216696700
#55

System diagram

Capacitor

Part #216696700

Replaced by #297286802

?
Manufacturer substitution
This part replaces 216696700. Substitute parts can look different from the original.
BEST SELLER
$38.69 |
13% OFF Phone Price : $44.69
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

Cabinet diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

BEST SELLER
$20.64 |
23% OFF Phone Price : $26.64
In Stock
Hinge Bearing 216503200
#22A

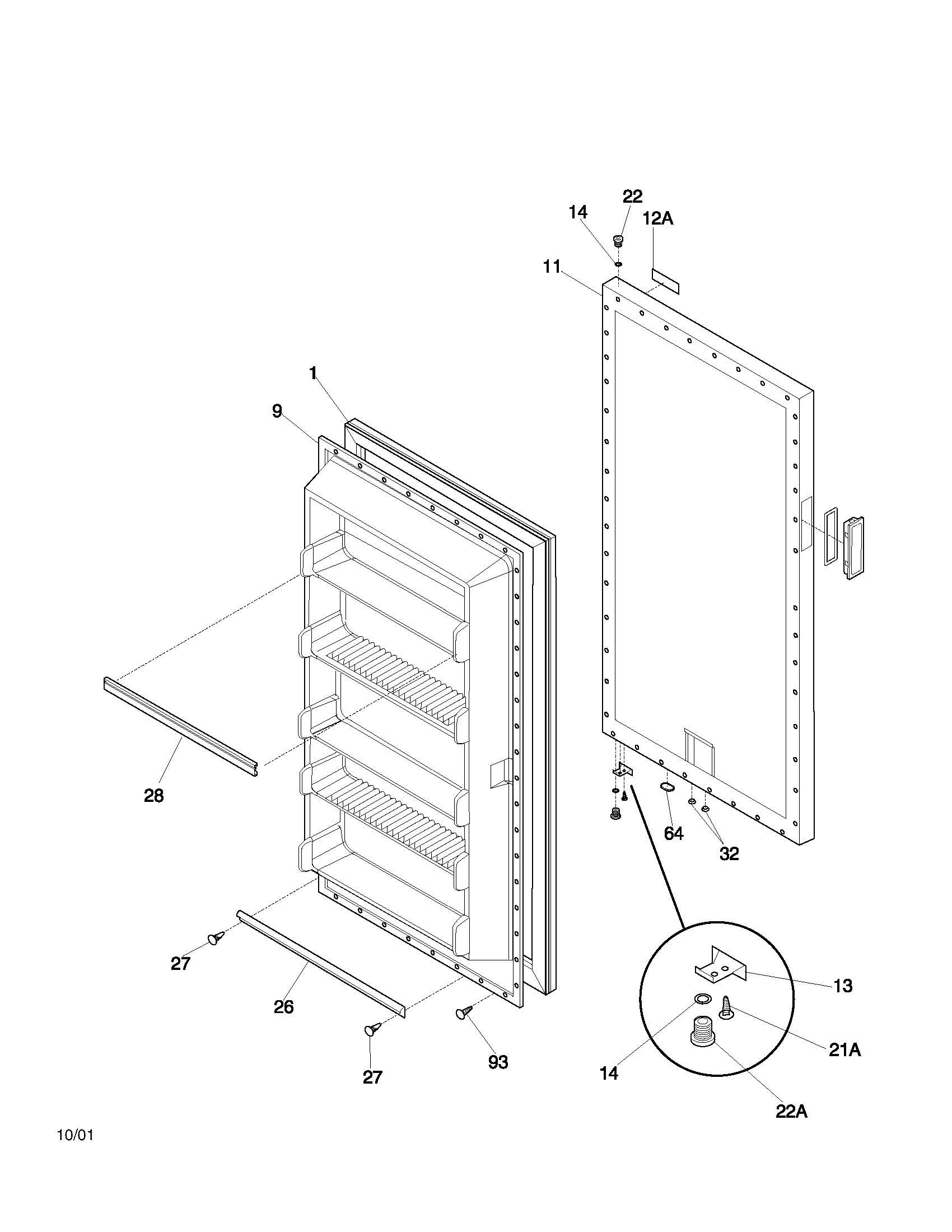

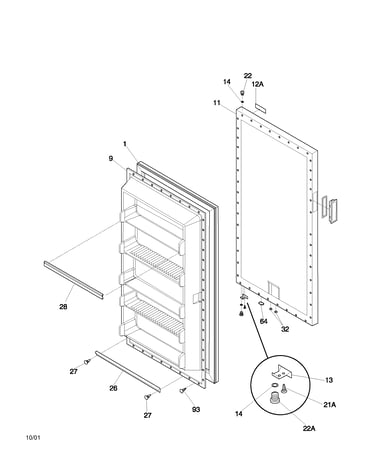

Door diagram

Hinge bearing

Part #216503200

Replaced by #297006800

?
Manufacturer substitution
This part replaces 216503200. Substitute parts can look different from the original.
This item is not returnable
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
Freezer Temperature Control Knob 216707200
#18

Cabinet diagram

Freezer temperature control knob

Part #216707200

$37.39 |
14% OFF Phone Price : $43.39
In Stock
Crosley Refrigeration Appliance Compressor Grommet 216498900
#27

System diagram

Crosley refrigeration appliance compressor grommet

Part #216498900

This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
Freezer Condenser Coil 5300123788
#1

System diagram

Freezer condenser coil

Part #5300123788

This item is not returnable
$449.87
In Stock
Screw (i 216036600
Screw (i

Part #216036600

Replaced by #216036601

?
Manufacturer substitution
This part replaces 216036600. Substitute parts can look different from the original.
$12.57
In Stock
