Model # DCD991P2 TYPE 1 Official DeWalt drill/driver

Here are the diagrams and repair parts for Official DeWalt DCD991P2-TYPE-1 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Label N317859
#46

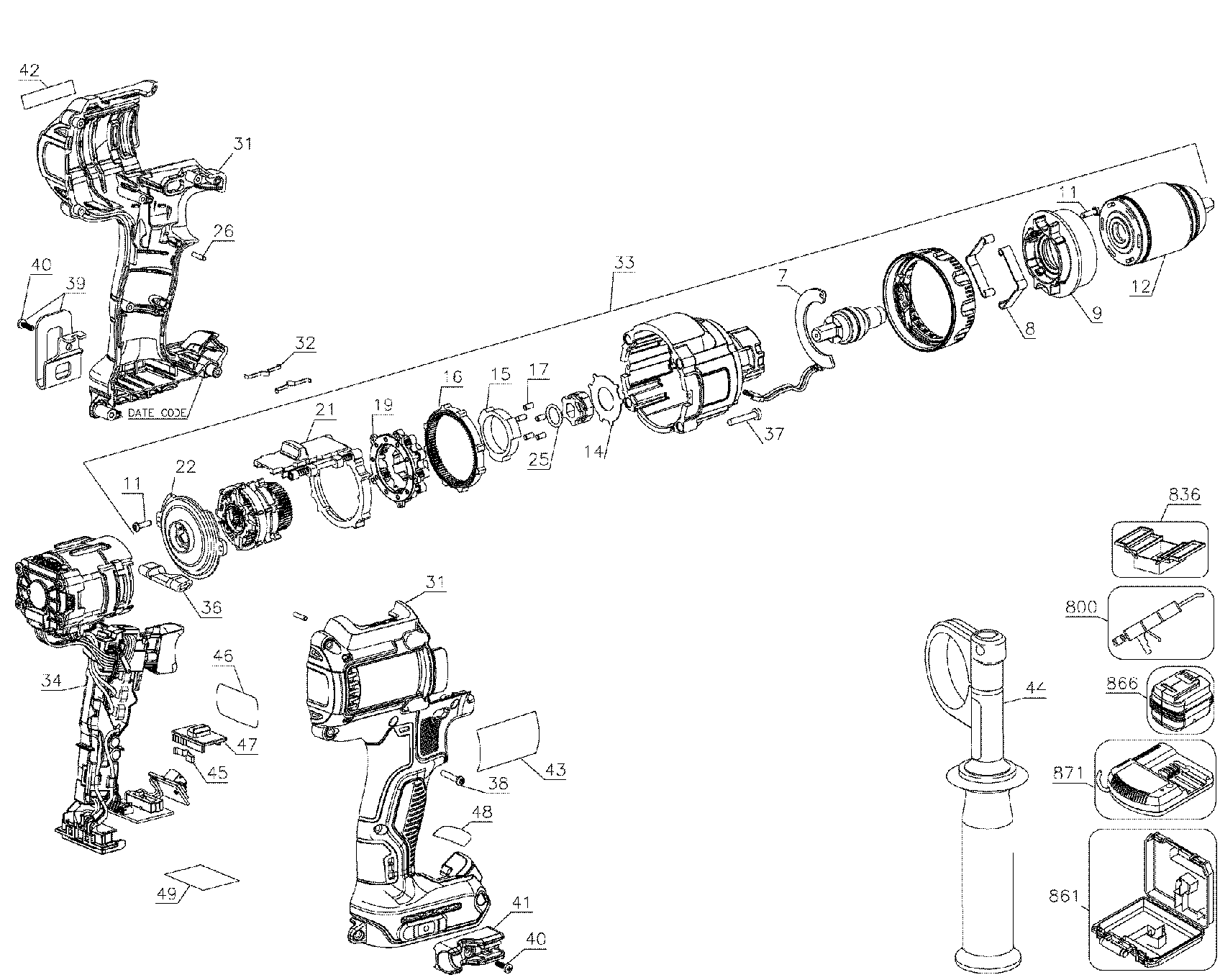

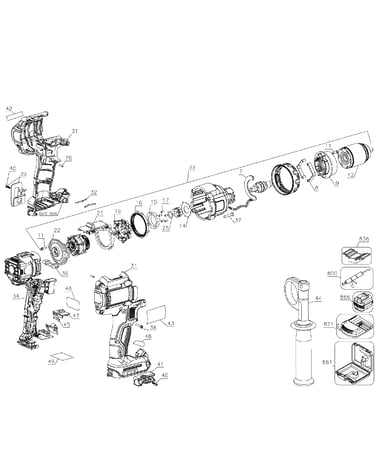

Drill asy diagram

Label

Part #N317859

The manufacturer no longer makes this part, and there's no substitute part

Grease N017298
#800

Drill asy diagram

Grease

Part #N017298

The manufacturer no longer makes this part, and there's no substitute part

Speed Selector N393603
#47

Drill asy diagram

Speed selector

Part #N393603

The manufacturer no longer makes this part, and there's no substitute part

Service Tool N354959
#836

Drill asy diagram

Service tool

Part #N354959

The manufacturer no longer makes this part, and there's no substitute part

Warning Label N449354
#49

Drill asy diagram

Warning label

Part #N449354

The manufacturer no longer makes this part, and there's no substitute part

Lock Ring N195392
#15

Drill asy diagram

Lock ring

Part #N195392

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly N419328
#31

Drill asy diagram

Housing assembly

Part #N419328

The manufacturer no longer makes this part, and there's no substitute part

Kit Box N200697
#861

Drill asy diagram

Kit box

Part #N200697

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Belt Hook N268241
#39

Drill asy diagram

Power tool belt hook

Part #N268241

The manufacturer no longer makes this part, and there's no substitute part

Rating Label N443222
#43

Drill asy diagram

Rating label

Part #N443222

The manufacturer no longer makes this part, and there's no substitute part
