Model # 15818010 Official Kenmore sewing machine head

Here are the diagrams and repair parts for Official Kenmore 15818010 sewing machine head, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

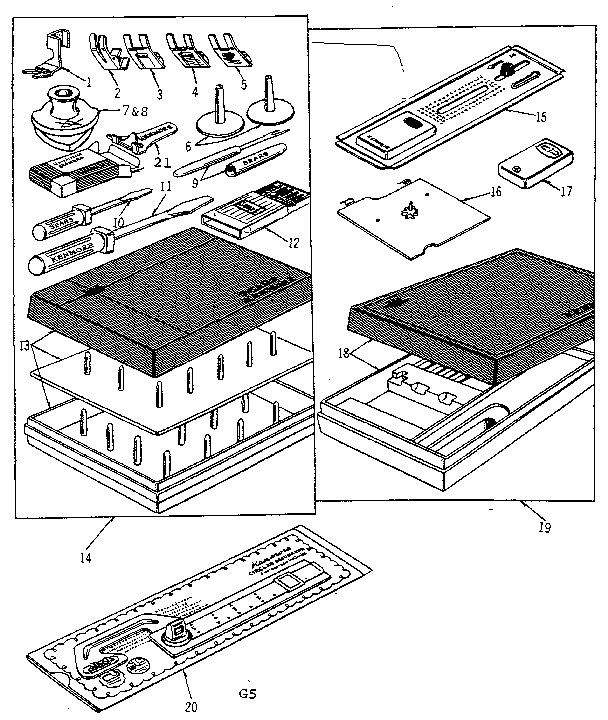

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 415 parts  |
Stopper 5461
#20

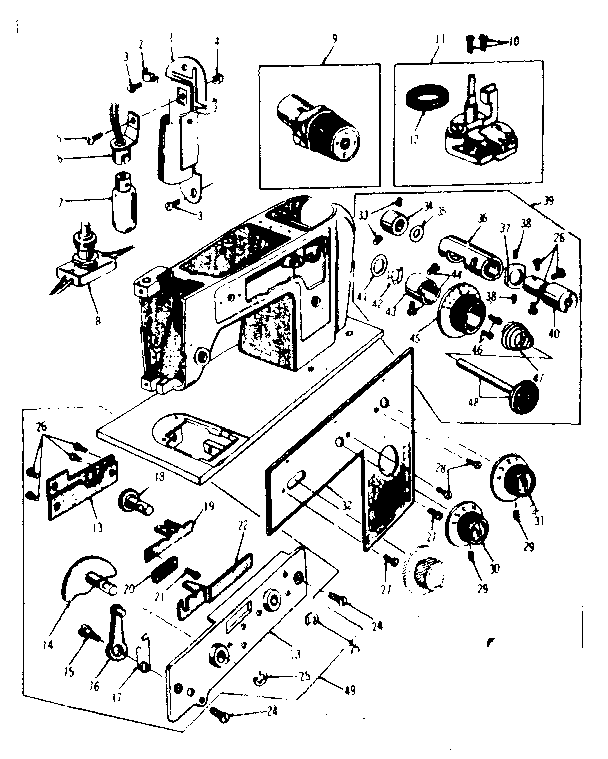

Dial controls and face plate diagram

Stopper

Part #5461

The manufacturer no longer makes this part, and there's no substitute part

Bracket 24807
#4

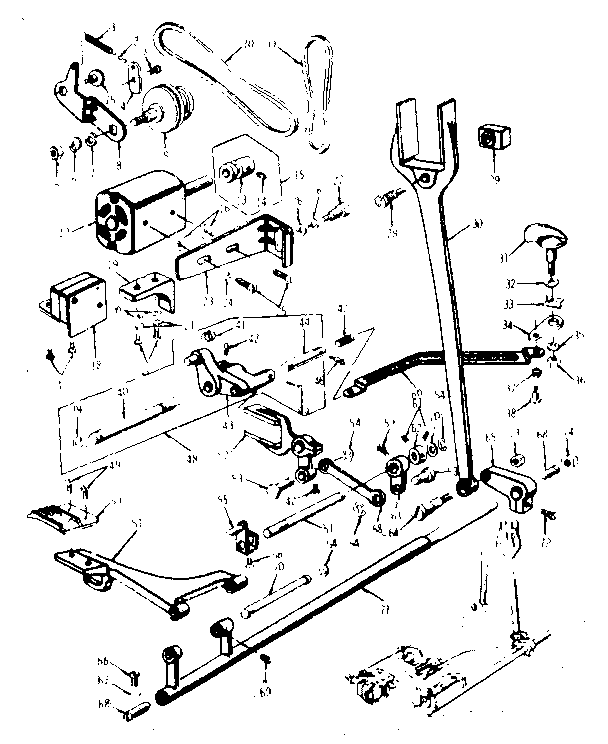

Motor assembly diagram

Bracket

Part #24807

The manufacturer no longer makes this part, and there's no substitute part

Stud 24809
#75

Motor assembly diagram

Stud

Part #24809

The manufacturer no longer makes this part, and there's no substitute part

Spring 11230
#31

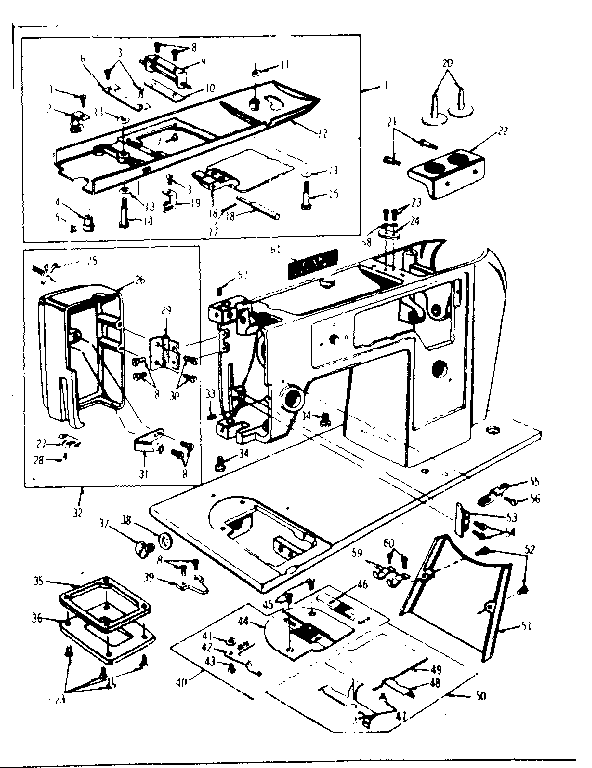

Unit parts diagram

Spring

Part #11230

The manufacturer no longer makes this part, and there's no substitute part

Packing 8653
#35

Unit parts diagram

Packing

Part #8653

The manufacturer no longer makes this part, and there's no substitute part

Washer 8500
#21

Motor assembly diagram

Washer

Part #8500

The manufacturer no longer makes this part, and there's no substitute part

Nut 1762
#59

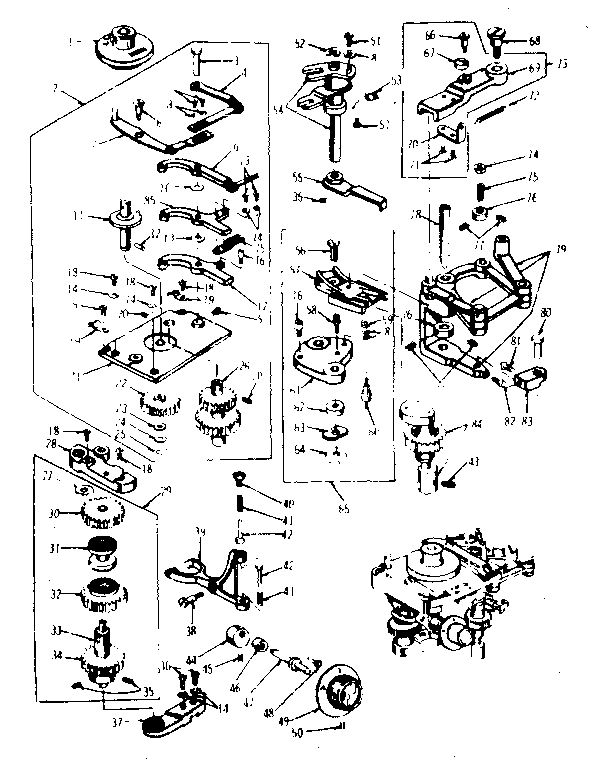

Zigzag guide assembly diagram

Nut

Part #1762

The manufacturer no longer makes this part, and there's no substitute part

Stud 5419
#39

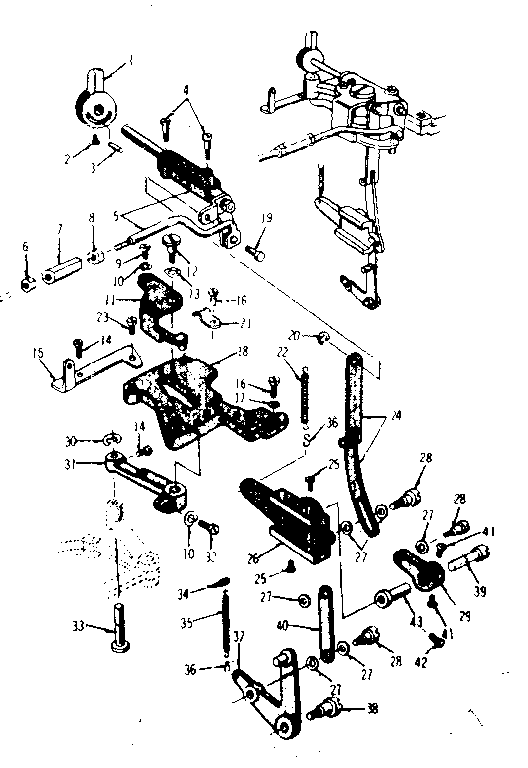

Feed regulator assembly diagram

Stud

Part #5419

The manufacturer no longer makes this part, and there's no substitute part

Worm 5452
#33

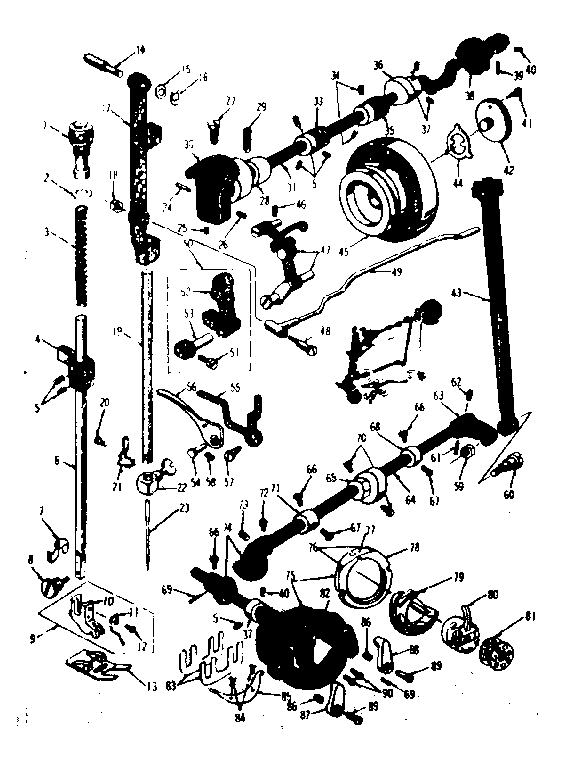

Presser bar and shuttle assembly diagram

Worm

Part #5452

The manufacturer no longer makes this part, and there's no substitute part

Compressor 5518
#79

Zigzag guide assembly diagram

Compressor

Part #5518

The manufacturer no longer makes this part, and there's no substitute part
