Model # 4334AT Official Eureka upright vacuum
Here are the diagrams and repair parts for Official Eureka 4334AT upright vacuum, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
4334AT Vacuum Cleaners
#9

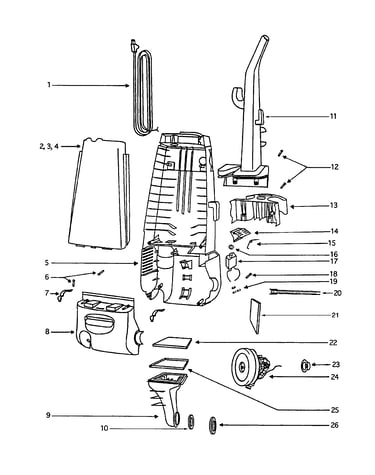

Motor cover diagram
Air duct
Part #15536A-119N
The manufacturer no longer makes this part, and there's no substitute part
#8
Motor cover diagram
Eureka motor cover
Part #60788-23
The manufacturer no longer makes this part, and there's no substitute part
#17A
Motor cover diagram
Plunger
Part #38678-119N
The manufacturer no longer makes this part, and there's no substitute part
#6

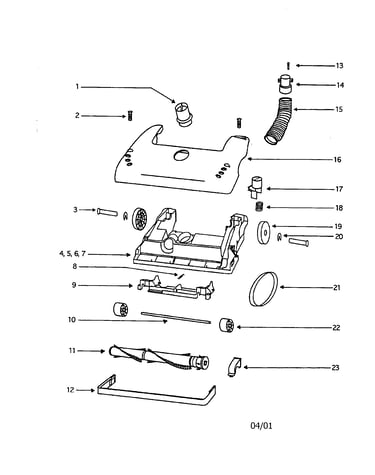

Hood diagram
Gasket
Part #58506-1
The manufacturer no longer makes this part, and there's no substitute part
#20
Motor cover diagram
Thermostat
Part #39252-2
The manufacturer no longer makes this part, and there's no substitute part
#2
Hose diagram
Vacuum hose assembly
Part #61028-1
The manufacturer no longer makes this part, and there's no substitute part
#3
Hood diagram
Rear axle
Part #38590A
The manufacturer no longer makes this part, and there's no substitute part
#24C
Motor cover diagram
Motor shield
Part #38688
The manufacturer no longer makes this part, and there's no substitute part
#24A
Motor cover diagram
Gasket
Part #27962
The manufacturer no longer makes this part, and there's no substitute part
#8
Hood diagram
Electrolux vacuum spring
Part #54943
The manufacturer no longer makes this part, and there's no substitute part
