Gas Walk-Behind Mower

Model # 52644300 Official Western Tool 22" rotary lawn mower

Here are the diagrams and repair parts for Official Western Tool 52644300 22" rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

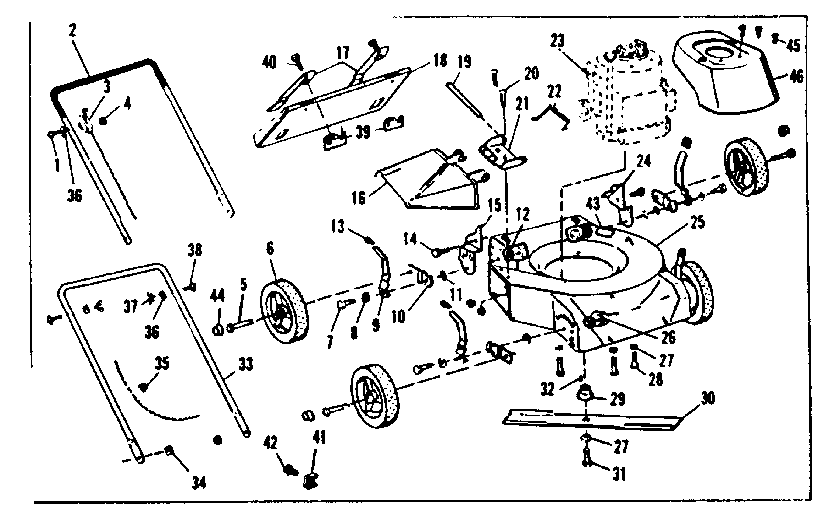

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |

Washer 8728
#36

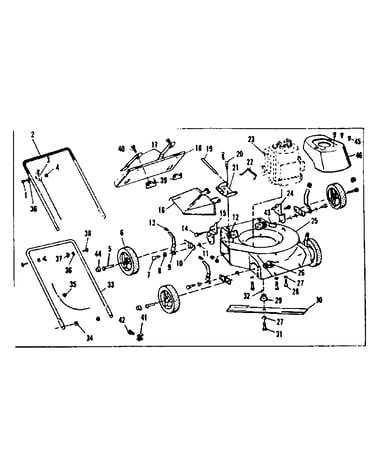

Unit parts diagram

Washer

Part #8728

The manufacturer no longer makes this part, and there's no substitute part

Bracket Rh 45416
#15

Unit parts diagram

Bracket rh

Part #45416

The manufacturer no longer makes this part, and there's no substitute part

Toe Guard 44177
#18

Unit parts diagram

Toe guard

Part #44177

The manufacturer no longer makes this part, and there's no substitute part

Walk-behind Lawn Mower Engine 14411
#23

Unit parts diagram

Walk-behind lawn mower engine

Part #14411

The manufacturer no longer makes this part, and there's no substitute part

Spring 43151
#22

Unit parts diagram

Spring

Part #43151

The manufacturer no longer makes this part, and there's no substitute part

Key 2125
#32

Unit parts diagram

Key

Part #2125

The manufacturer no longer makes this part, and there's no substitute part

Cable Clip 32951
#35

Unit parts diagram

Cable clip

Part #32951

The manufacturer no longer makes this part, and there's no substitute part

Defl Chute 44231
#16

Unit parts diagram

Defl chute

Part #44231

The manufacturer no longer makes this part, and there's no substitute part

Bracket Lh 45417
#24

Unit parts diagram

Bracket lh

Part #45417

The manufacturer no longer makes this part, and there's no substitute part

Blade 43386
#30

Unit parts diagram

Blade

Part #43386

The manufacturer no longer makes this part, and there's no substitute part

Symptoms for gas walk-behind mowers

Choose a symptom to see related walk-behind mower repairs.

Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key…

Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade…

Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up…

Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, ba…

Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent…

Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel…
