Model # DD24DDFX6V2-88610A Official Fisher & Paykel dishwasher

Here are the diagrams and repair parts for Official Fisher & Paykel DD24DDFX6V2-88610A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

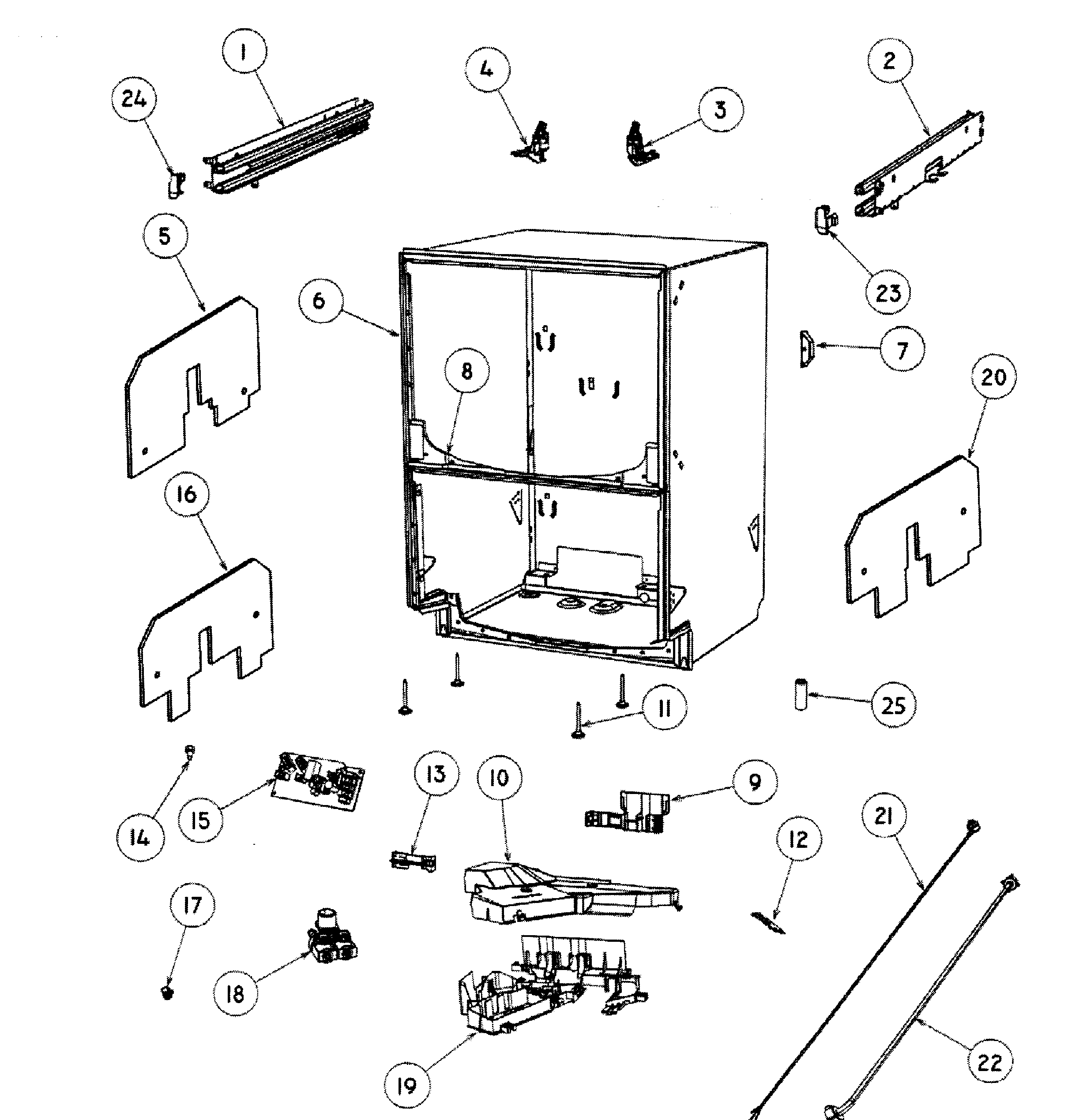

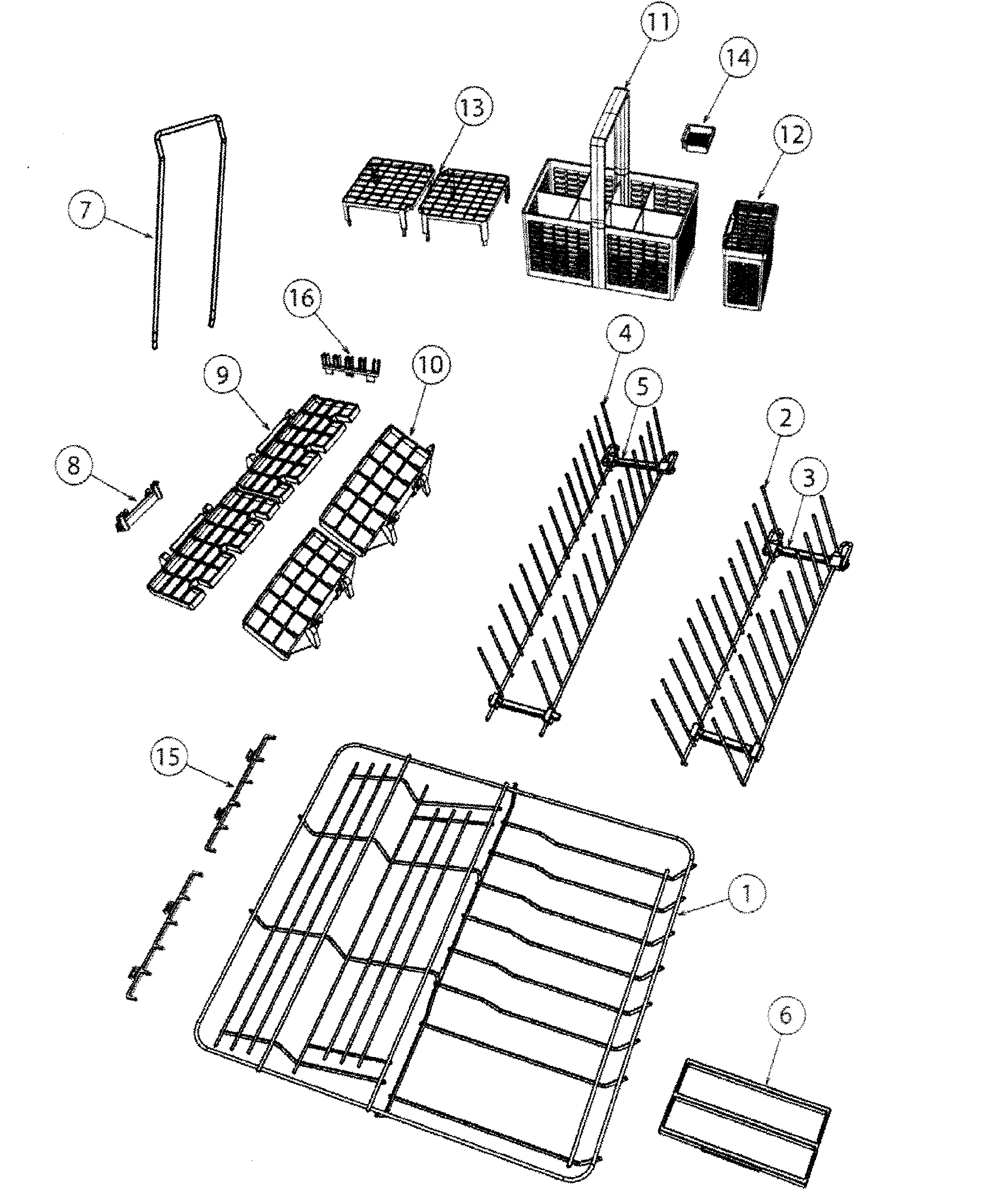

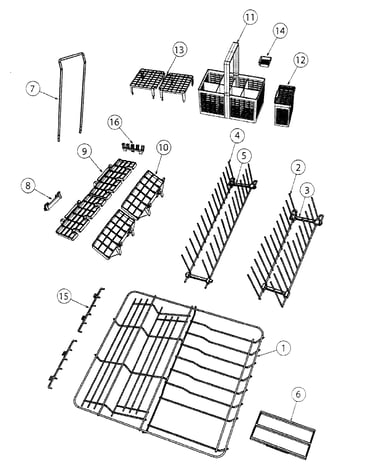

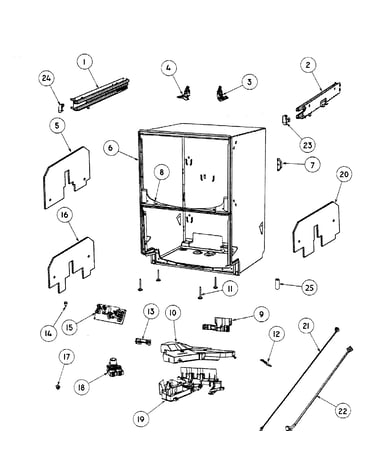

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Fisher & Paykel Dishwasher Installation Hardware Kit 523007
#9

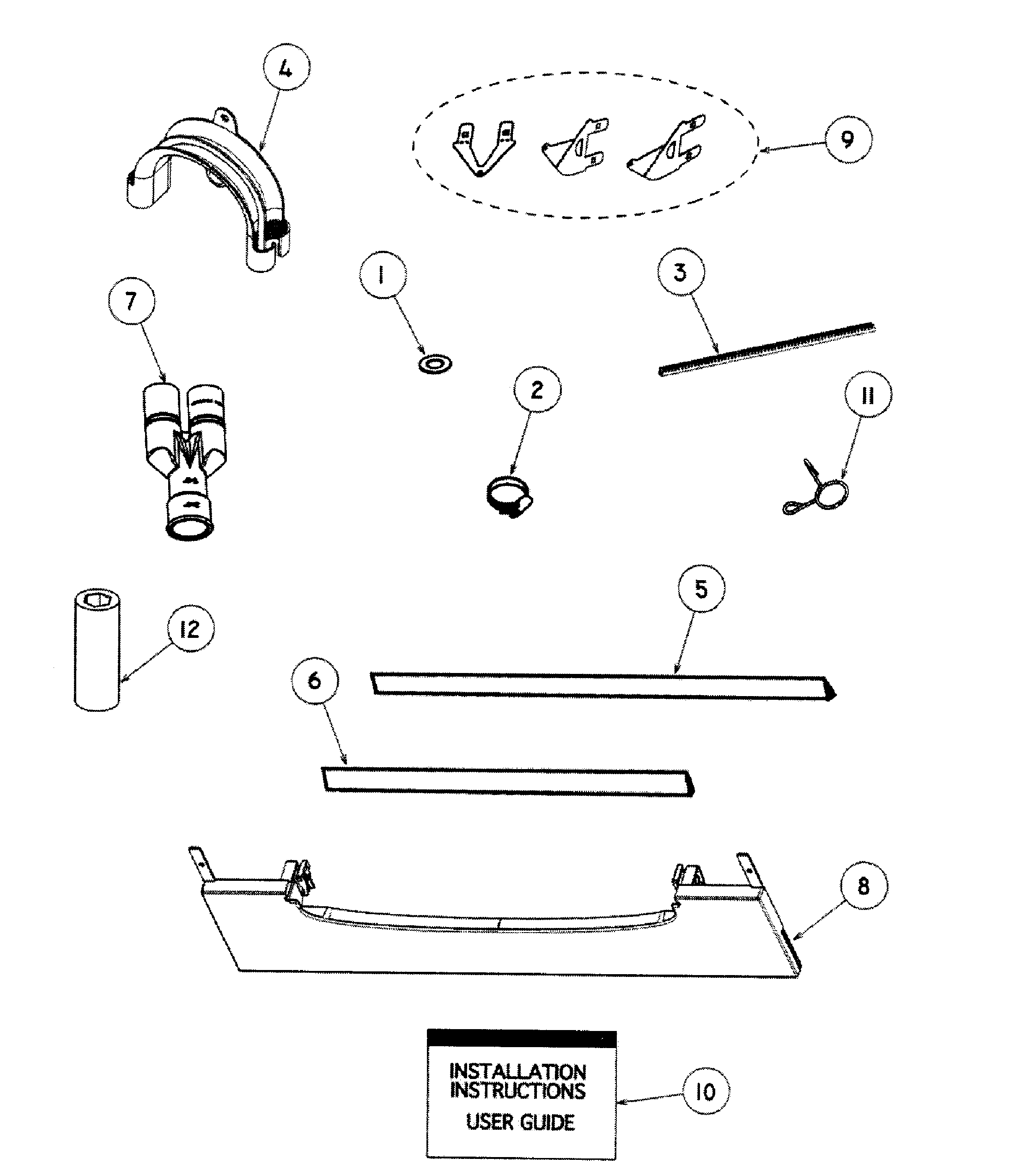

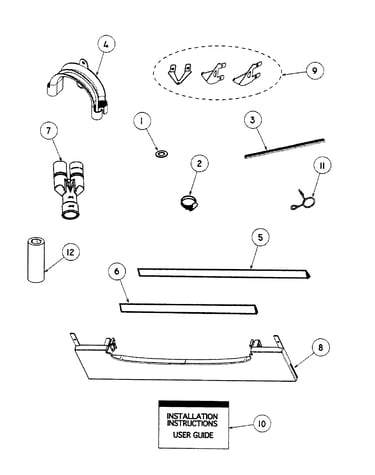

Installation parts diagram

Fisher & paykel dishwasher installation hardware kit

Part #523007

$45.28 |
12% OFF Phone Price : $51.28
In Stock
Motor Rotor 528136P
#5

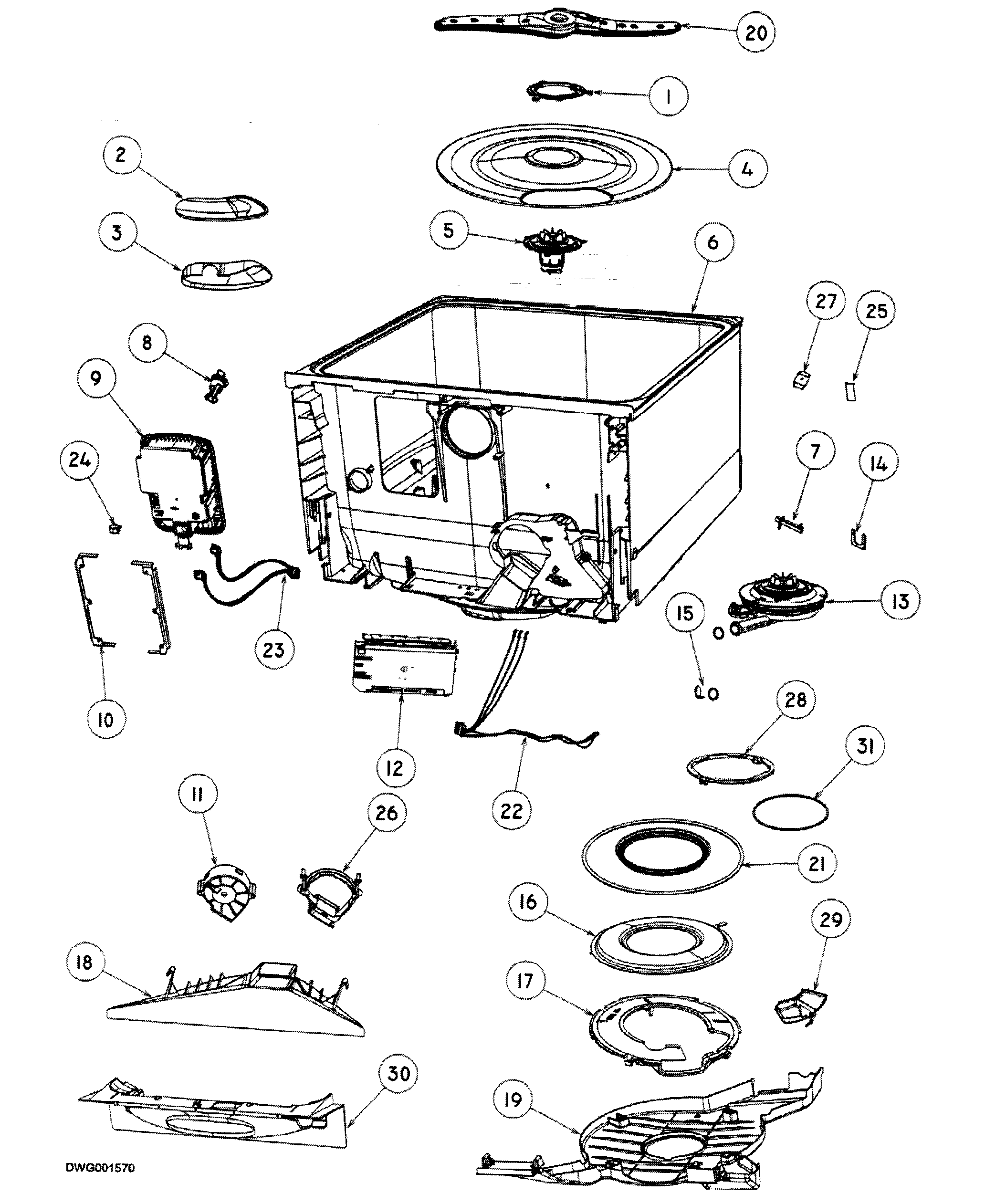

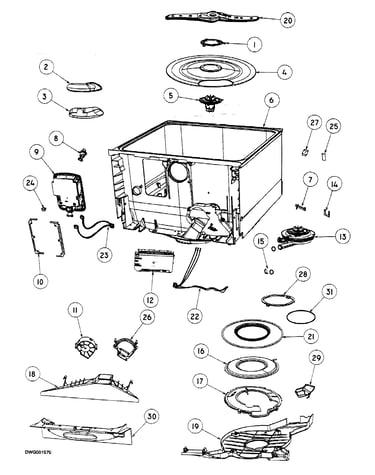

Tub assy diagram

Motor rotor

Part #528136P

Replaced by #524285P

?
Manufacturer substitution
This part replaces 528136P. Substitute parts can look different from the original.
$178.20 |
6% OFF Phone Price : $190.20
In Stock
Fisher & Paykel Dishwasher Pump Motor 522088
#13

Tub assy diagram

Fisher & paykel dishwasher pump motor

Part #522088

$204.86 |
6% OFF Phone Price : $216.86
In Stock
Fisher & Paykel Dishwasher Drain Hose Extension Kit 525798
#NI

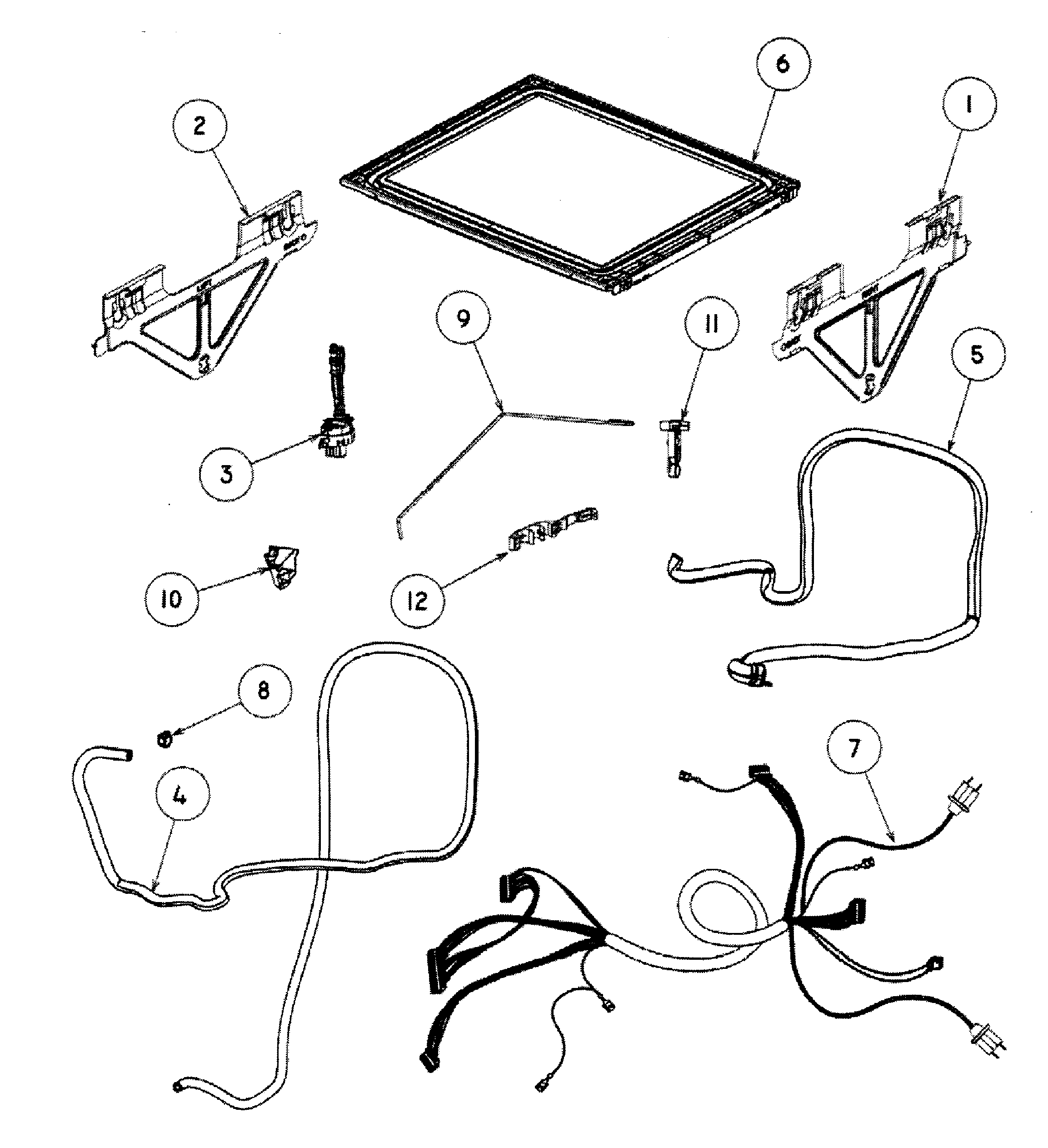

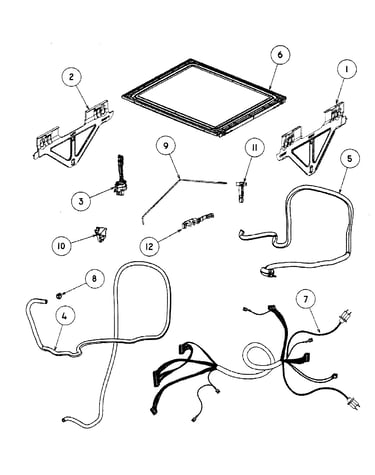

Lid assy diagram

Fisher & paykel dishwasher drain hose extension kit

Part #525798

$99.37 |
11% OFF Phone Price : $111.37
In Stock
Fisher & Paykel Dishwasher Drain Hose Support 525477
#4

Installation parts diagram

Fisher & paykel dishwasher drain hose support

Part #525477

This item is not returnable
$12.09 |
14% OFF Phone Price : $14.09
In Stock
Fisher & Paykel Dishwasher Drain Hose Clamp, 2-pack 525482P
#11

Installation parts diagram

Fisher & paykel dishwasher drain hose clamp, 2-pack

Part #525482P

$18.69 |
10% OFF Phone Price : $20.69
In Stock
Dishwasher Drain Hose 522086
#5

Lid assy diagram

Dishwasher drain hose

Part #522086

Replaced by #510852

?
Manufacturer substitution
This part replaces 522086. Substitute parts can look different from the original.
$84.88
In Stock
Power Control Board Assembly 528762P
#14

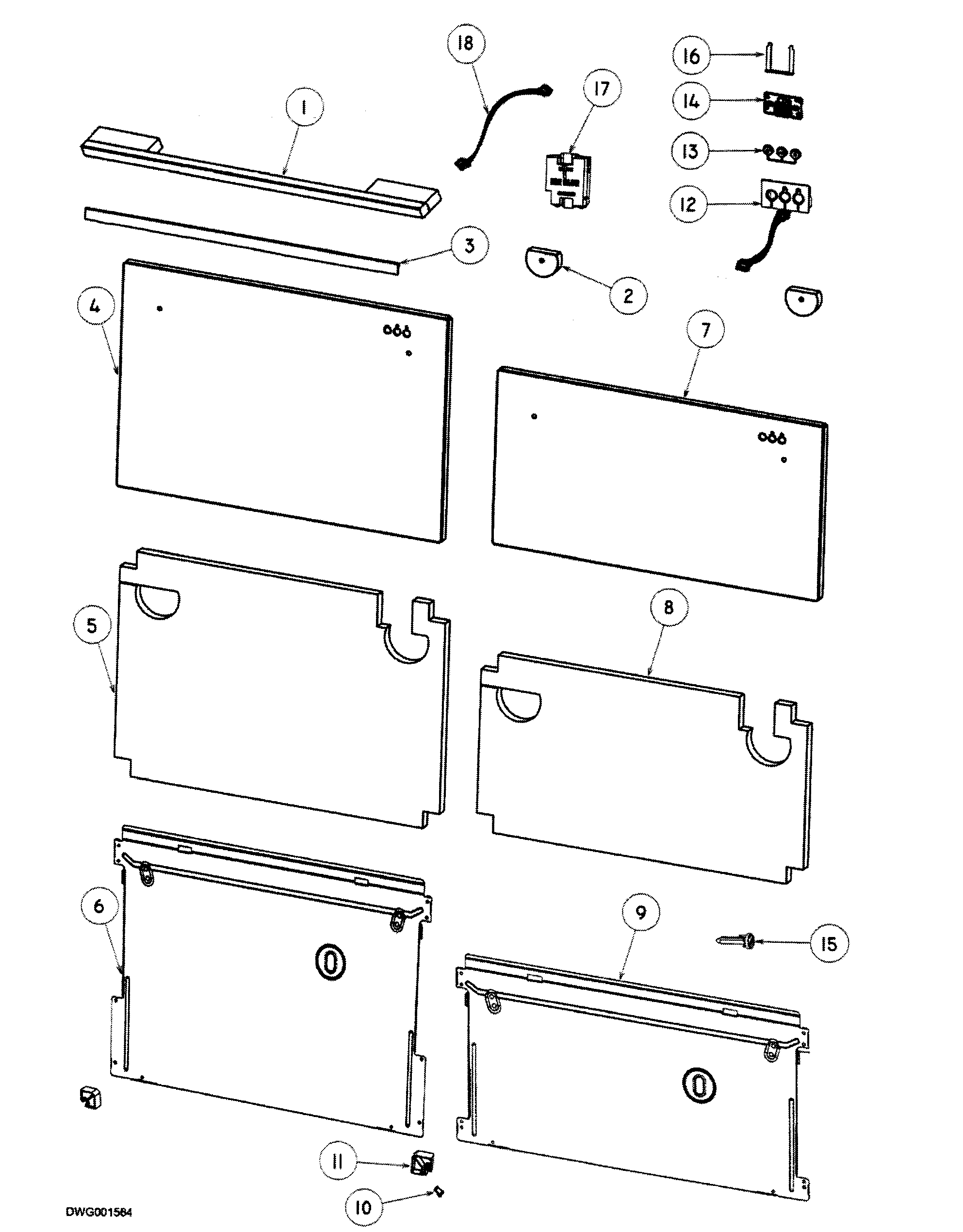

Front panel diagram

Power control board assembly

Part #528762P

The manufacturer no longer makes this part, and there's no substitute part

Fisher & Paykel Dishwasher Motor Seal Kit 522089
#21

Tub assy diagram

Fisher & paykel dishwasher motor seal kit

Part #522089

$89.29 |
6% OFF Phone Price : $95.29
In Stock
Fisher & Paykel Dishwasher Lid Link Support Clip 528162
#11

Lid assy diagram

Fisher & paykel dishwasher lid link support clip

Part #528162

$12.09 |
14% OFF Phone Price : $14.09
In Stock
