Model # 143571022 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143571022 4-cycle engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part

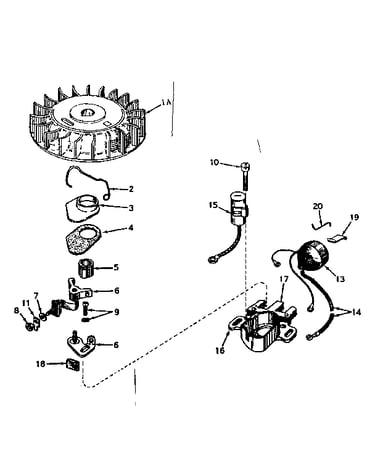

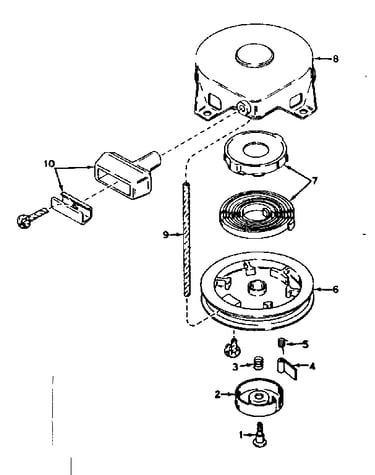

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
143571022 4-Cycle Engine
Fuel Line 29774
#118

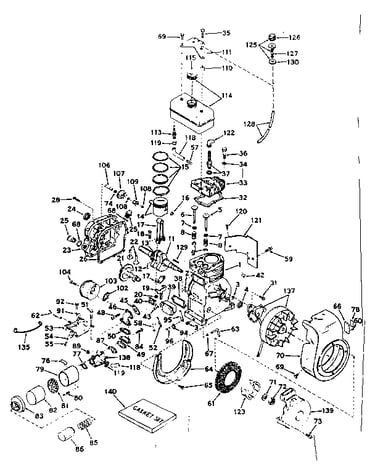

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Primer Line 32180
#128

Basic engine diagram

Primer line

Part #32180

The manufacturer no longer makes this part, and there's no substitute part

Element 31410
#40

Basic engine diagram

Element

Part #31410

The manufacturer no longer makes this part, and there's no substitute part

Primer Body 32184
#127

Basic engine diagram

Primer body

Part #32184

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27677
#26

Basic engine diagram

Gasket

Part #27677

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#5

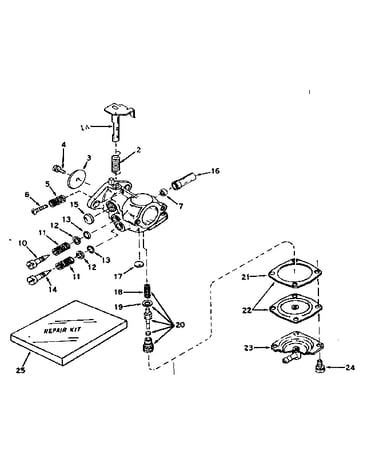

Carburetor no. 631245 diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

Primer Bulb 32183
#126

Basic engine diagram

Primer bulb

Part #32183

The manufacturer no longer makes this part, and there's no substitute part

Retainer 32312
#130

Basic engine diagram

Retainer

Part #32312

The manufacturer no longer makes this part, and there's no substitute part

Primer Assembly 32182
#125

Basic engine diagram

Primer assembly

Part #32182

The manufacturer no longer makes this part, and there's no substitute part

Cap 31673
#9

Basic engine diagram

Cap

Part #31673

The manufacturer no longer makes this part, and there's no substitute part
