Room Air Conditioner

Model # AEE12DSW1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AEE12DSW1 room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
AEE12DSW1 Room Air Conditioner
Room Air Conditioner Front Panel Assembly WJ71X10777
#1

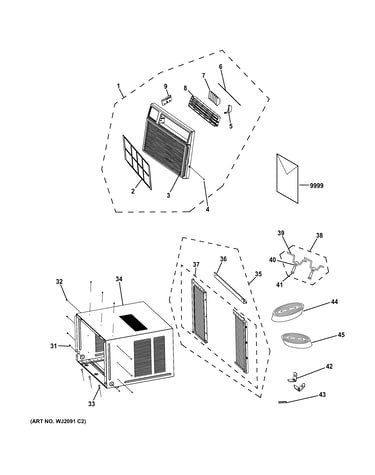

Grille & chassis parts diagram

Room air conditioner front panel assembly

Part #WJ71X10777

$94.09
6% OFF Phone Price : $100.09
In Stock
Remote WJ26X10354
#46

Control parts diagram

Remote

Part #WJ26X10354

Replaced by #WJ26X20522

?
Manufacturer substitution
This part replaces WJ26X10354. Substitute parts can look different from the original.
$53.70
10% OFF Phone Price : $59.70
In Stock
Room Air Conditioner Condenser Fan WJ73X10168
#27

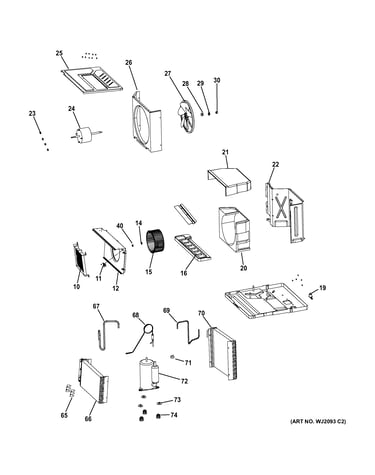

Base pan & unit parts diagram

Room air conditioner condenser fan

Part #WJ73X10168

Replaced by #WJ73X20314

?
Manufacturer substitution
This part replaces WJ73X10168. Substitute parts can look different from the original.
$35.97
14% OFF Phone Price : $41.97
In Stock
Display Board WJ26X10375
#50

Control parts diagram

Display board

Part #WJ26X10375

In Stock
Screw WJ01X10351
#43

Grille & chassis parts diagram

Screw

Part #WJ01X10351

In Stock
Nut With Was WJ01X10335
#74

Base pan & unit parts diagram

Nut with was

Part #WJ01X10335

This item is not returnable
In Stock
Room Air Conditioner Fan Motor WJ95X10034
#24

Base pan & unit parts diagram

Room air conditioner fan motor

Part #WJ95X10034

In Stock
Washer WJ01X10313
#28

Base pan & unit parts diagram

Washer

Part #WJ01X10313

$7.69
12% OFF Phone Price : $8.69
In Stock
Mounting Rack WJ79X10209
#39

Grille & chassis parts diagram

Mounting rack

Part #WJ79X10209

This item is not returnable
In Stock
Washer WJ01X10312
#29

Base pan & unit parts diagram

Washer

Part #WJ01X10312

In Stock
