Model # 1033347000 Official Kenmore gas counter unit
Here are the diagrams and repair parts for Official Kenmore 1033347000 gas counter unit, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for1033347000 Ranges
- #47

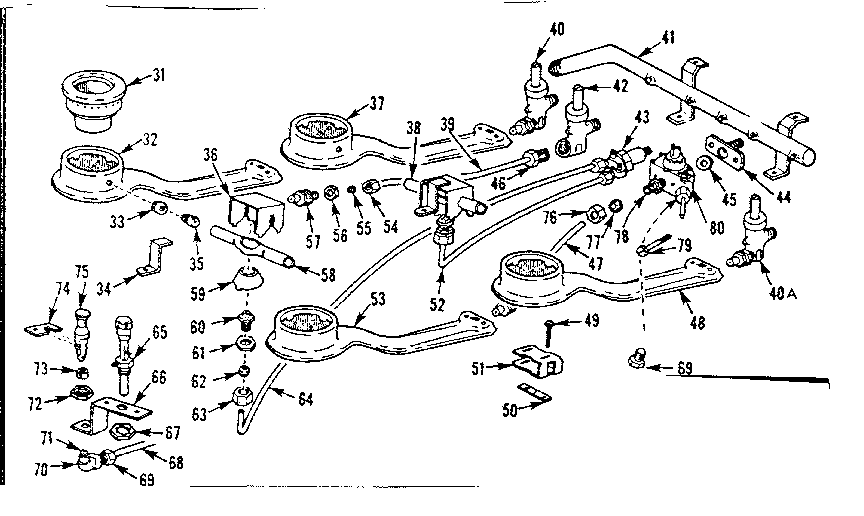

Burner section diagram
Burner tubePart #234103
Replaced by #100108370
?Manufacturer substitutionThis part replaces 234103. Substitute parts can look different from the original.$64.56Back Order - #39
Burner section diagram
Burner tubePart #114619
Replaced by #100108370
?Manufacturer substitutionThis part replaces 114619. Substitute parts can look different from the original.$64.56Back Order - #46
Burner section diagram
Loxit nutPart #79719
Replaced by #100108370
?Manufacturer substitutionThis part replaces 79719. Substitute parts can look different from the original.$64.56Back Order - #71C
Burner section diagram
Orifice spudPart #73892
The manufacturer no longer makes this part, and there's no substitute part
- #1

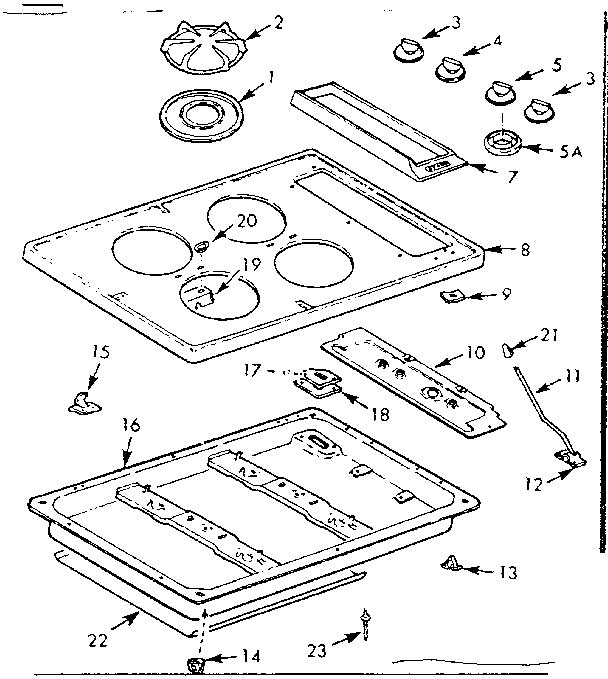

Maintop diagram
Burner bowlPart #109150
The manufacturer no longer makes this part, and there's no substitute part
- #14
Maintop diagram
CatchPart #71003
The manufacturer no longer makes this part, and there's no substitute part
- #52
Burner section diagram
TubePart #114617
The manufacturer no longer makes this part, and there's no substitute part
- #43
Burner section diagram
FilterPart #102672
The manufacturer no longer makes this part, and there's no substitute part
- #49
Burner section diagram
ScrewPart #70612
The manufacturer no longer makes this part, and there's no substitute part
- #66
Burner section diagram
Orifice supportPart #101951
The manufacturer no longer makes this part, and there's no substitute part
