Frigidaire
Room Air Conditioner

Model # FRA183MT20 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FRA183MT20 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

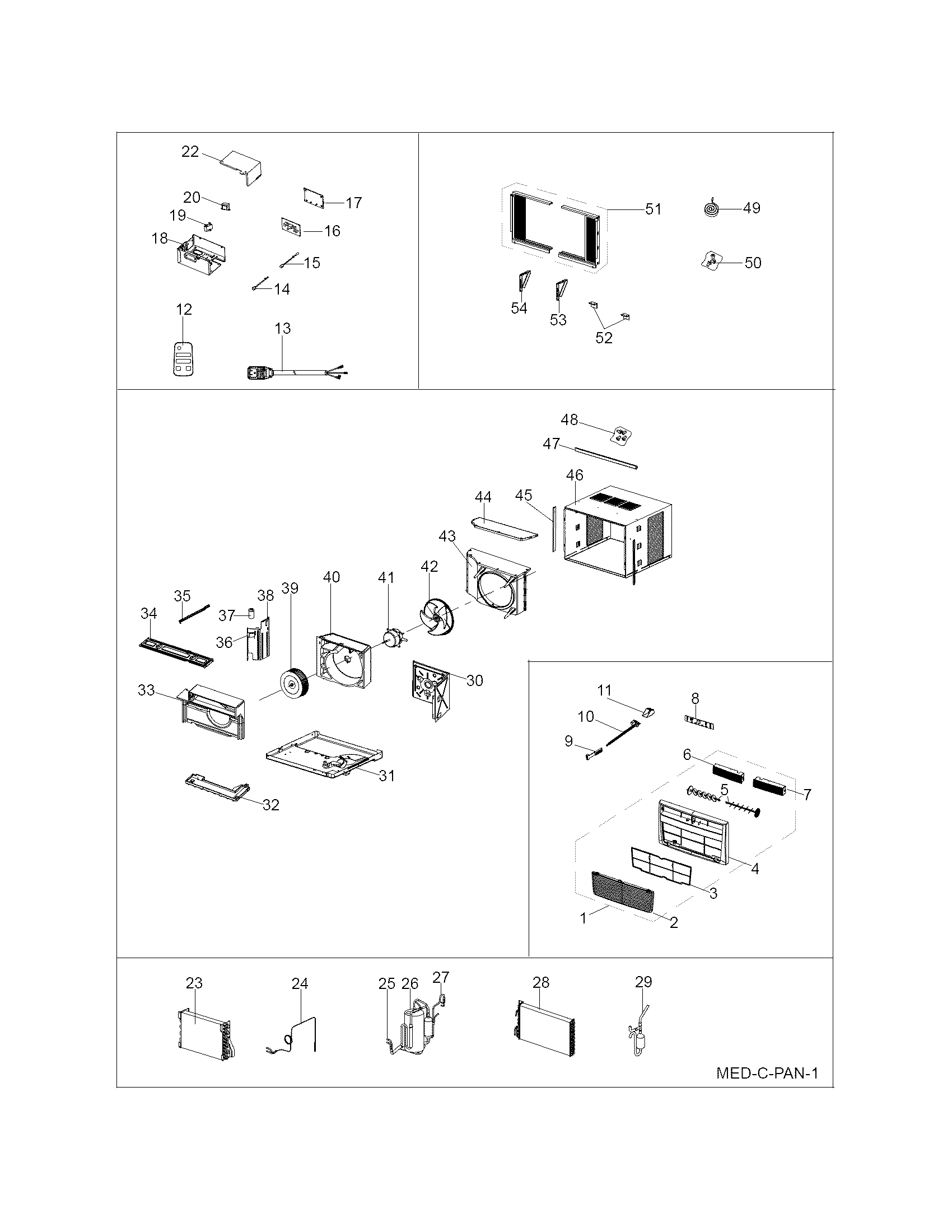

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Pc Board 5304476360
#16

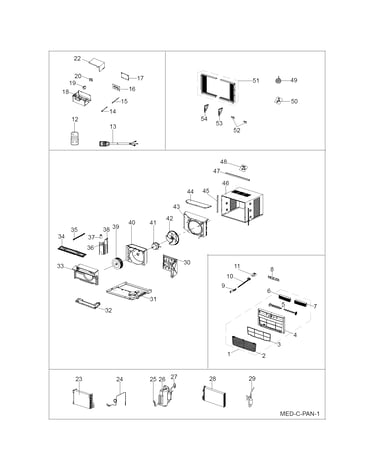

Recommended spare parts diagram

Pc board

Part #5304476360

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Blower Wheel 5304472407
#39

Recommended spare parts diagram

Room air conditioner blower wheel

Part #5304472407

$78.38
In Stock
Room Air Conditioner Air Filter 5304476944
#3

Recommended spare parts diagram

Room air conditioner air filter

Part #5304476944

Replaced by #5304525598

?
Manufacturer substitution
This part replaces 5304476944. Substitute parts can look different from the original.
This item is not returnable
$15.80
In Stock
Room Air Conditioner Fan Motor Capacitor 5304475736
#37

Recommended spare parts diagram

Room air conditioner fan motor capacitor

Part #5304475736

$129.49 |
8% OFF Phone Price : $141.49
In Stock
Room Air Conditioner Evaporator Thermistor 5304471383
#14

Recommended spare parts diagram

Room air conditioner evaporator thermistor

Part #5304471383

$33.49 |
15% OFF Phone Price : $39.49
In Stock
Room Air Conditioner Remote Control 5304476802
#12

Recommended spare parts diagram

Room air conditioner remote control

Part #5304476802

$80.14 |
7% OFF Phone Price : $86.14
In Stock
Room Air Conditioner Air Filter 5304476322
#29

Recommended spare parts diagram

Room air conditioner air filter

Part #5304476322

$109.98
In Stock
Room Air Conditioner Vent Door 5304476359
#11

Recommended spare parts diagram

Room air conditioner vent door

Part #5304476359

$9.77
In Stock
Room Air Conditioner Fan Motor Capacitor (replaces 5304455583) 5304472609
#19

Recommended spare parts diagram

Room air conditioner fan motor capacitor (replaces 5304455583)

Part #5304472609

$77.89 |
7% OFF Phone Price : $83.89
In Stock
Room Air Conditioner Compressor 5304475735
#26

Recommended spare parts diagram

Room air conditioner compressor

Part #5304475735

$737.29 |
$12.00 OFF Phone Price : $749.29
In Stock
