Wall Oven/Microwave Combo

Model # KEMS307GBL3 Official KitchenAid electric wall oven

Here are the diagrams and repair parts for Official KitchenAid KEMS307GBL3 electric wall oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part

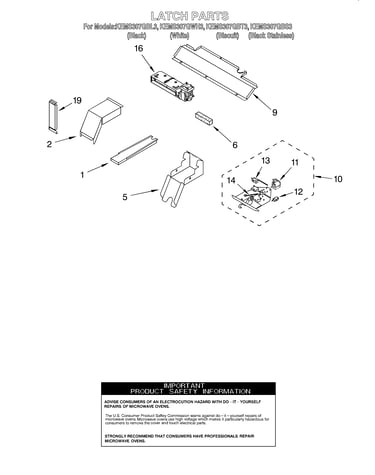

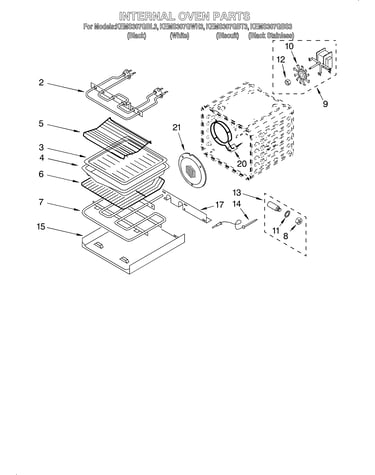

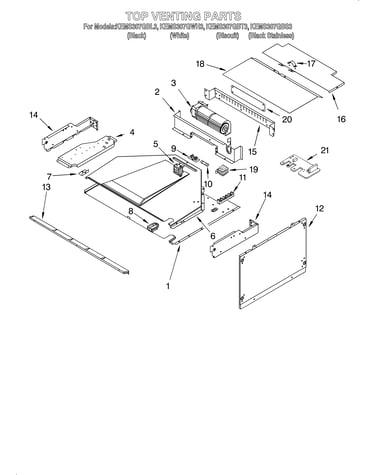

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
KEMS307GBL3 Electric Wall Oven
Microwave Door Interlock Switch 4375346
#53

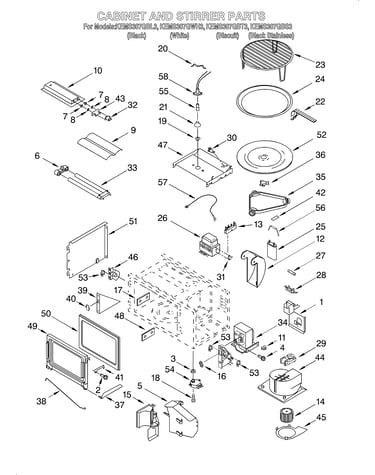

Cabinet and stirrer diagram

Microwave door interlock switch

Part #4375346

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4375346. Substitute parts can look different from the original.
BEST SELLER
$29.69 |
17% OFF Phone Price : $35.69
In Stock
Wall Oven Door Inner Glass 4449259
#3

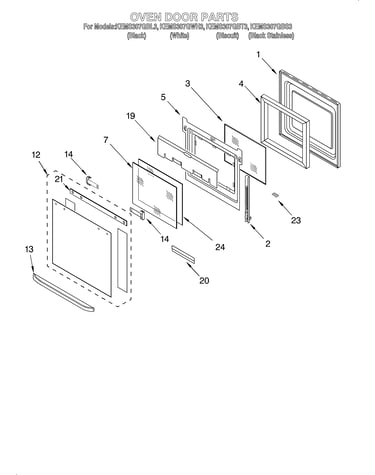

Oven door diagram

Wall oven door inner glass

Part #4449259

Replaced by #WP4449259

?
Manufacturer substitution
This part replaces 4449259. Substitute parts can look different from the original.
BEST SELLER
$83.92 |
7% OFF Phone Price : $89.92
In Stock
Wall Oven Temperature Sensor 4455636
#29

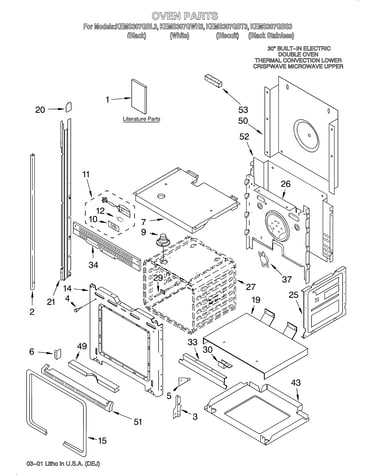

Oven/literature diagram

Wall oven temperature sensor

Part #4455636

Replaced by #WPW10131825

?
Manufacturer substitution
This part replaces 4455636. Substitute parts can look different from the original.
BEST SELLER
$61.83 |
9% OFF Phone Price : $67.83
In Stock
Magnetron 4375072
#26

Cabinet and stirrer diagram

Magnetron

Part #4375072

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 4375336
#46A

Cabinet and stirrer diagram

Mounting bracket

Part #4375336

Replaced by #W10727408

?
Manufacturer substitution
This part replaces 4375336. Substitute parts can look different from the original.
BEST SELLER
$88.84 |
6% OFF Phone Price : $94.84
In Stock
Oven Mounting Bracket 4375335
#46

Cabinet and stirrer diagram

Oven mounting bracket

Part #4375335

Replaced by #W10727408

?
Manufacturer substitution
This part replaces 4375335. Substitute parts can look different from the original.
BEST SELLER
$88.84 |
6% OFF Phone Price : $94.84
In Stock
Appliance Touch-up Paint 72017
#NI

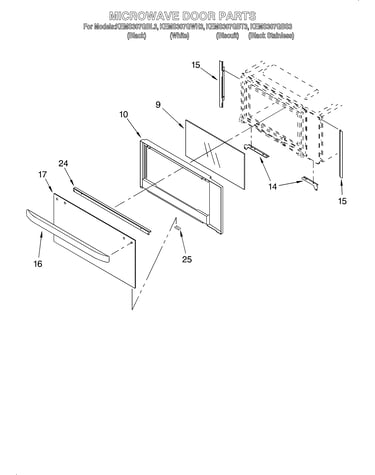

Microwave door diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Oven Baseless Lamp 4375348
#55

Cabinet and stirrer diagram

Oven baseless lamp

Part #4375348

Replaced by #WPW10440740

?
Manufacturer substitution
This part replaces 4375348. Substitute parts can look different from the original.
BEST SELLER
$22.69 |
21% OFF Phone Price : $28.69
In Stock
Diode 4375349
#56

Cabinet and stirrer diagram

Diode

Part #4375349

Replaced by #WPW10687786

?
Manufacturer substitution
This part replaces 4375349. Substitute parts can look different from the original.
BEST SELLER
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Range High-limit Thermostat 4451442
#37

Oven/literature diagram

Range high-limit thermostat

Part #4451442

Replaced by #WP9759243

?
Manufacturer substitution
This part replaces 4451442. Substitute parts can look different from the original.
BEST SELLER
$45.89 |
12% OFF Phone Price : $51.89
In Stock
