Frigidaire
Gas Range

Model # FCRG3005AWA Official Frigidaire free standing gas range

Here are the diagrams and repair parts for Official Frigidaire FCRG3005AWA free standing gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

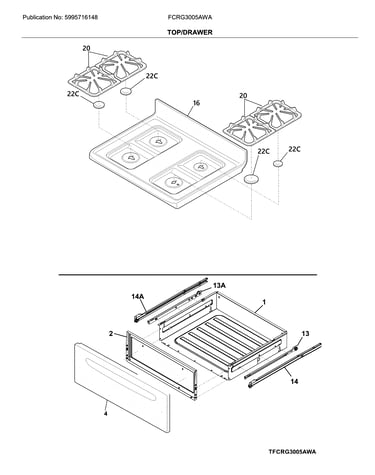

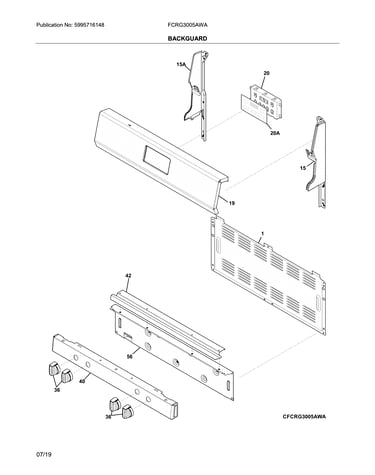

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Bake Igniter 5304508786
#19

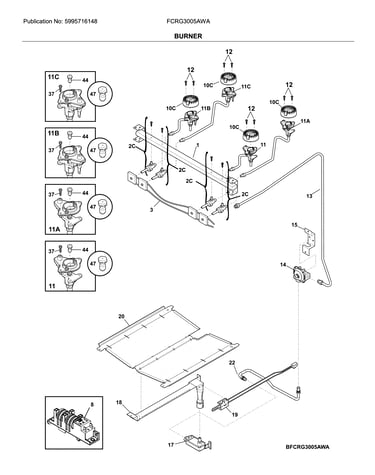

Burner diagram

Bake igniter

Part #5304508786

Replaced by #316489403

?
Manufacturer substitution
This part replaces 5304508786. Substitute parts can look different from the original.
BEST SELLER
$116.21 |
9% OFF Phone Price : $128.21
In Stock
Universal/multiflex (frigidaire) Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

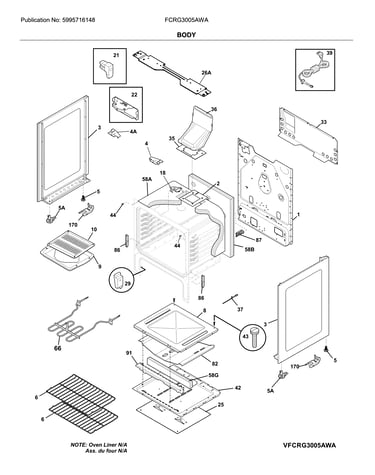

Body diagram

Universal/multiflex (frigidaire) range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$33.05 |
15% OFF Phone Price : $39.05
In Stock
Range Screw (replaces 316518100, 7316540900) 316540900
#12

Burner diagram

Range screw (replaces 316518100, 7316540900)

Part #316540900

BEST SELLER
$15.36 |
12% OFF Phone Price : $17.36
In Stock
Range Surface Burner Igniter And Orifice Holder (replaces 316449302) 316536602
#11B

Burner diagram

Range surface burner igniter and orifice holder (replaces 316449302)

Part #316536602

BEST SELLER
$79.89 |
7% OFF Phone Price : $85.89
In Stock
Universal/multiflex (frigidaire) Range Oven Door Handle Screw, 10-14 X 2-1/8-inch 316433300
#10

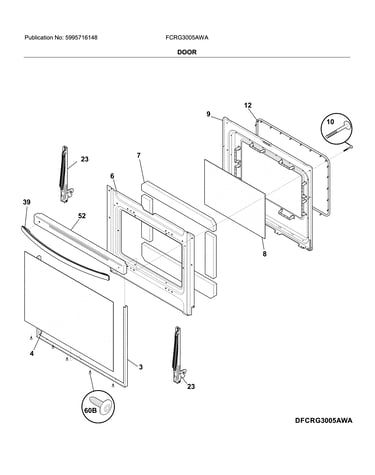

Door diagram

Universal/multiflex (frigidaire) range oven door handle screw, 10-14 x 2-1/8-inch

Part #316433300

BEST SELLER
$15.14 |
12% OFF Phone Price : $17.14
In Stock
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#10C

Burner diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

BEST SELLER
$38.70 |
13% OFF Phone Price : $44.70
In Stock
Range Lp Conversion Kit (replaces 318565418, 5304498798, 5304498817, 5304499345, 5304499406, 5304506291, 808752801) GRLP4
#47

Burner diagram

Range lp conversion kit (replaces 318565418, 5304498798, 5304498817, 5304499345, 5304499406, 5304506291, 808752801)

Part #GRLP4

BEST SELLER
$44.27 |
12% OFF Phone Price : $50.27
In Stock
Range Spark Module (replaces 316262405) 808608802
#8

Burner diagram

Range spark module (replaces 316262405)

Part #808608802

BEST SELLER
$69.05 |
8% OFF Phone Price : $75.05
In Stock
Universal/multiflex (frigidaire) Range Oven Rack (replaces 316496202, 316496207, 7316498003) 316496201
#6

Body diagram

Universal/multiflex (frigidaire) range oven rack (replaces 316496202, 316496207, 7316498003)

Part #316496201

BEST SELLER
This item is not returnable
$86.40 |
6% OFF Phone Price : $92.40
In Stock
Range Pressure Regulator 316091706
#14

Burner diagram

Range pressure regulator

Part #316091706

Replaced by #5304521339

?
Manufacturer substitution
This part replaces 316091706. Substitute parts can look different from the original.
BEST SELLER
$66.32 |
8% OFF Phone Price : $72.32
In Stock
