Model # 98729904 Official Craftsman roto tiller power composter

Here are the diagrams and repair parts for Official Craftsman 98729904 roto tiller power composter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

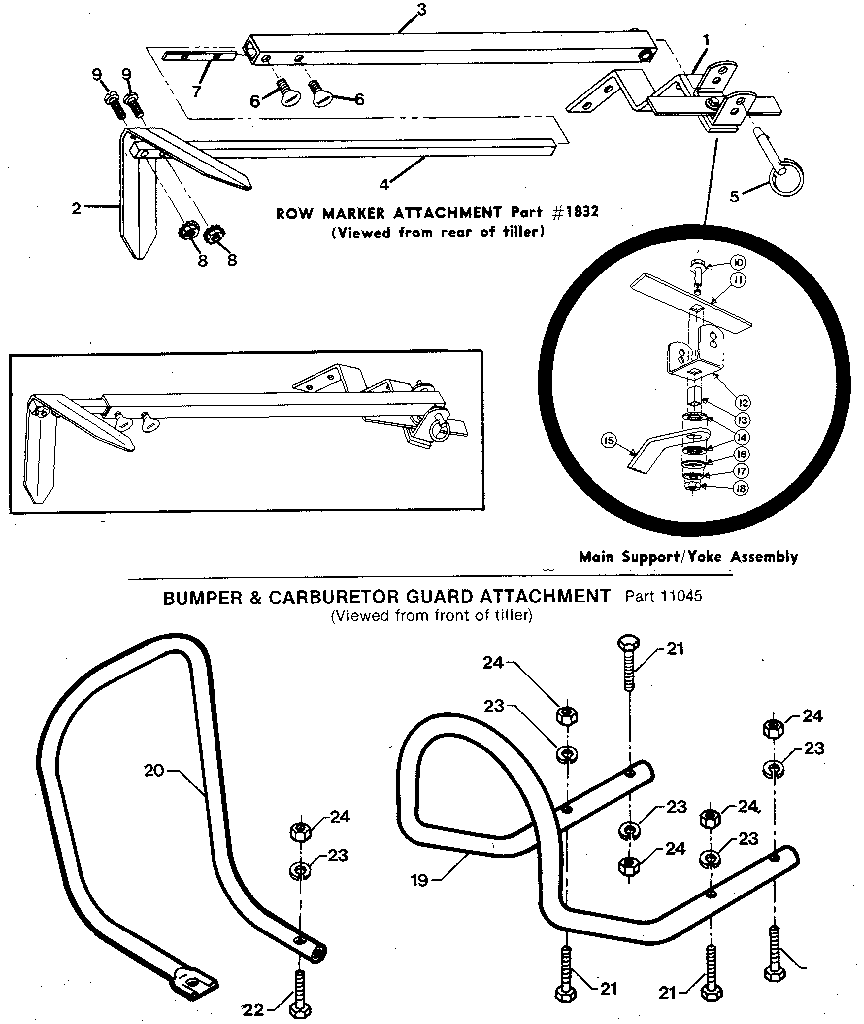

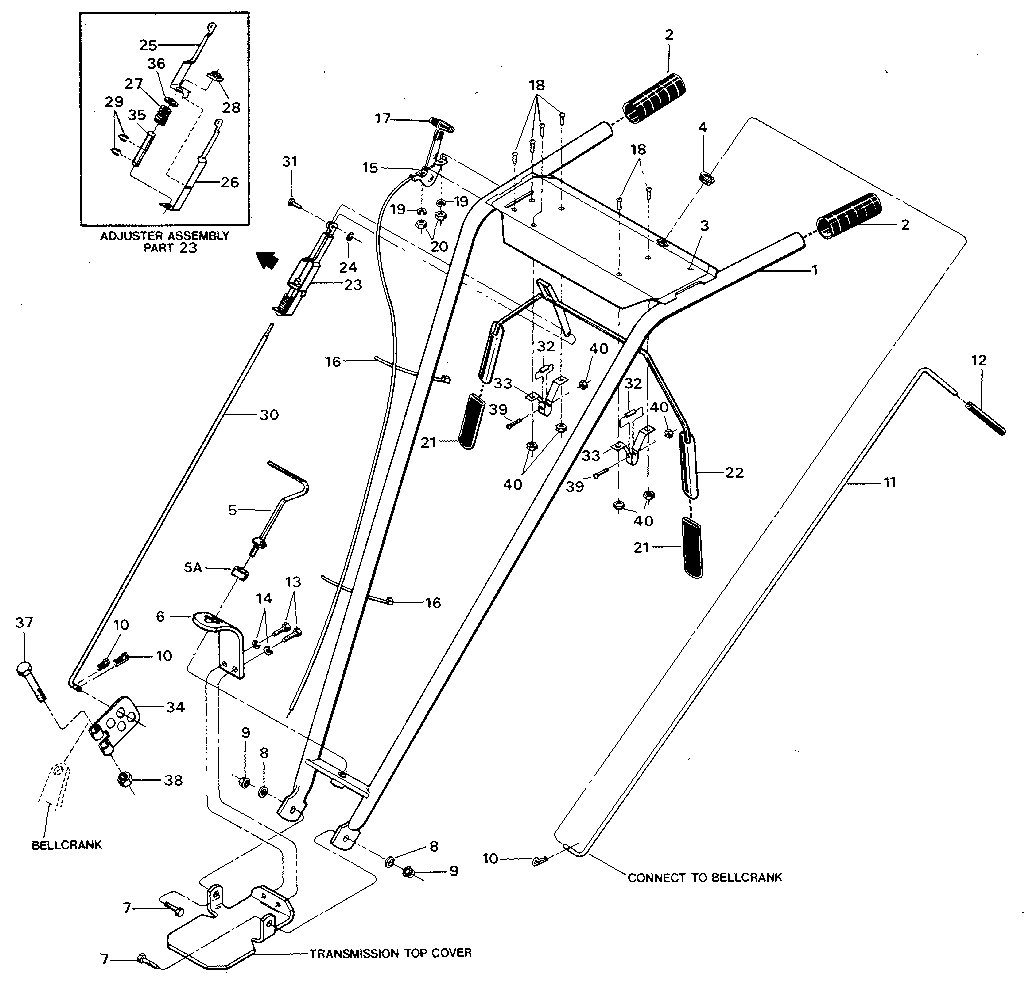

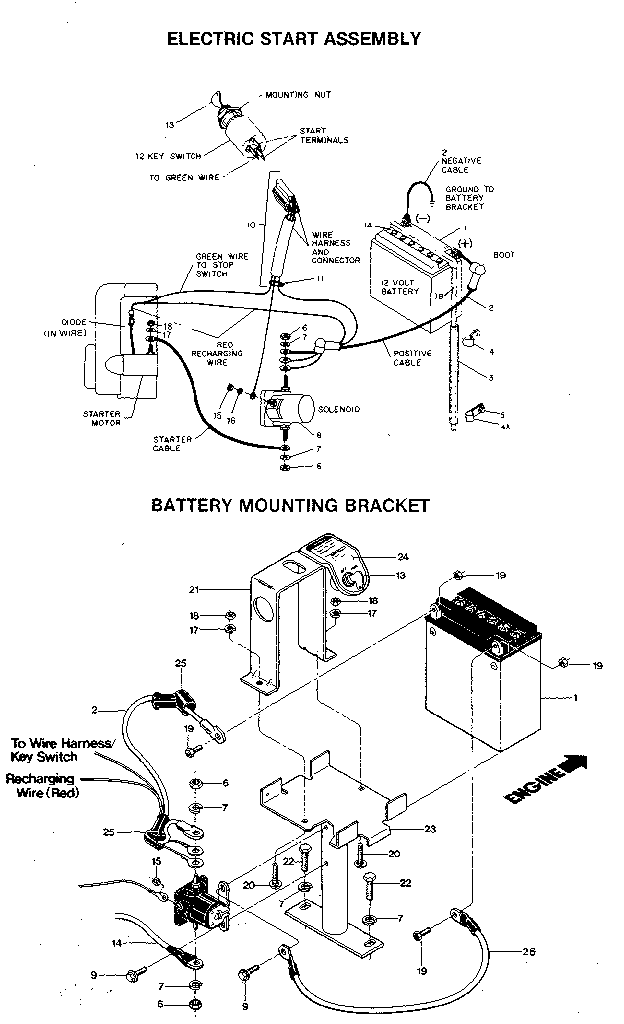

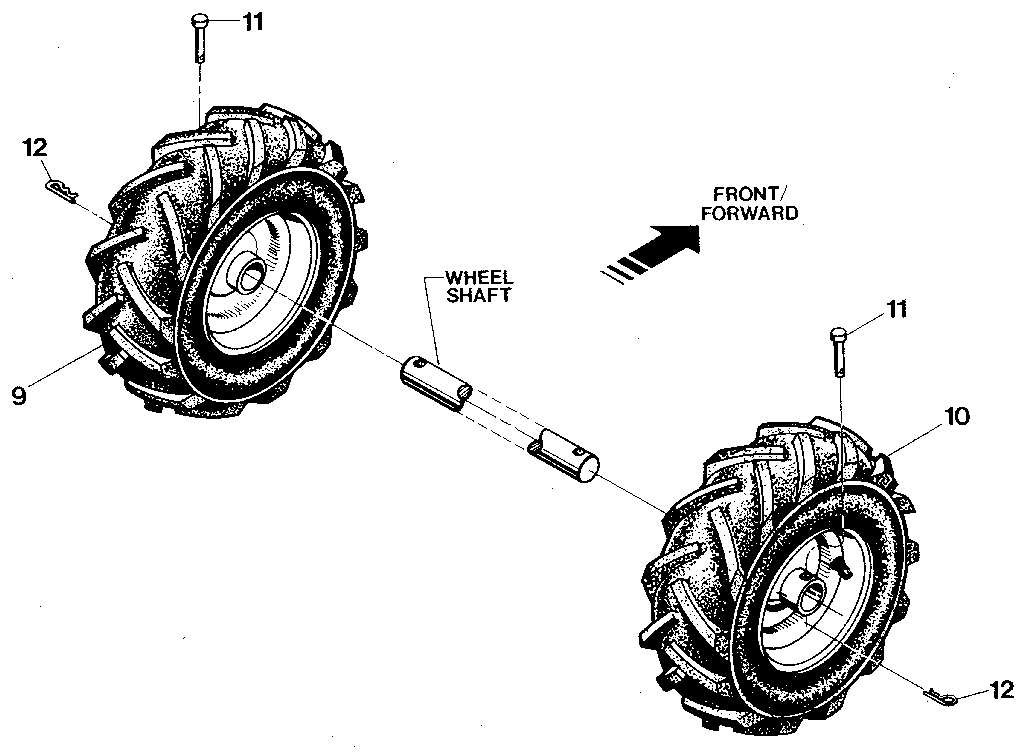

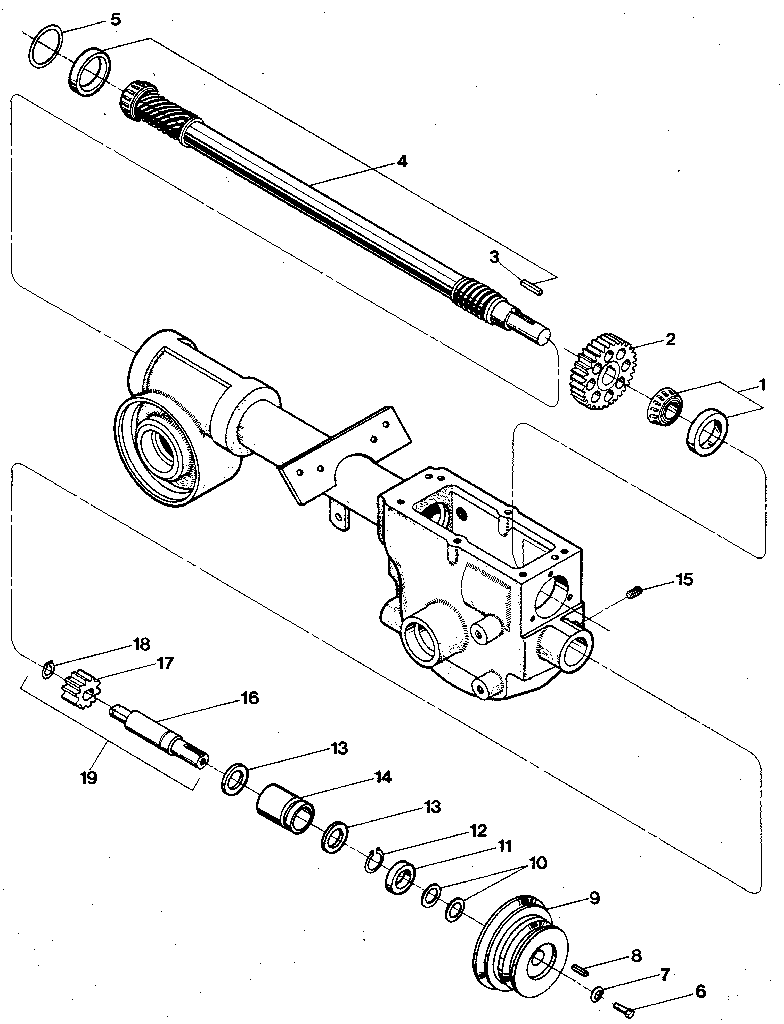

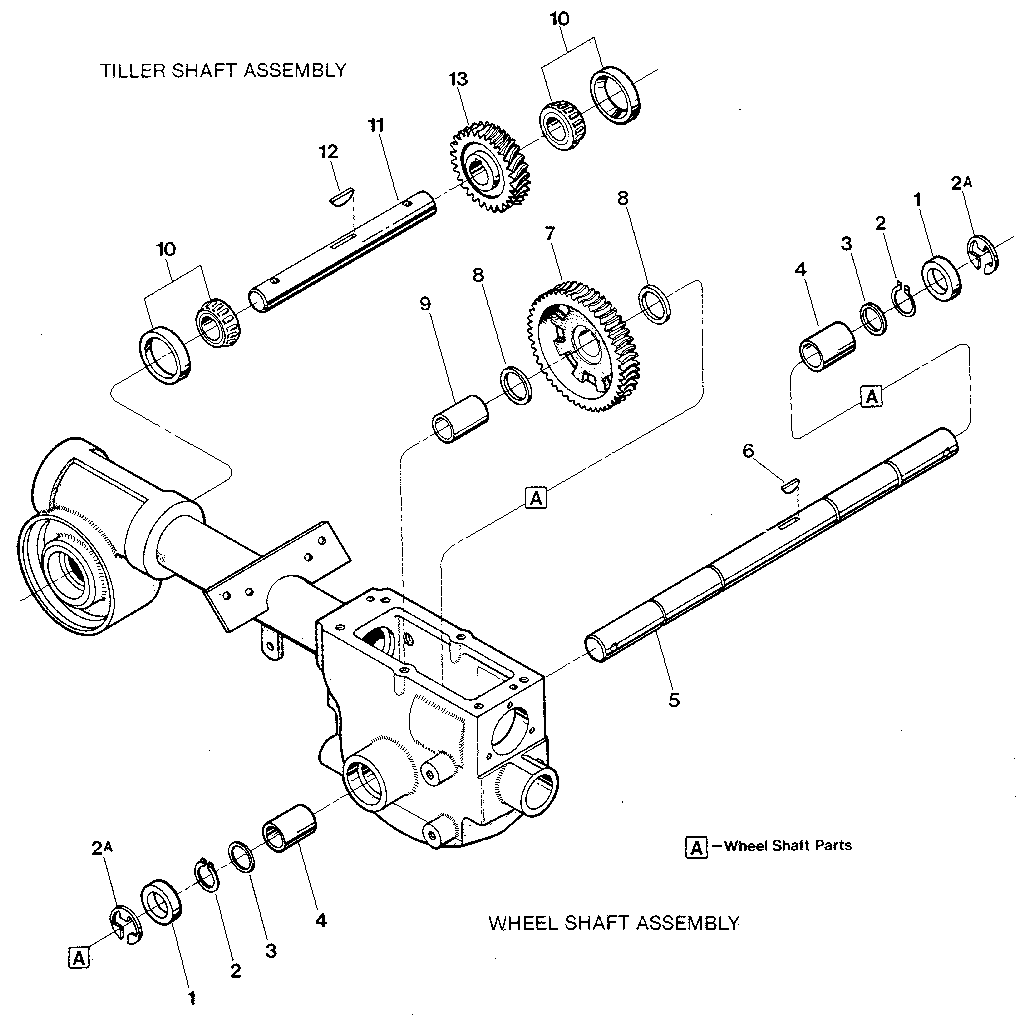

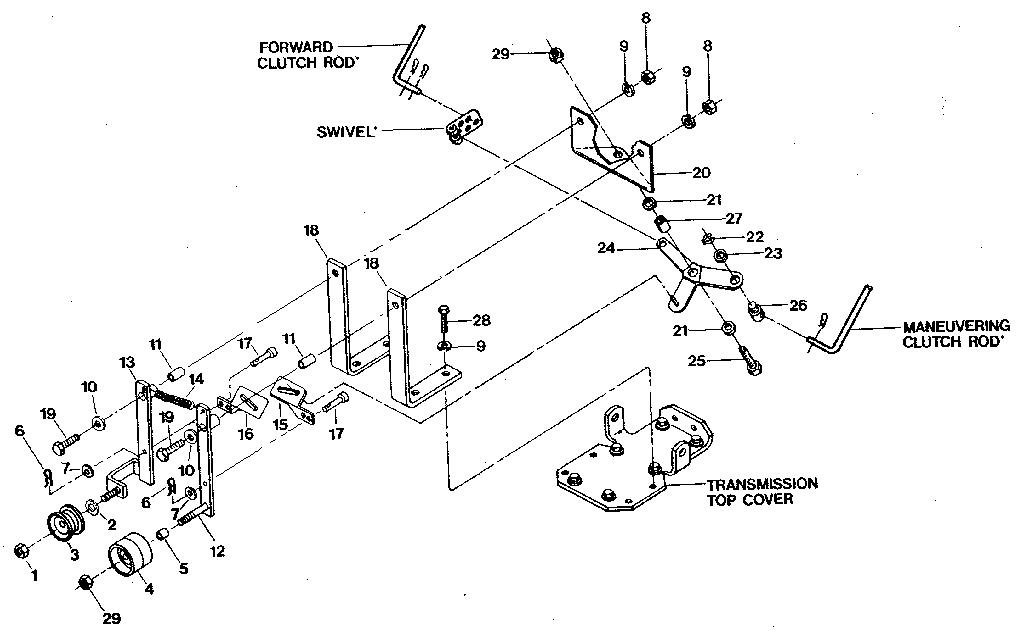

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 238 parts  |
Bolt 9711
Bolt

Part #9711

Replaced by #710-0514

?
Manufacturer substitution
This part replaces 9711. Substitute parts can look different from the original.
This item is not returnable
$5.33 |
16% OFF Phone Price : $6.33
In Stock
Hex Head Bolt 9761
#5

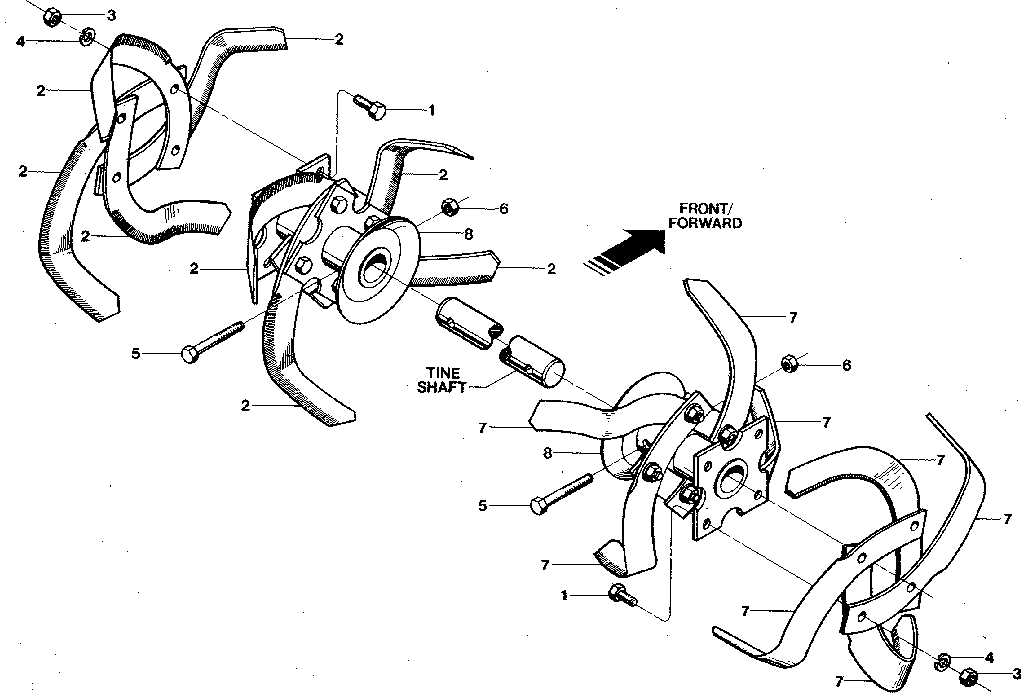

Bolo tines diagram

Hex head bolt

Part #9761

Replaced by #710-3096

?
Manufacturer substitution
This part replaces 9761. Substitute parts can look different from the original.
This item is not returnable
$9.93 |
9% OFF Phone Price : $10.93
In Stock
Bolt 9704
Bolt

Part #9704

Replaced by #710-0376

?
Manufacturer substitution
This part replaces 9704. Substitute parts can look different from the original.
This item is not returnable
$5.11 |
16% OFF Phone Price : $6.11
In Stock
Bolt Hx Here 9758
Bolt hx here

Part #9758

Replaced by #710-0805A

?
Manufacturer substitution
This part replaces 9758. Substitute parts can look different from the original.
This item is not returnable
$7.43
In Stock
V-belt 20565
#14

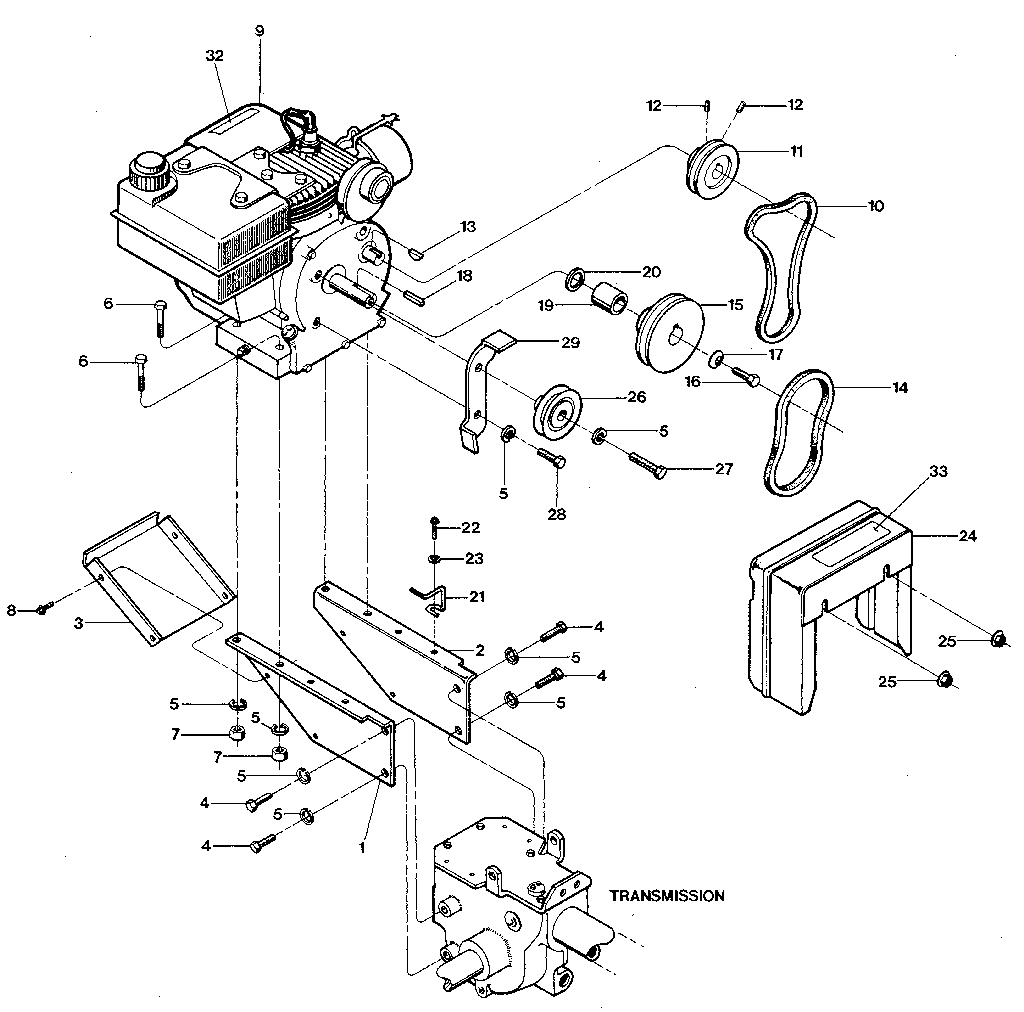

Engine & support brackets, pulleys, belts, belt cover diagram

V-belt

Part #20565

Replaced by #954-04094

?
Manufacturer substitution
This part replaces 20565. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$28.79 |
17% OFF Phone Price : $34.79
In Stock
Tine 50049-01
#2

Bolo tines diagram

Tine

Part #50049-01

Replaced by #742-04226-0637

?
Manufacturer substitution
This part replaces 50049-01. Substitute parts can look different from the original.
$22.79 |
21% OFF Phone Price : $28.79
In Stock
Spacer 9438
#8

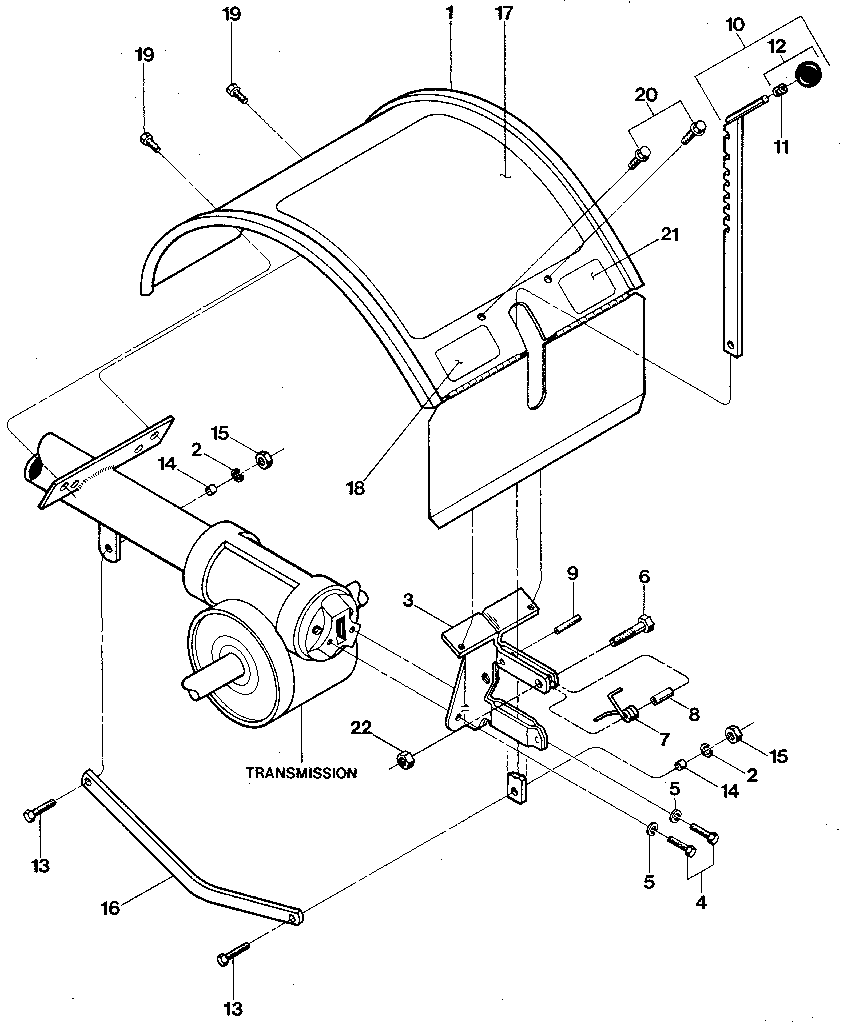

Hood, bracket & depth regulator diagram

Spacer

Part #9438

Replaced by #750-04556

?
Manufacturer substitution
This part replaces 9438. Substitute parts can look different from the original.
$11.89
In Stock
Knob 9119
#12

Hood, bracket & depth regulator diagram

Knob

Part #9119

Replaced by #GW-9119

?
Manufacturer substitution
This part replaces 9119. Substitute parts can look different from the original.
$20.20
In Stock
Oil Seal 9623
#10

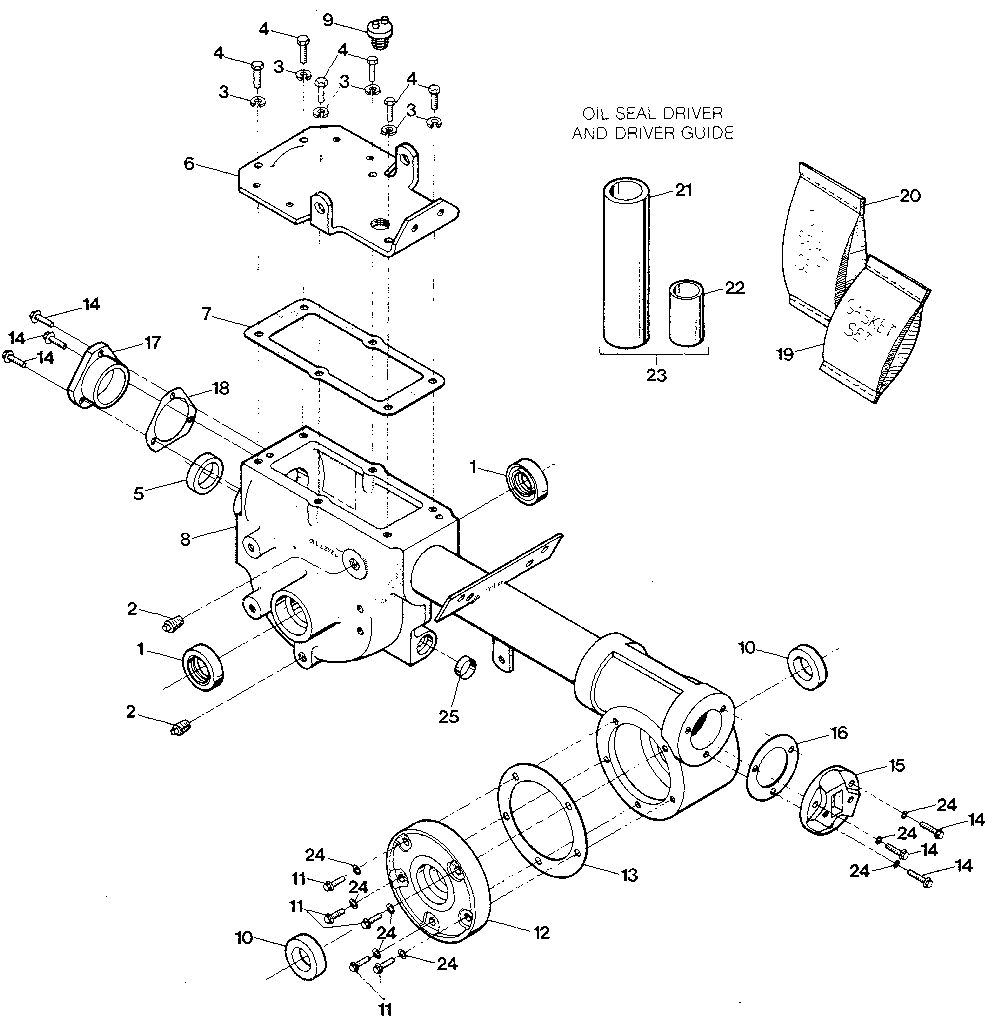

Transmission housing, covers, seals, gaskets & plugs diagram

Oil seal

Part #9623

Replaced by #921-04035

?
Manufacturer substitution
This part replaces 9623. Substitute parts can look different from the original.
This item is not returnable
$15.28 |
12% OFF Phone Price : $17.28
In Stock
Hex Bracket 2636
#8

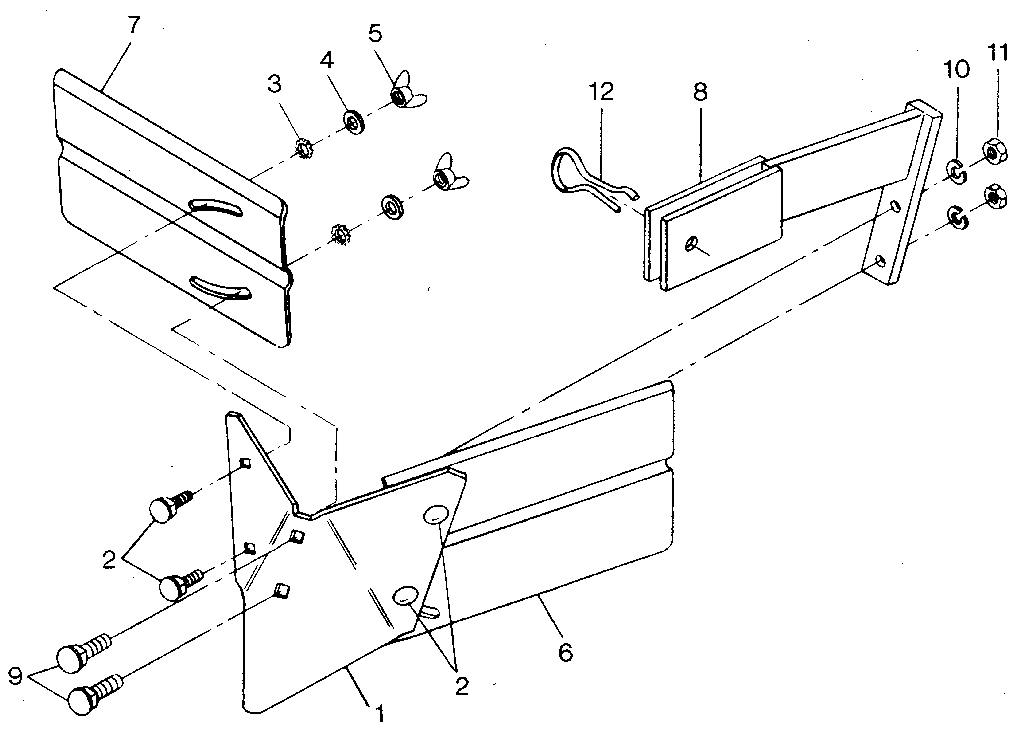

Hiller/furrower part #20868 (viewed from front of tiller) diagram

Hex bracket

Part #2636

Replaced by #GW-2636

?
Manufacturer substitution
This part replaces 2636. Substitute parts can look different from the original.
$207.98
In Stock
