Model # ACQ294XJ0 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACQ294XJ0 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Cement 279368
#10

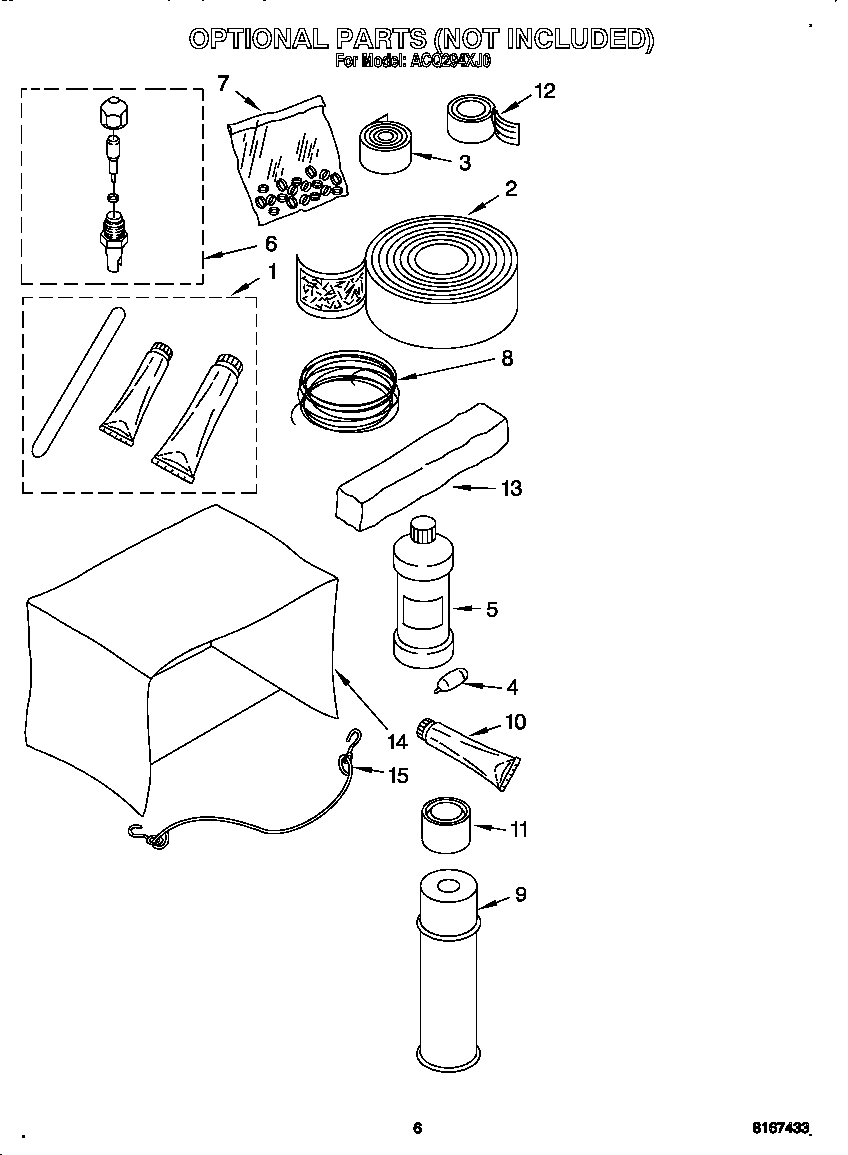

Optional diagram

Cement

Part #279368

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Valve Kit 978025
#6B

Optional diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Valve Kit 978026
#6C

Optional diagram

Valve kit

Part #978026

Replaced by #978026

?
Manufacturer substitution
This part replaces 978026. Substitute parts can look different from the original.
$34.19 |
15% OFF Phone Price : $40.19
In Stock
Sealer 212643
#12

Optional diagram

Sealer

Part #212643

Replaced by #212643

?
Manufacturer substitution
This part replaces 212643. Substitute parts can look different from the original.
This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Capacitor 470168
#29

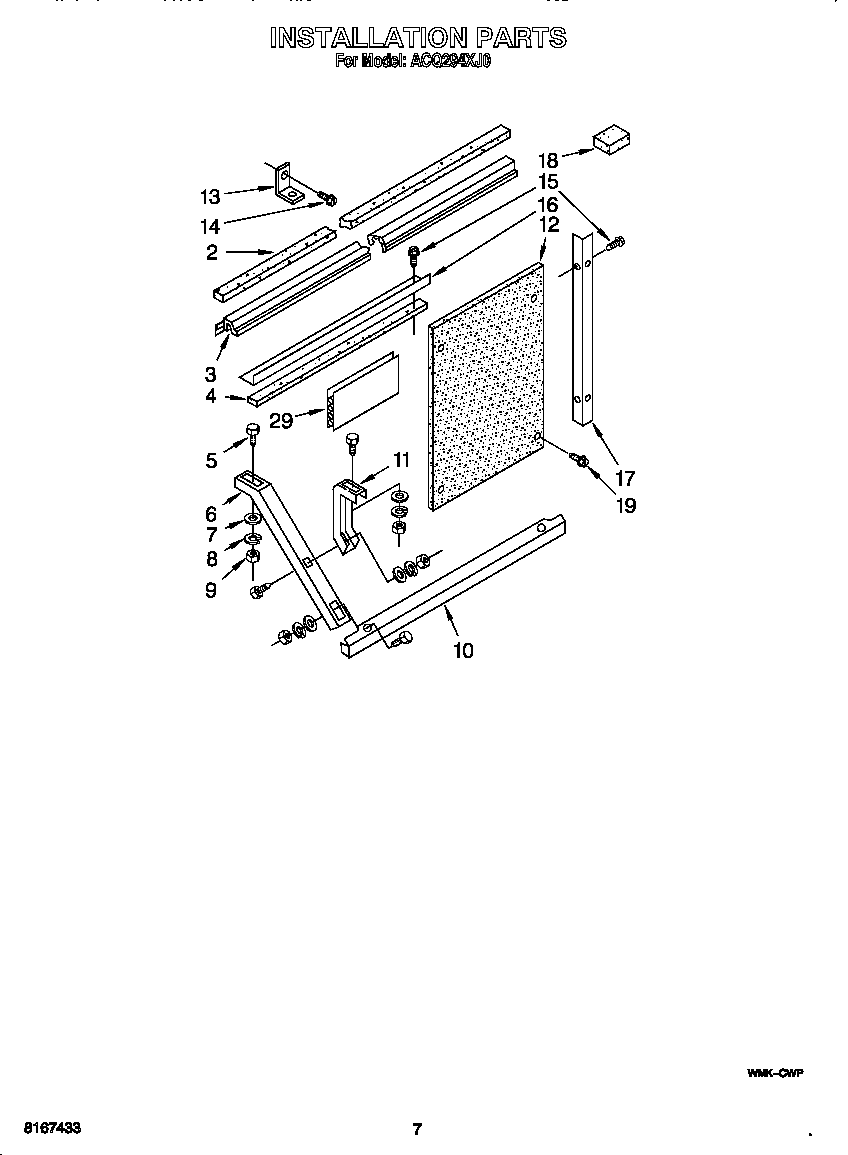

Installation diagram

Capacitor

Part #470168

Replaced by #212643

?
Manufacturer substitution
This part replaces 470168. Substitute parts can look different from the original.
This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Valve Kit 978030
#6G

Optional diagram

Valve kit

Part #978030

Replaced by #978030

?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Mounting Clip 1157015
#39

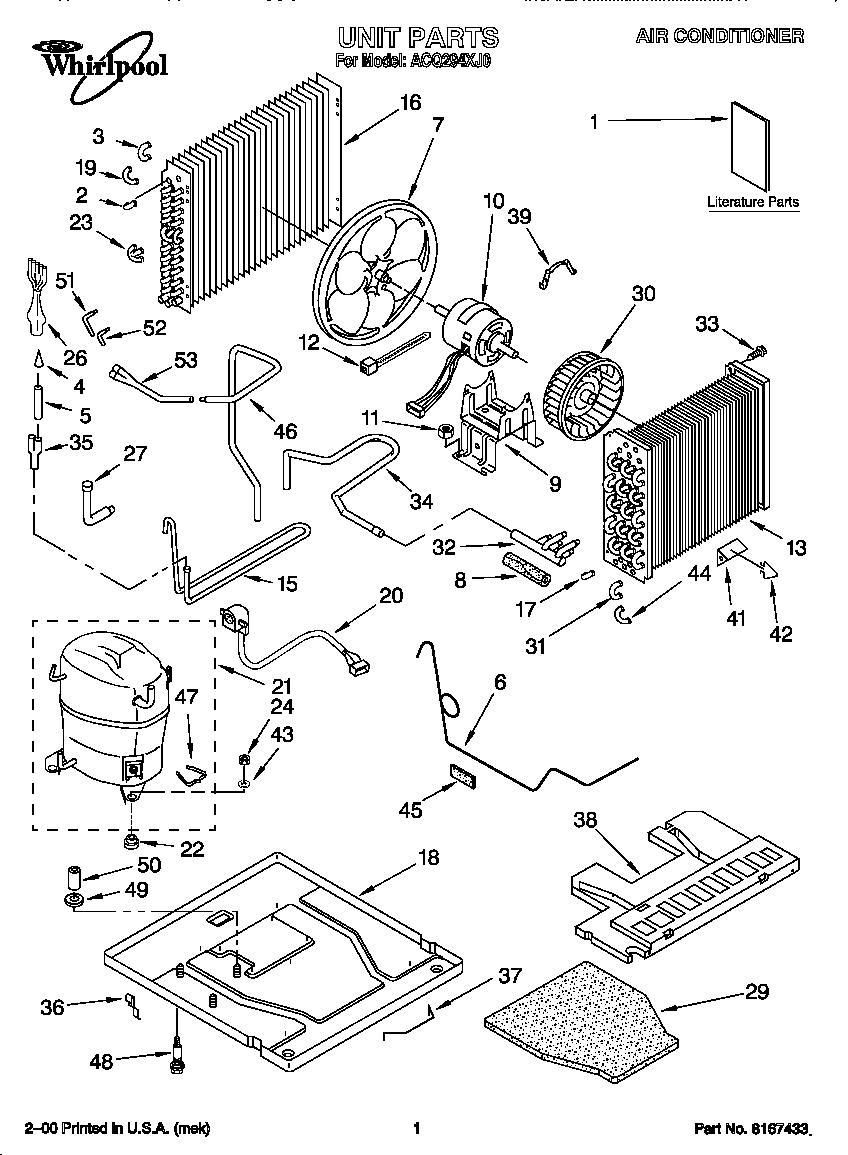

Unit diagram

Mounting clip

Part #1157015

Replaced by #WPY015825

?
Manufacturer substitution
This part replaces 1157015. Substitute parts can look different from the original.
This item is not returnable
$16.09 |
11% OFF Phone Price : $18.09
In Stock
Crosley Louver 1168510
#24

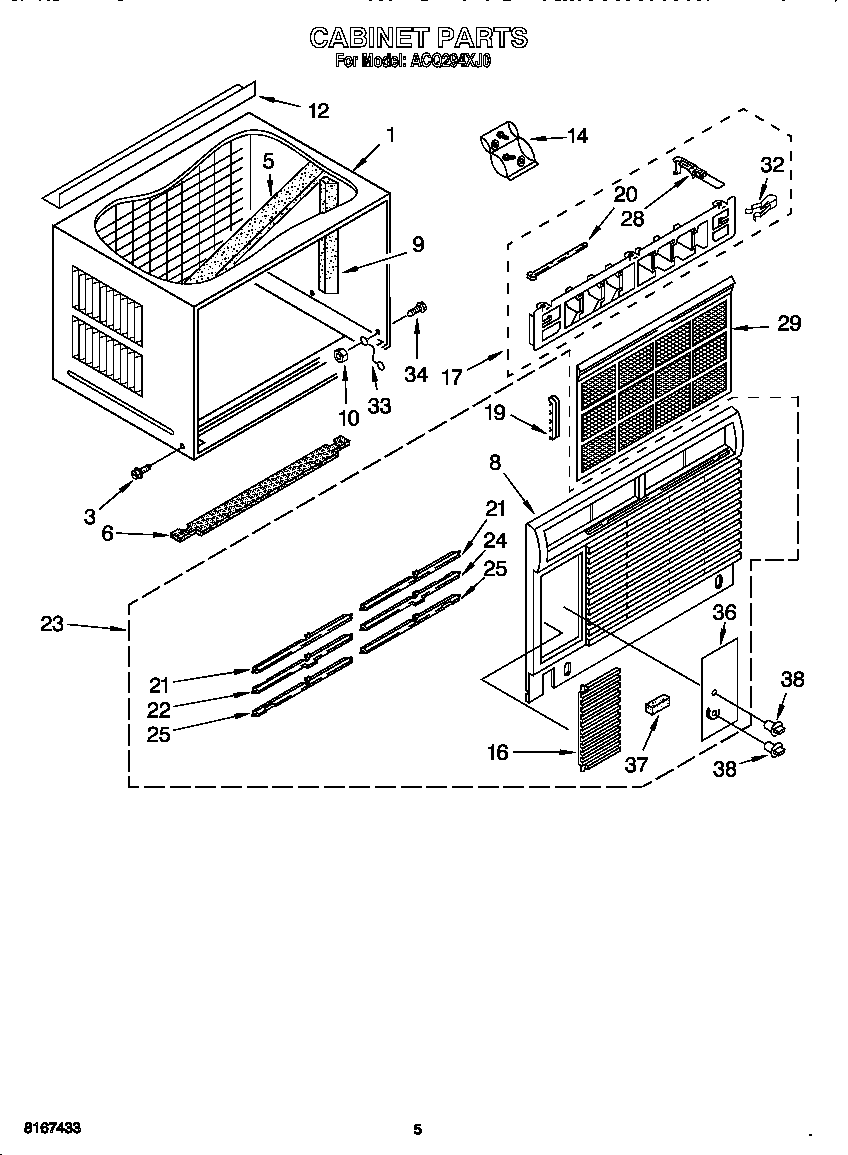

Cabinet diagram

Crosley louver

Part #1168510

$23.60
In Stock
Shroud Clip 1161248
#2

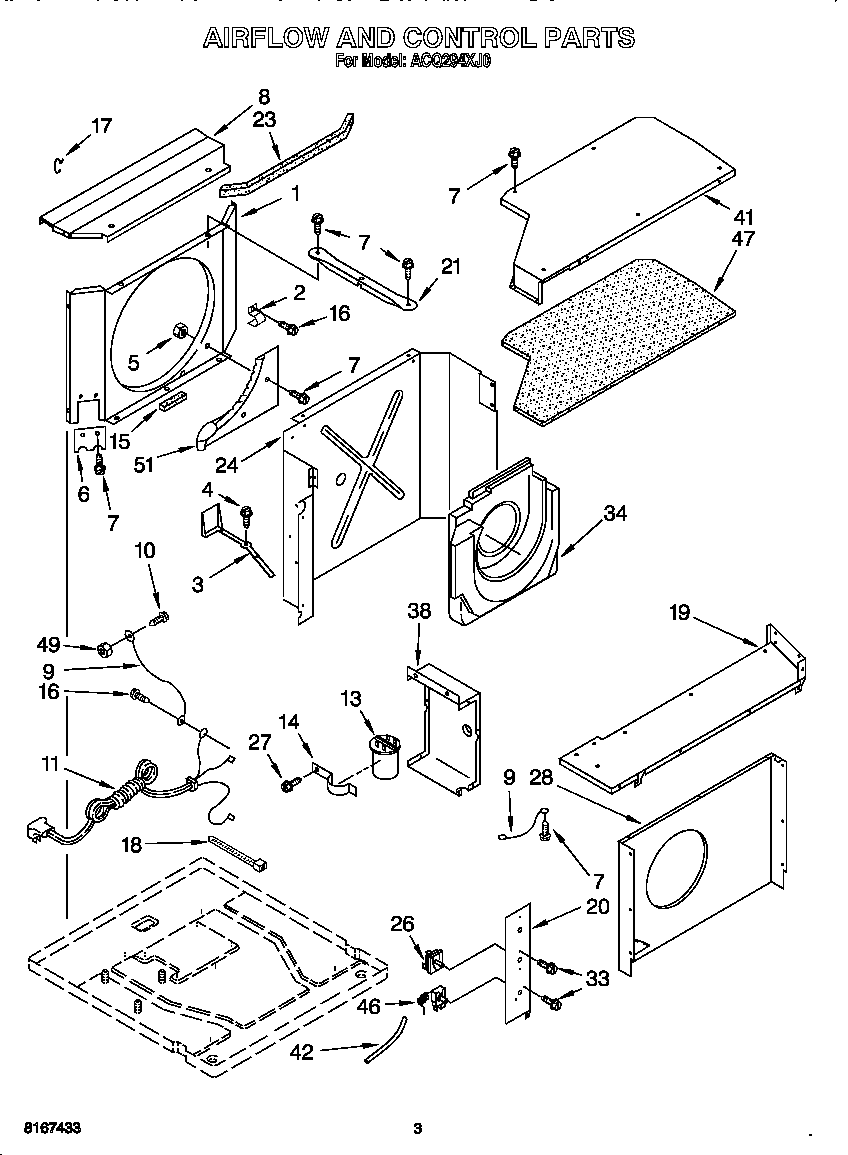

Airflow and control diagram

Shroud clip

Part #1161248

This item is not returnable
$3.29
In Stock
Ge Room Air Conditioner Outdoor Cover 484184
#14D

Optional diagram

Ge room air conditioner outdoor cover

Part #484184

$54.49 |
10% OFF Phone Price : $60.49
In Stock
