Model # FS8EVP-P1185602M Official Amana microwave

Here are the diagrams and repair parts for Official Amana FS8EVP-P1185602M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

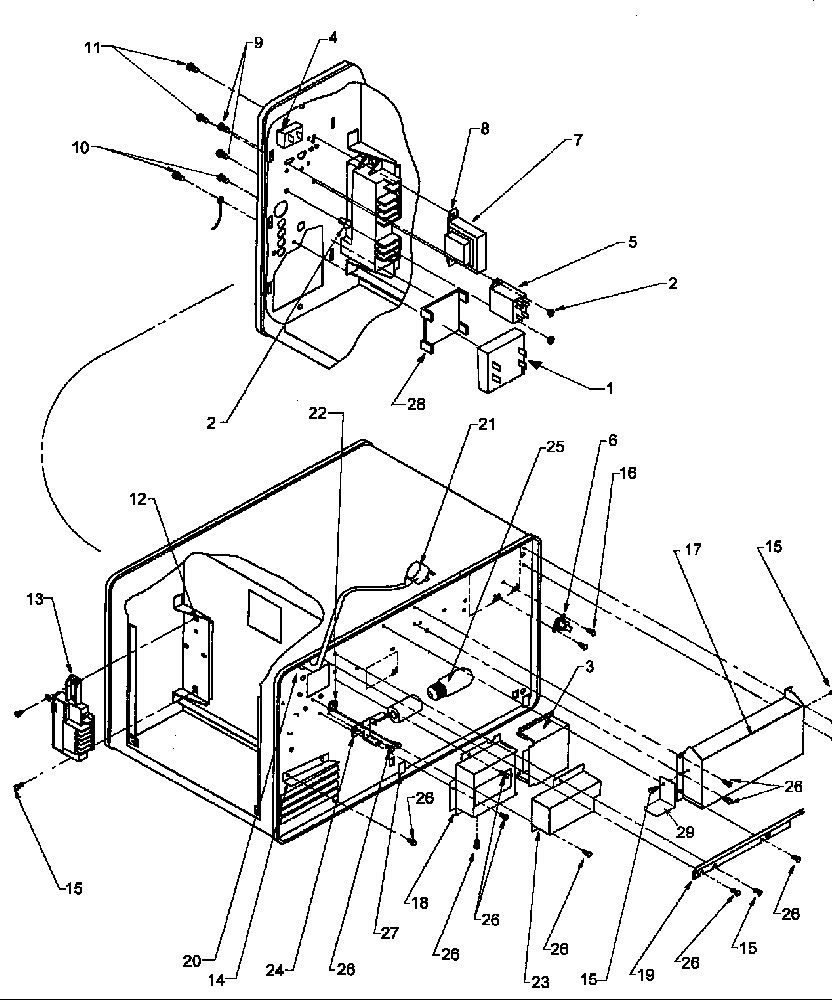

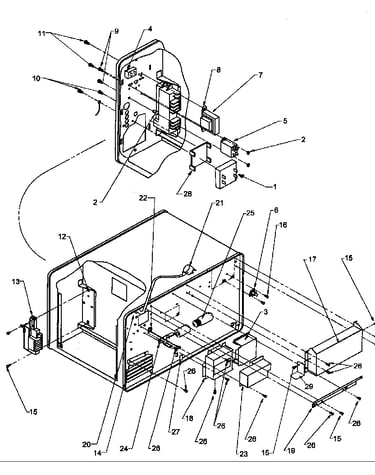

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Sealer M0275598
#23

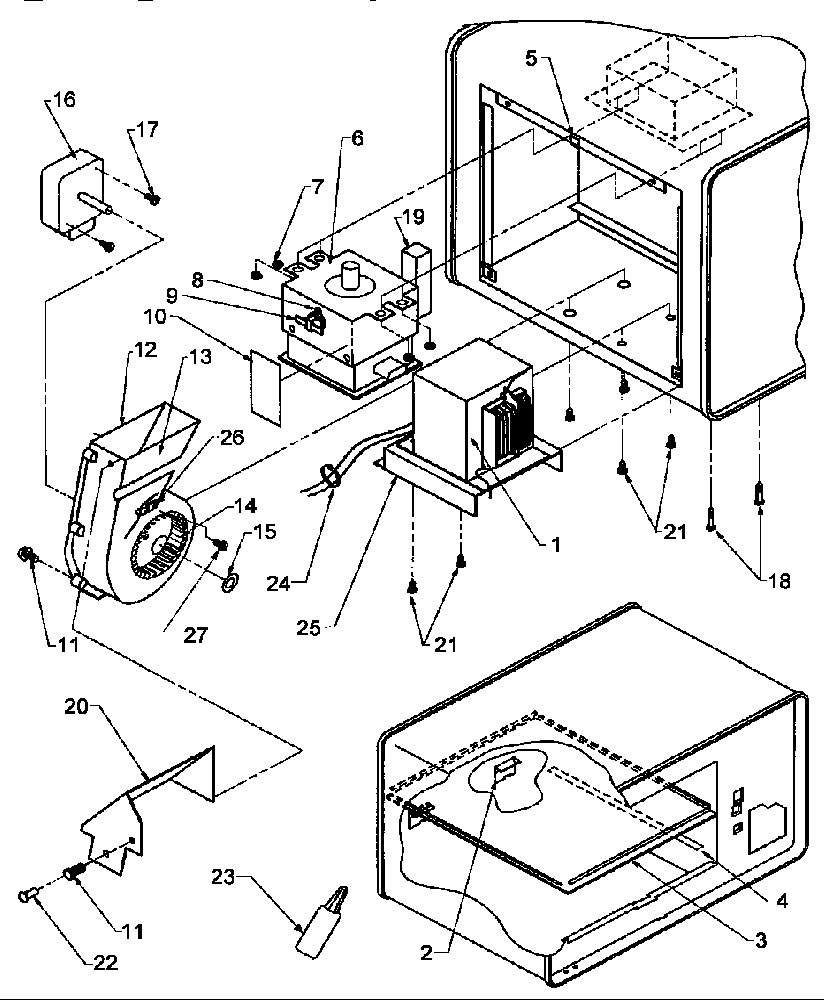

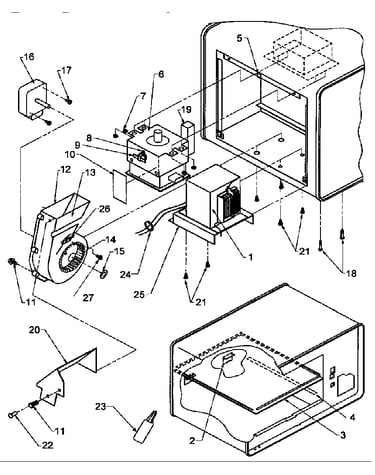

Cavity diagram

Sealer

Part #M0275598

Replaced by #W10841140

?
Manufacturer substitution
This part replaces M0275598. Substitute parts can look different from the original.
BEST SELLER
$14.99 |
12% OFF Phone Price : $16.99
In Stock
Diode B8383102
#18

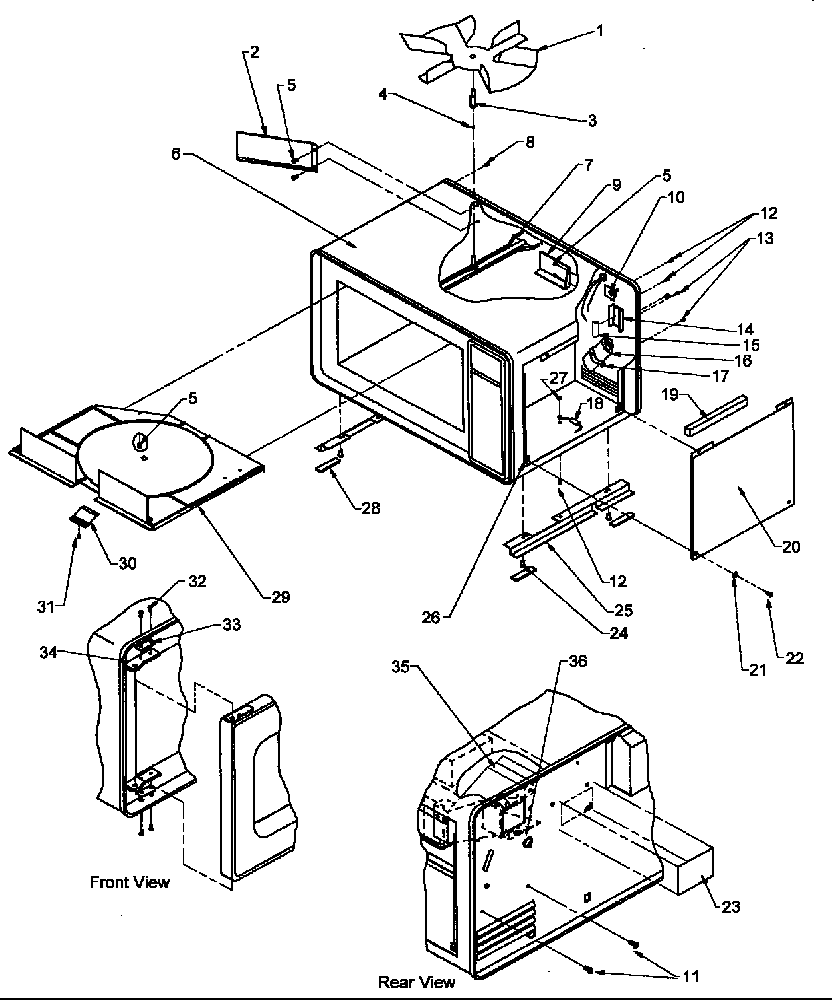

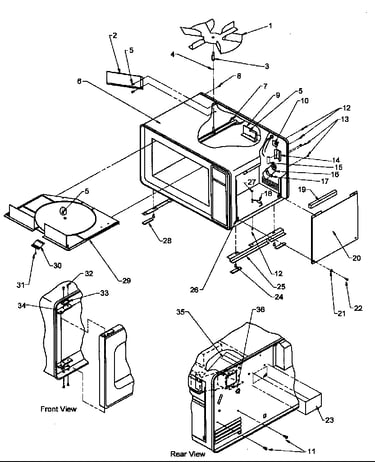

Stirrer/miscellaneous diagram

Diode

Part #B8383102

Replaced by #WP13091701

?
Manufacturer substitution
This part replaces B8383102. Substitute parts can look different from the original.
$23.01 |
21% OFF Phone Price : $29.01
In Stock
Element 4 Tu 5149-V
#7

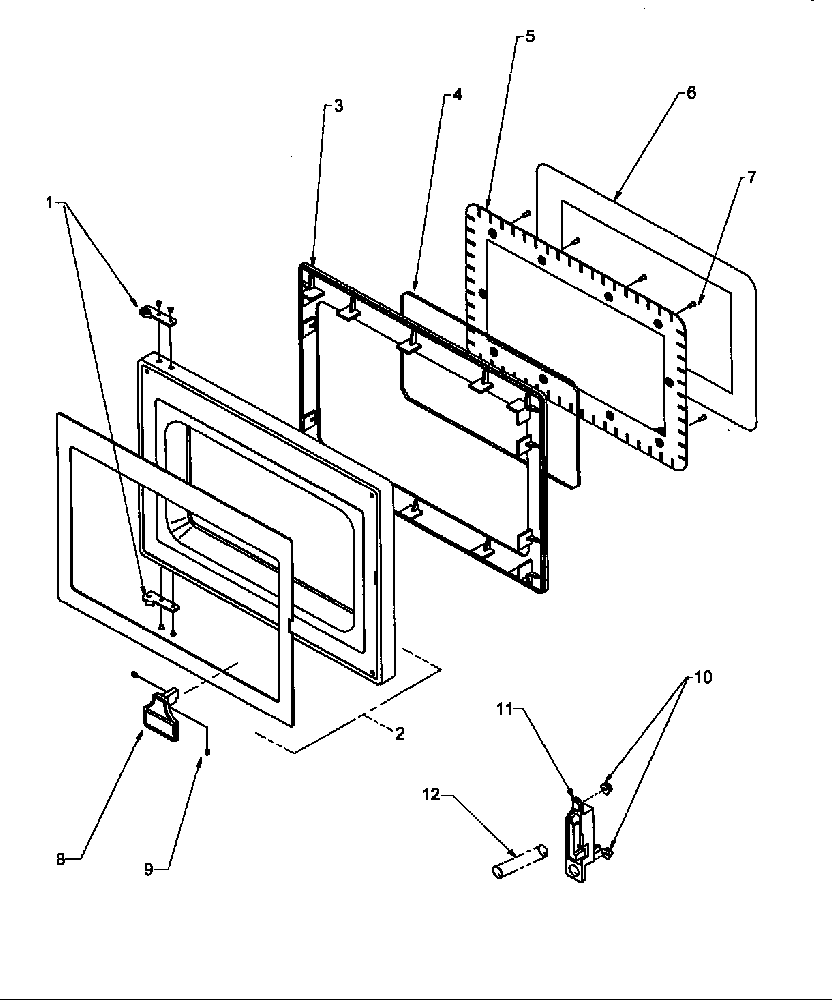

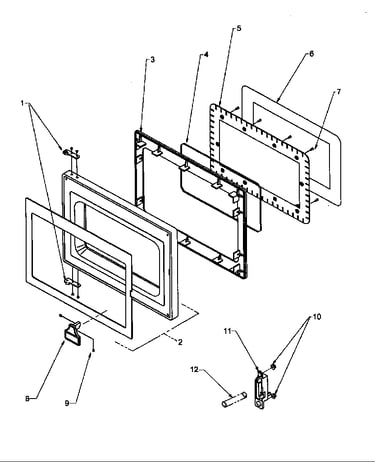

Door diagram

Element 4 tu

Part #5149-V

Replaced by #5149-V

?
Manufacturer substitution
This part replaces 5149-V. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Nut M0282005
Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Head Screw M0211217
Head screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Capacitor D8547927
#16

Stirrer/miscellaneous diagram

Capacitor

Part #D8547927

Replaced by #D8547927

?
Manufacturer substitution
This part replaces D8547927. Substitute parts can look different from the original.
$17.47
In Stock
Fuse M0805102
#15

Stirrer/miscellaneous diagram

Fuse

Part #M0805102

Replaced by #WPM0805102

?
Manufacturer substitution
This part replaces M0805102. Substitute parts can look different from the original.
$8.69 |
10% OFF Phone Price : $9.69
In Stock
Screw 5051032202
#9

Door diagram

Screw

Part #5051032202

Replaced by #M0208943

?
Manufacturer substitution
This part replaces 5051032202. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Window Display 41545P05
#3

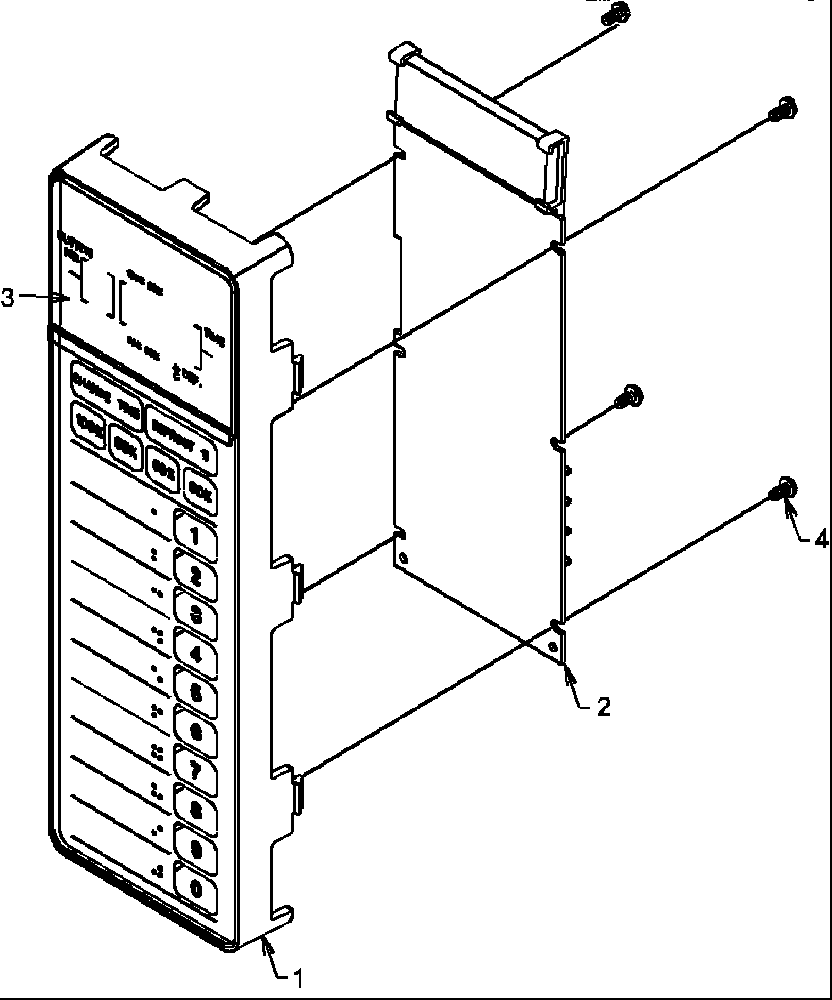

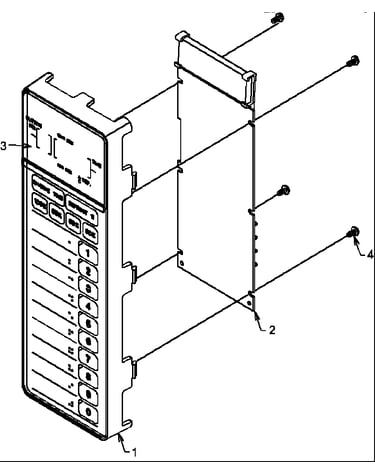

Control panel (fs8/p1185604m) (fs8evp/p1185602m) (fs8lw/p1185603m) diagram

Window display

Part #41545P05

The manufacturer no longer makes this part, and there's no substitute part

Chord, Clip M0104101
#26

Cavity diagram

Chord, clip

Part #M0104101

The manufacturer no longer makes this part, and there's no substitute part
