Kelvinator
Room Air Conditioner

Model # MH413C1QA Official Kelvinator room air conditioner - k1790-105

Here are the diagrams and repair parts for Official Kelvinator MH413C1QA room air conditioner - k1790-105, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Filter G84701
#33

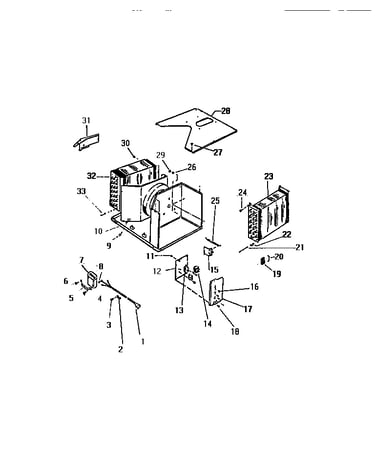

Controls diagram

Filter

Part #G84701

Replaced by #5300265301

?
Manufacturer substitution
This part replaces G84701. Substitute parts can look different from the original.
$212.62
In Stock
Nut G515926
#6

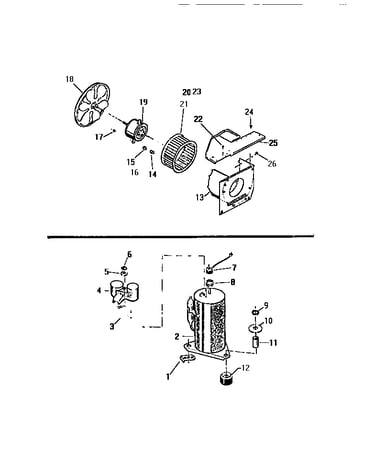

Air handling parts, compressor diagram

Nut

Part #G515926

This item is not returnable
$2.16
In Stock
Cord G506345-06
#1

Controls diagram

Cord

Part #G506345-06

The manufacturer no longer makes this part, and there's no substitute part

Sleeve G518237
#11

Air handling parts, compressor diagram

Sleeve

Part #G518237

The manufacturer no longer makes this part, and there's no substitute part

Screw G509750
#4

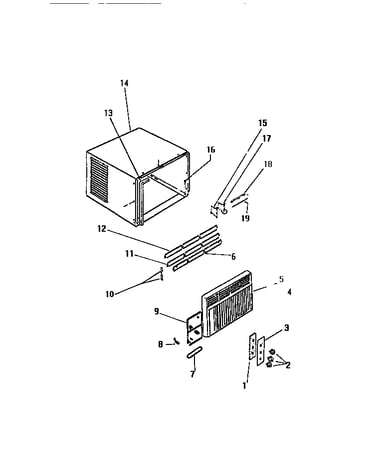

Cabinet, front, wrapper diagram

Screw

Part #G509750

The manufacturer no longer makes this part, and there's no substitute part

Clip G149106
#8

Cabinet, front, wrapper diagram

Clip

Part #G149106

The manufacturer no longer makes this part, and there's no substitute part

Gasket G515929
#5

Air handling parts, compressor diagram

Gasket

Part #G515929

The manufacturer no longer makes this part, and there's no substitute part

Washer G99148
#26

Controls diagram

Washer

Part #G99148

The manufacturer no longer makes this part, and there's no substitute part

Nut G99511
#16

Air handling parts, compressor diagram

Nut

Part #G99511

The manufacturer no longer makes this part, and there's no substitute part

Manual Owner G518611

#NI

All parts diagram

Manual owner

Part #G518611

The manufacturer no longer makes this part, and there's no substitute part
