Hotpoint
Electric Range

Model # RF615GL2 Official Hotpoint electric range

Here are the diagrams and repair parts for Official Hotpoint RF615GL2 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Term Blk WB17X217

#82

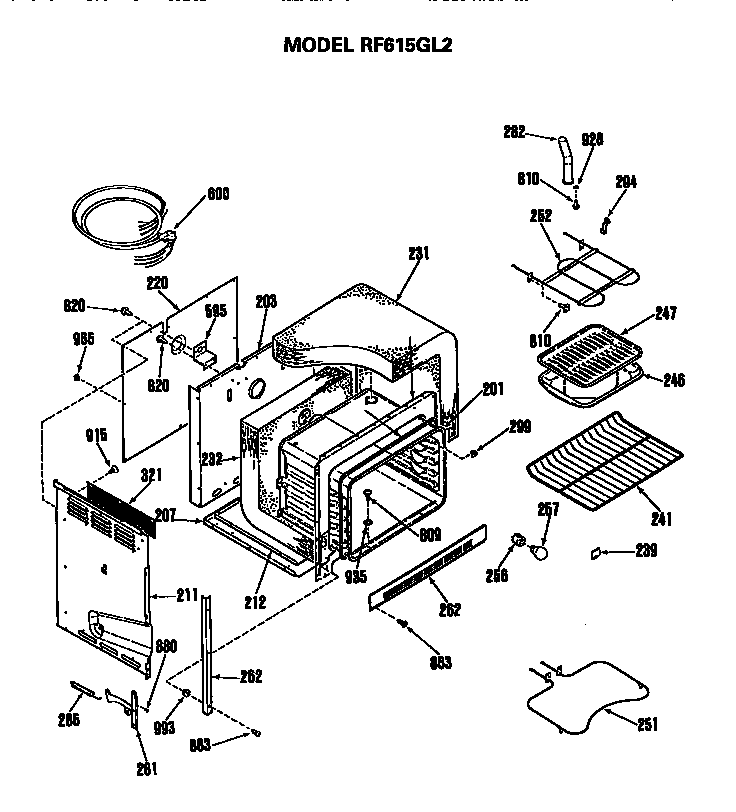

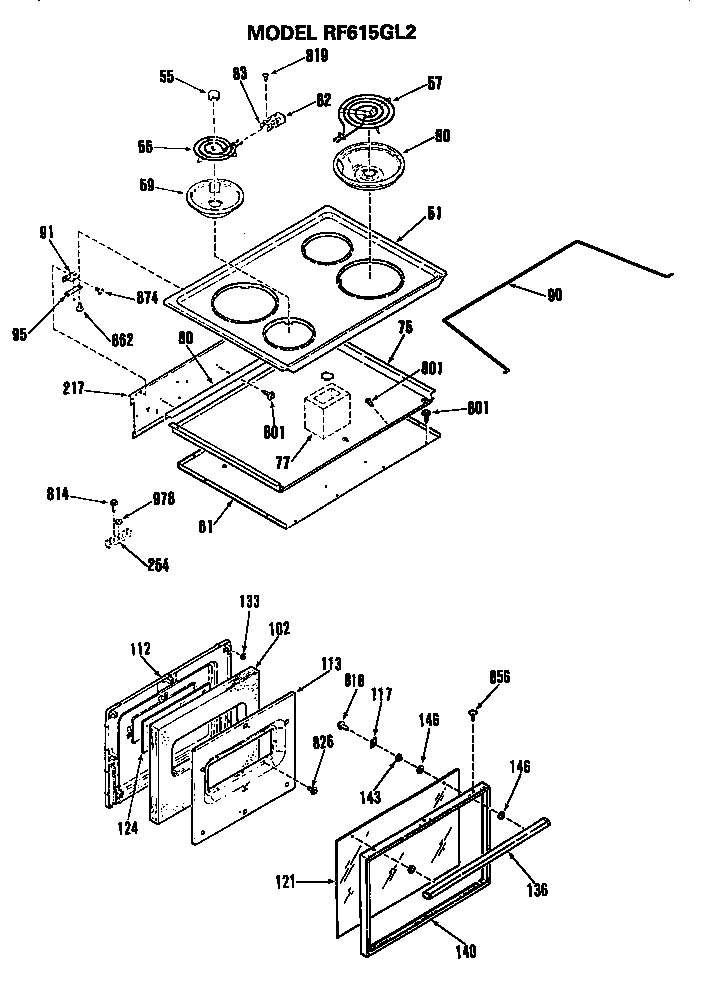

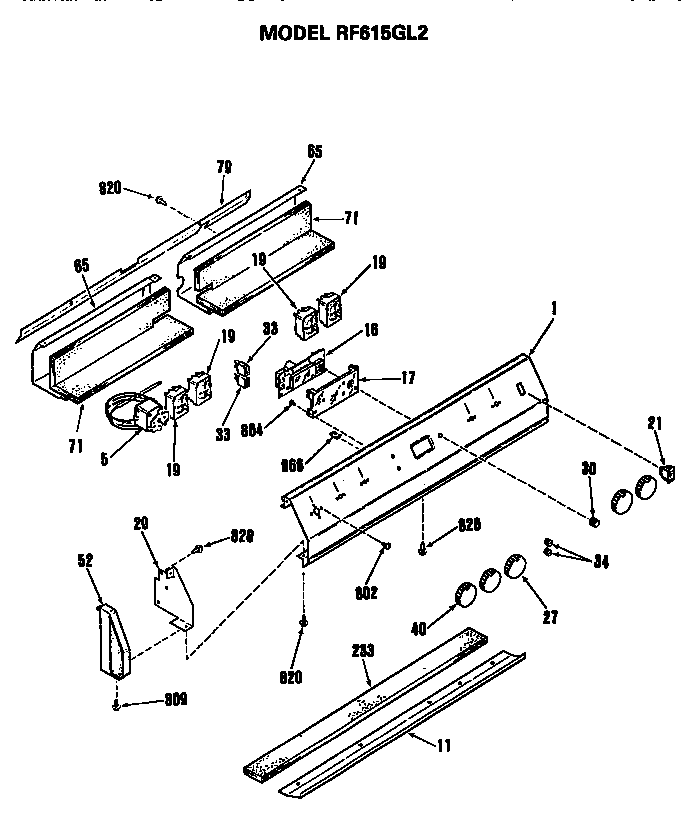

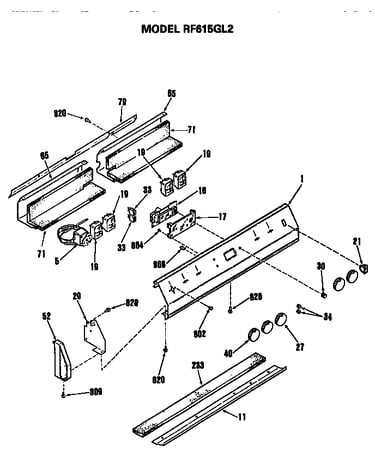

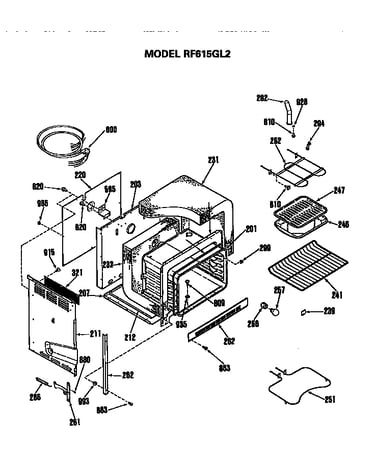

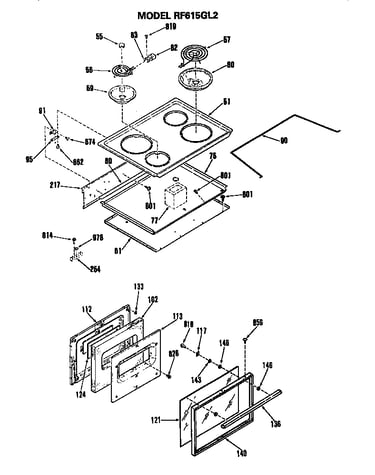

All parts diagram

Term blk

Part #WB17X217

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces WB17X217. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Range Broil Element Support (replaces Wb02k9719, Wb02x9719, Wb2x9438, Wb2x9576) WB2X9719

#294

All parts diagram

Range broil element support (replaces wb02k9719, wb02x9719, wb2x9438, wb2x9576)

Part #WB2X9719

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Coil Surface Element, 8-in WB30X255

#57

All parts diagram

Range coil surface element, 8-in

Part #WB30X255

$67.24 |
8% OFF Phone Price : $73.24
In Stock
Range Bake Element WB44X237

#122

All parts diagram

Range bake element

Part #WB44X237

$46.01 |
12% OFF Phone Price : $52.01
In Stock
Range Coil Surface Element, 6-in WB30X256

#56

All parts diagram

Range coil surface element, 6-in

Part #WB30X256

$60.49 |
9% OFF Phone Price : $66.49
In Stock
Clip-term Bk WB17X218

#83

All parts diagram

Clip-term bk

Part #WB17X218

Replaced by #WB17X211

?
Manufacturer substitution
This part replaces WB17X218. Substitute parts can look different from the original.
$8.87 |
10% OFF Phone Price : $9.87
In Stock
Range Screw WB1X1137

#809

All parts diagram

Range screw

Part #WB1X1137

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Indicator Light WB25X92

#555

All parts diagram

Indicator light

Part #WB25X92

Replaced by #WB25T10039

?
Manufacturer substitution
This part replaces WB25X92. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Outer Panel WB56X1902

#121

All parts diagram

Range oven door outer panel

Part #WB56X1902

$215.34 |
5% OFF Phone Price : $227.34
In Stock
Screw WB1X1178

#862

All parts diagram

Screw

Part #WB1X1178

$18.57
In Stock
