Model # T916 Official Nautilus treadmill

Here are the diagrams and repair parts for Official Nautilus T916 treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

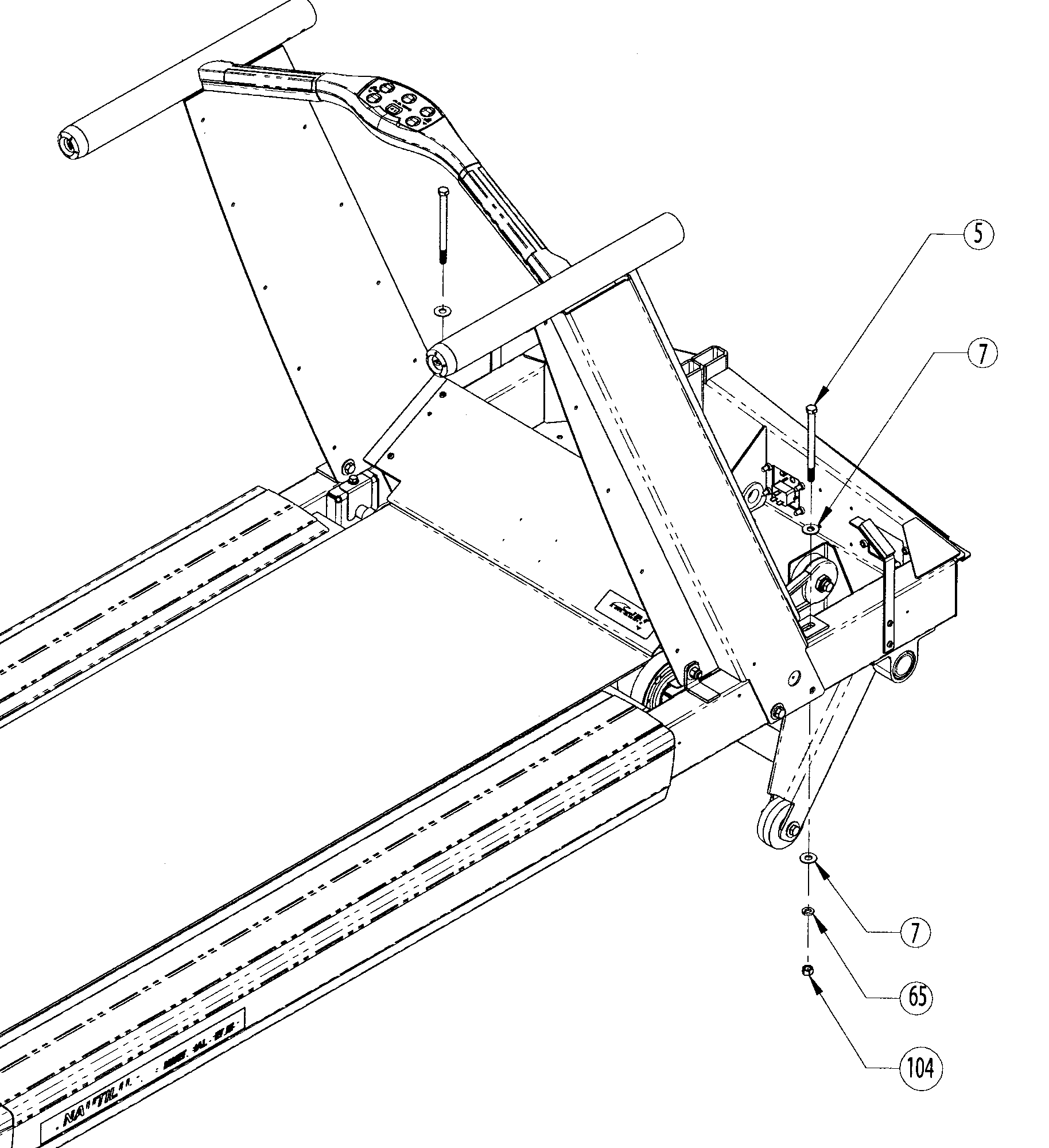

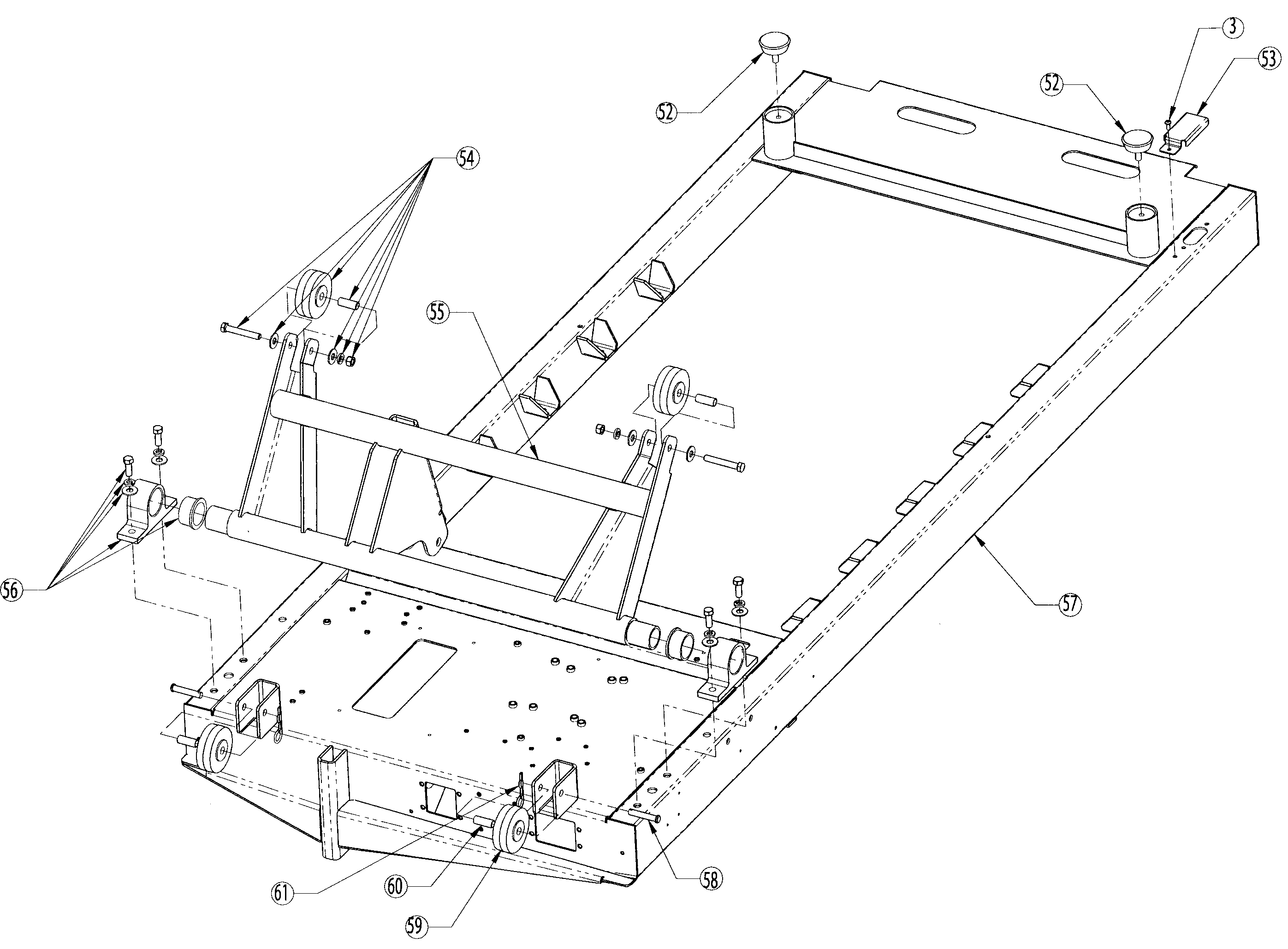

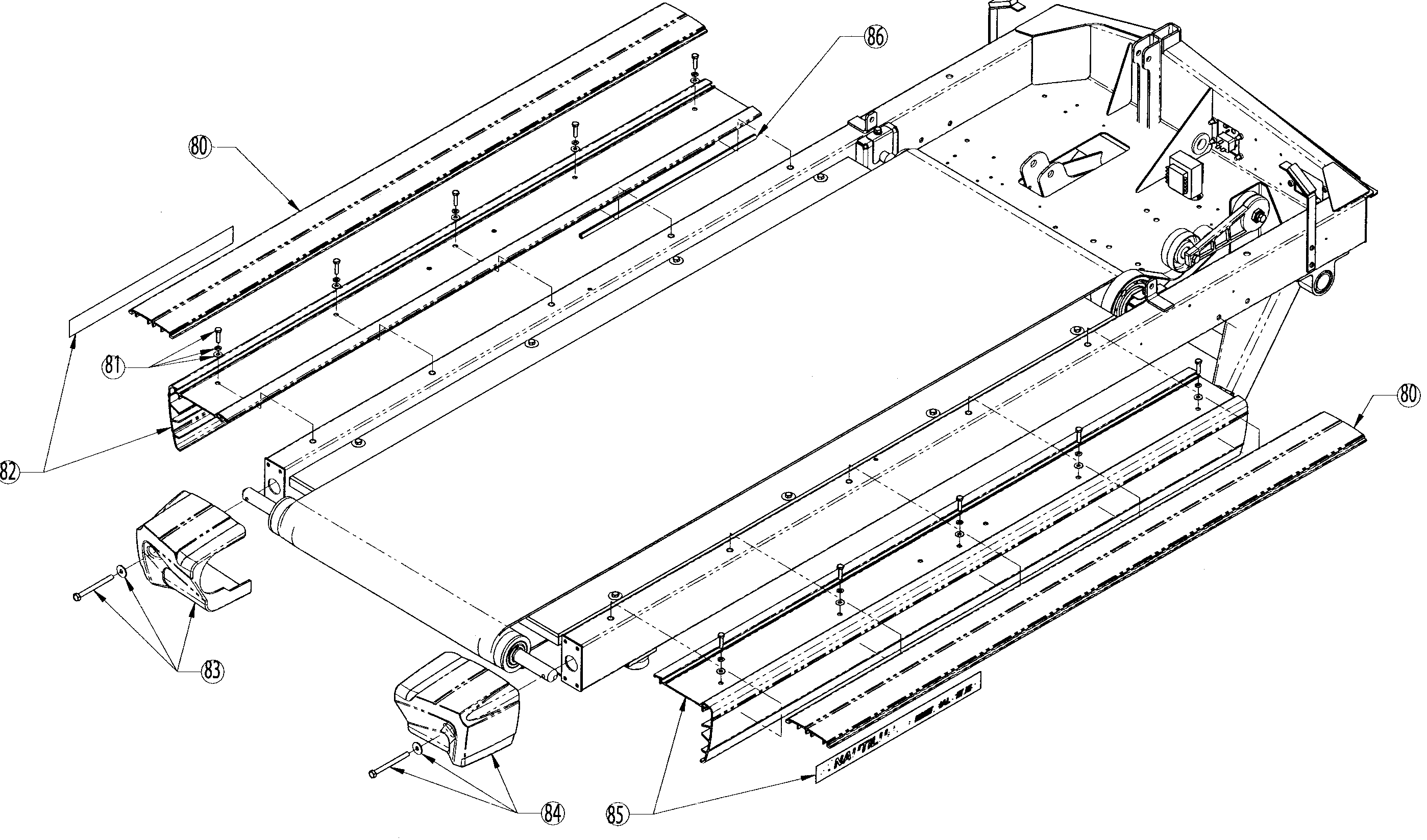

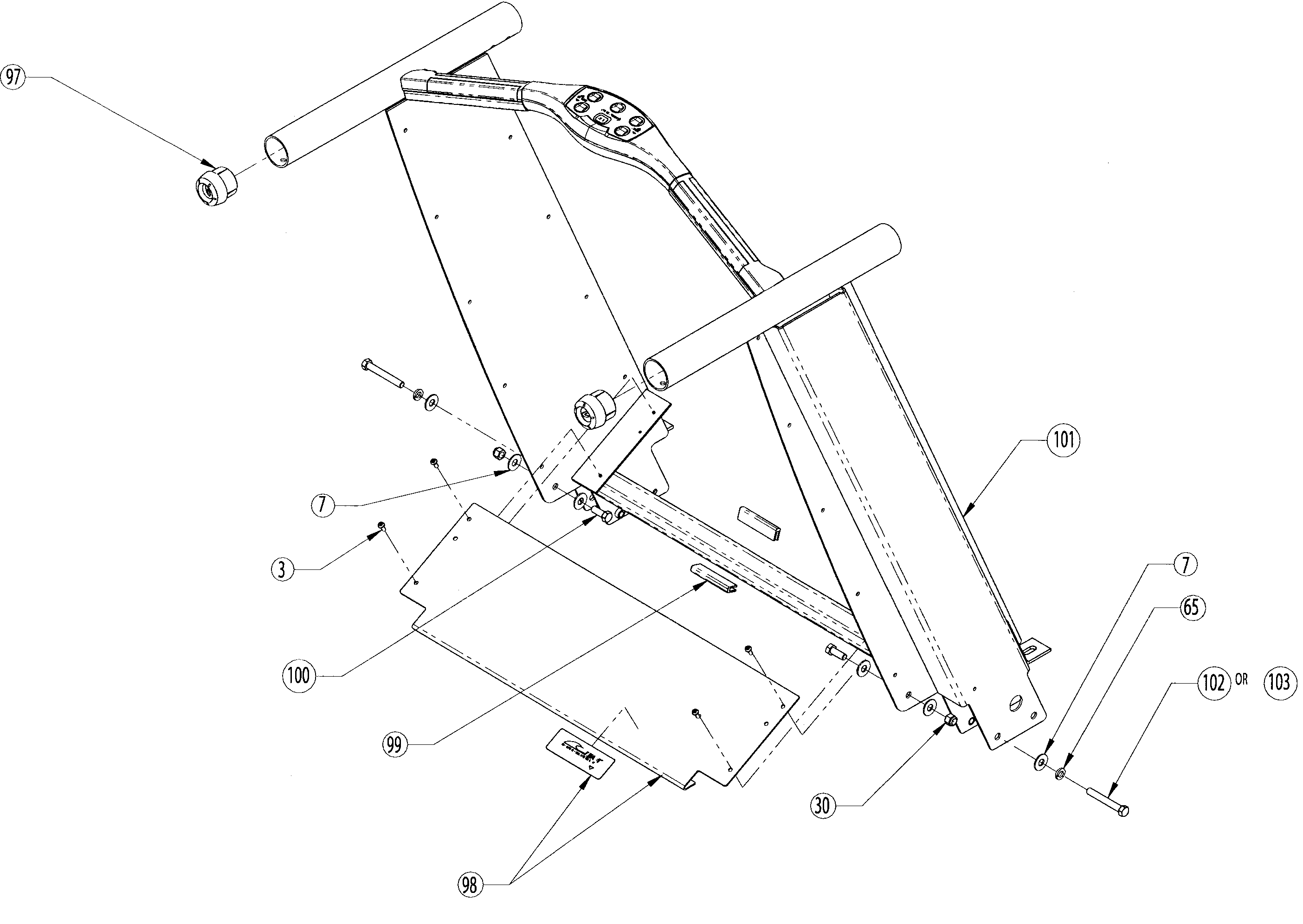

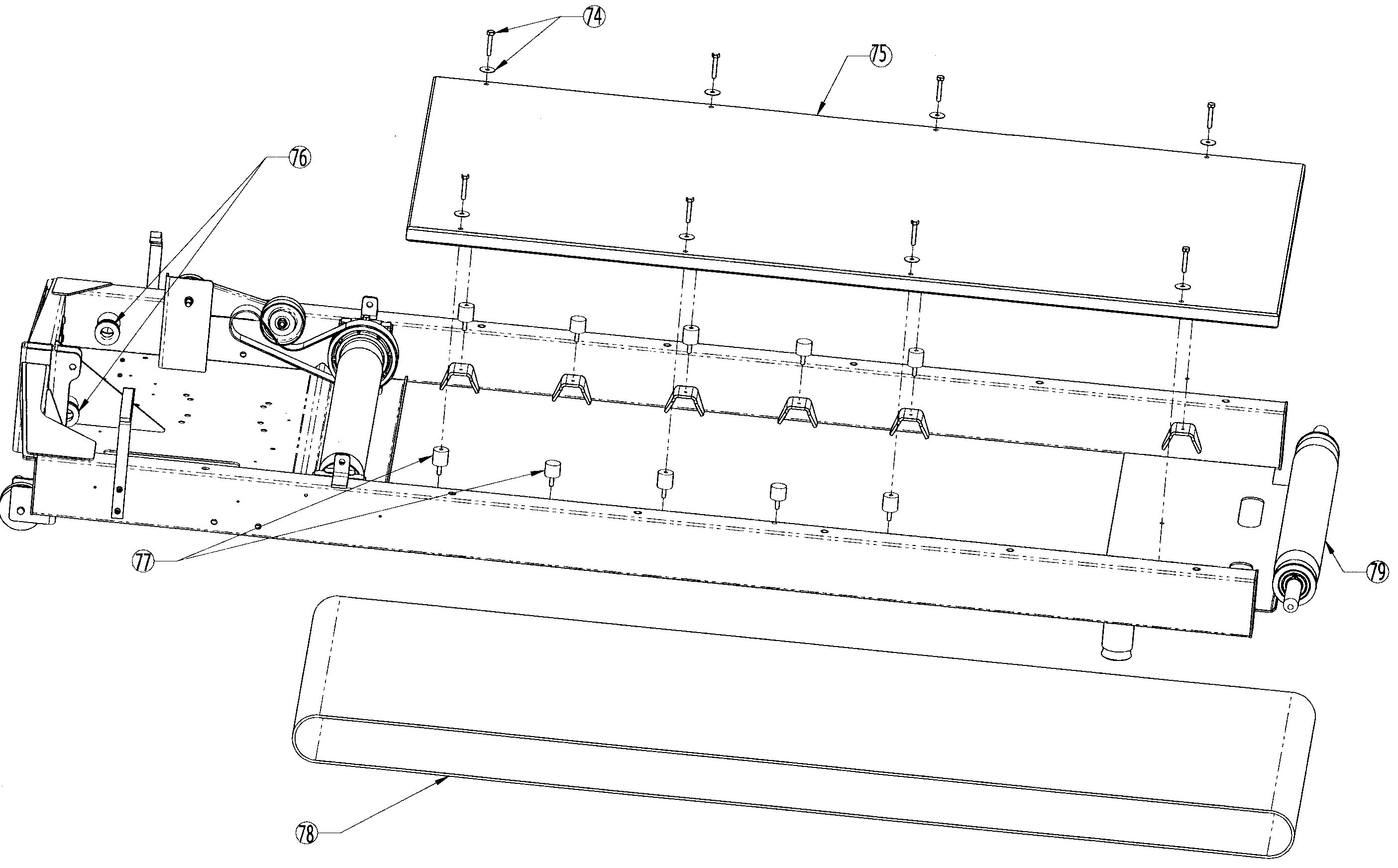

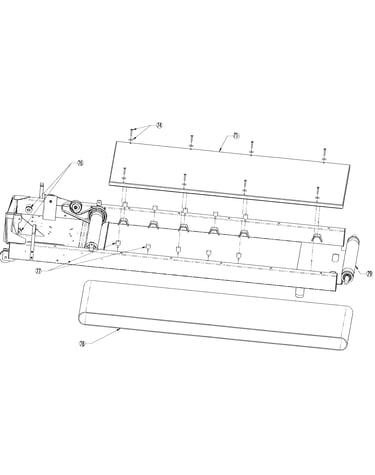

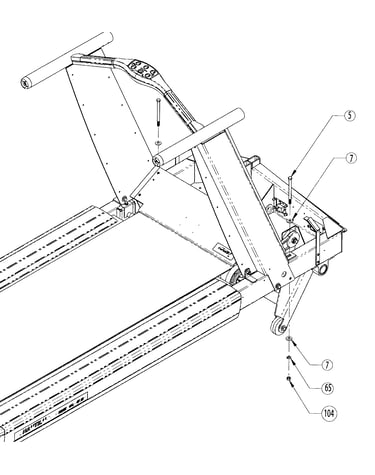

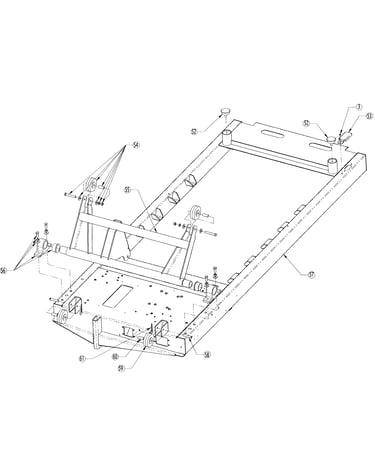

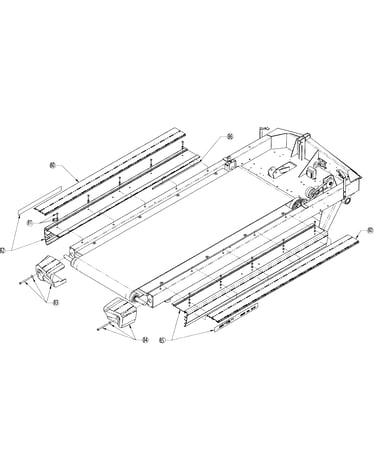

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Cover,mtr SM41108
#44

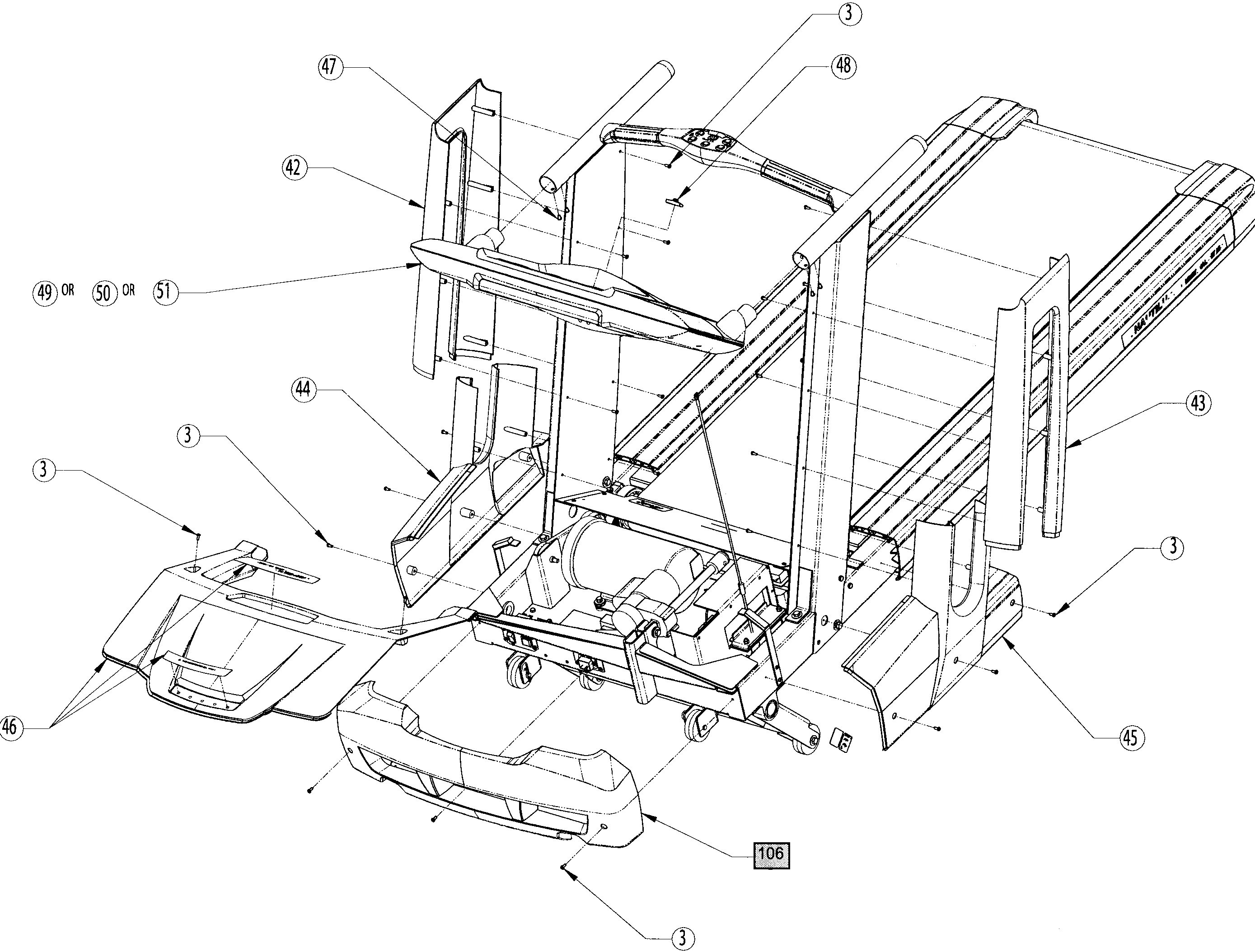

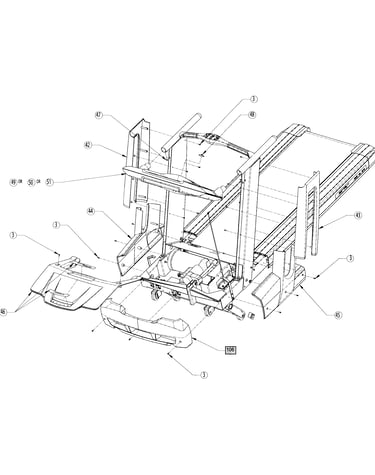

Covers assy diagram

Cover,mtr

Part #SM41108

The manufacturer no longer makes this part, and there's no substitute part

Choke Assembly SM41404
#37

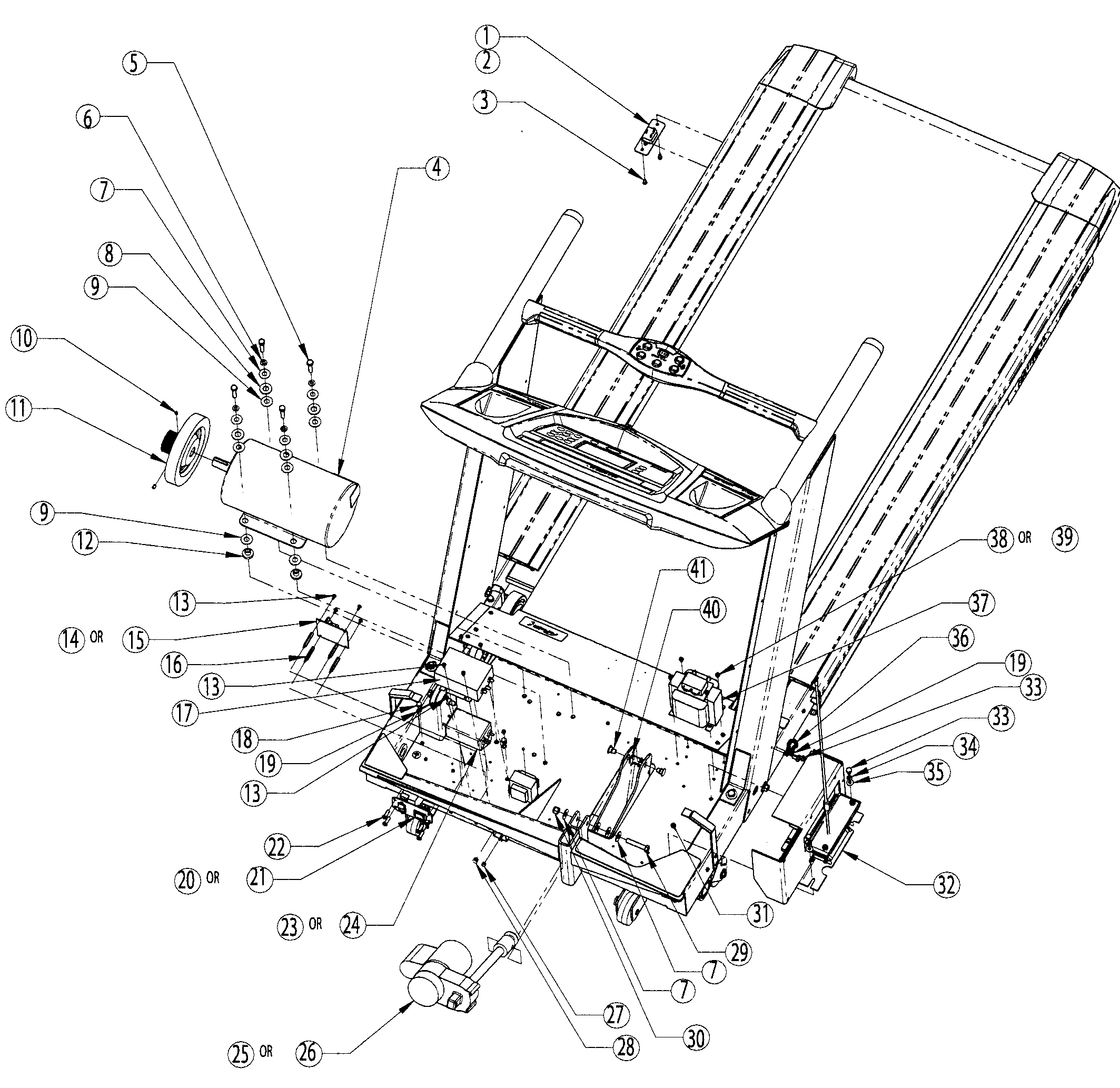

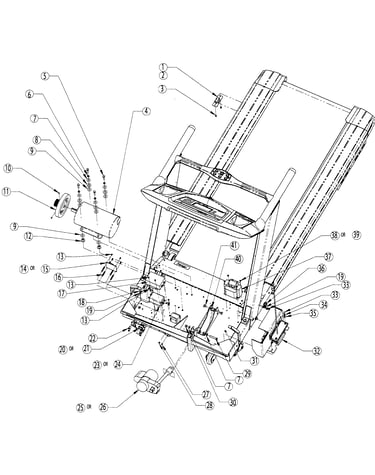

Motor assy diagram

Choke assembly

Part #SM41404

The manufacturer no longer makes this part, and there's no substitute part

Pcb Asy,dsp SM40865
#NI

Motor assy diagram

Pcb asy,dsp

Part #SM40865

The manufacturer no longer makes this part, and there's no substitute part

Kit,hsng,ergo W/decal SMQ26421
#90

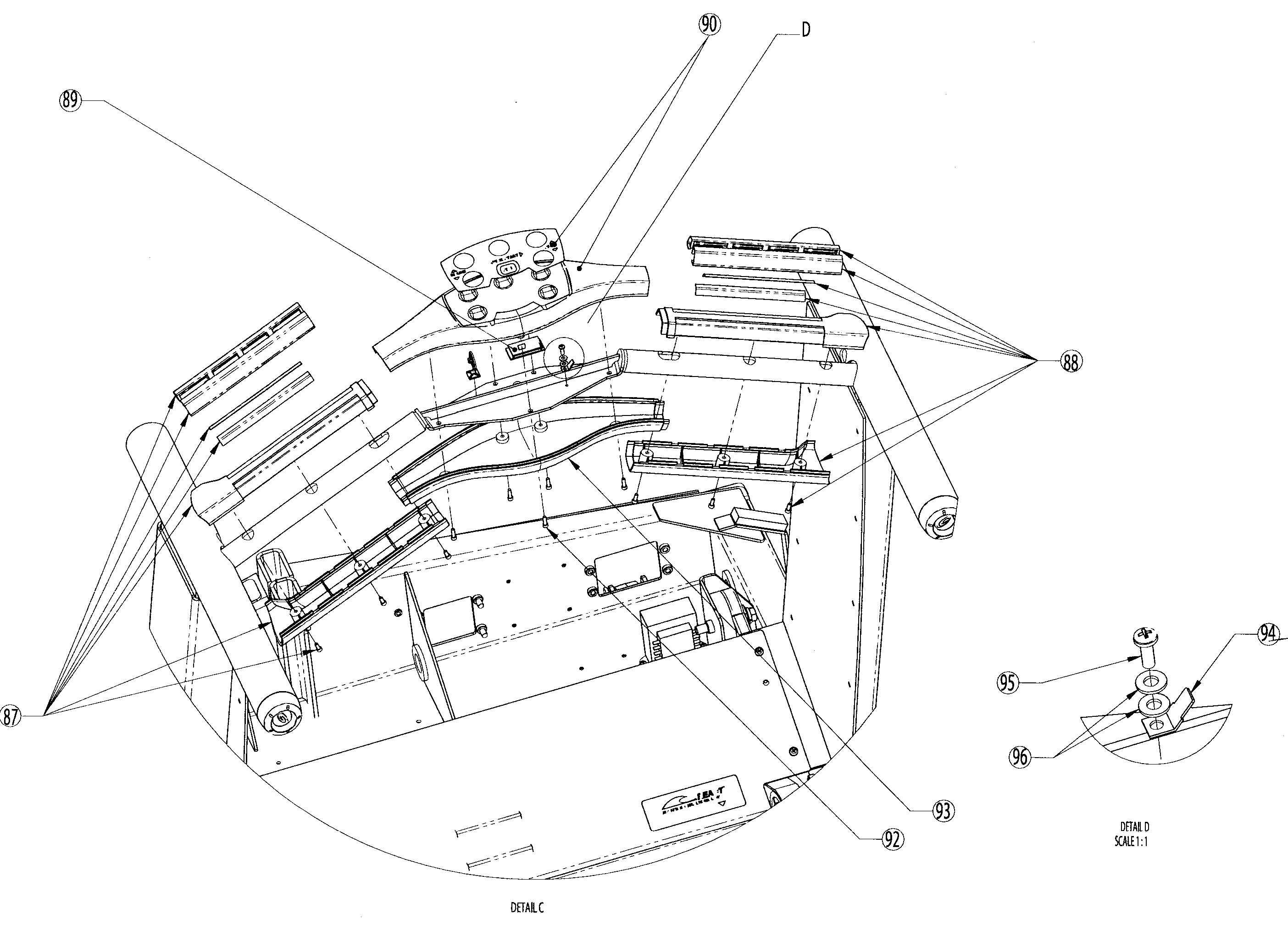

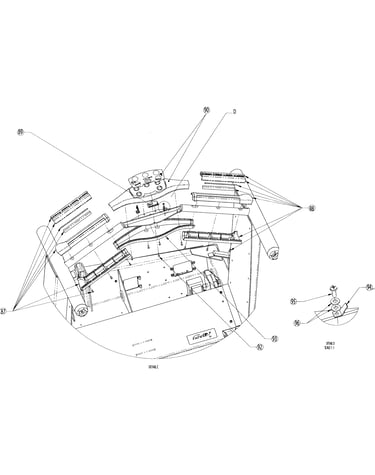

Console assy diagram

Kit,hsng,ergo w/decal

Part #SMQ26421

The manufacturer no longer makes this part, and there's no substitute part

Linear Actuator SM41289
#26

Motor assy diagram

Linear actuator

Part #SM41289

The manufacturer no longer makes this part, and there's no substitute part

Cable Upper Asy SM27952
#NI

Motor assy diagram

Cable upper asy

Part #SM27952

The manufacturer no longer makes this part, and there's no substitute part

Vsd Asy SM41646
#32

Motor assy diagram

Vsd asy

Part #SM41646

The manufacturer no longer makes this part, and there's no substitute part

Screw 3/8-16x5 SM41532
#NI

Motor assy diagram

Screw 3/8-16x5

Part #SM41532

The manufacturer no longer makes this part, and there's no substitute part

Washer SM27585
#64

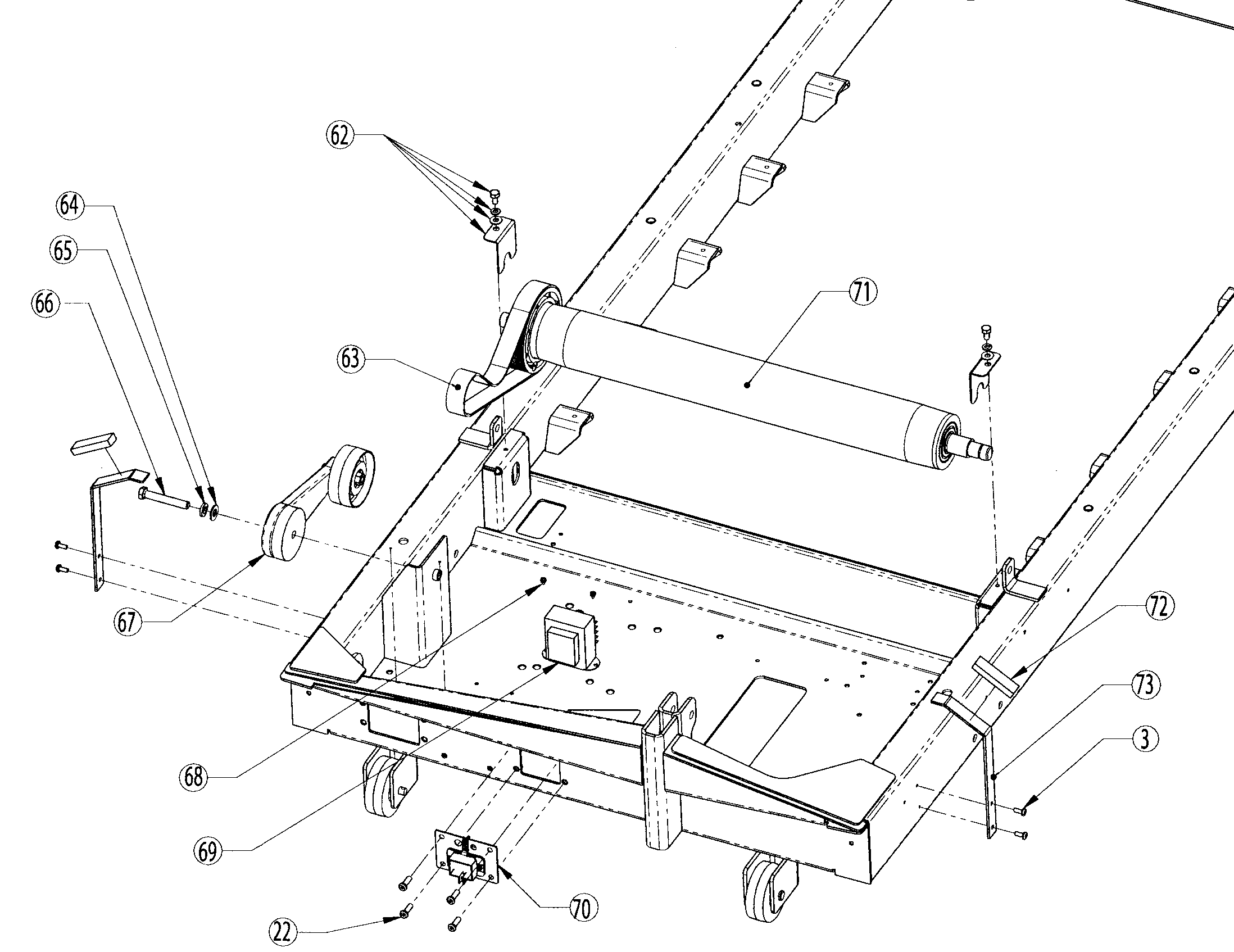

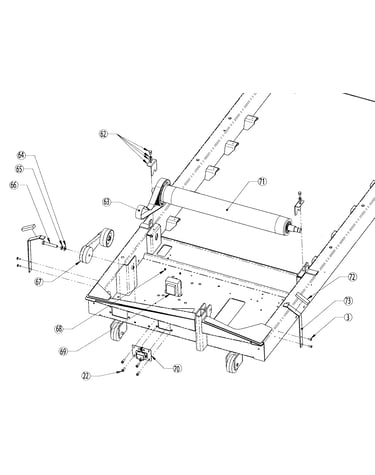

Roller assy diagram

Washer

Part #SM27585

The manufacturer no longer makes this part, and there's no substitute part

Cable Roc Keys Asy SM41193
#NI

Motor assy diagram

Cable roc keys asy

Part #SM41193

The manufacturer no longer makes this part, and there's no substitute part
