Jenn-Air
Electric Cooktop

Model # JED8345ADW14 Official Jenn-Air electric built-in downdraft cooktop

Here are the diagrams and repair parts for Official Jenn-Air JED8345ADW14 electric built-in downdraft cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

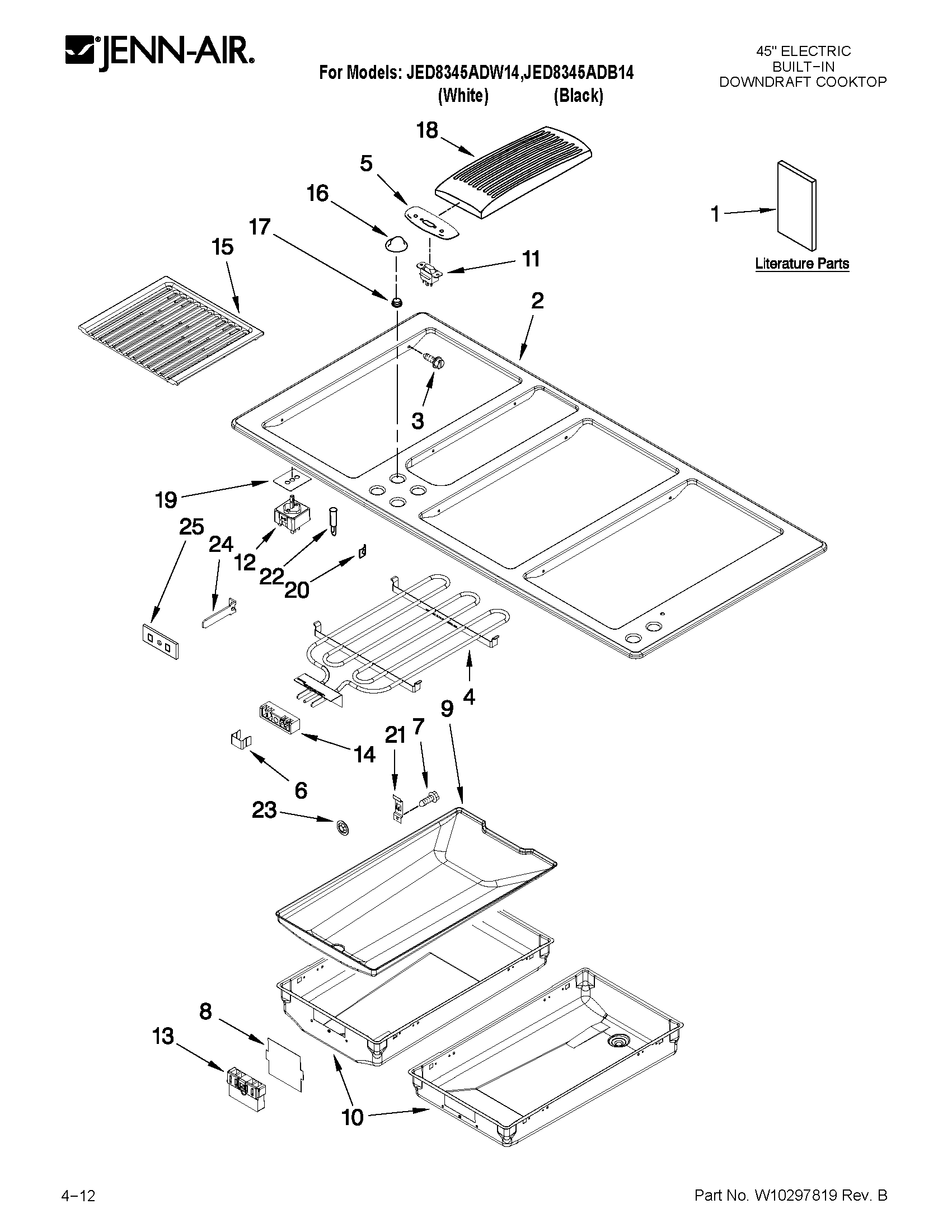

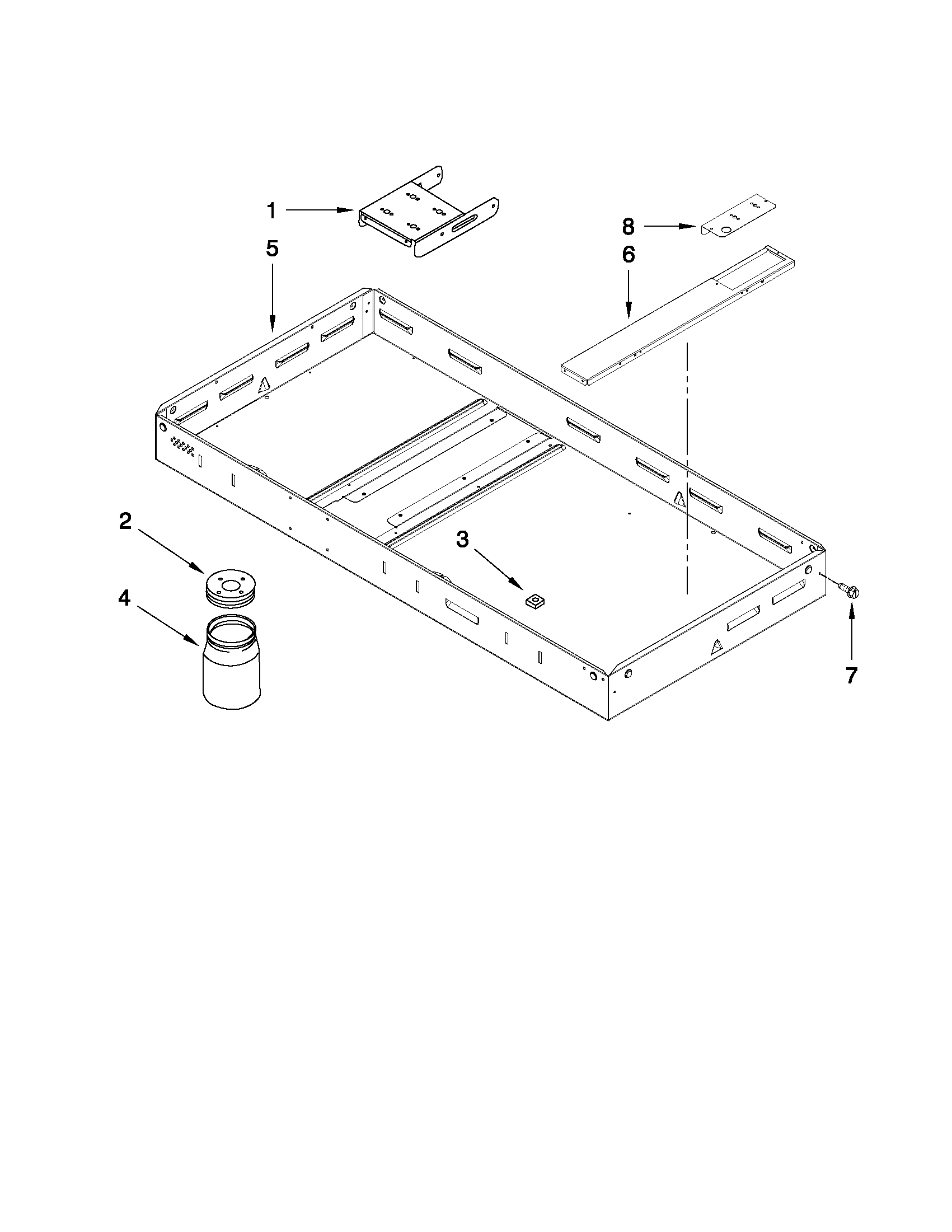

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Screw 7101P428-60
Screw

Part #7101P428-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P428-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Lock Nut 7103P162-60
#8

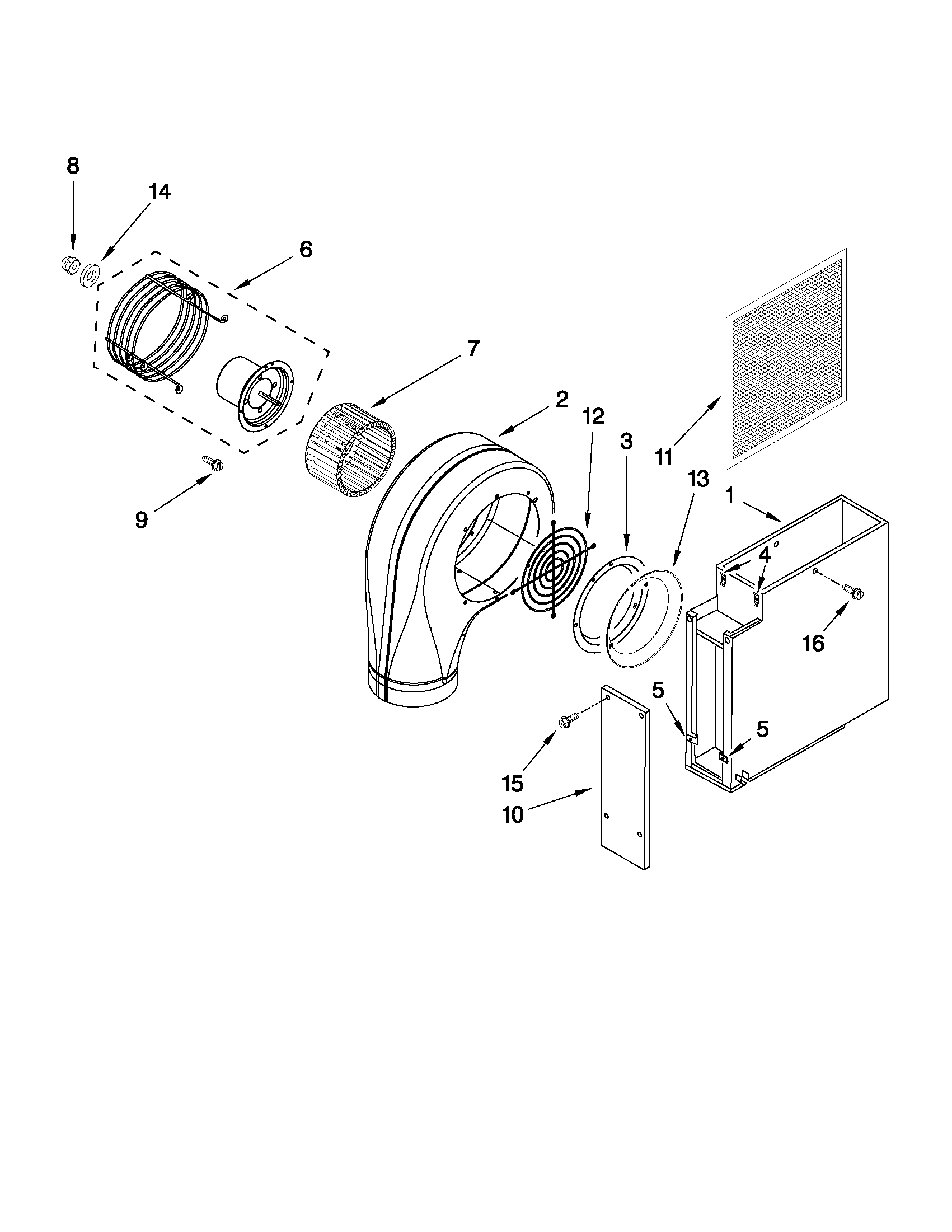

Blower unit parts diagram

Lock nut

Part #7103P162-60

Replaced by #WPY707702

?
Manufacturer substitution
This part replaces 7103P162-60. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw- Gro 7101P460-60
#16

Blower unit parts diagram

Screw- gro

Part #7101P460-60

Replaced by #WP71001171

?
Manufacturer substitution
This part replaces 7101P460-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Wire 5112P764-60
#NI

Optional parts diagram

Wire

Part #5112P764-60

This item is not returnable
$6.42
In Stock
Cooktop Wire Harness 5170P818-60
#NI

Optional parts diagram

Cooktop wire harness

Part #5170P818-60

$55.18
In Stock
Cooking Appliance Safer Cooking Guide 9762761
#1E

Cooktop parts diagram

Cooking appliance safer cooking guide

Part #9762761

$10.09 |
17% OFF Phone Price : $12.09
In Stock
Cooktop Wire Harness 5170P816-60
#NI

Optional parts diagram

Cooktop wire harness

Part #5170P816-60

$64.40
In Stock
Cooktop Wire Harness 5170P817-60
#NI

Optional parts diagram

Cooktop wire harness

Part #5170P817-60

$68.59 |
8% OFF Phone Price : $74.59
In Stock
Trim, Control Fan (black) 7744P388-60
#5A

Cooktop parts diagram

Trim, control fan (black)

Part #7744P388-60

The manufacturer no longer makes this part, and there's no substitute part

Grease Filter 8312P121-60
#11

Blower unit parts diagram

Grease filter

Part #8312P121-60

The manufacturer no longer makes this part, and there's no substitute part
