GE
Gas Range

Model # PGS950SEF4SS Official GE gas range

Here are the diagrams and repair parts for Official GE PGS950SEF4SS gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

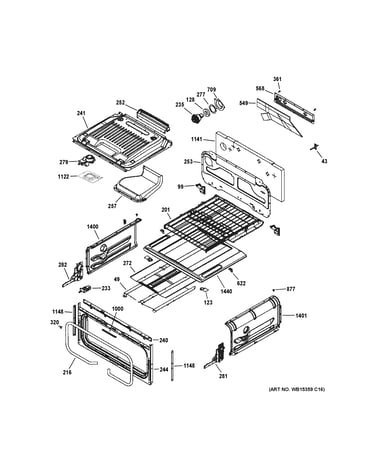

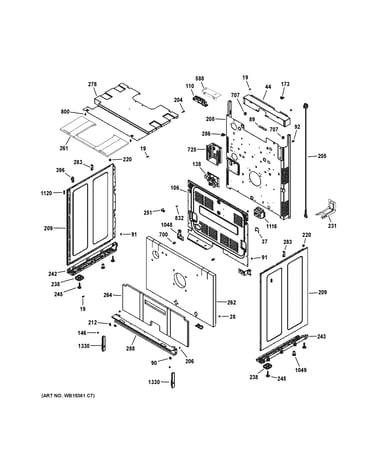

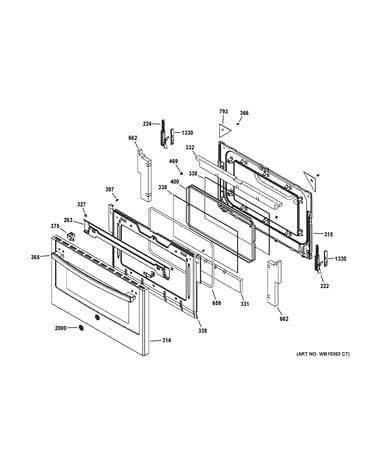

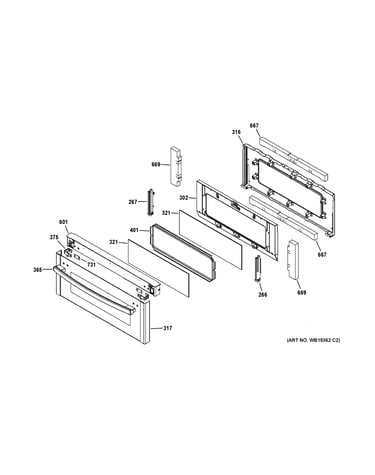

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 243 parts  |
Range Broil Igniter WB13K10043
#217

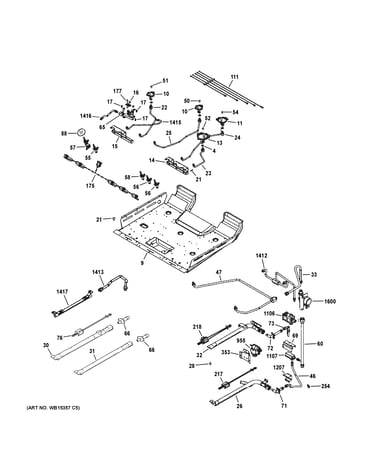

Gas & burner parts diagram

Range broil igniter

Part #WB13K10043

BEST SELLER
$108.79 |
10% OFF Phone Price : $120.79
In Stock
Range Surface Burner Cap WB29K10023
#150

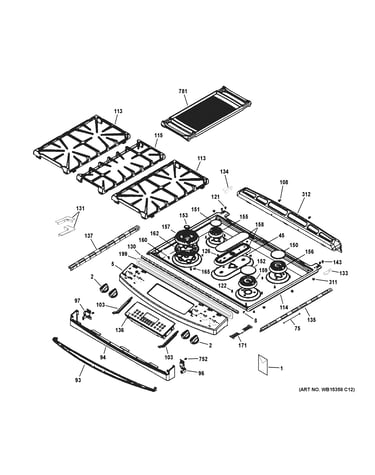

Control panel & cooktop diagram

Range surface burner cap

Part #WB29K10023

BEST SELLER
$23.21 |
21% OFF Phone Price : $29.21
In Stock
Sensor WB24X5340
Sensor

Part #WB24X5340

Replaced by #WB23X5340

?
Manufacturer substitution
This part replaces WB24X5340. Substitute parts can look different from the original.
BEST SELLER
$129.99 |
8% OFF Phone Price : $141.99
In Stock
Range Surface Burner Cap WB29K10024
#152

Control panel & cooktop diagram

Range surface burner cap

Part #WB29K10024

BEST SELLER
$11.33 |
15% OFF Phone Price : $13.33
In Stock
Range Surface Burner Head (replaces Wb16k10024) WB16K10070
#155

Control panel & cooktop diagram

Range surface burner head (replaces wb16k10024)

Part #WB16K10070

BEST SELLER
$29.47 |
17% OFF Phone Price : $35.47
In Stock
Range Surface Burner Valve WB21X20470
#56

Gas & burner parts diagram

Range surface burner valve

Part #WB21X20470

BEST SELLER
$28.44 |
17% OFF Phone Price : $34.44
In Stock
Range Surface Burner Head WB16T10046
#159

Control panel & cooktop diagram

Range surface burner head

Part #WB16T10046

BEST SELLER
$31.57 |
16% OFF Phone Price : $37.57
In Stock
Hex Washer Head Screw WB01K0050
Hex washer head screw

Part #WB01K0050

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01K0050. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Nut WB01K10022
#729

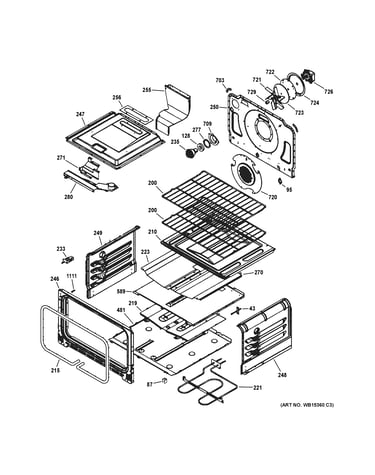

Lower oven diagram

Nut

Part #WB01K10022

Replaced by #WB02T10017

?
Manufacturer substitution
This part replaces WB01K10022. Substitute parts can look different from the original.
This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Range Touch Control Panel Assembly WB27X21183
#136

Control panel & cooktop diagram

Range touch control panel assembly

Part #WB27X21183

$382.50 |
$12.00 OFF Phone Price : $394.50
In Stock
