Kenmore
Wall Oven

Model # 99075293320 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 99075293320 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Range Lp Conversion Kit 21.99.000303-000-A0
#67

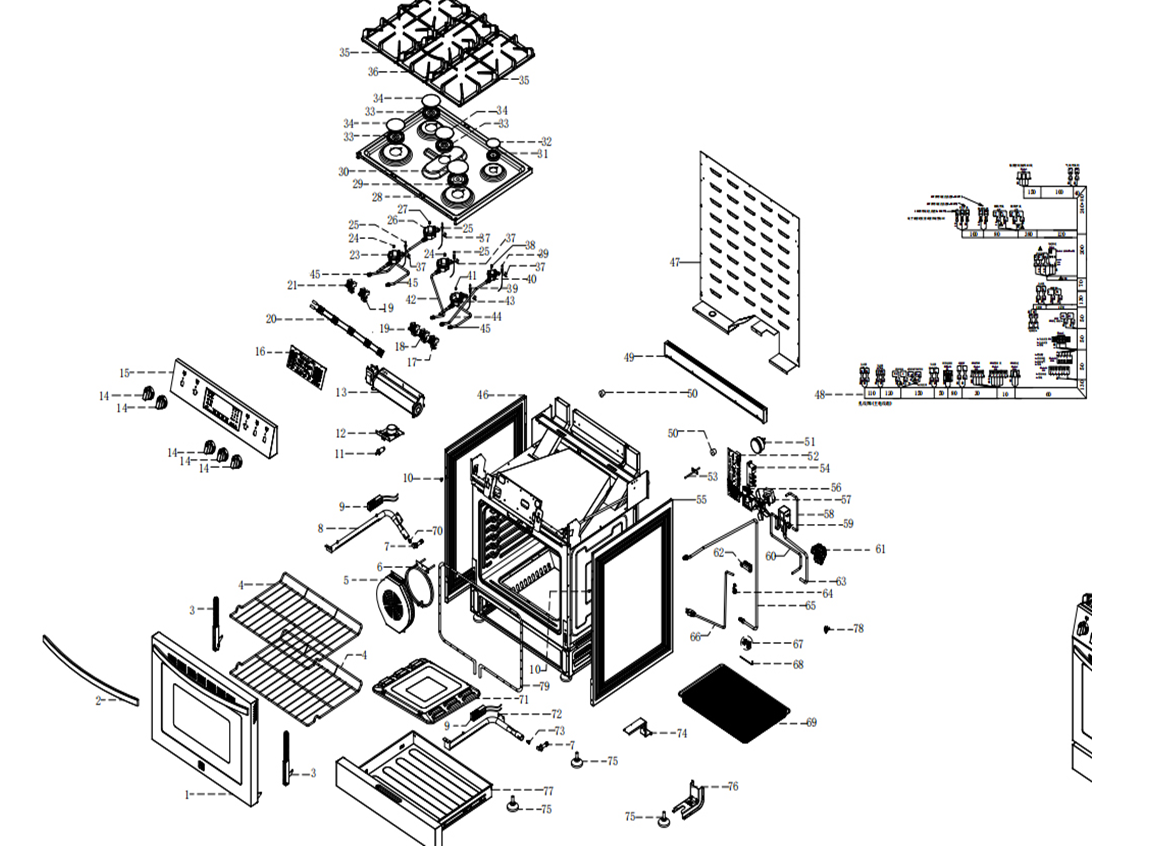

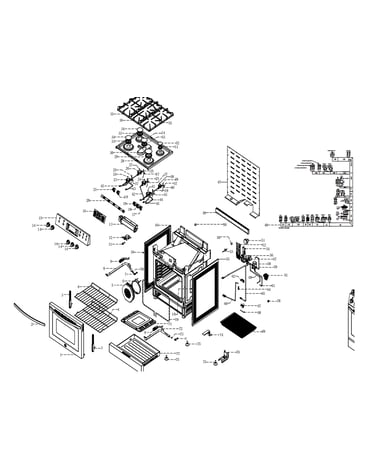

Gas exploded view diagram

Range lp conversion kit

Part #21.99.000303-000-A0

$22.86
In Stock
Range Oven Temperature Sensor 21.99.008128-000-A0
#53

Gas exploded view diagram

Range oven temperature sensor

Part #21.99.008128-000-A0

$14.86
In Stock
Range Surface Burner Grate, Center 21.99.000422-000-A0
#36

Gas exploded view diagram

Range surface burner grate, center

Part #21.99.000422-000-A0

$13.71
In Stock
Range Surface Burner Cap, Left Front And Left Rear 21.99.008145-000-A0
#34

Gas exploded view diagram

Range surface burner cap, left front and left rear

Part #21.99.008145-000-A0

$9.14
In Stock
Range Surface Burner Valve, 5,000-btu 21.99.008123-000-A0
#18

Gas exploded view diagram

Range surface burner valve, 5,000-btu

Part #21.99.008123-000-A0

$9.83
In Stock
Range Surface Burner Igniter, Left And Center 21.99.008130-000-A0
#25

Gas exploded view diagram

Range surface burner igniter, left and center

Part #21.99.008130-000-A0

This item is not returnable
$5.71
In Stock
Range Allen Wrench 06.12.000264-000-A0
#68

Gas exploded view diagram

Range allen wrench

Part #06.12.000264-000-A0

The manufacturer no longer makes this part, and there's no substitute part

Range Surface Burner Manifold Supply Tube 21.99.008155-000-A0
#65

Gas exploded view diagram

Range surface burner manifold supply tube

Part #21.99.008155-000-A0

$14.86
In Stock
Range Surface Burner Head, 18,000-btu 21.99.008140-000-A0
#29

Gas exploded view diagram

Range surface burner head, 18,000-btu

Part #21.99.008140-000-A0

$9.14
In Stock
Range Surface Burner Supply Tube, Left Rear And Right Front 21.99.008097-000-A0
#45

Gas exploded view diagram

Range surface burner supply tube, left rear and right front

Part #21.99.008097-000-A0

$11.43
In Stock
