Model # 8TWFW8620HW0 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool 8TWFW8620HW0 washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

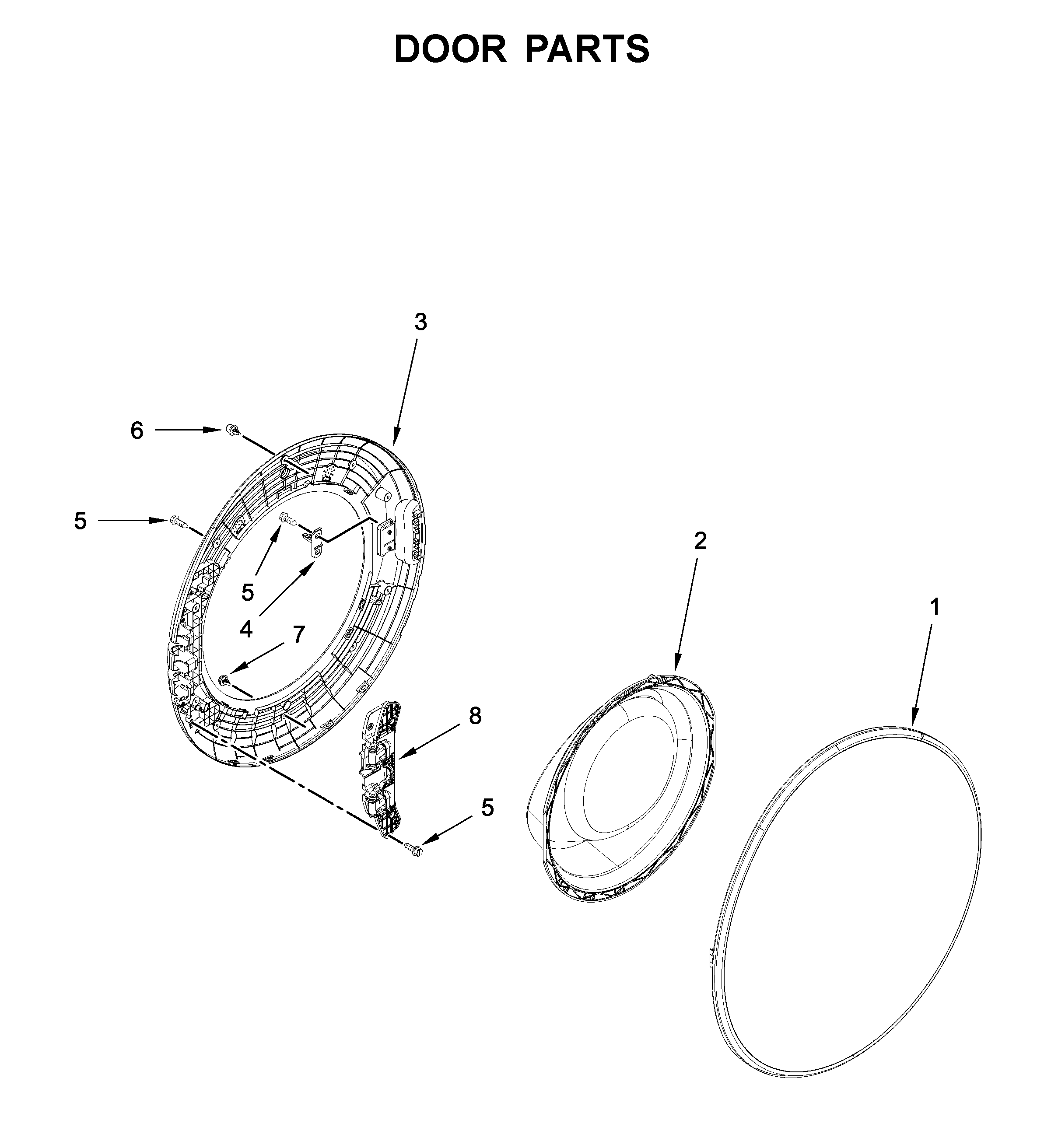

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
8TWFW8620HW0 Washer
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

4 (11)
BEST SELLER

Get free shipping with Automatic Reorder

$12.25 |
14% OFF Phone Price : $14.25
In Stock
Washer Drain Pump Assembly W11319789
#12

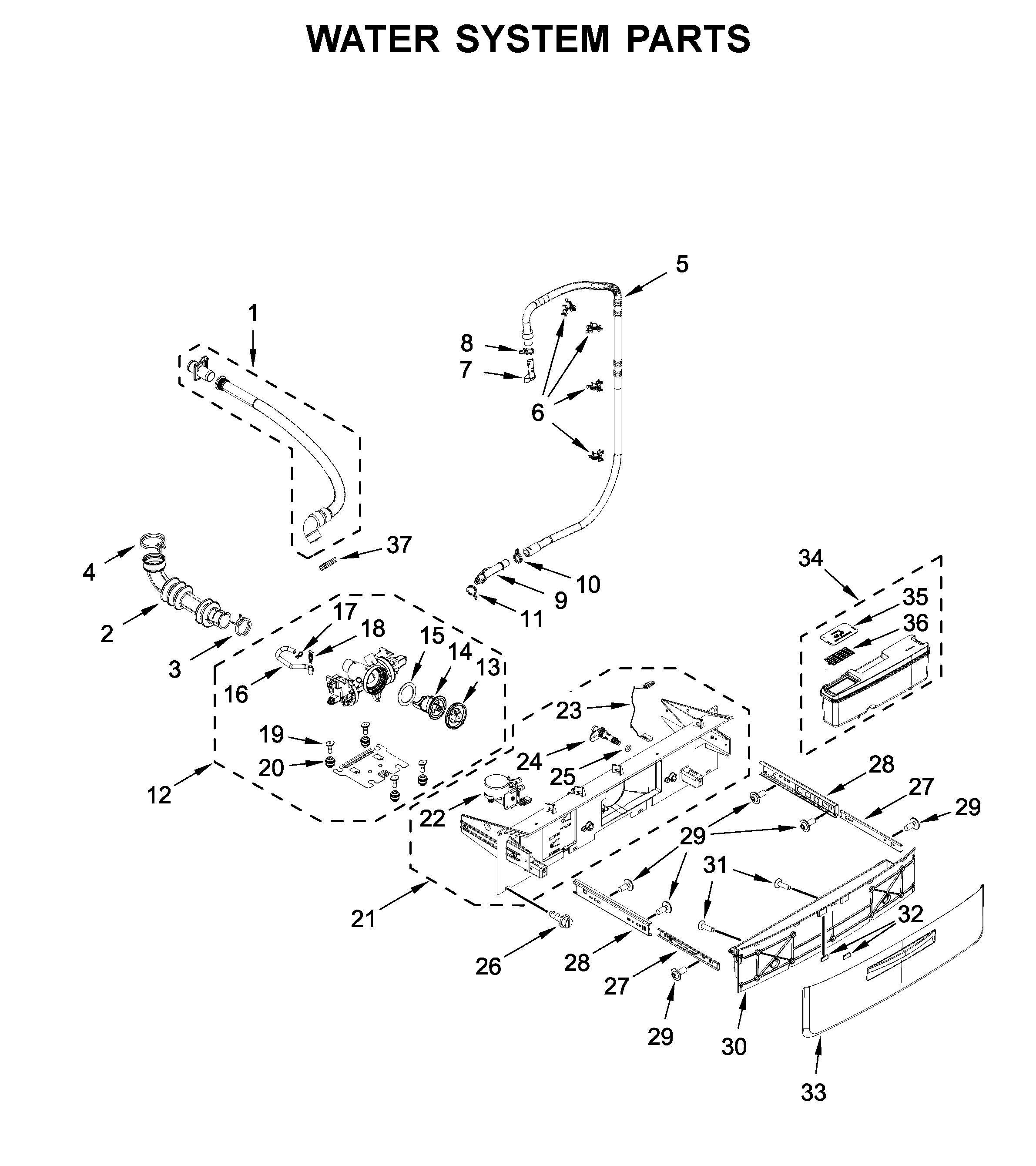

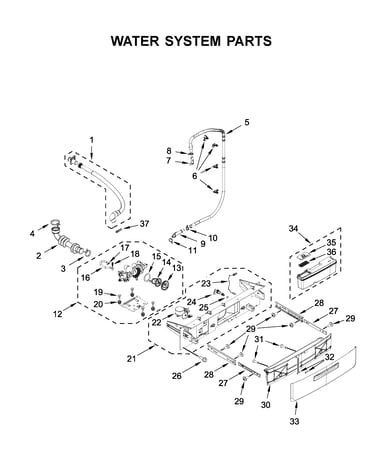

Water system parts diagram

Washer drain pump assembly

Part #W11319789

Replaced by #W11458345

?
Manufacturer substitution
This part replaces W11319789. Substitute parts can look different from the original.
BEST SELLER
$112.79 |
10% OFF Phone Price : $124.79
In Stock
Clamp 371503
#8

Water system parts diagram

Clamp

Part #371503

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 371503. Substitute parts can look different from the original.
3 (2)
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clamp W10096851
#3

Dispenser parts diagram

Clamp

Part #W10096851

Replaced by #WP596669

?
Manufacturer substitution
This part replaces W10096851. Substitute parts can look different from the original.
3 (2)
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Hose Clamp 9724996
#11

Water system parts diagram

Hose clamp

Part #9724996

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 9724996. Substitute parts can look different from the original.
3 (2)
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Assembly, Dispenser W11437243
#6

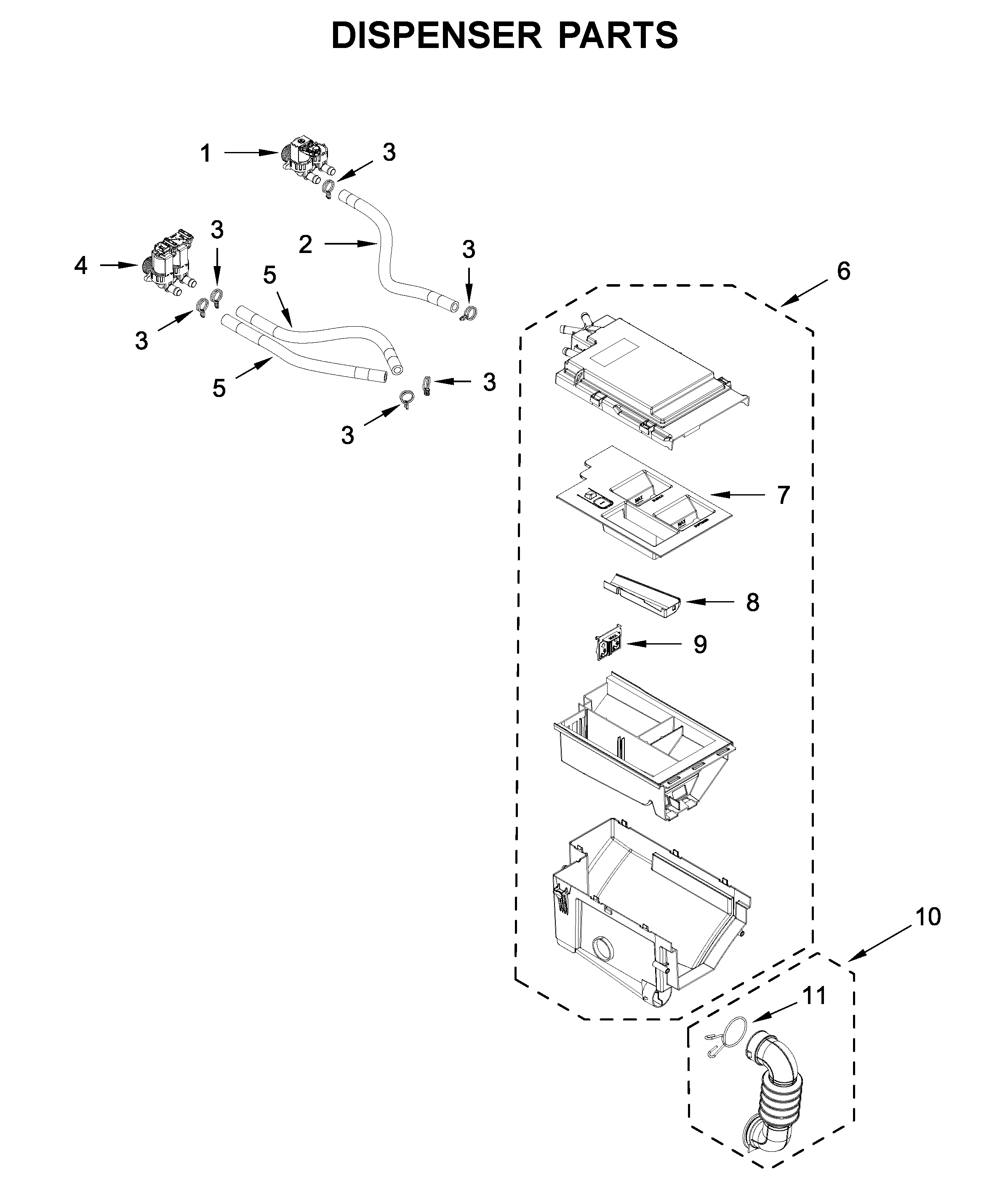

Dispenser parts diagram

Assembly, dispenser

Part #W11437243

Replaced by #W11524105

?
Manufacturer substitution
This part replaces W11437243. Substitute parts can look different from the original.
BEST SELLER
$55.64 |
10% OFF Phone Price : $61.64
In Stock
Damper Assembly W11094464
#16

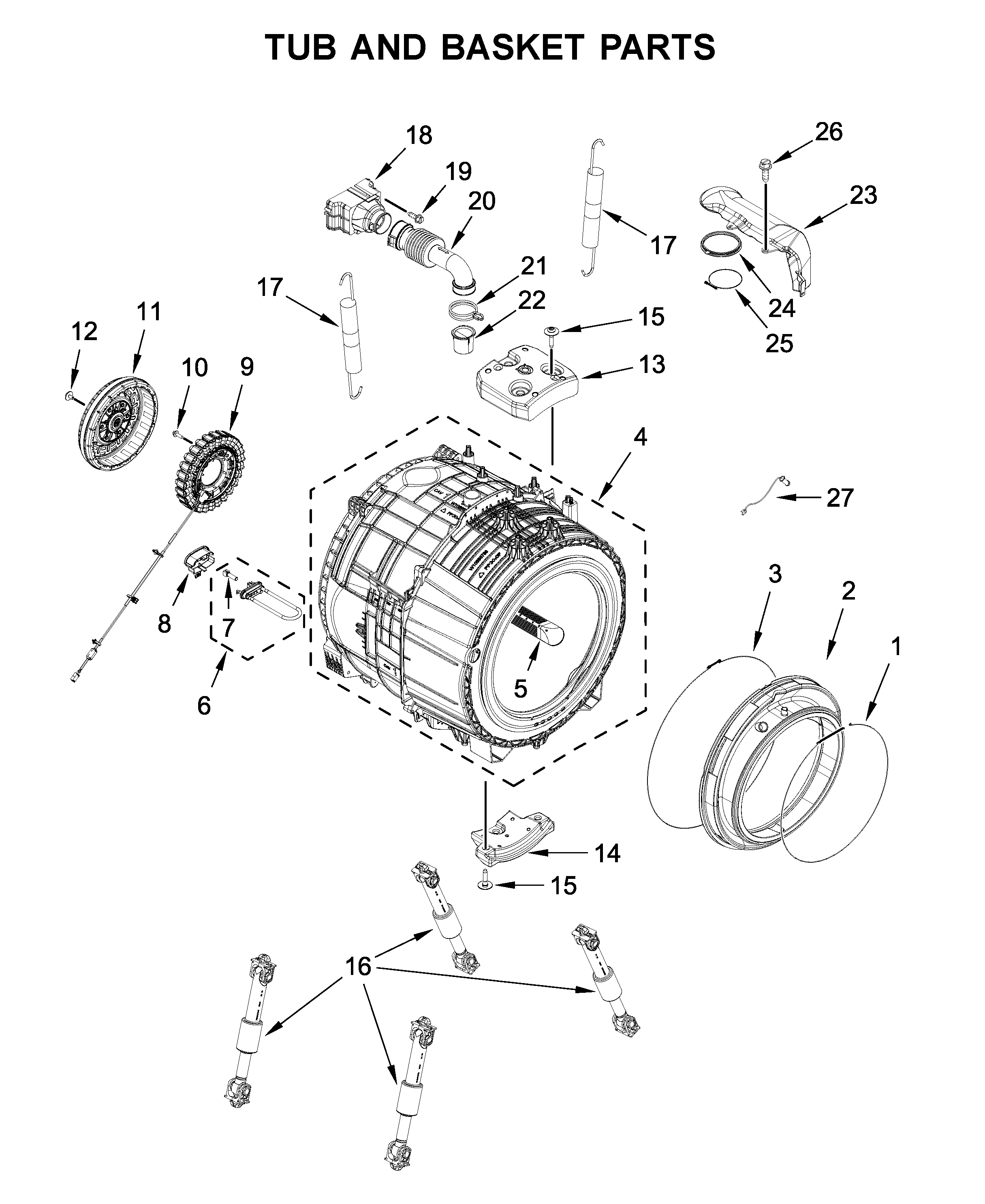

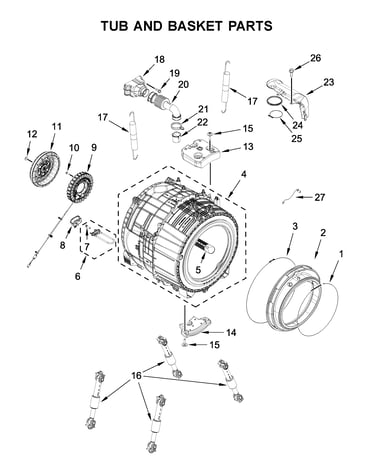

Tub and basket parts diagram

Damper assembly

Part #W11094464

Replaced by #W11316766

?
Manufacturer substitution
This part replaces W11094464. Substitute parts can look different from the original.
BEST SELLER
$55.27 |
10% OFF Phone Price : $61.27
In Stock
Pressure Sen W11125159
#20

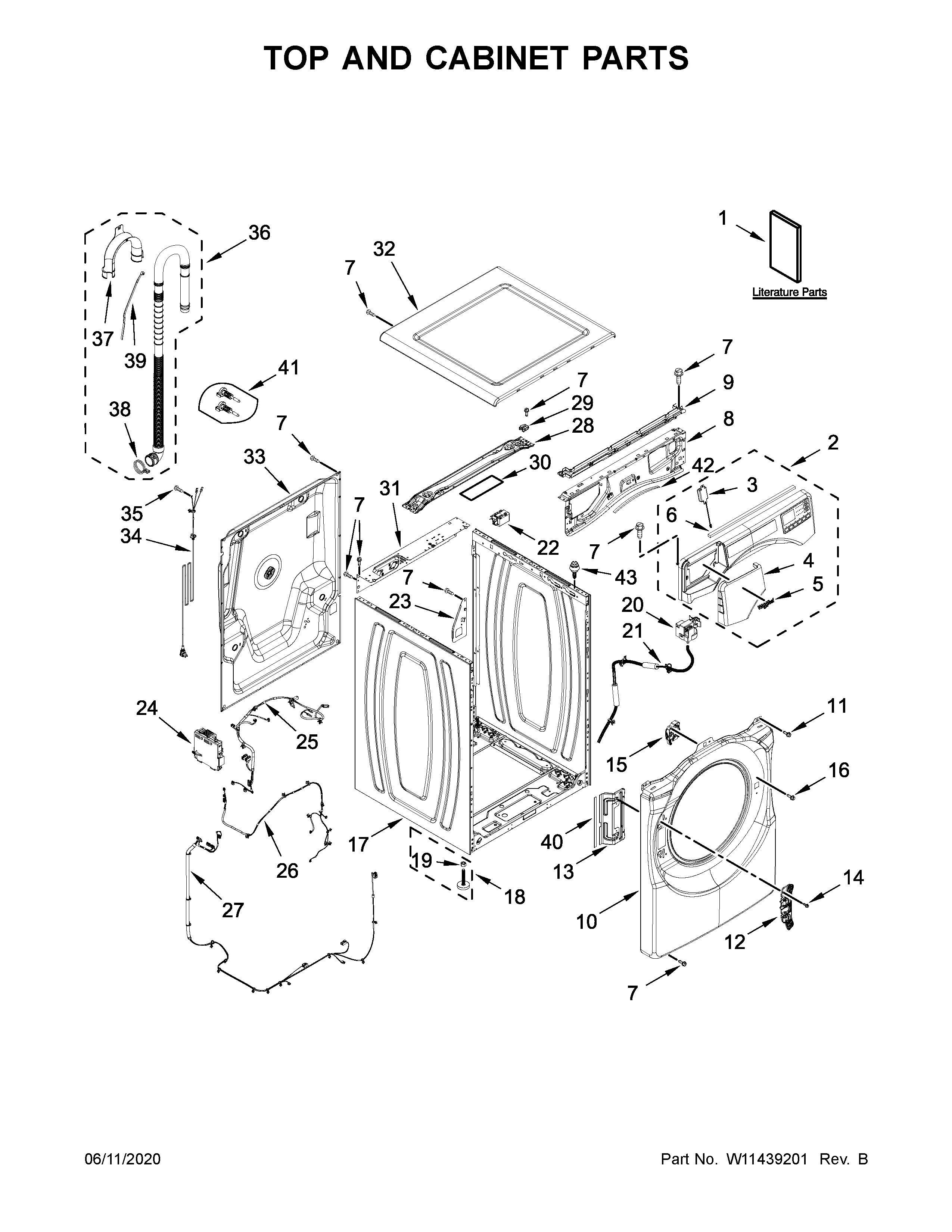

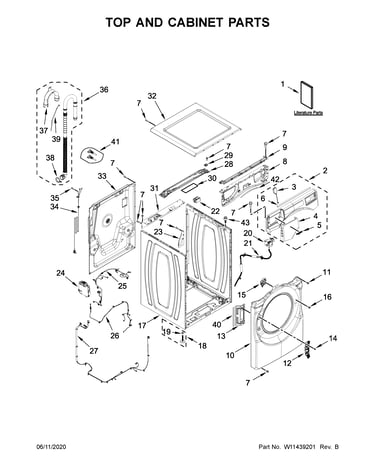

Top and cabinet parts diagram

Pressure sen

Part #W11125159

Replaced by #W11316246

?
Manufacturer substitution
This part replaces W11125159. Substitute parts can look different from the original.
BEST SELLER
$58.35 |
9% OFF Phone Price : $64.35
In Stock
Appliance Spray Paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930) 350930
#NI

Optional parts (not included) diagram

Appliance spray paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, a0050702, f94566-010, y057937, y350930)

Part #350930

5 (2)
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

3.25 (4)
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
