Model # JKP97G*08 Official GE electric oven

Here are the diagrams and repair parts for Official GE JKP97G08 electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 355 parts  |
Range Bake Element (replaces Wb44x0200, Wb44x160) WB44X200
#250

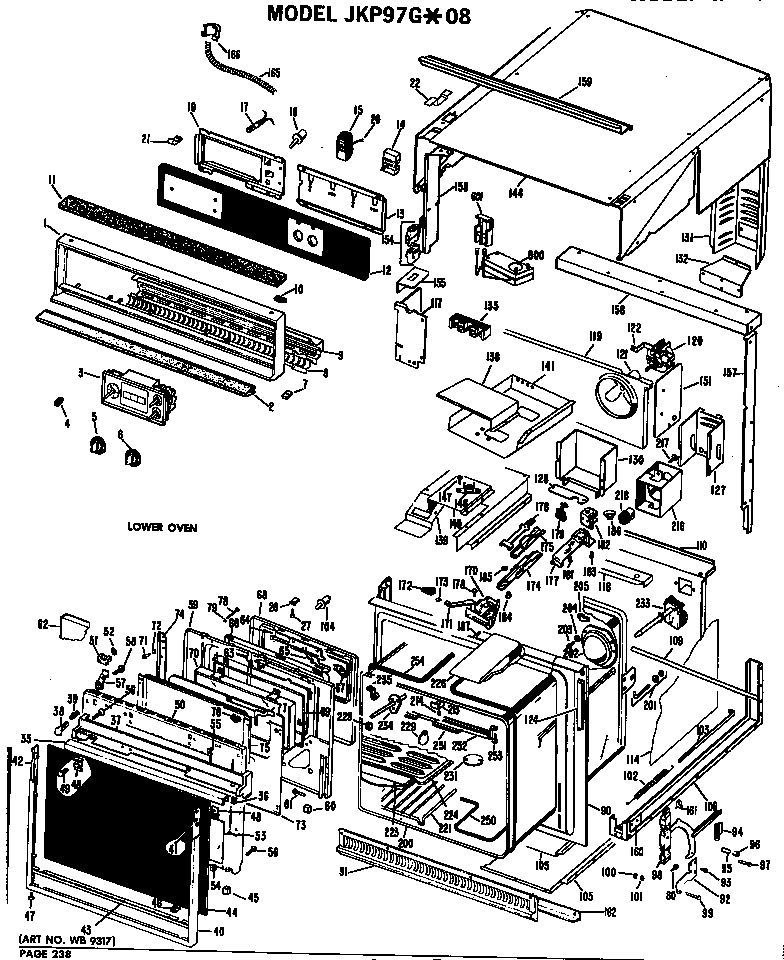

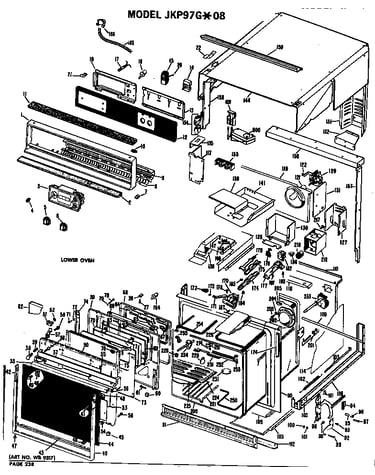

Lower oven diagram

Range bake element (replaces wb44x0200, wb44x160)

Part #WB44X200

BEST SELLER
$50.40 |
11% OFF Phone Price : $56.40
In Stock
Range Broil Element (replaces Wb44x0173, Wb44x149, Wb44x150, Wb44x167, Wb44x168, Wb44x174, Wb44x185) WB44X173
#251

Lower oven diagram

Range broil element (replaces wb44x0173, wb44x149, wb44x150, wb44x167, wb44x168, wb44x174, wb44x185)

Part #WB44X173

$27.42 |
18% OFF Phone Price : $33.42
In Stock
Refrigerator Fan Blade WR2X3198
#121

Lower oven diagram

Refrigerator fan blade

Part #WR2X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Timer WB19X5231
#3

Lower oven diagram

Timer

Part #WB19X5231

Replaced by #WB19X10006

?
Manufacturer substitution
This part replaces WB19X5231. Substitute parts can look different from the original.
$231.84 |
5% OFF Phone Price : $243.84
In Stock
Sciew Mt. Duct WZ4X304
Sciew mt. duct

Part #WZ4X304

Replaced by #WB1X500D

?
Manufacturer substitution
This part replaces WZ4X304. Substitute parts can look different from the original.
This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
Broiler Pan WB49X88
#223

Lower oven diagram

Broiler pan

Part #WB49X88

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB49X88. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Range Oven Door Gasket WB2X3138
#66

Lower oven diagram

Range oven door gasket

Part #WB2X3138

$120.27 |
9% OFF Phone Price : $132.27
In Stock
Range Screw (replaces Wb01k10018, Wb01x5364) WB1X5364
Range screw (replaces wb01k10018, wb01x5364)

Part #WB1X5364

$7.90 |
11% OFF Phone Price : $8.90
In Stock
Vegetable Pan Frame Trim WB56X5760
#9

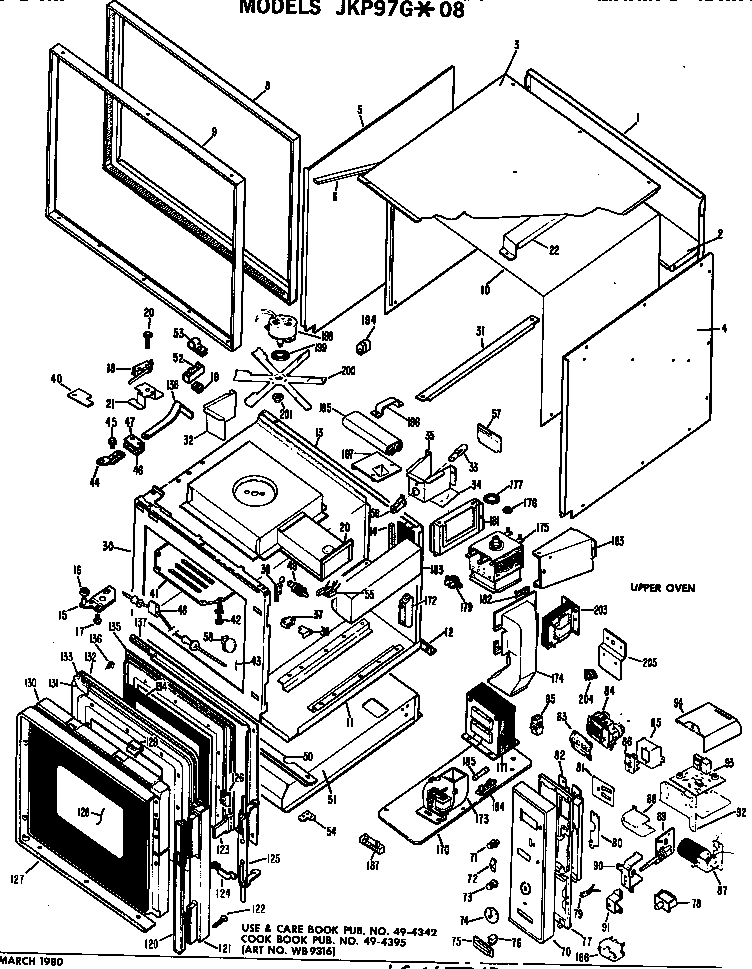

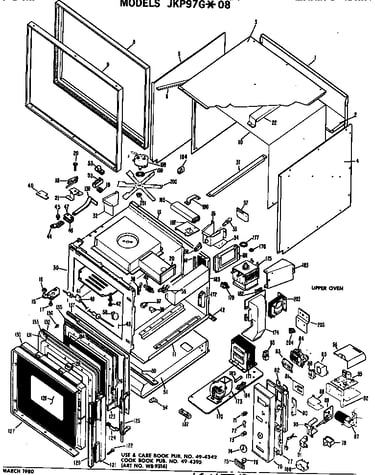

Upper oven diagram

Vegetable pan frame trim

Part #WB56X5760

$87.99
In Stock
Screw WB1X5471
Screw

Part #WB1X5471

This item is not returnable
$2.16
In Stock
