Whirlpool
Microwave/Hood Combo

Model # YWMH32519HZ2 Official Whirlpool microwave/hood combo

Here are the diagrams and repair parts for Official Whirlpool YWMH32519HZ2 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

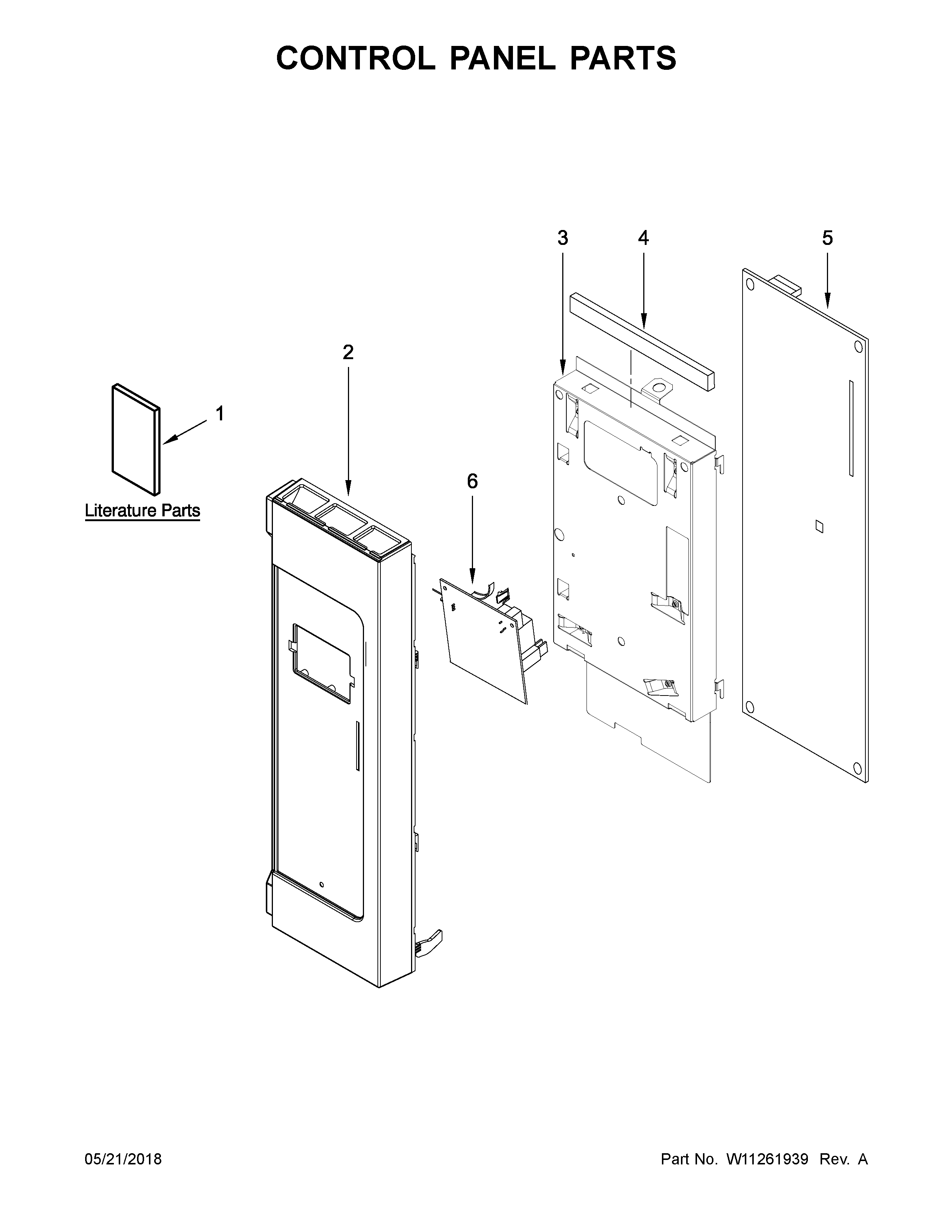

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Diode W10886077
#23

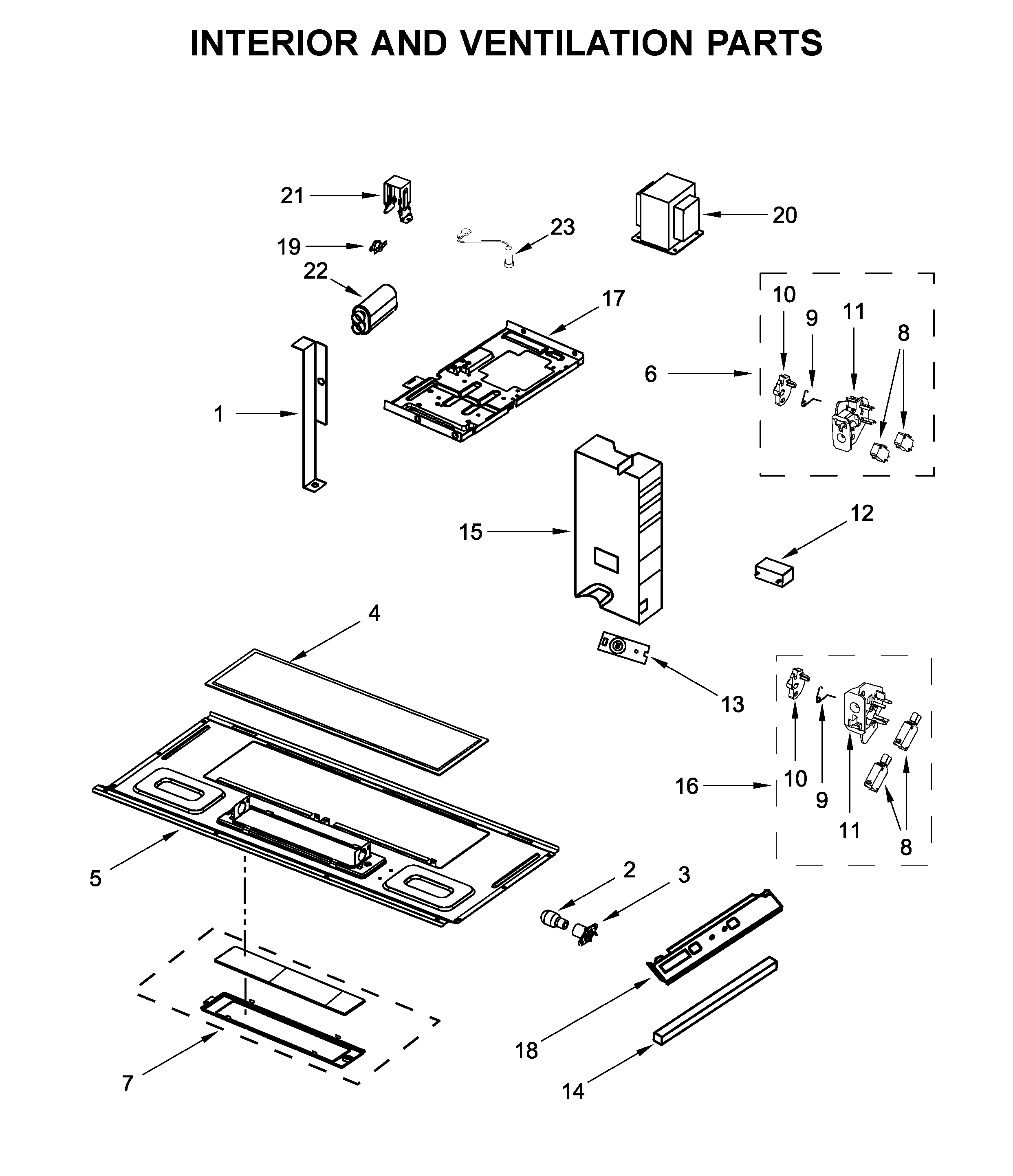

Interior and ventilation parts diagram

Diode

Part #W10886077

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W10886077. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Interlock W10156813
#11A

Interior and ventilation parts diagram

Interlock

Part #W10156813

Replaced by #WPW10156813

?
Manufacturer substitution
This part replaces W10156813. Substitute parts can look different from the original.
BEST SELLER
$7.56 |
12% OFF Phone Price : $8.56
In Stock
Magnetron W10693025
#15

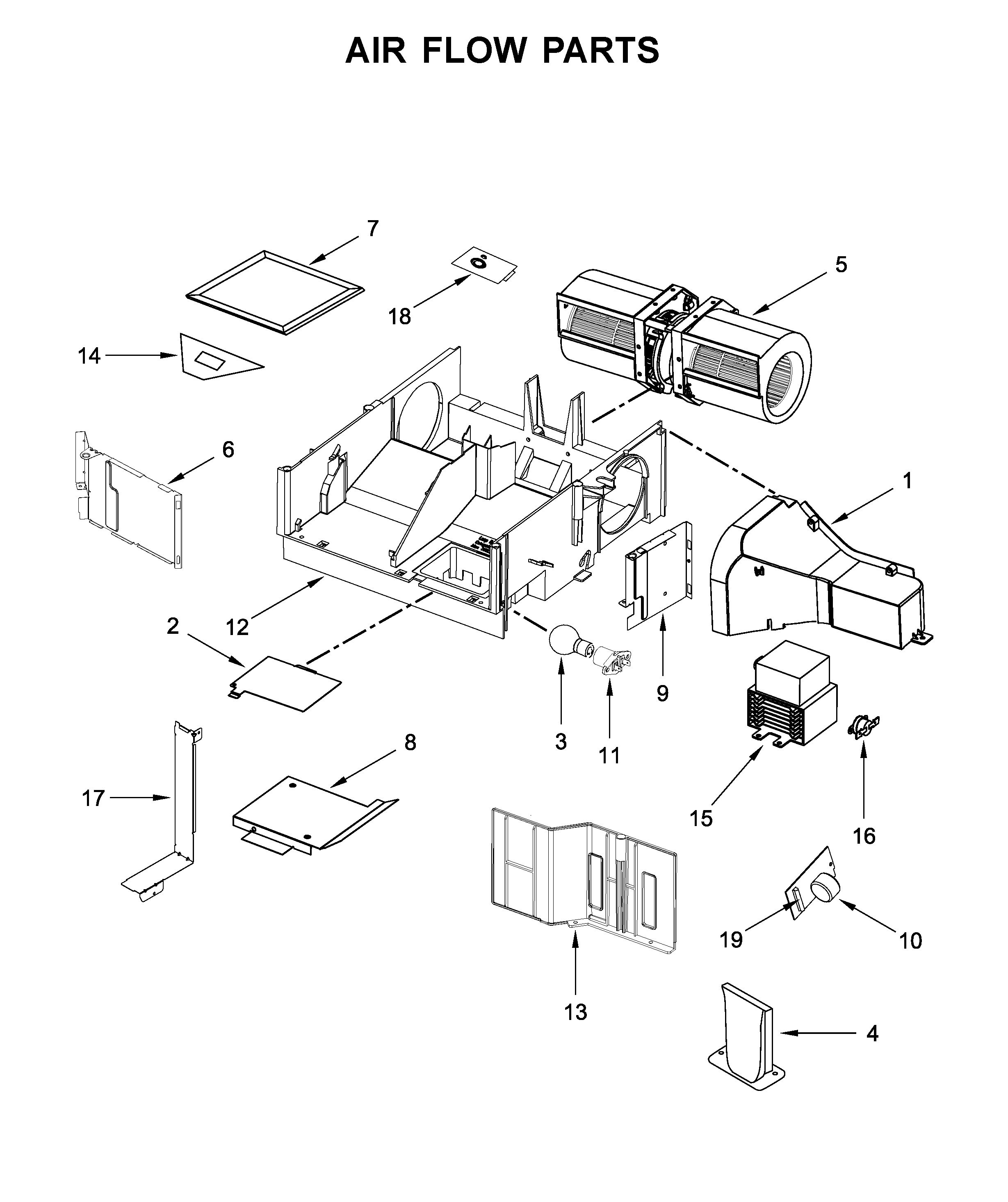

Air flow parts diagram

Magnetron

Part #W10693025

Replaced by #WPW10693025

?
Manufacturer substitution
This part replaces W10693025. Substitute parts can look different from the original.
BEST SELLER
$105.87 |
10% OFF Phone Price : $117.87
In Stock
Filter W10208631
#4

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Microwave Turntable Motor (replaces 8183954) W10642989
#6

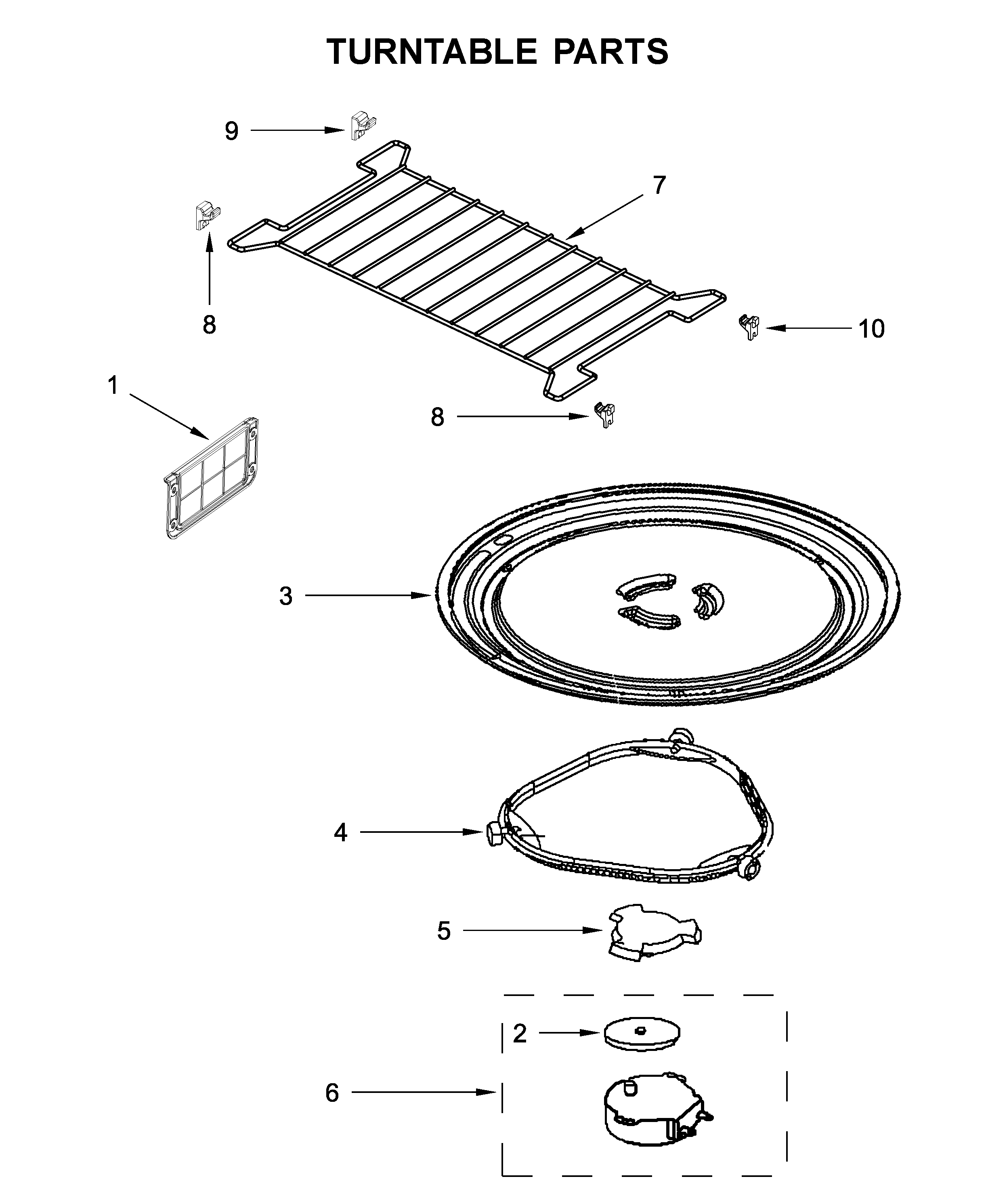

Turntable parts diagram

Microwave turntable motor (replaces 8183954)

Part #W10642989

$69.48 |
8% OFF Phone Price : $75.48
In Stock
Microwave Mounting Plate (replaces W10440498) W11025649
#1

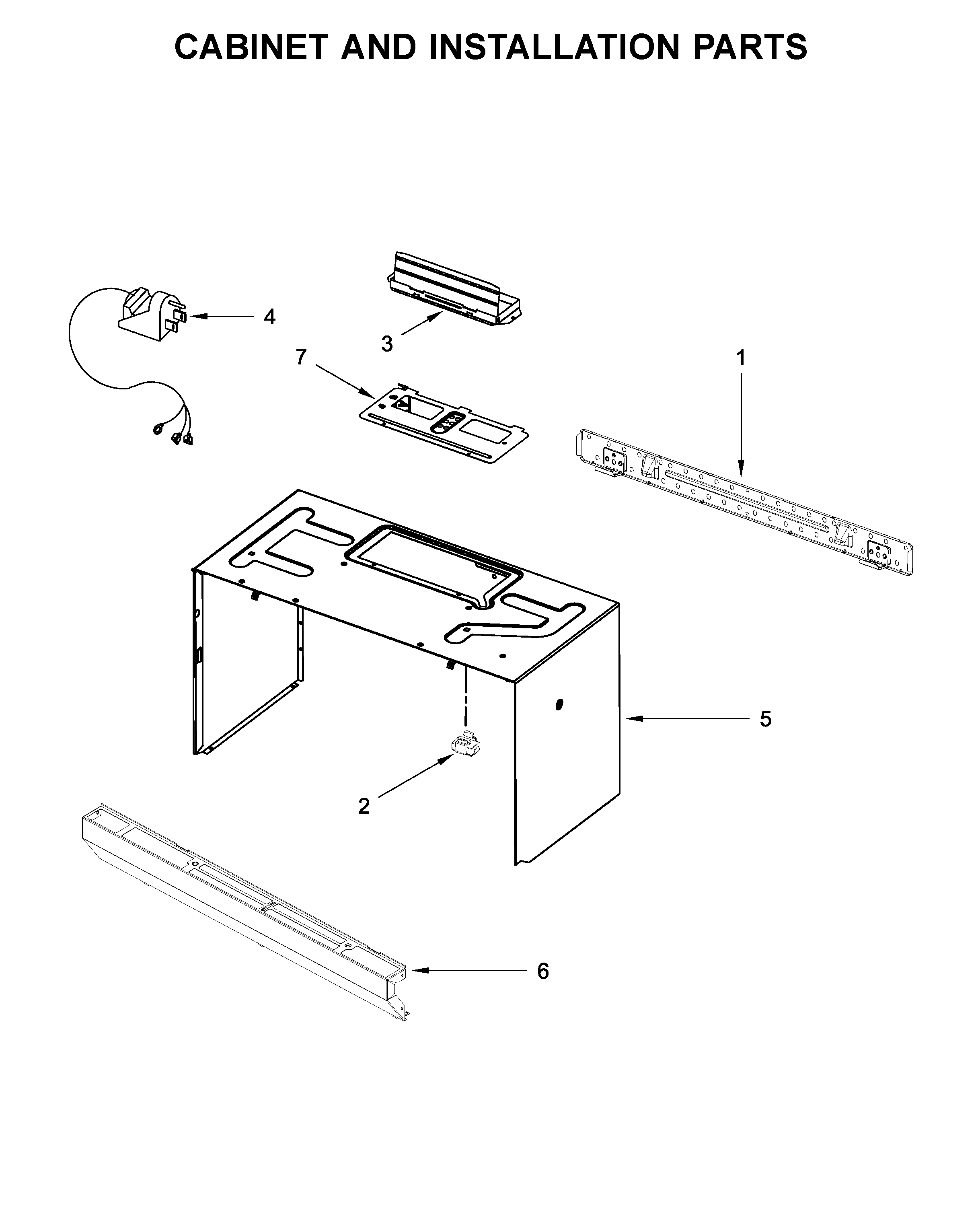

Cabinet and installation parts diagram

Microwave mounting plate (replaces w10440498)

Part #W11025649

$12.77 |
14% OFF Phone Price : $14.77
In Stock
Ring, Turntable (with Rollers) W11193600
#4

Turntable parts diagram

Ring, turntable (with rollers)

Part #W11193600

Replaced by #W11252182

?
Manufacturer substitution
This part replaces W11193600. Substitute parts can look different from the original.
$38.92 |
13% OFF Phone Price : $44.92
In Stock
Badge, Whirl W10884775
#4

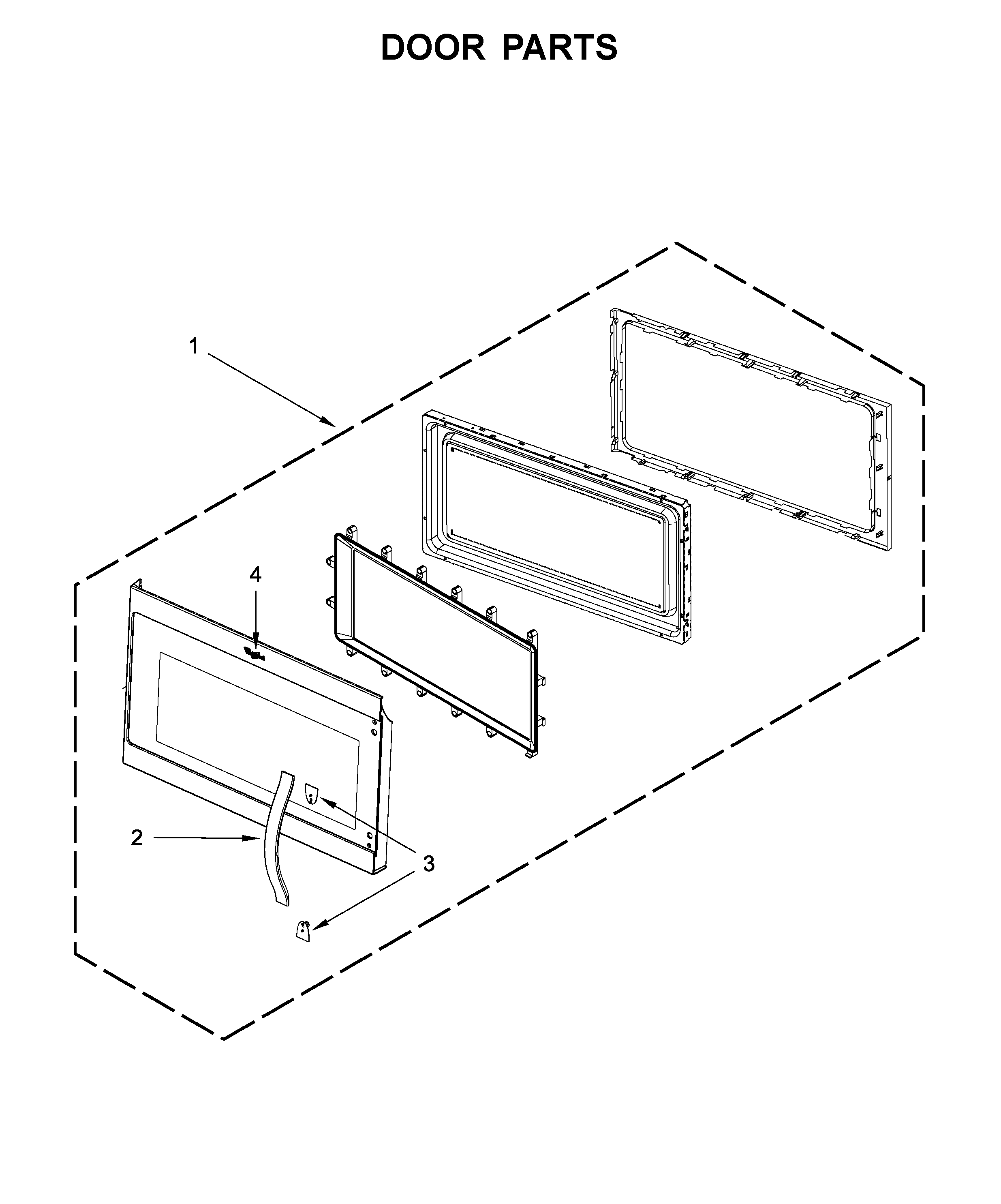

Door parts diagram

Badge, whirl

Part #W10884775

Replaced by #W11178521

?
Manufacturer substitution
This part replaces W10884775. Substitute parts can look different from the original.
$33.73 |
15% OFF Phone Price : $39.73
In Stock
Microwave Installation Template W10190018
#NI

Cabinet and installation parts diagram

Microwave installation template

Part #W10190018

This item is not returnable
$6.39 |
14% OFF Phone Price : $7.39
In Stock
Charcole Fil W10845250
#7

Air flow parts diagram

Charcole fil

Part #W10845250

Replaced by #W10892387

?
Manufacturer substitution
This part replaces W10845250. Substitute parts can look different from the original.
This item is not returnable
$13.22 |
13% OFF Phone Price : $15.22
In Stock
