Sony
Digital Camcorder

Model # DCR-TRV33 Official Sony camcorder

Here are the diagrams and repair parts for Official Sony DCR-TRV33 camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Arm Assembly A7095403B
#NI

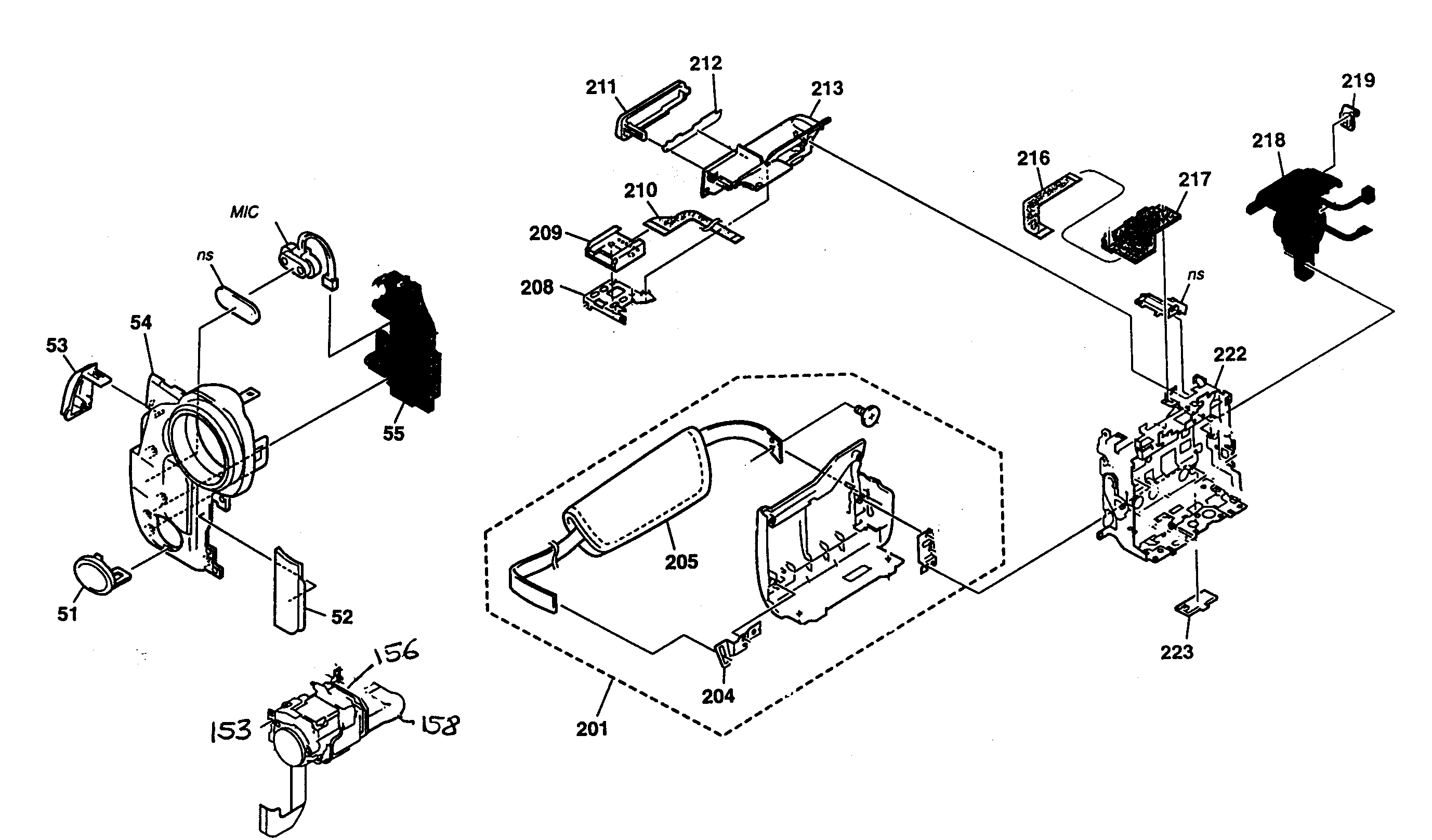

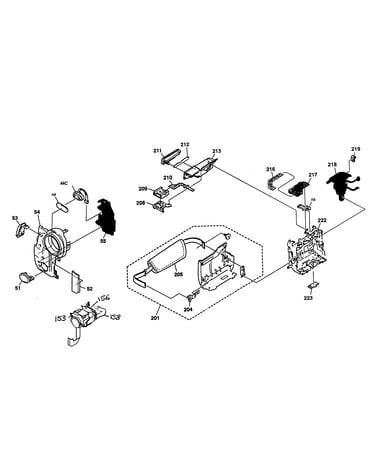

Lens parts diagram

Arm assembly

Part #A7095403B

The manufacturer no longer makes this part, and there's no substitute part

Sensor 147680741
#NI

Lens parts diagram

Sensor

Part #147680741

The manufacturer no longer makes this part, and there's no substitute part

Tape 394134321
#310

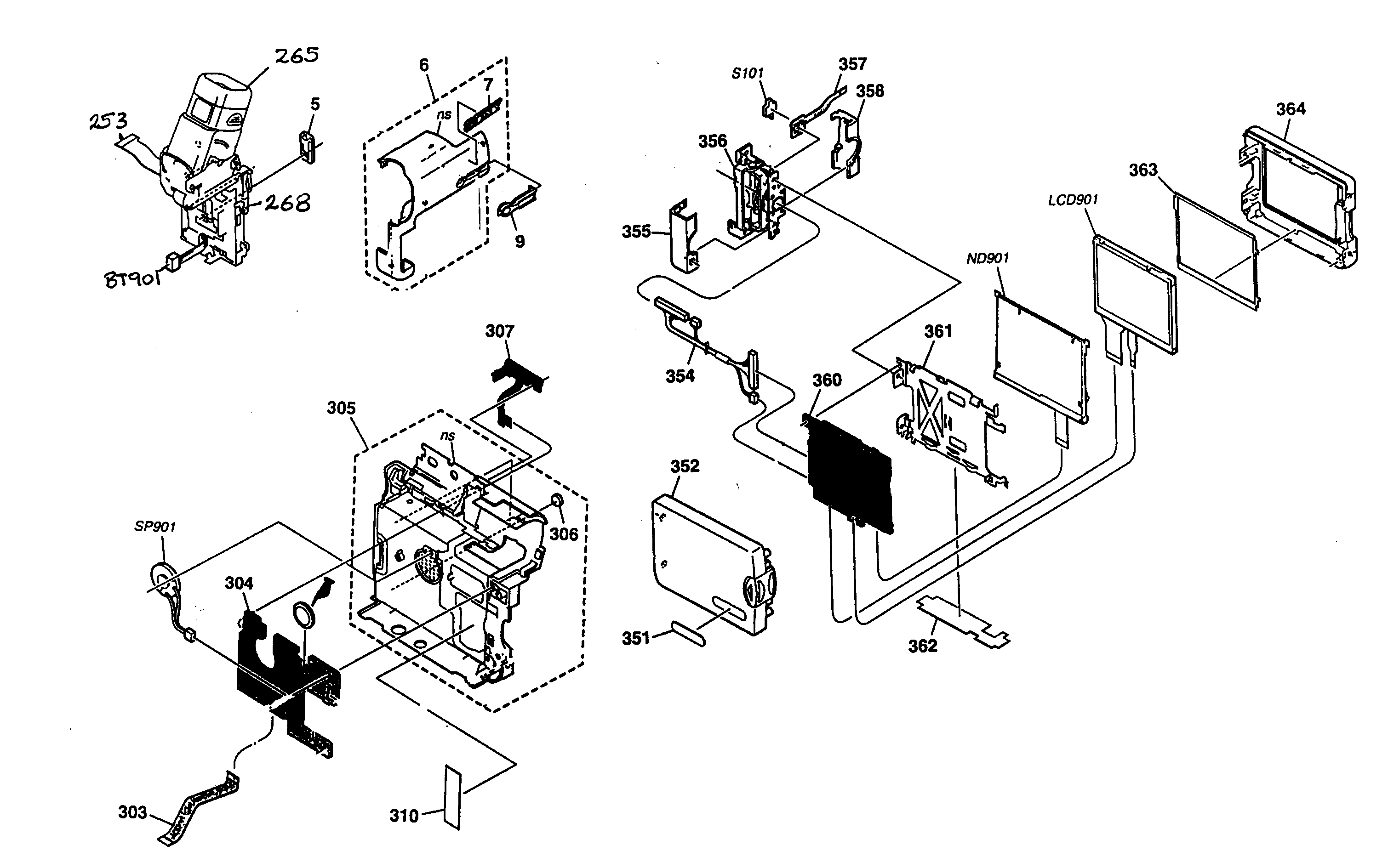

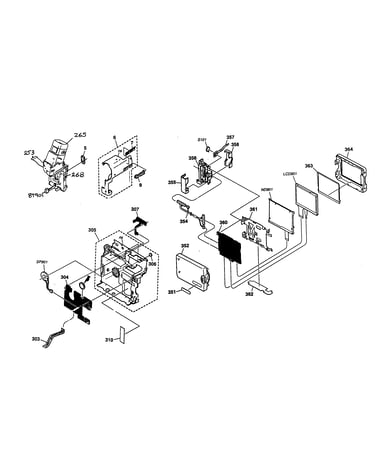

Viewer parts diagram

Tape

Part #394134321

The manufacturer no longer makes this part, and there's no substitute part

Fuse 157640621
#NI

Lens parts diagram

Fuse

Part #157640621

The manufacturer no longer makes this part, and there's no substitute part

Motor Block A7095396A
#NI

Lens parts diagram

Motor block

Part #A7095396A

The manufacturer no longer makes this part, and there's no substitute part

Hinge Cover 308049601
#358

Viewer parts diagram

Hinge cover

Part #308049601

The manufacturer no longer makes this part, and there's no substitute part

Guide Light 147775511
#NI

Lens parts diagram

Guide light

Part #147775511

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly A7013555A
#NI

Lens parts diagram

Pcb assembly

Part #A7013555A

The manufacturer no longer makes this part, and there's no substitute part

Flexible Pcb 168755011
#357

Viewer parts diagram

Flexible pcb

Part #168755011

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Assembly X39530952
#305

Viewer parts diagram

Cabinet assembly

Part #X39530952

The manufacturer no longer makes this part, and there's no substitute part
