Model # WFL2090UC/12 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFL2090UC-12 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Frame 00358289
#221

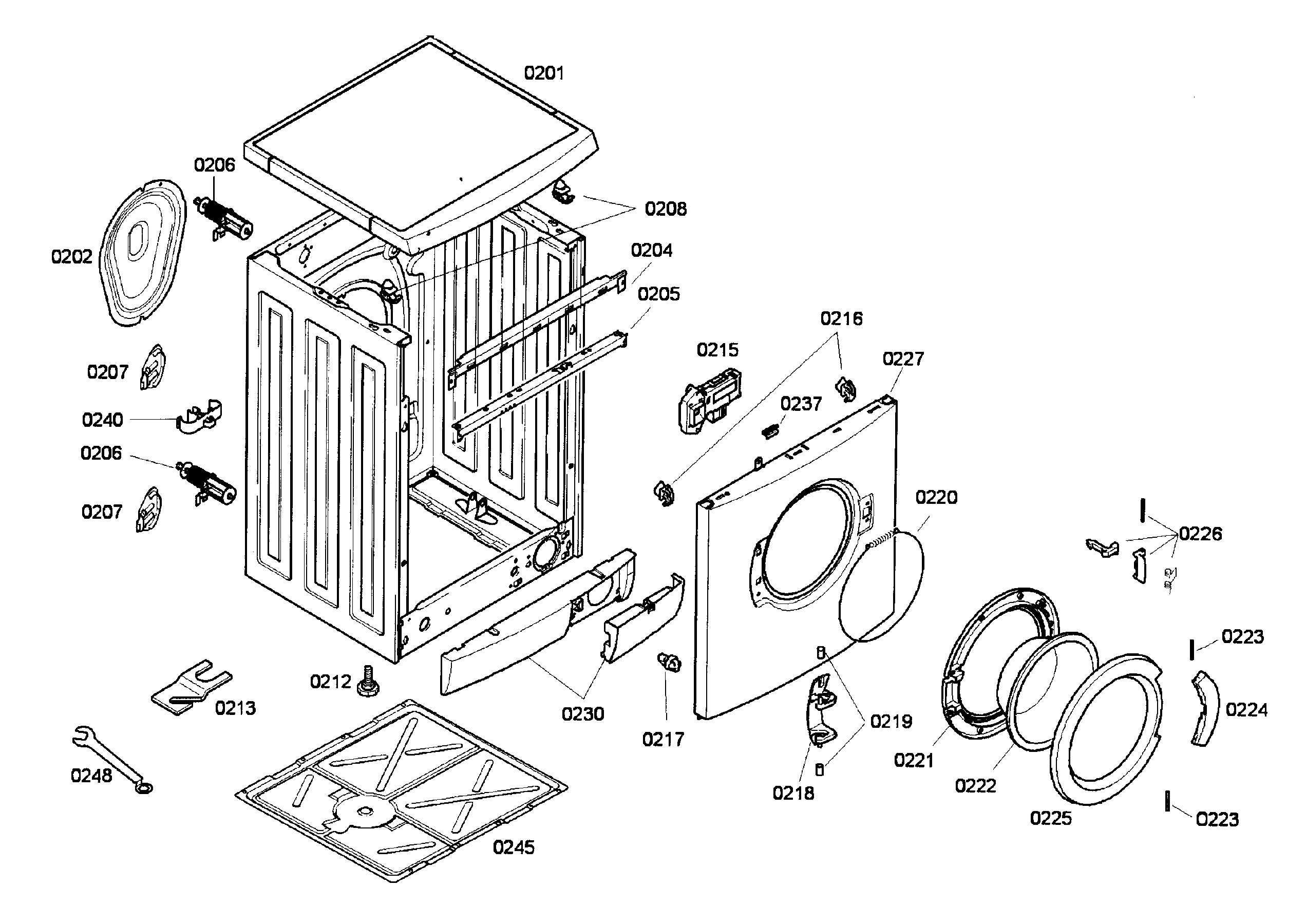

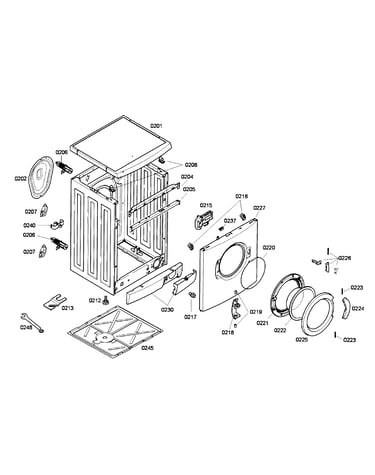

Base & frame diagram

Frame

Part #00358289

Replaced by #00432074

?
Manufacturer substitution
This part replaces 00358289. Substitute parts can look different from the original.
$46.39 |
11% OFF Phone Price : $52.39
In Stock
Axis 00171255
#223

Base & frame diagram

Axis

Part #00171255

$19.60
In Stock
Washer Door Bezel 00369605
#225

Base & frame diagram

Washer door bezel

Part #00369605

$87.63 |
6% OFF Phone Price : $93.63
In Stock
Washer Door Handle 00490903
#224

Base & frame diagram

Washer door handle

Part #00490903

$53.49
Back Order
Belt 00360829
#307

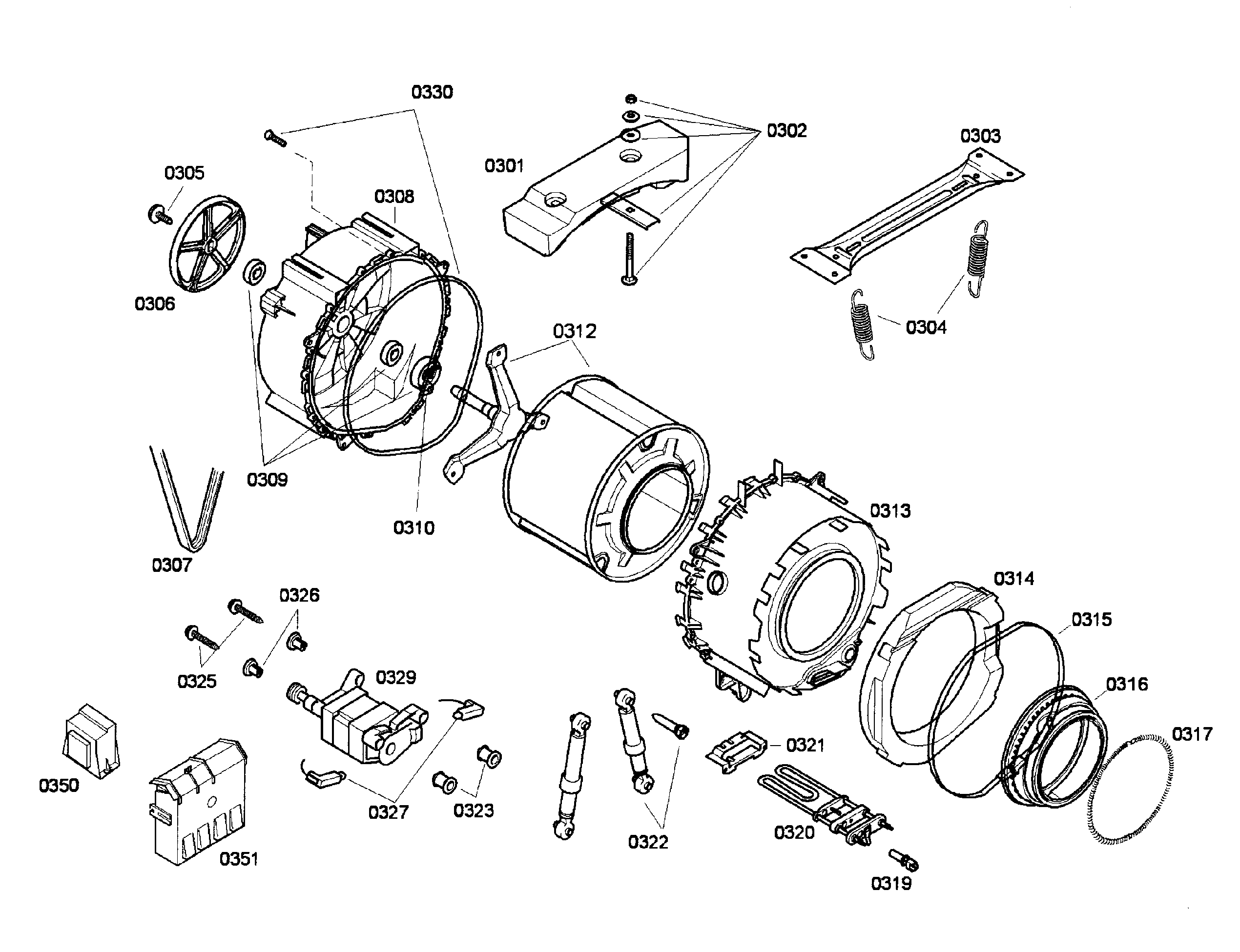

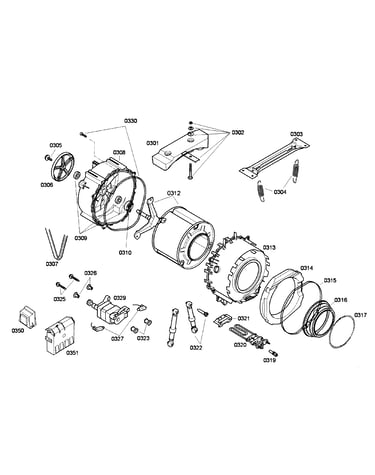

Drum diagram

Belt

Part #00360829

Replaced by #00439490

?
Manufacturer substitution
This part replaces 00360829. Substitute parts can look different from the original.
$40.28 |
13% OFF Phone Price : $46.28
In Stock
Washer Drum 00236611
#312

Drum diagram

Washer drum

Part #00236611

Replaced by #00215117

?
Manufacturer substitution
This part replaces 00236611. Substitute parts can look different from the original.
$247.84 |
5% OFF Phone Price : $259.84
In Stock
Nut 00182429
#121

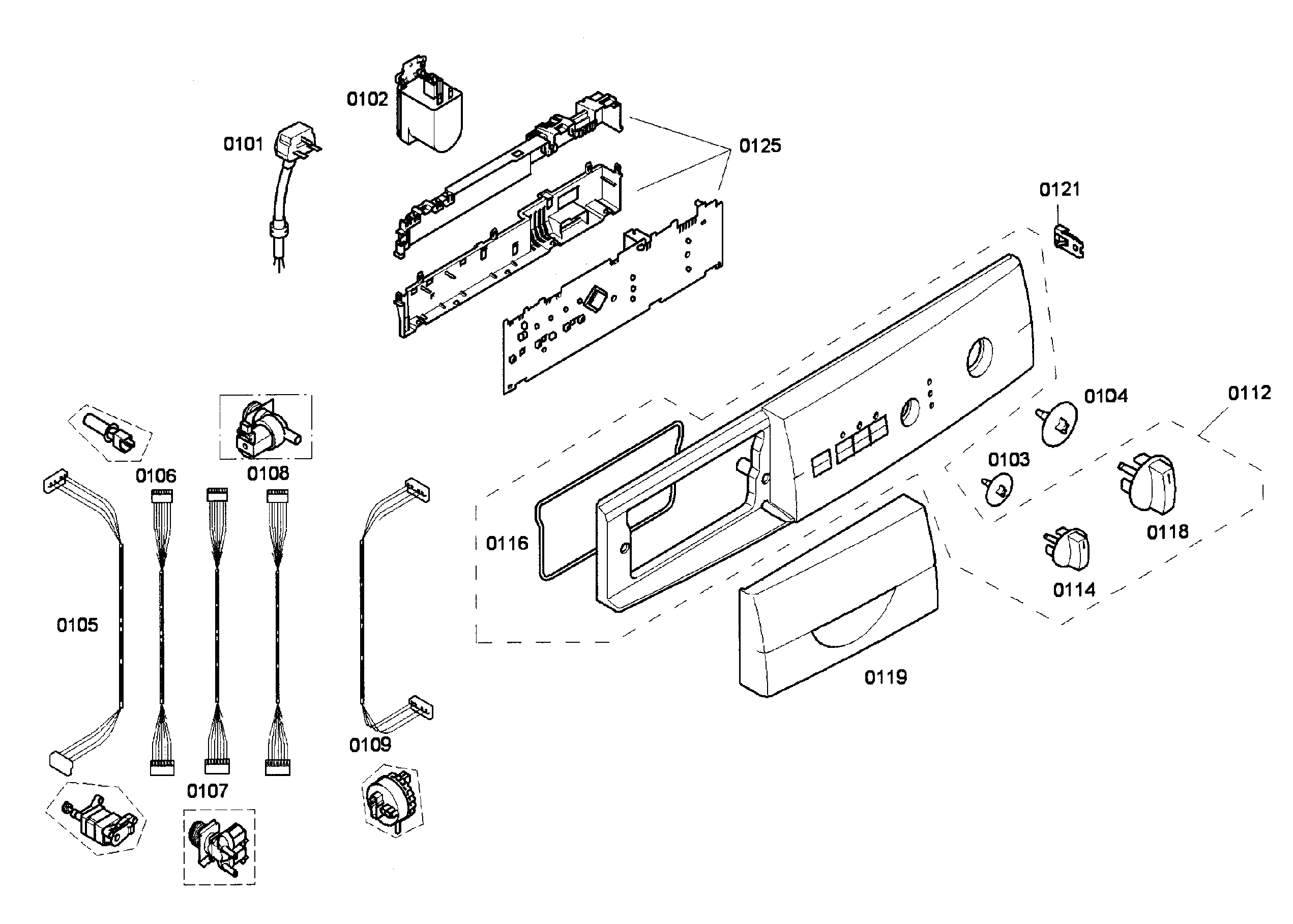

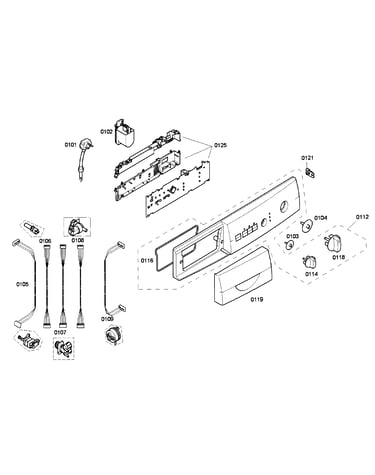

Control panel diagram

Nut

Part #00182429

This item is not returnable
$7.34
In Stock
Duct 00362256
#425

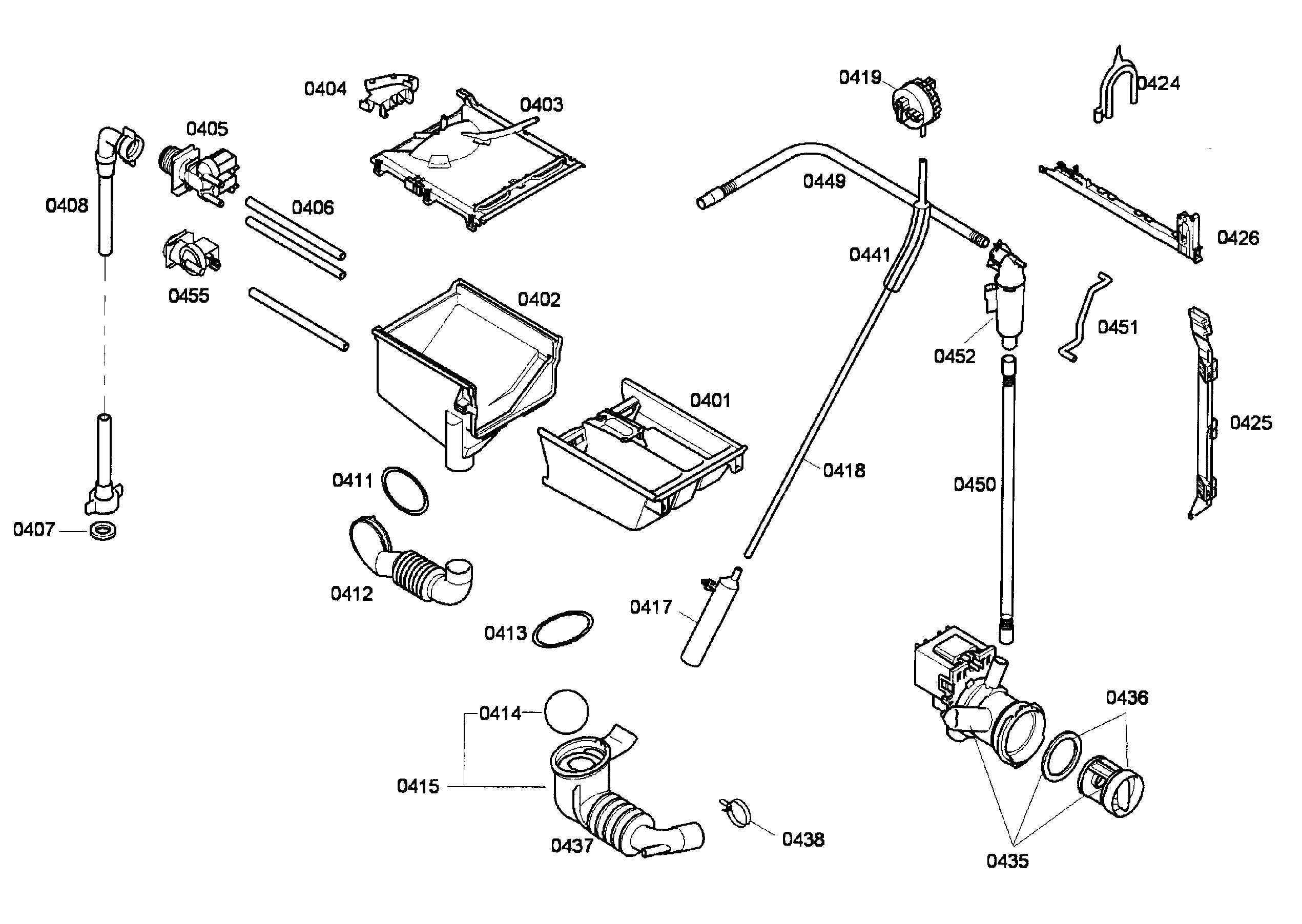

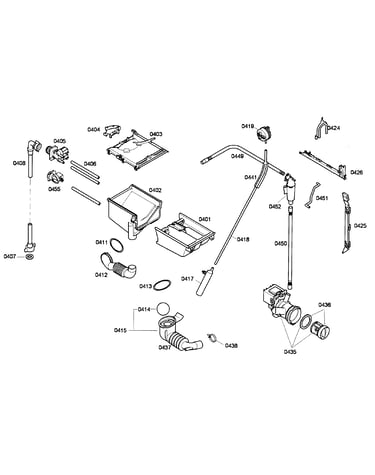

Valve assy diagram

Duct

Part #00362256

$41.36
In Stock
Ring 00439671
#220

Base & frame diagram

Ring

Part #00439671

$20.69 |
22% OFF Phone Price : $26.69
In Stock
Screw 00171271
#325

Drum diagram

Screw

Part #00171271

This item is not returnable
$5.09
In Stock
