Kenmore
Gas Range

Model # 1037246344 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 1037246344 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

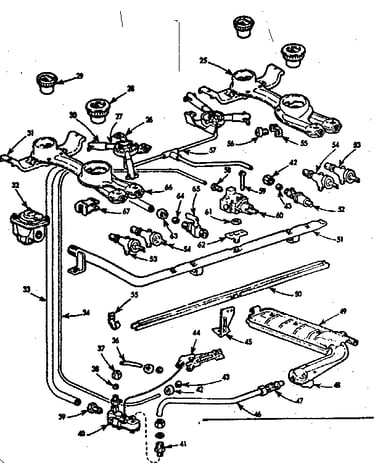

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Lamp Bulb 65973
#125A

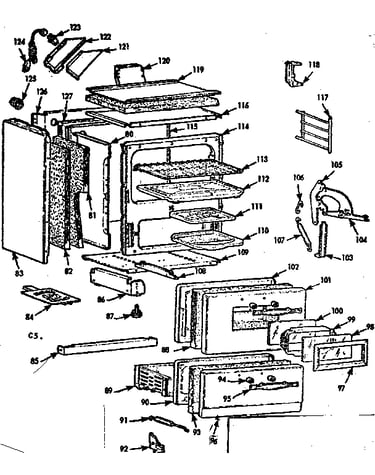

Body section diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Drawer Guide 97820
#108A

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Door Arm 97758
#104A

Body section diagram

Door arm

Part #97758

Replaced by #230872

?
Manufacturer substitution
This part replaces 97758. Substitute parts can look different from the original.
This item is not returnable
$6.99
In Stock
Insulation 87576
#127

Body section diagram

Insulation

Part #87576

The manufacturer no longer makes this part, and there's no substitute part

Burner Bowl 73255
#9A

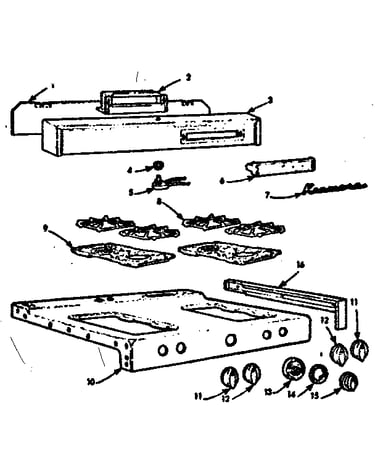

Backguard & maintop diagram

Burner bowl

Part #73255

The manufacturer no longer makes this part, and there's no substitute part

Body 79589
#83D

Body section diagram

Body

Part #79589

The manufacturer no longer makes this part, and there's no substitute part

Motor Box 100523
#141

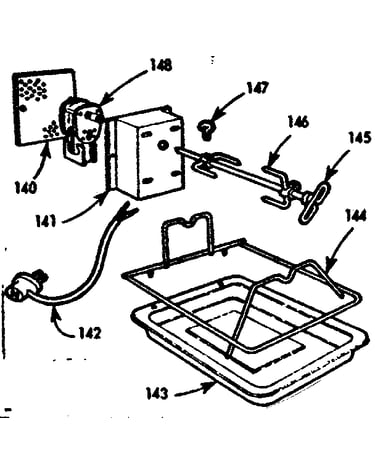

Optional equipment diagram

Motor box

Part #100523

The manufacturer no longer makes this part, and there's no substitute part

Trim 100514
#16A

Backguard & maintop diagram

Trim

Part #100514

The manufacturer no longer makes this part, and there's no substitute part

Oven 98052
#115B

Body section diagram

Oven

Part #98052

The manufacturer no longer makes this part, and there's no substitute part

Oven 96275
#80D

Body section diagram

Oven

Part #96275

The manufacturer no longer makes this part, and there's no substitute part
