Model # 153336444 Official Kenmore 40-gallon water heater

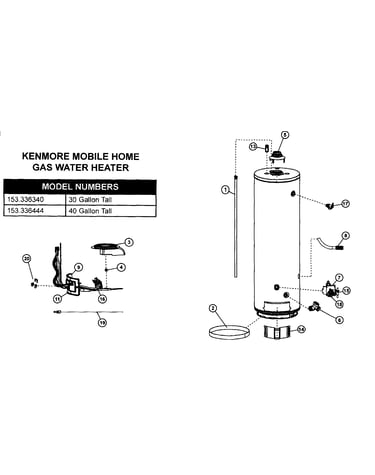

Here are the diagrams and repair parts for Official Kenmore 153336444 40-gallon water heater, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
153336444 Water Heaters
#9
Water heater diagram
Water heater manifold door gasket
Part #9006141
This item is not returnable
$25.47 |
19% OFF Phone Price : $31.47
Back Order
#3A
Water heater diagram
Water heater burner
Part #9006603
$43.19 |
12% OFF Phone Price : $49.19
In Stock
#3
Water heater diagram
Water heater burner
Part #9006136
$23.89 |
20% OFF Phone Price : $29.89
In Stock
#8
Water heater diagram
Kenmore inlet tube
Part #9007356
$28.49
In Stock
#4A
Water heater diagram
Orifice
Part #9006700
Replaced by #100111411
?
Manufacturer substitution
This part replaces 9006700. Substitute parts can look different from the original.
$24.29
In Stock
#5
Water heater diagram
Water heater vent draft hood (replaces 185917-002, 700795-020)
Part #9006647
Replaced by #100111362
?
Manufacturer substitution
This part replaces 9006647. Substitute parts can look different from the original.
$34.44
In Stock
#18
Water heater diagram
Water heater gas control valve knob
Part #F145-1280
The manufacturer no longer makes this part, and there's no substitute part
#2
Water heater diagram
Water heater air intake screen
Part #9006616
Replaced by #100111332
?
Manufacturer substitution
This part replaces 9006616. Substitute parts can look different from the original.
$33.33
In Stock
#20
Water heater diagram
Water heater manifold wire connector
Part #9006449
Replaced by #100093865
?
Manufacturer substitution
This part replaces 9006449. Substitute parts can look different from the original.
$27.78
In Stock
#17
Water heater diagram
Water heater temperature and pressure relief valve
Part #9000071
Replaced by #100108279
?
Manufacturer substitution
This part replaces 9000071. Substitute parts can look different from the original.
$32.22
In Stock
Most common symptoms to help you fix your water heaters
Choose a symptom to see related water heater repairs.
Main causes: lack of power, no gas supply, thermostat limit switch tripped, bad element, bad thermostat, gas valve failu…
Main causes: thermostats need adjustment, water heater capacity too low, bad heating element, thermostat failure, excess…
Main causes: loose water pipe fittings, leaky drain valve, bad temperature-pressure relief valve, leaky heating element,…
Main causes: water supply needs chlorine treatment, anode rod too reactive…
Main causes: broken heating element, thermostat failure, excessive tank sediment, tank size too small, burner valve asse…
Main causes: thermostat temperature set too high, thermostats need adjustment, faulty thermostat, shorted heating elemen…
Main causes: faulty pressure relief valve, water is overheating…
