Model # 2086090 Official Kenmore handheld vacuum
Here are the diagrams and repair parts for Official Kenmore 2086090 handheld vacuum, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
2086090 Vacuum Cleaners
#2

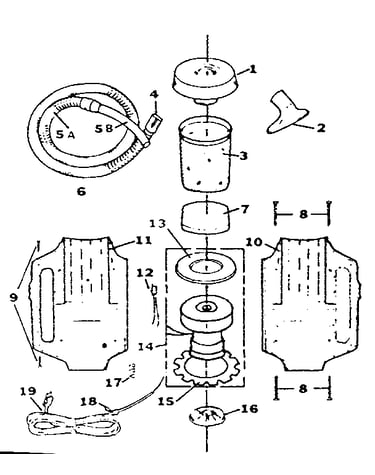

Unit parts diagram
Upholstery tool
Part #61652E
The manufacturer no longer makes this part, and there's no substitute part
#17
Unit parts diagram
Wire connector
Part #61199
The manufacturer no longer makes this part, and there's no substitute part
#18
Unit parts diagram
Strn relief
Part #61577
The manufacturer no longer makes this part, and there's no substitute part
#8
Unit parts diagram
Screw
Part #61640D
The manufacturer no longer makes this part, and there's no substitute part
#1
Unit parts diagram
Valve cover
Part #61958B
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Owner's manual
Part #61965G
The manufacturer no longer makes this part, and there's no substitute part
#5A
Unit parts diagram
Hose
Part #61991B
The manufacturer no longer makes this part, and there's no substitute part
#15
Unit parts diagram
Gasket motor
Part #62738
The manufacturer no longer makes this part, and there's no substitute part
#3
Unit parts diagram
Dust bag
Part #61963A
The manufacturer no longer makes this part, and there's no substitute part
#16
Unit parts diagram
Outlet end
Part #61954A-1
The manufacturer no longer makes this part, and there's no substitute part
