Model # ELURA2A Official Canon digital camcorder

Here are the diagrams and repair parts for Official Canon ELURA2A digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

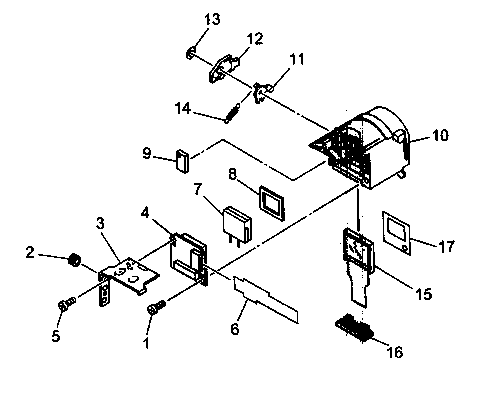

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Cover DA2-0917-000
#17

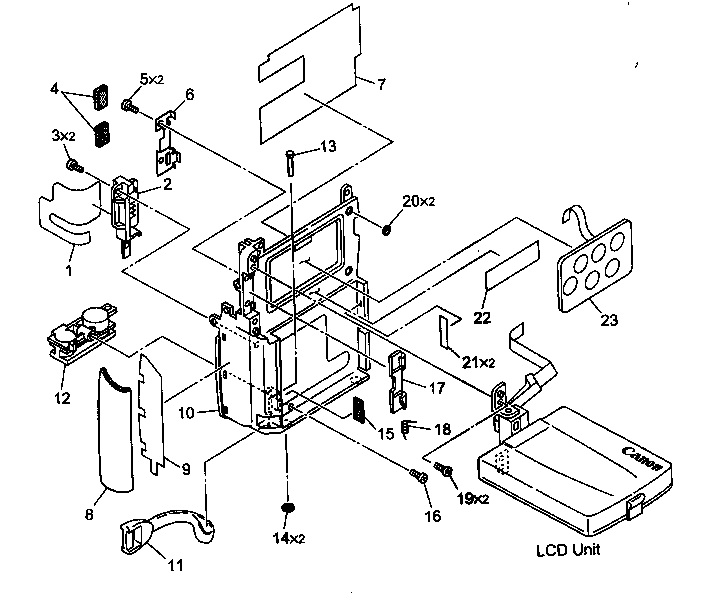

Rt cover assy diagram

Cover

Part #DA2-0917-000

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly DG1-4031-000
#21

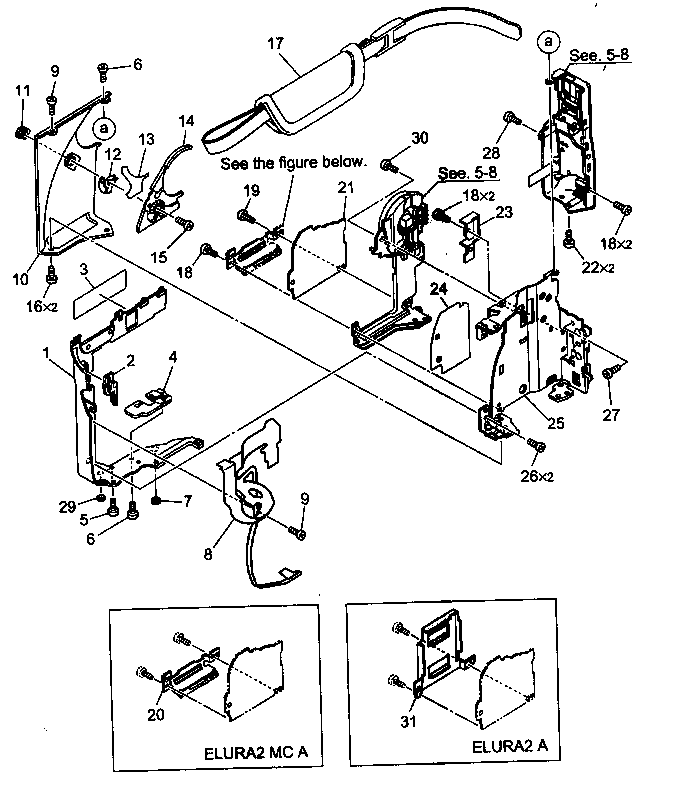

Lt cover assy diagram

Pcb assembly

Part #DG1-4031-000

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly DG1-4023-000
#20

Recorder assy diagram

Pcb assembly

Part #DG1-4023-000

The manufacturer no longer makes this part, and there's no substitute part

Ae Knob DA2-0972-000
#9

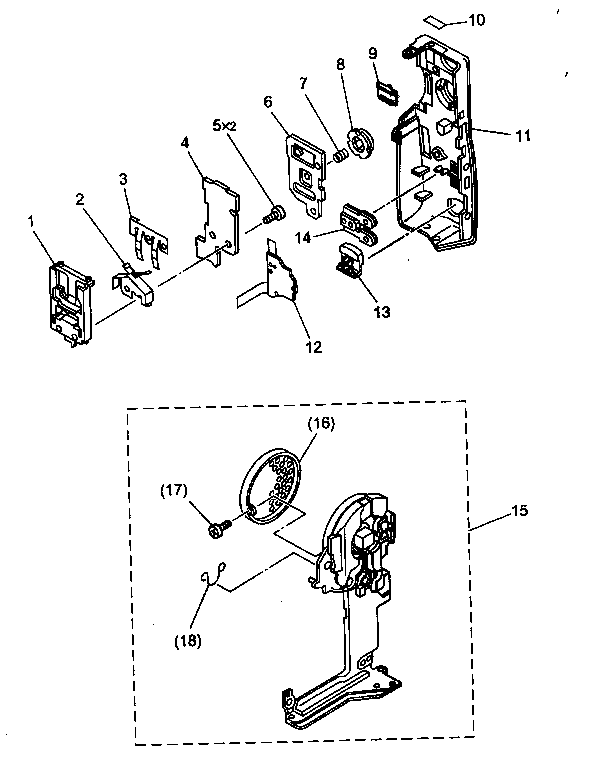

Main dial/rear cover diagram

Ae knob

Part #DA2-0972-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DA2-0951-000
#1

Lt cover assy diagram

Cover

Part #DA2-0951-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DF1-1626-000
#29

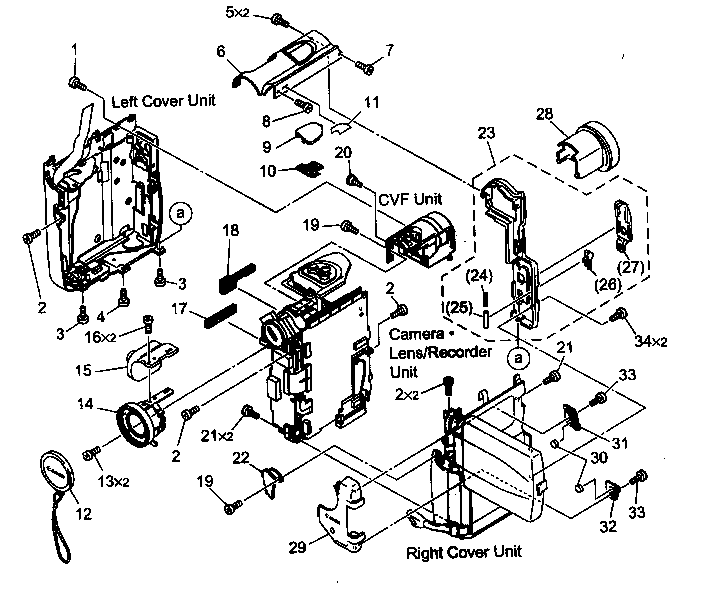

Casing parts diagram

Cover

Part #DF1-1626-000

The manufacturer no longer makes this part, and there's no substitute part

Hinge Assembly DG1-4065-000
#3

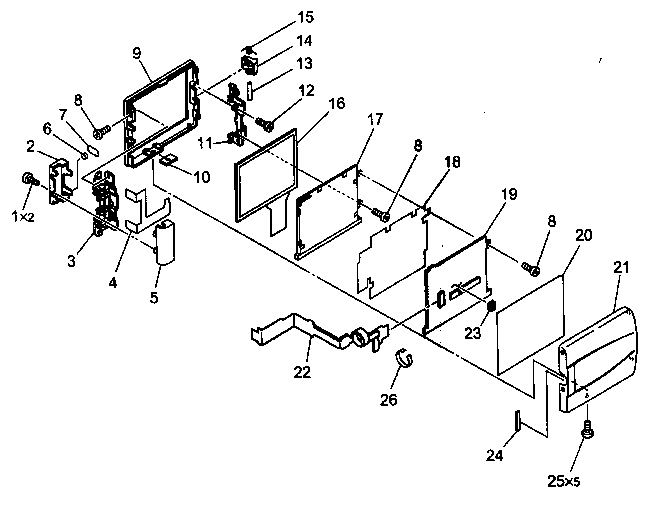

Lcd assy diagram

Hinge assembly

Part #DG1-4065-000

The manufacturer no longer makes this part, and there's no substitute part

Fpc Assy DH2-2182-000
#29

Recorder assy diagram

Fpc assy

Part #DH2-2182-000

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly DG1-4026-000
#13

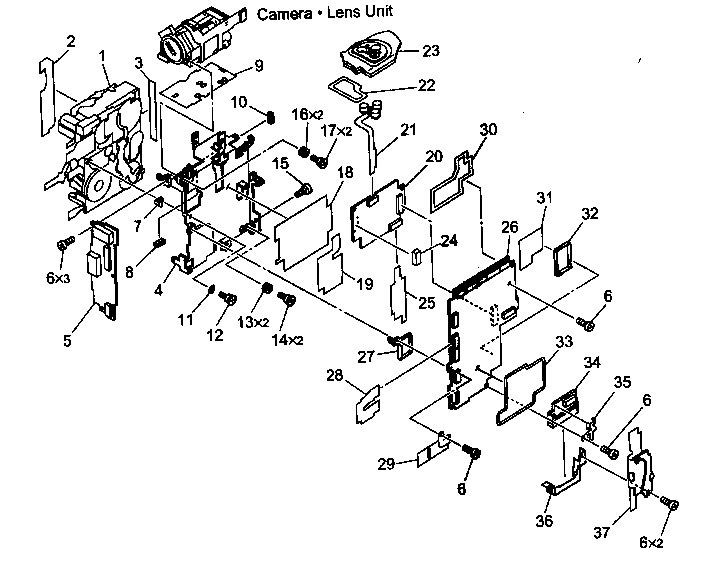

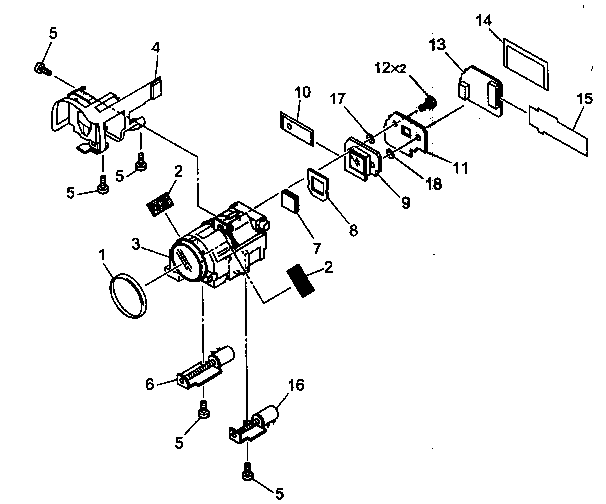

Camera/lens assy diagram

Pcb assembly

Part #DG1-4026-000

The manufacturer no longer makes this part, and there's no substitute part

Ig Meter YH8-0097-000
#4

Camera/lens assy diagram

Ig meter

Part #YH8-0097-000

The manufacturer no longer makes this part, and there's no substitute part
