Model # 917885530 Official Craftsman snow thrower
Here are the diagrams and repair parts for Official Craftsman 917885530 snow thrower, as well as links to manuals and error code tables, if available.
By Schematic
By Part

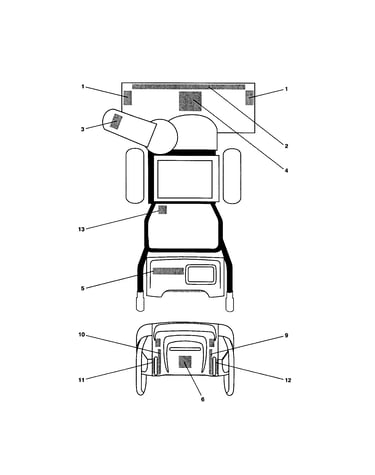

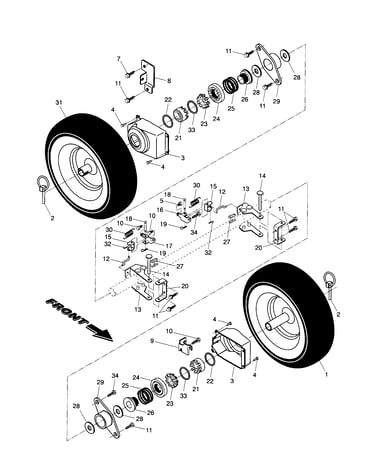

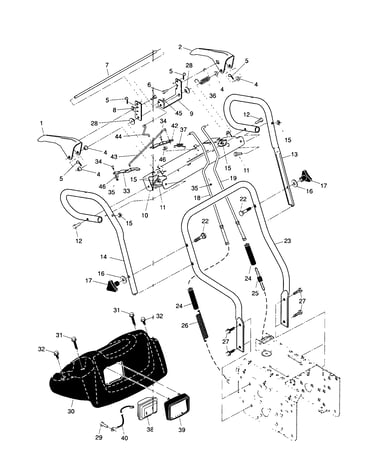

SELECT DIAGRAM
Browse Parts for917885530 Snowblowers
- #37

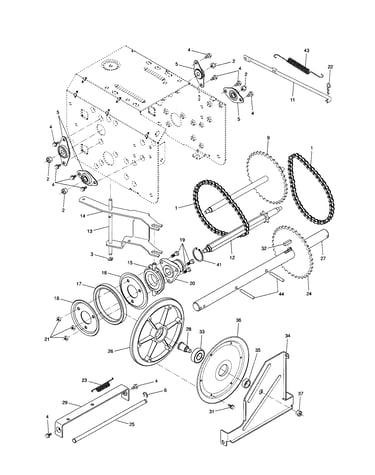

Drive diagram
Pipe fittingPart #132010
Replaced by #532409149
?Manufacturer substitutionThis part replaces 132010. Substitute parts can look different from the original.This item is not returnable$6.11 |14% OFF Phone Price : $7.11In Stock - #4

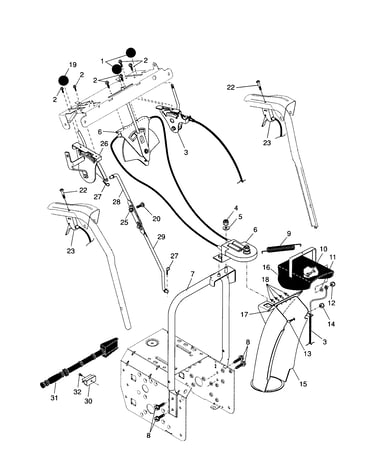

Control panel/discharge chute diagram
Lock nutPart #73800600
Replaced by #596322601
?Manufacturer substitutionThis part replaces 73800600. Substitute parts can look different from the original.This item is not returnable$5.53 |15% OFF Phone Price : $6.53In Stock - #15

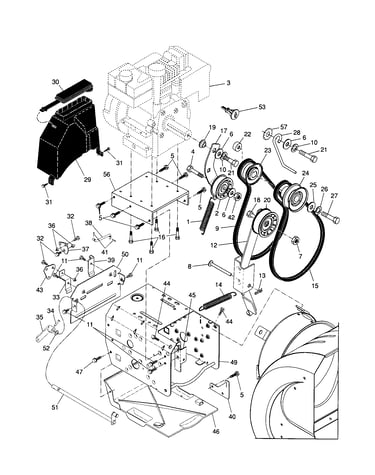

Chassis/engine/pulleys diagram
Snowblower auger drive beltPart #408007
Replaced by #532408007
?Manufacturer substitutionThis part replaces 408007. Substitute parts can look different from the original.Get free shipping with Automatic Reorder
$41.15 |13% OFF Phone Price : $47.15In Stock - #27
Chassis/engine/pulleys diagram
Lawn & garden equipment screwPart #851084
Replaced by #532851084
?Manufacturer substitutionThis part replaces 851084. Substitute parts can look different from the original.This item is not returnable$5.54In Stock - #45

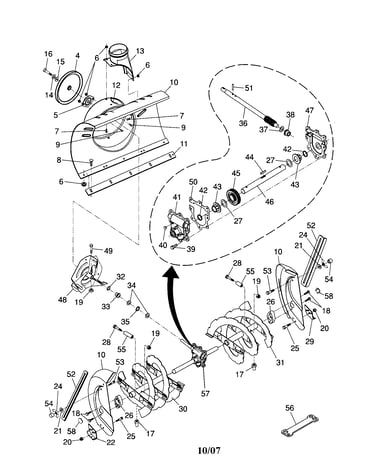

Auger housing/impeller diagram
Auger worm gearPart #407763
Replaced by #598831601
?Manufacturer substitutionThis part replaces 407763. Substitute parts can look different from the original.$191.43 |6% OFF Phone Price : $203.43In Stock - Nut.flange.5
Part #155377
Replaced by #596039201
?Manufacturer substitutionThis part replaces 155377. Substitute parts can look different from the original.This item is not returnable$22.71In Stock - #57
Auger housing/impeller diagram
Snowblower gearboxPart #196710
Replaced by #598831601
?Manufacturer substitutionThis part replaces 196710. Substitute parts can look different from the original.$191.43 |6% OFF Phone Price : $203.43In Stock - Tower lawn & garden equipment head bolt
Part #17000616
Replaced by #817000616
?Manufacturer substitutionThis part replaces 17000616. Substitute parts can look different from the original.$27.04In Stock - Lock washer
Part #10040500
Replaced by #596238801
?Manufacturer substitutionThis part replaces 10040500. Substitute parts can look different from the original.This item is not returnable$22.71In Stock - #46
Chassis/engine/pulleys diagram
Bottom panPart #410877
Replaced by #532410877
?Manufacturer substitutionThis part replaces 410877. Substitute parts can look different from the original.$28.87In Stock
