Tappan
Countertop Microwave

Model # TMS134T1G Official Tappan microwave

Here are the diagrams and repair parts for Official Tappan TMS134T1G microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

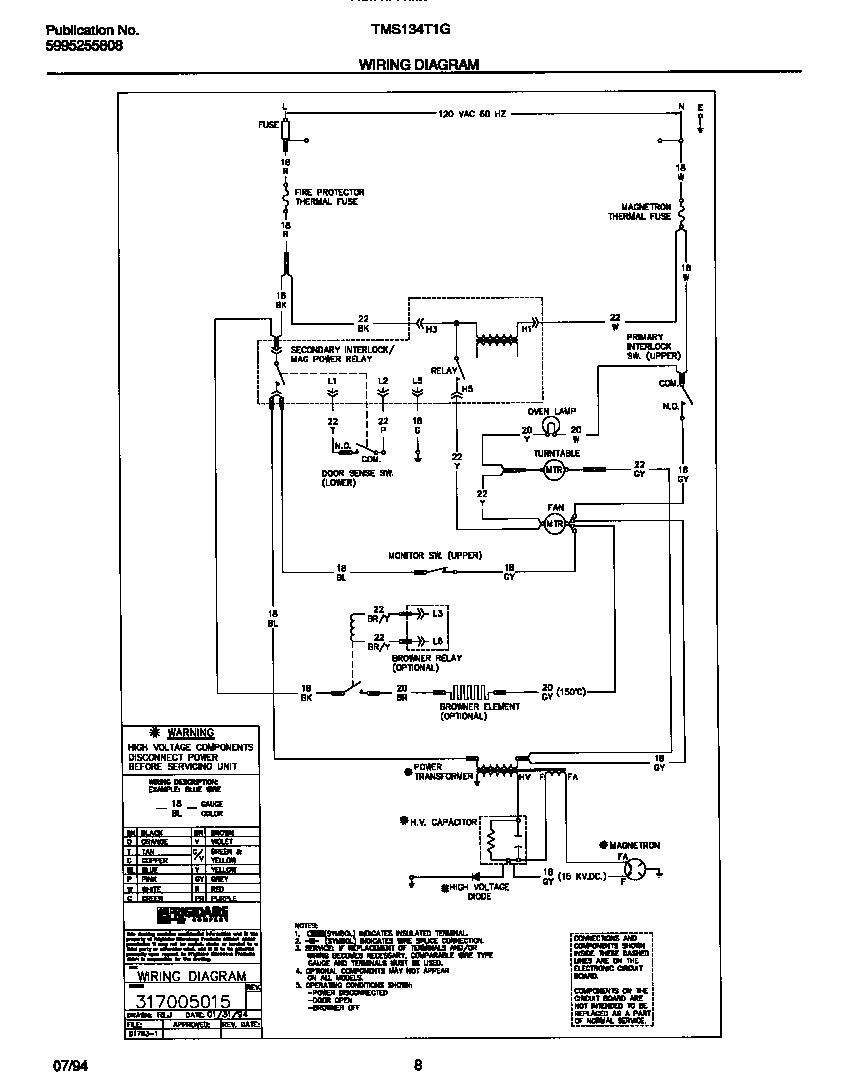

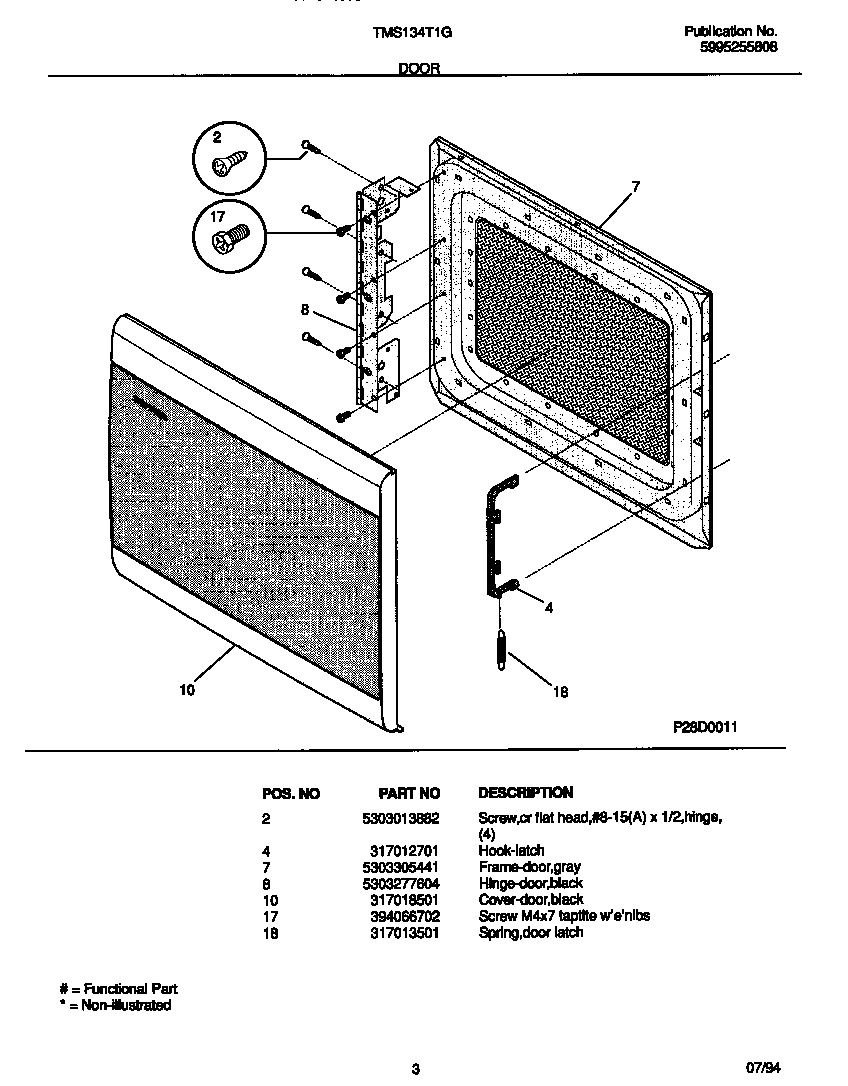

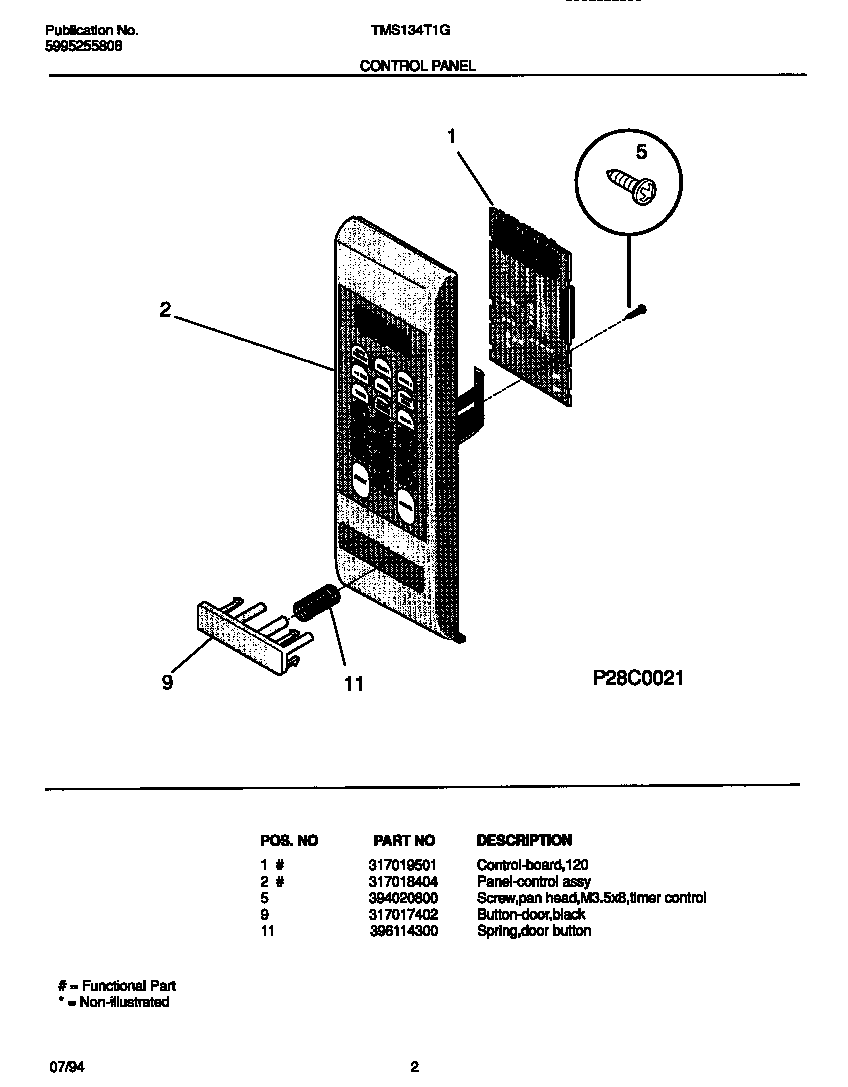

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Paint 5303203124

#NI

All parts diagram

Paint

Part #5303203124

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303203124. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Screw 5303051818
#50

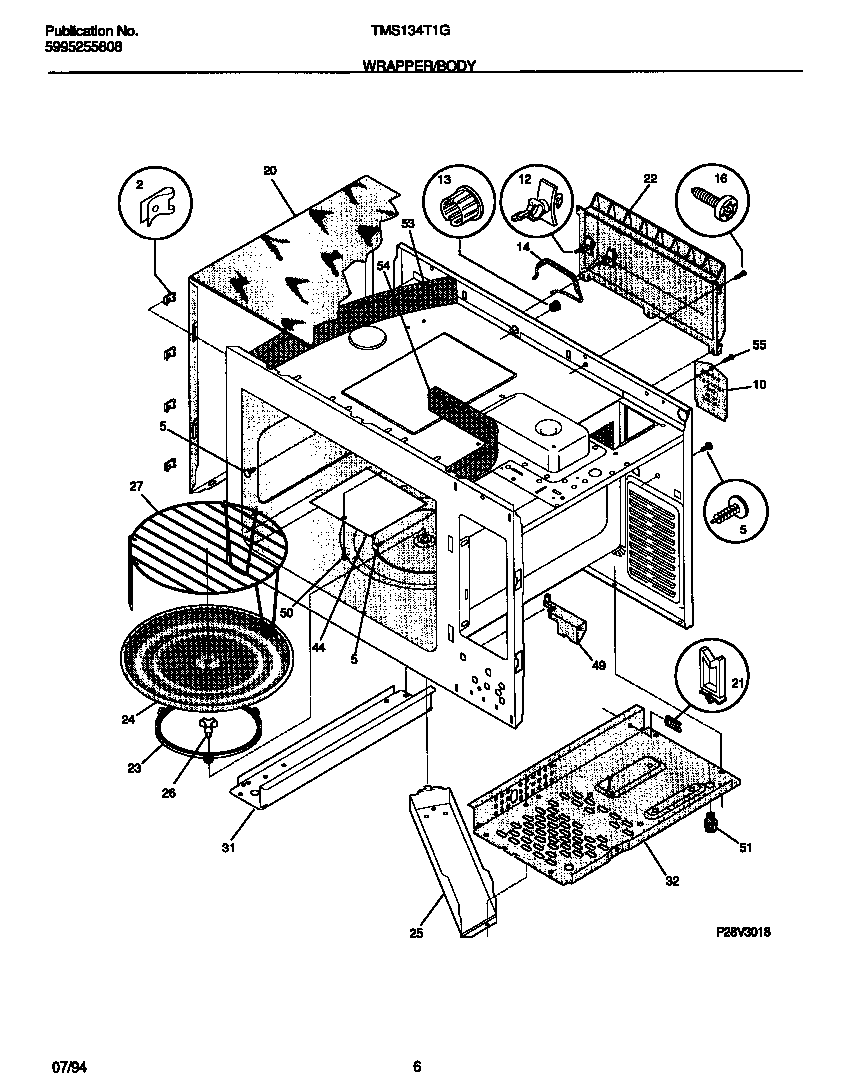

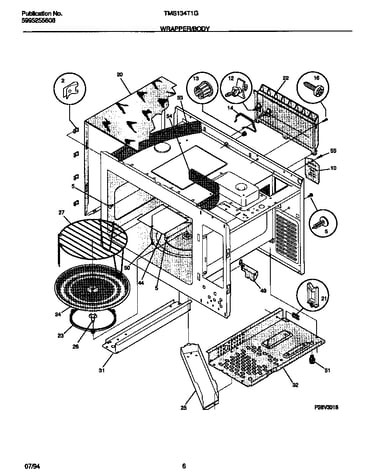

Wrapper/body diagram

Screw

Part #5303051818

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 5303051818. Substitute parts can look different from the original.
This item is not returnable
$16.63
In Stock
Switch-monit 317005120
#62

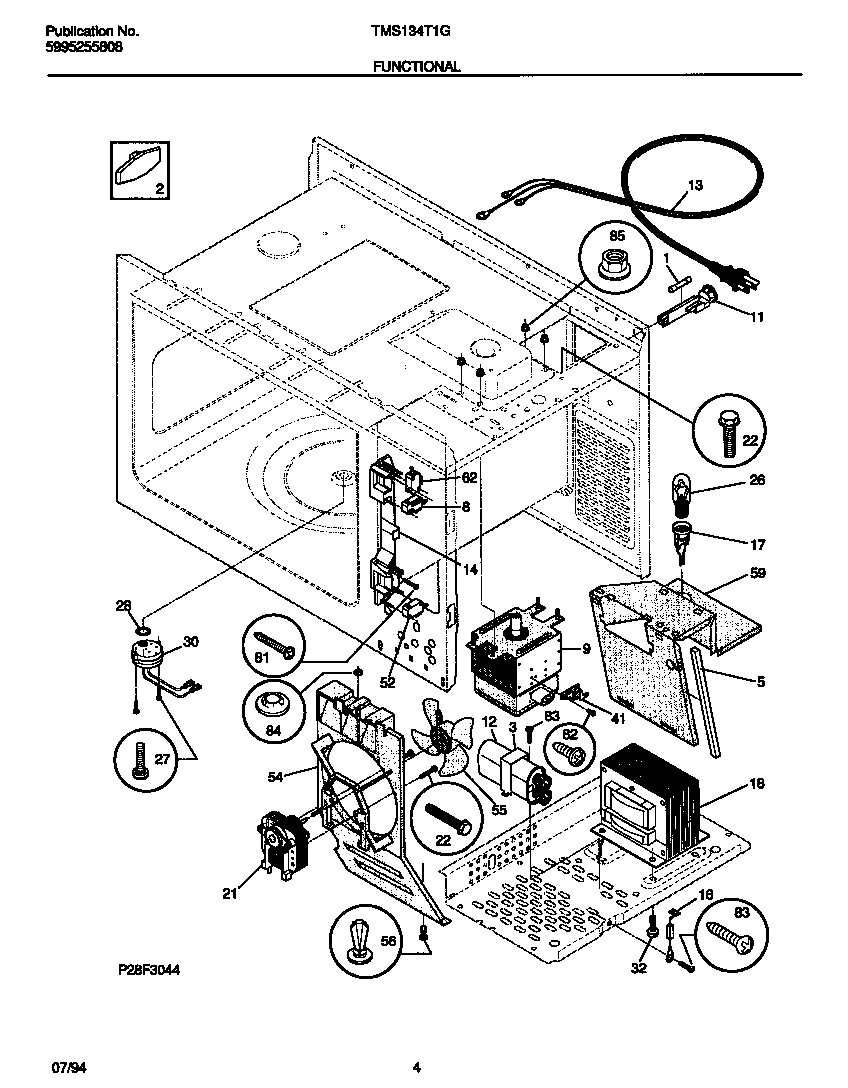

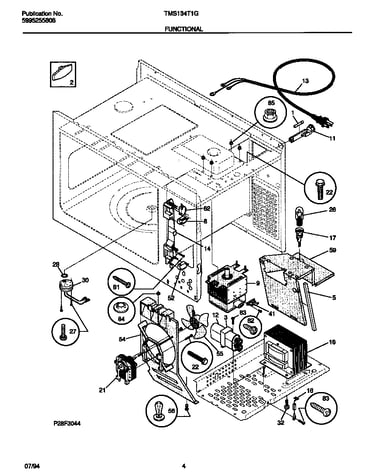

Functional diagram

Switch-monit

Part #317005120

$22.30
In Stock
Wiring Harness 5303305444
#14

Wrapper/body diagram

Wiring harness

Part #5303305444

$17.42
In Stock
Plug 5303013626
#2

Functional diagram

Plug

Part #5303013626

This item is not returnable
$2.34
In Stock
Light Socket 317018001
#17

Functional diagram

Light socket

Part #317018001

This item is not returnable
$3.65
In Stock
Foam Air Floor 317009903
#54

Wrapper/body diagram

Foam air floor

Part #317009903

This item is not returnable
$2.99
In Stock
Door Switch 317005121
#52

Functional diagram

Door switch

Part #317005121

$27.98
In Stock
Wiring Harness 317000412

#NI

All parts diagram

Wiring harness

Part #317000412

$25.99
In Stock
Screw 5303013944
#32

Functional diagram

Screw

Part #5303013944

This item is not returnable
$2.16
In Stock
