Model # U5454-900 Official Hoover windtunnel vacuum cleaner

Here are the diagrams and repair parts for Official Hoover U5454-900 windtunnel vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |

Lens Cover 39383107
#25

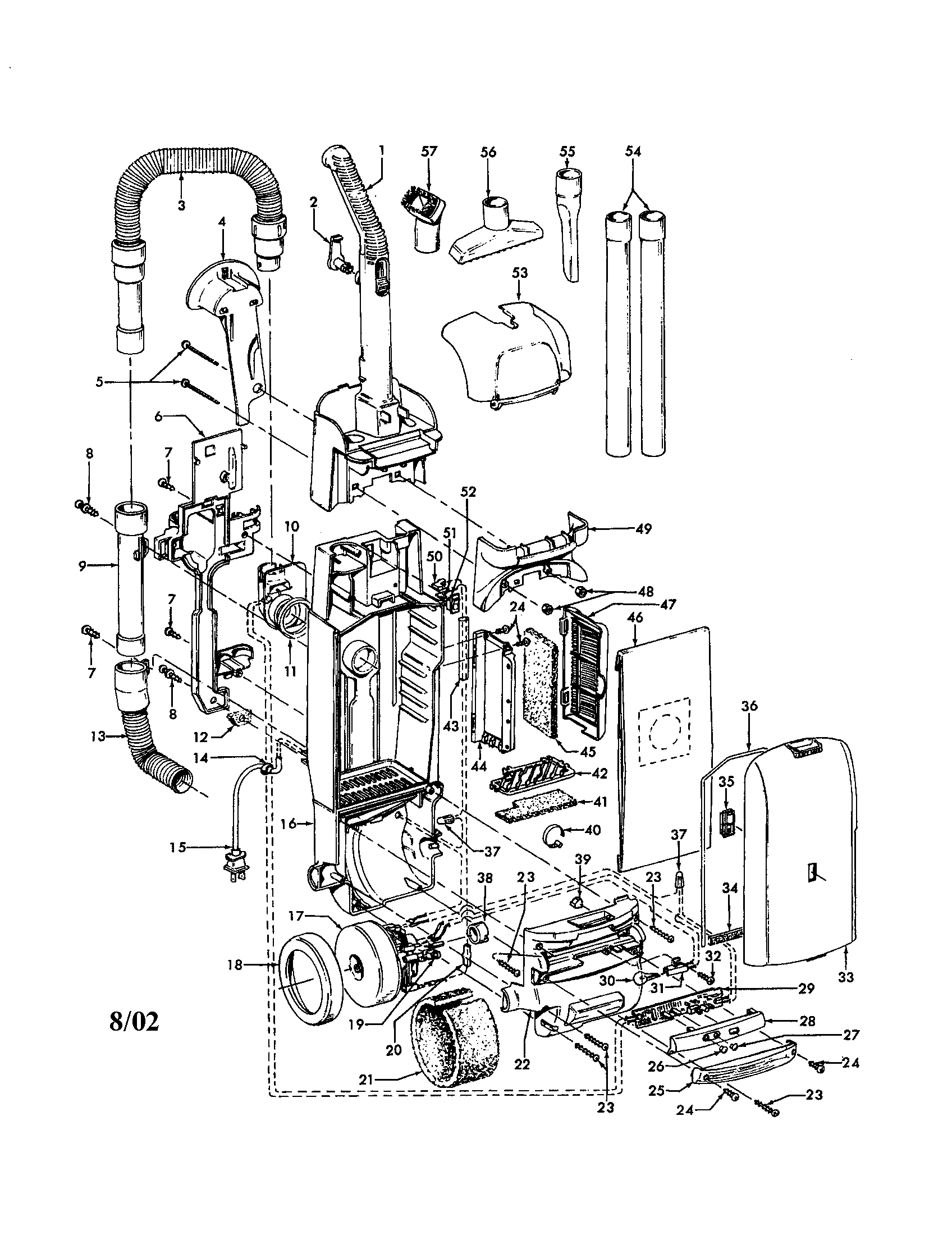

Motor cover/motor/upper handle/hose diagram

Lens cover

Part #39383107

The manufacturer no longer makes this part, and there's no substitute part

Clamp 36171044
#7

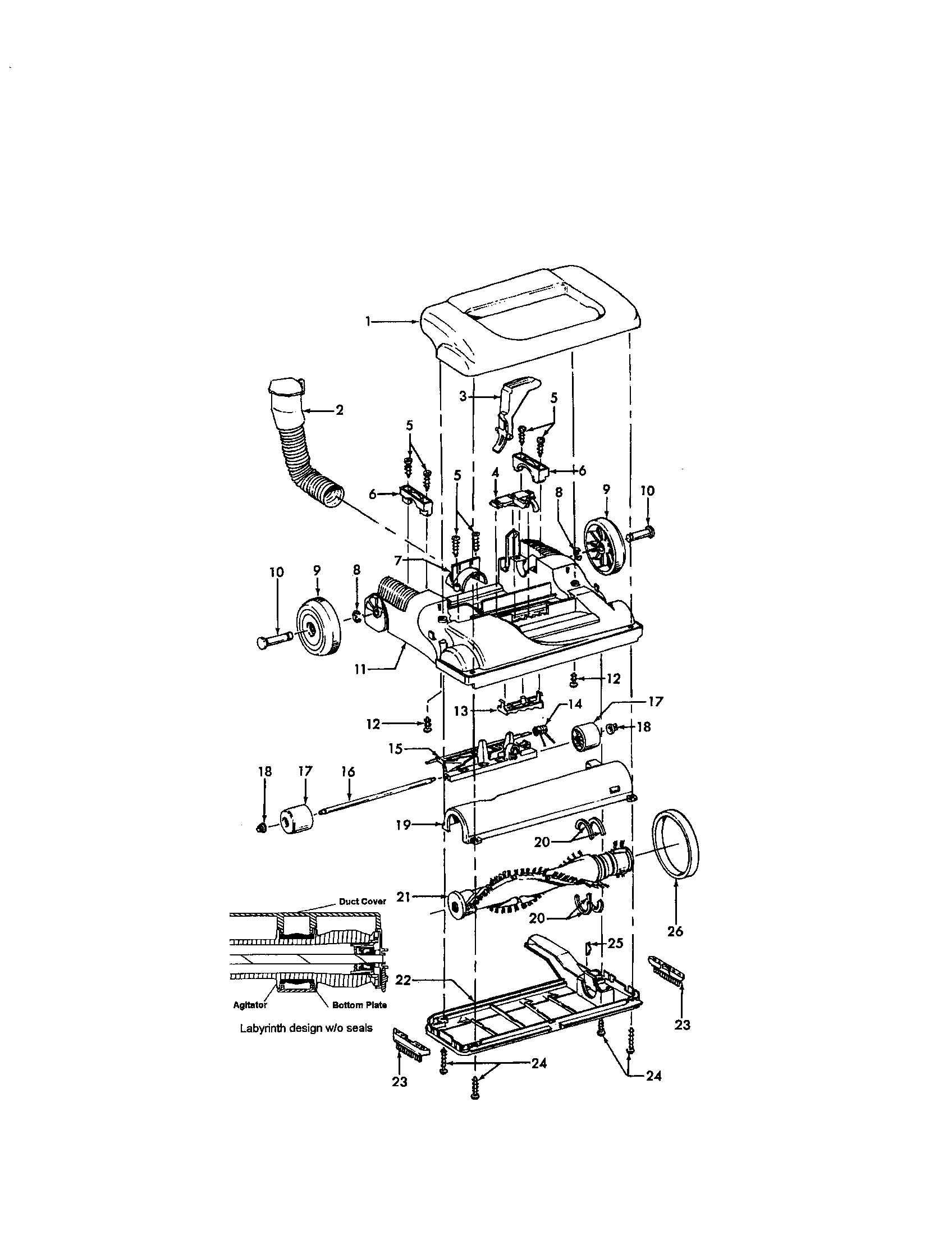

Hood/main body diagram

Clamp

Part #36171044

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Screw 23149002
#8

Motor cover/motor/upper handle/hose diagram

Regina carpet cleaner screw

Part #23149002

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447228
Regina vacuum screw

Part #21447228

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Holder 36433137
#4

Motor cover/motor/upper handle/hose diagram

Vacuum hose holder

Part #36433137

The manufacturer no longer makes this part, and there's no substitute part

Label 51873001
#20A

Motor cover/motor/upper handle/hose diagram

Label

Part #51873001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw And Nut 40201149
Vacuum screw and nut

Part #40201149

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter Grill 37257221
#47

Motor cover/motor/upper handle/hose diagram

Vacuum filter grill

Part #37257221

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447242
#7

Motor cover/motor/upper handle/hose diagram

Vacuum screw

Part #21447242

The manufacturer no longer makes this part, and there's no substitute part

Duct 47823003
#10

Motor cover/motor/upper handle/hose diagram

Duct

Part #47823003

The manufacturer no longer makes this part, and there's no substitute part
