Model # WWA7050GBL Official GE washer

Here are the diagrams and repair parts for Official GE WWA7050GBL washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

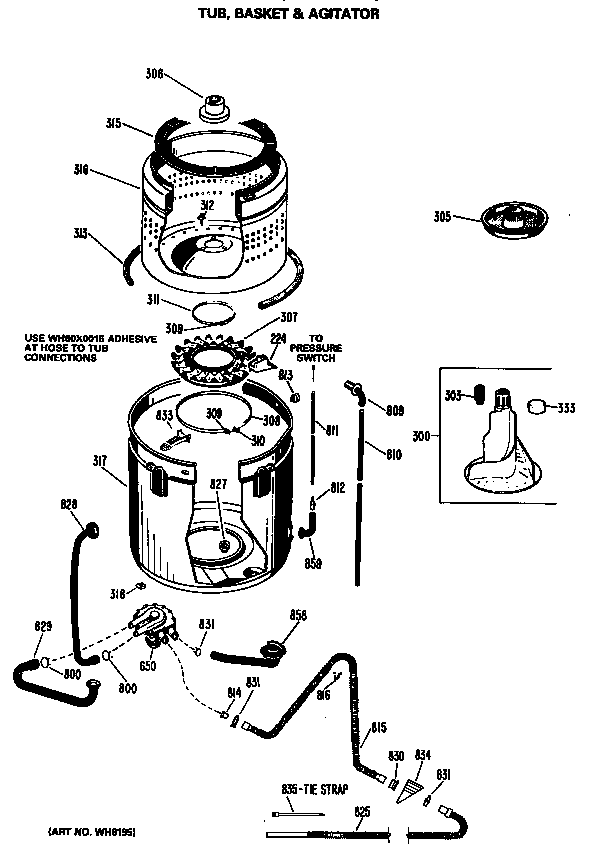

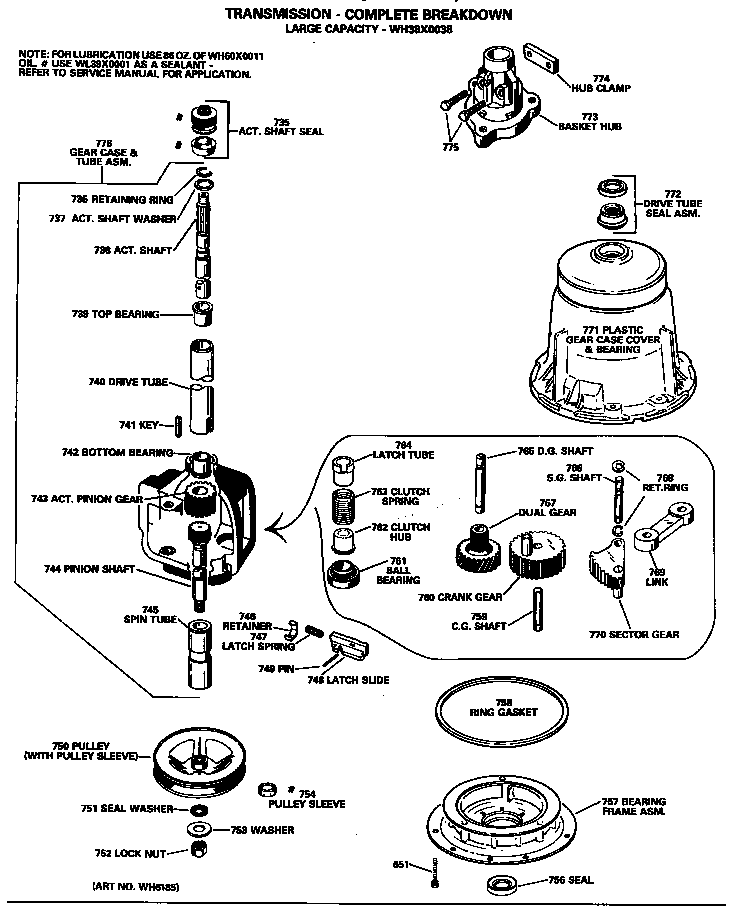

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 307 parts  |
Washer Timer Knob Clip (replaces Wh01x2117, Wh1x1499, Wh1x1610, Wh2x561) WH1X2117
#9

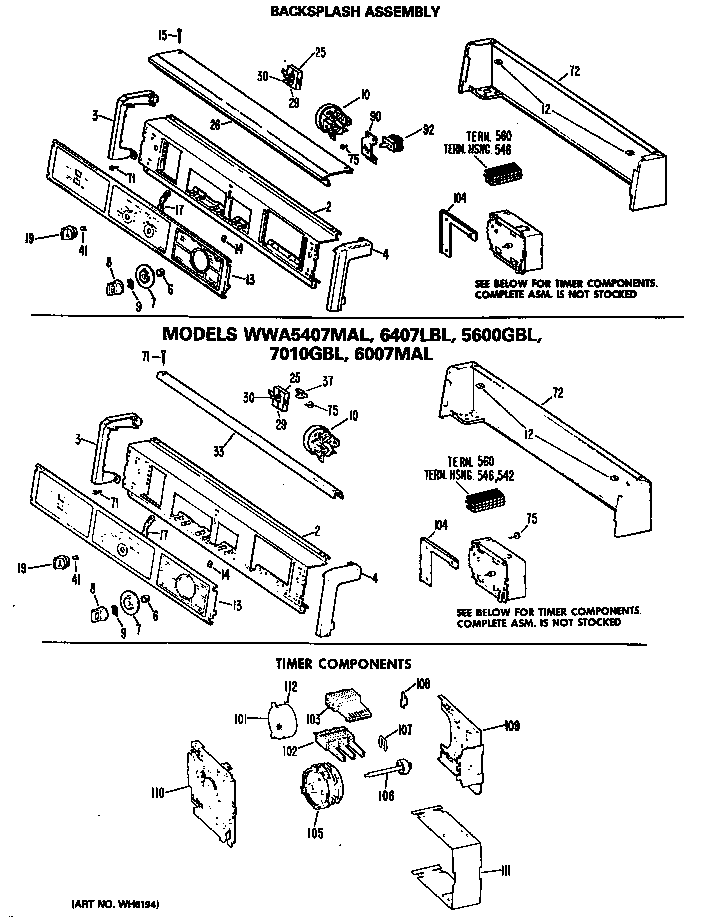

Backsplash assembly diagram

Washer timer knob clip (replaces wh01x2117, wh1x1499, wh1x1610, wh2x561)

Part #WH1X2117

BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Washer Drive Belt (replaces Wh01x2026, Wh1x1904) WH1X2026
#603

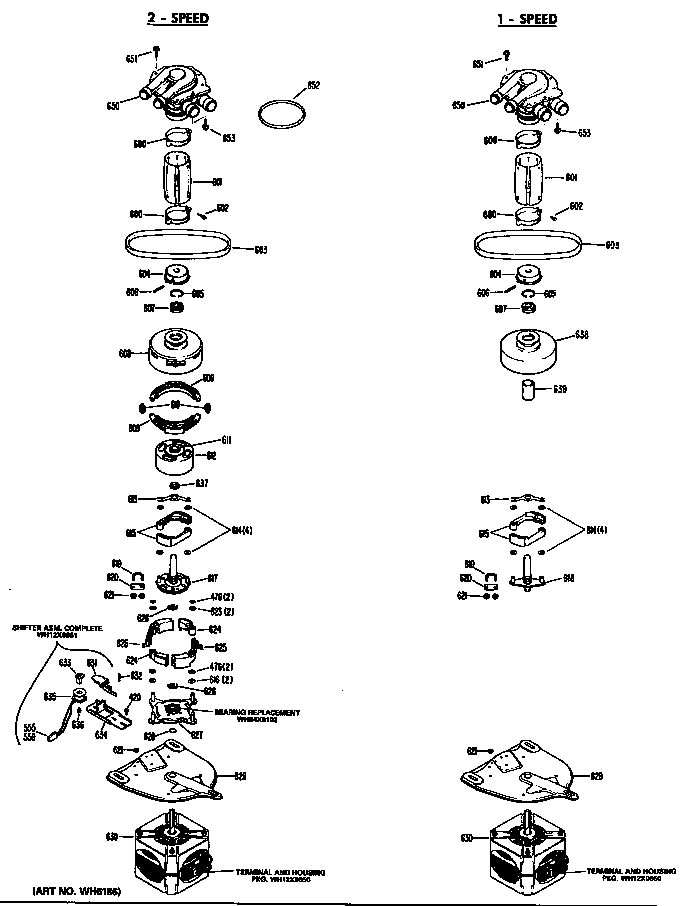

2 - speed diagram

Washer drive belt (replaces wh01x2026, wh1x1904)

Part #WH1X2026

BEST SELLER
$7.73 |
11% OFF Phone Price : $8.73
In Stock
Scr&washer WH2X694
#417

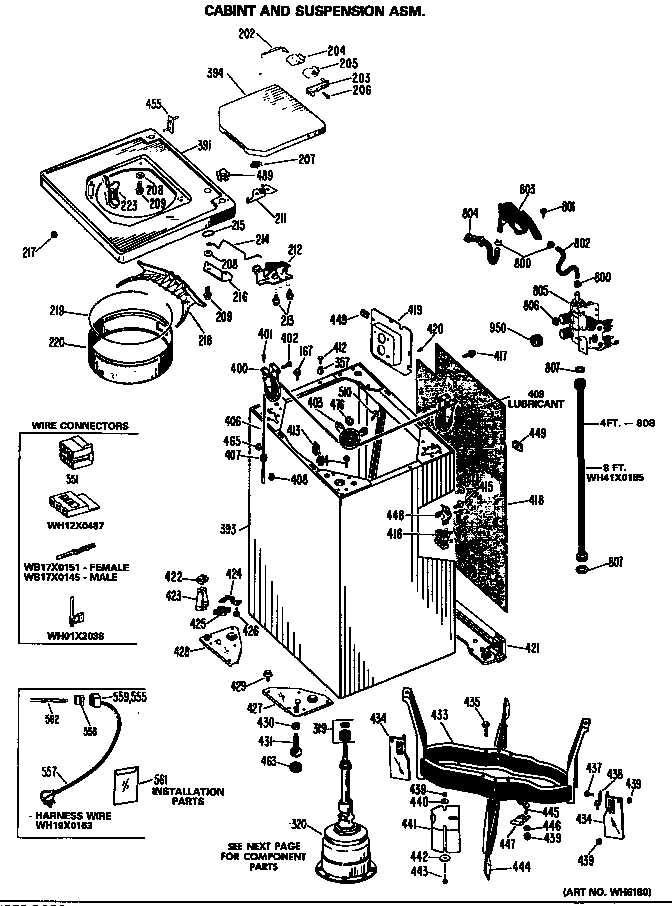

Cabinet and suspension asm. diagram

Scr&washer

Part #WH2X694

Replaced by #WH2X694D

?
Manufacturer substitution
This part replaces WH2X694. Substitute parts can look different from the original.
This item is not returnable
$15.99 |
11% OFF Phone Price : $17.99
In Stock
In.hose 4 WH41X58
#808

Cabinet and suspension asm. diagram

In.hose 4

Part #WH41X58

Replaced by #WH41X10207

?
Manufacturer substitution
This part replaces WH41X58. Substitute parts can look different from the original.
This item is not returnable
$22.73 |
21% OFF Phone Price : $28.73
In Stock
Screw, 2-pack WZ4X345
Screw, 2-pack

Part #WZ4X345

Replaced by #WZ4X345D

?
Manufacturer substitution
This part replaces WZ4X345. Substitute parts can look different from the original.
$12.84 |
13% OFF Phone Price : $14.84
In Stock
Screw WE2X263
#510

Cabinet and suspension asm. diagram

Screw

Part #WE2X263

Replaced by #WE2X263D

?
Manufacturer substitution
This part replaces WE2X263. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Use And Care Guide 49-9541

#NI

All parts diagram

Use and care guide

Part #49-9541

$8.49
In Stock
Washer Leveling Leg Rubber Pad WH1X484
#463

Cabinet and suspension asm. diagram

Washer leveling leg rubber pad

Part #WH1X484

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Use And Care Guide 49-9611

#NI

All parts diagram

Use and care guide

Part #49-9611

$8.49
In Stock
Use And Care Guide 49-9543

#NI

All parts diagram

Use and care guide

Part #49-9543

$8.49
In Stock
