Kenmore
Gas Water Heater

Model # 153336351 Official Kenmore power miser 6 gas water heater

Here are the diagrams and repair parts for Official Kenmore 153336351 power miser 6 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Burner 9002411
#11

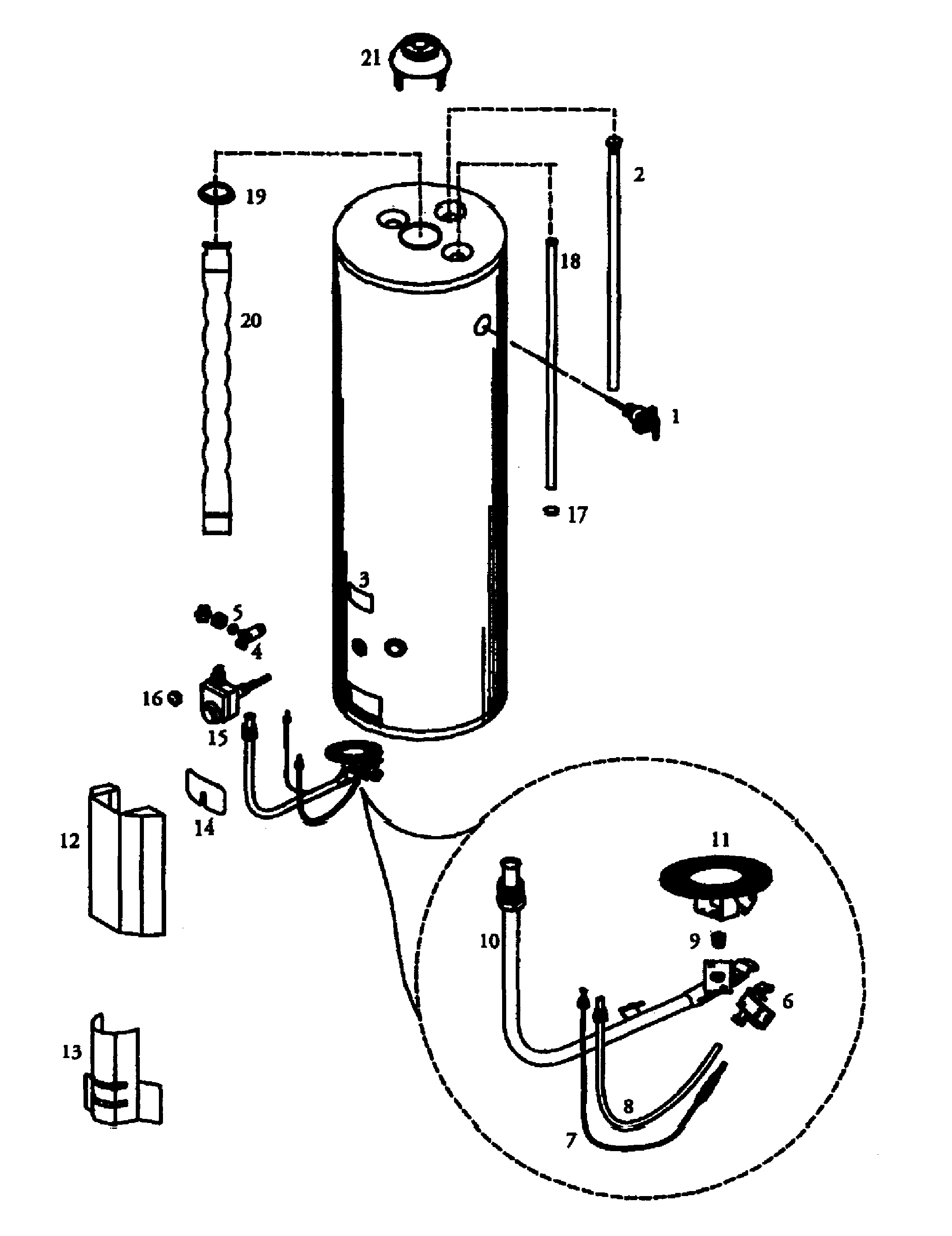

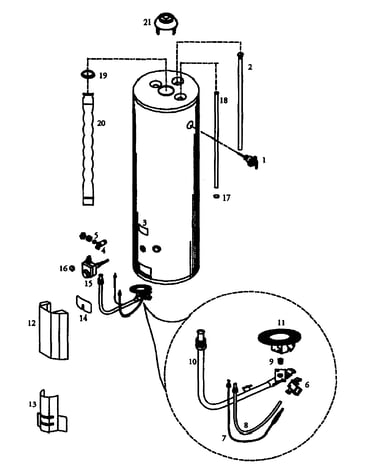

Main assembly diagram

Burner

Part #9002411

Replaced by #9003631005

?
Manufacturer substitution
This part replaces 9002411. Substitute parts can look different from the original.
$46.79 |
11% OFF Phone Price : $52.79
In Stock
Flue Baffle 9002488
#20

Main assembly diagram

Flue baffle

Part #9002488

$30.49
In Stock
Water Heater Manifold Inner Door 9000281
#14

Main assembly diagram

Water heater manifold inner door

Part #9000281

$17.69 |
10% OFF Phone Price : $19.69
In Stock
Gasket 0530087
#17

Main assembly diagram

Gasket

Part #0530087

Replaced by #100108744

?
Manufacturer substitution
This part replaces 0530087. Substitute parts can look different from the original.
$24.44
In Stock
Manifold 9002613
#10

Main assembly diagram

Manifold

Part #9002613

Replaced by #100108874

?
Manufacturer substitution
This part replaces 9002613. Substitute parts can look different from the original.
$57.78
In Stock
Mag Erad 23600
#NI

Main assembly diagram

Mag erad

Part #23600

Replaced by #23600

?
Manufacturer substitution
This part replaces 23600. Substitute parts can look different from the original.
$35.19
In Stock
Water Heater Gas Control Valve Knob F145-1280
#16

Main assembly diagram

Water heater gas control valve knob

Part #F145-1280

The manufacturer no longer makes this part, and there's no substitute part

Water Heater Pilot Tube Assembly (replaces Std317025, Std317255) 9000278
#8

Main assembly diagram

Water heater pilot tube assembly (replaces std317025, std317255)

Part #9000278

Replaced by #100108370

?
Manufacturer substitution
This part replaces 9000278. Substitute parts can look different from the original.
$36.67
In Stock
Pilot 9000284
#6

Main assembly diagram

Pilot

Part #9000284

Replaced by #100109070

?
Manufacturer substitution
This part replaces 9000284. Substitute parts can look different from the original.
$47.78
In Stock
Water Heater Gas Valve Assembly F145-1278
#15

Main assembly diagram

Water heater gas valve assembly

Part #F145-1278

The manufacturer no longer makes this part, and there's no substitute part
