Model # 58CTX07010016 Official Carrier furnace

Here are the diagrams and repair parts for Official Carrier 58CTX07010016 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Furnace Burner Igniter (replaces 331930-751, 41-403) LH33ZS004

#90

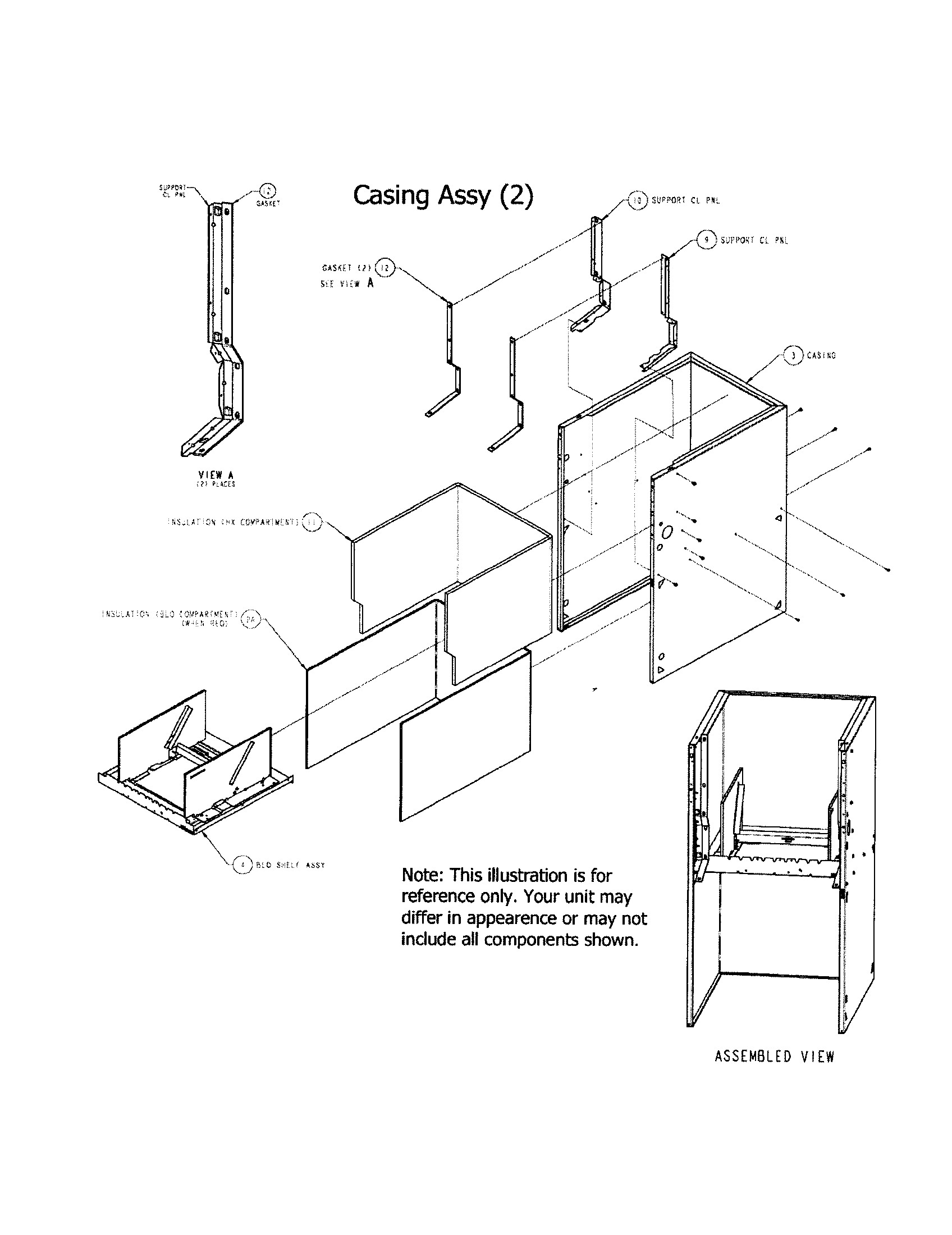

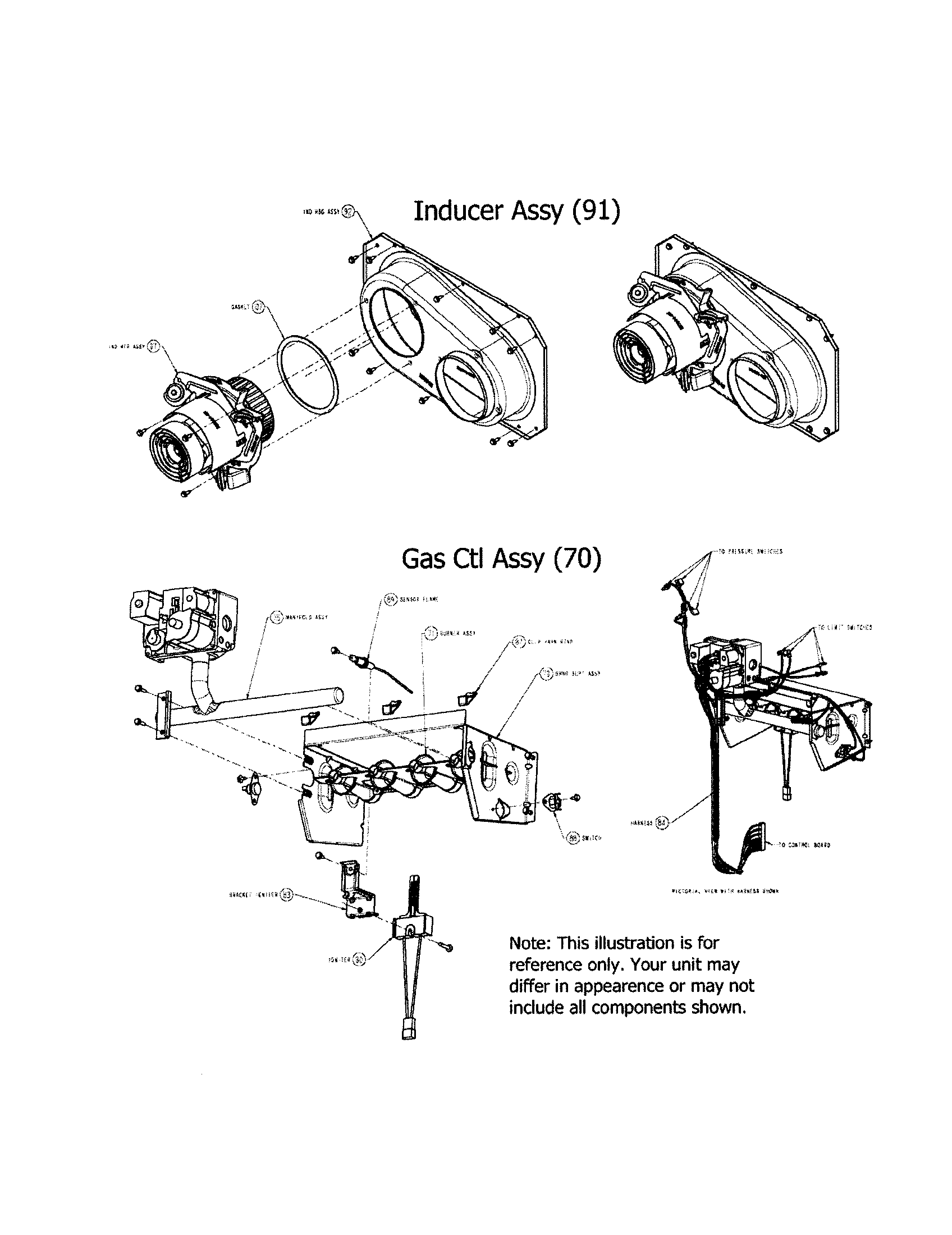

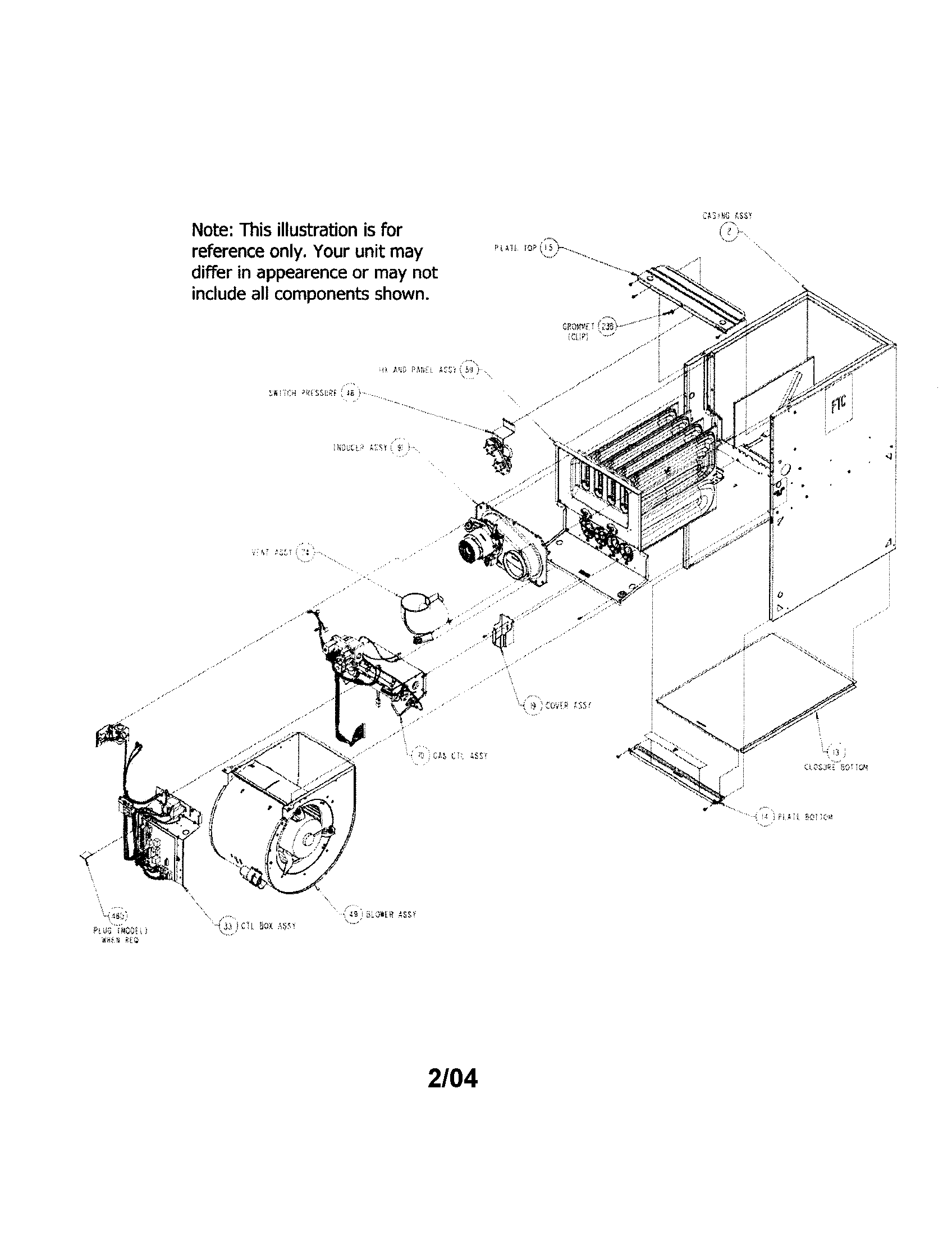

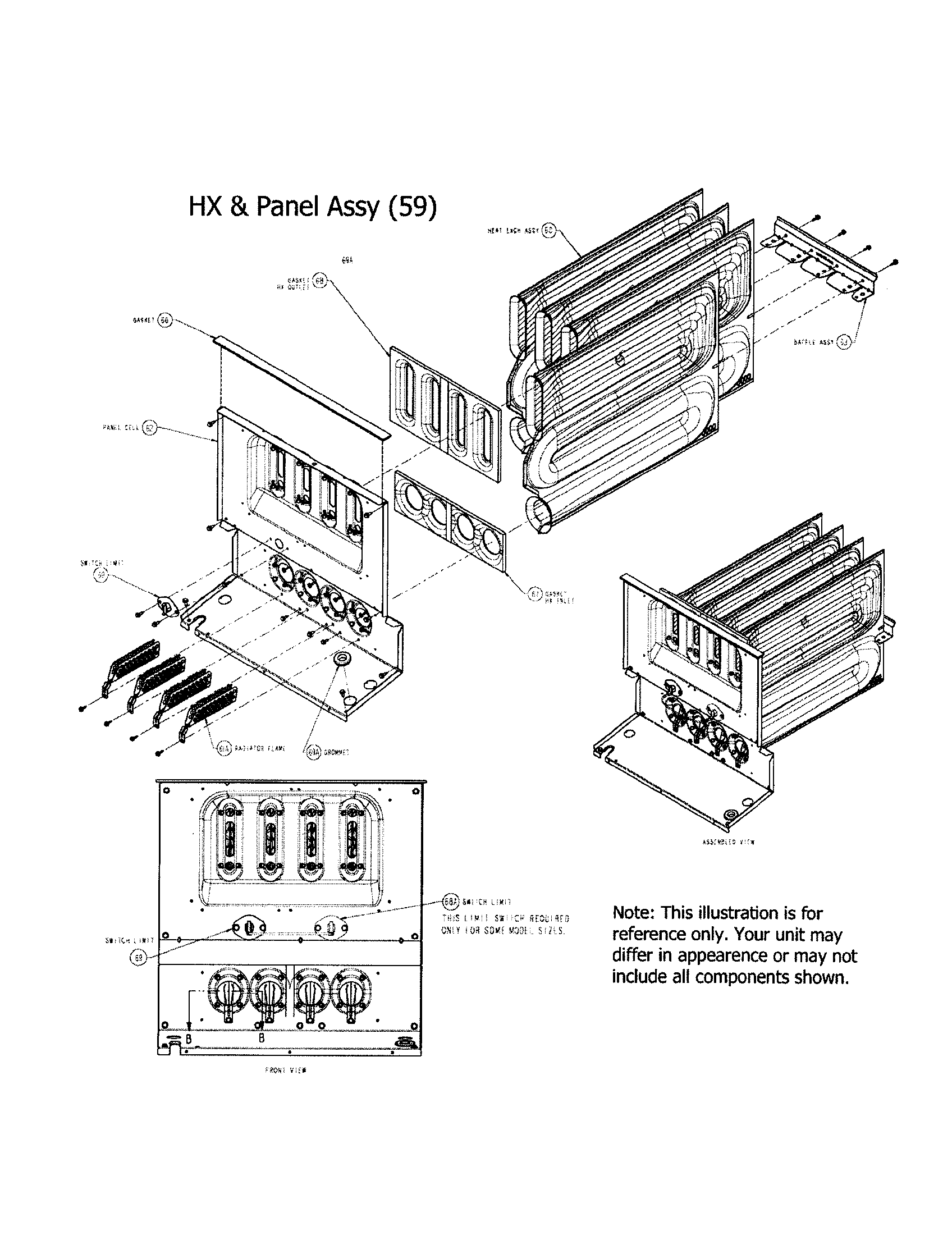

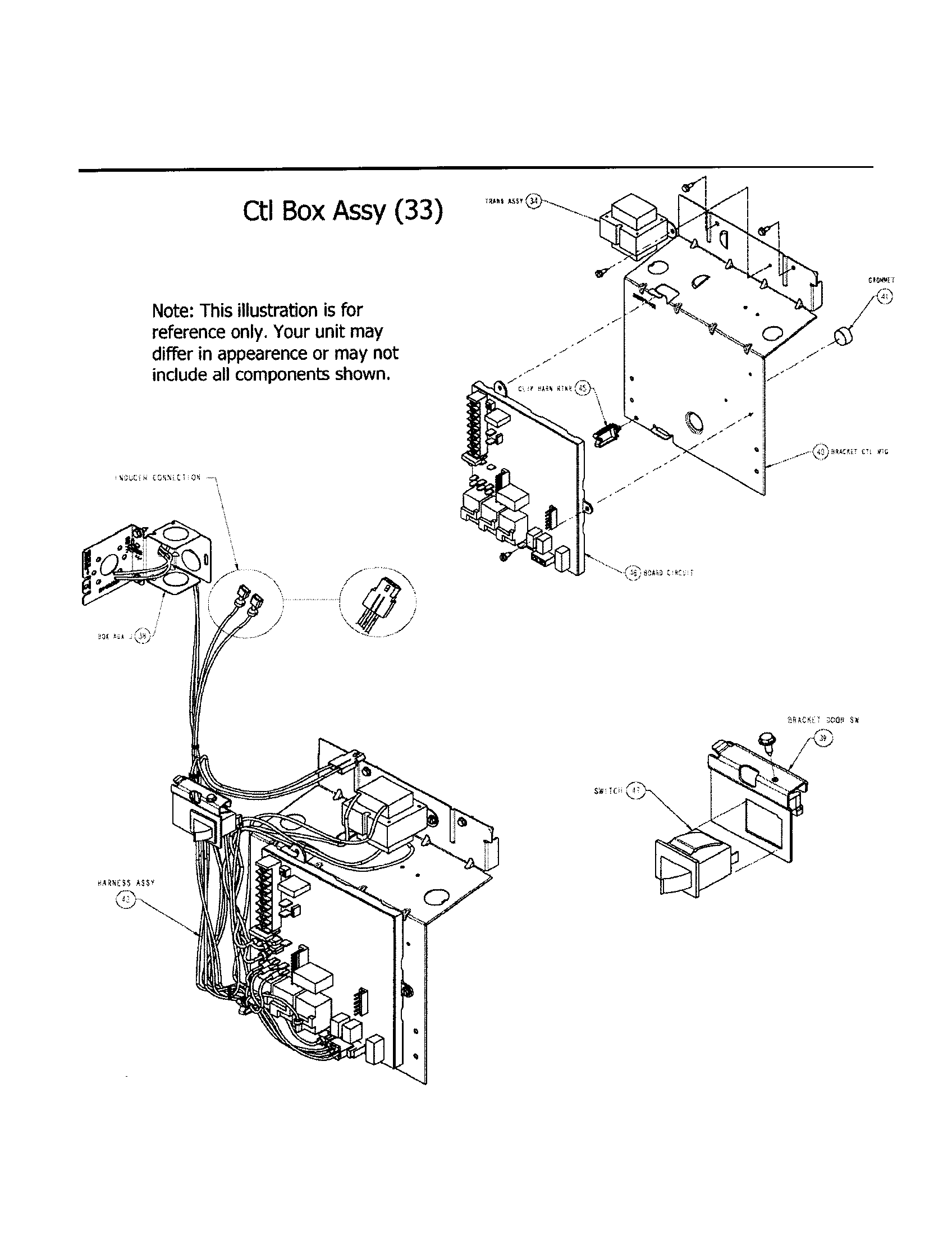

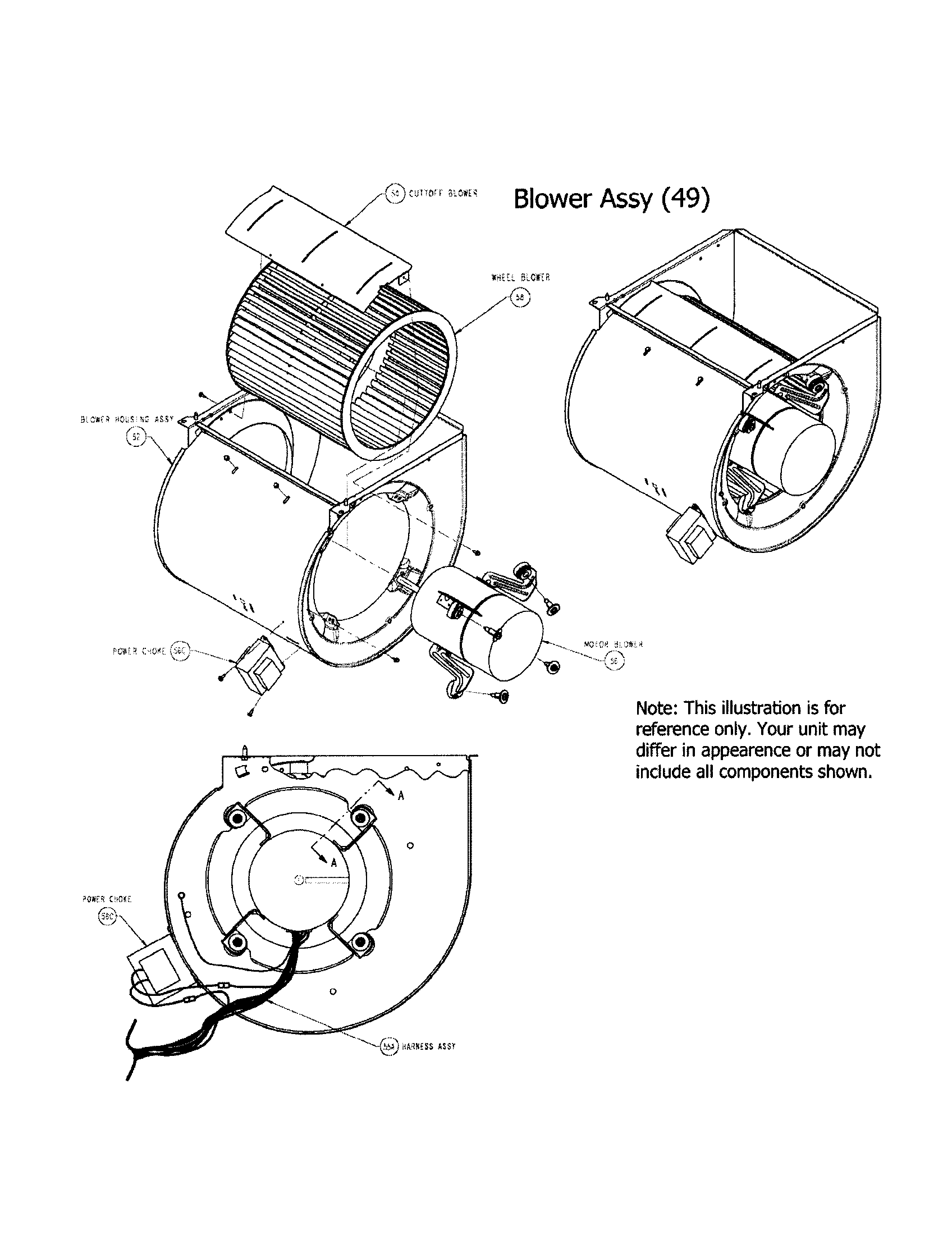

All parts diagram

Furnace burner igniter (replaces 331930-751, 41-403)

Part #LH33ZS004

$47.08 |
11% OFF Phone Price : $53.08
Back Order
Furnace Heat Exchanger 326600-751

#60

All parts diagram

Furnace heat exchanger

Part #326600-751

$139.71 |
8% OFF Phone Price : $151.71
In Stock
Furnace Burner Flame Sensor LH680-014

#89

All parts diagram

Furnace burner flame sensor

Part #LH680-014

$51.20
In Stock
Payne Support 326633-401

#100

All parts diagram

Payne support

Part #326633-401

$26.27
In Stock
Control Board HK42FZ017

#46

All parts diagram

Control board

Part #HK42FZ017

$728.79 |
$12.00 OFF Phone Price : $740.79
In Stock
Furnace Temperature Limit Switch HH18HA493

#32

All parts diagram

Furnace temperature limit switch

Part #HH18HA493

This item is not returnable
$18.83
In Stock
Furnace Screw Grommet AS88PD005

#23B

All parts diagram

Furnace screw grommet

Part #AS88PD005

This item is not returnable
$8.23
In Stock
Furnace Blower Vent 326629-751

#24

All parts diagram

Furnace blower vent

Part #326629-751

$332.29 |
$12.00 OFF Phone Price : $344.29
In Stock
Screw 325889-401

#208

All parts diagram

Screw

Part #325889-401

This item is not returnable
$4.11
In Stock
Furnace Wire Connection Cover 326701-401

#20

All parts diagram

Furnace wire connection cover

Part #326701-401

This item is not returnable
$25.62
In Stock
