Model # EBU2X48JA1 Official ICP evaporator coil

Here are the diagrams and repair parts for Official ICP EBU2X48JA1 evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 22 parts |

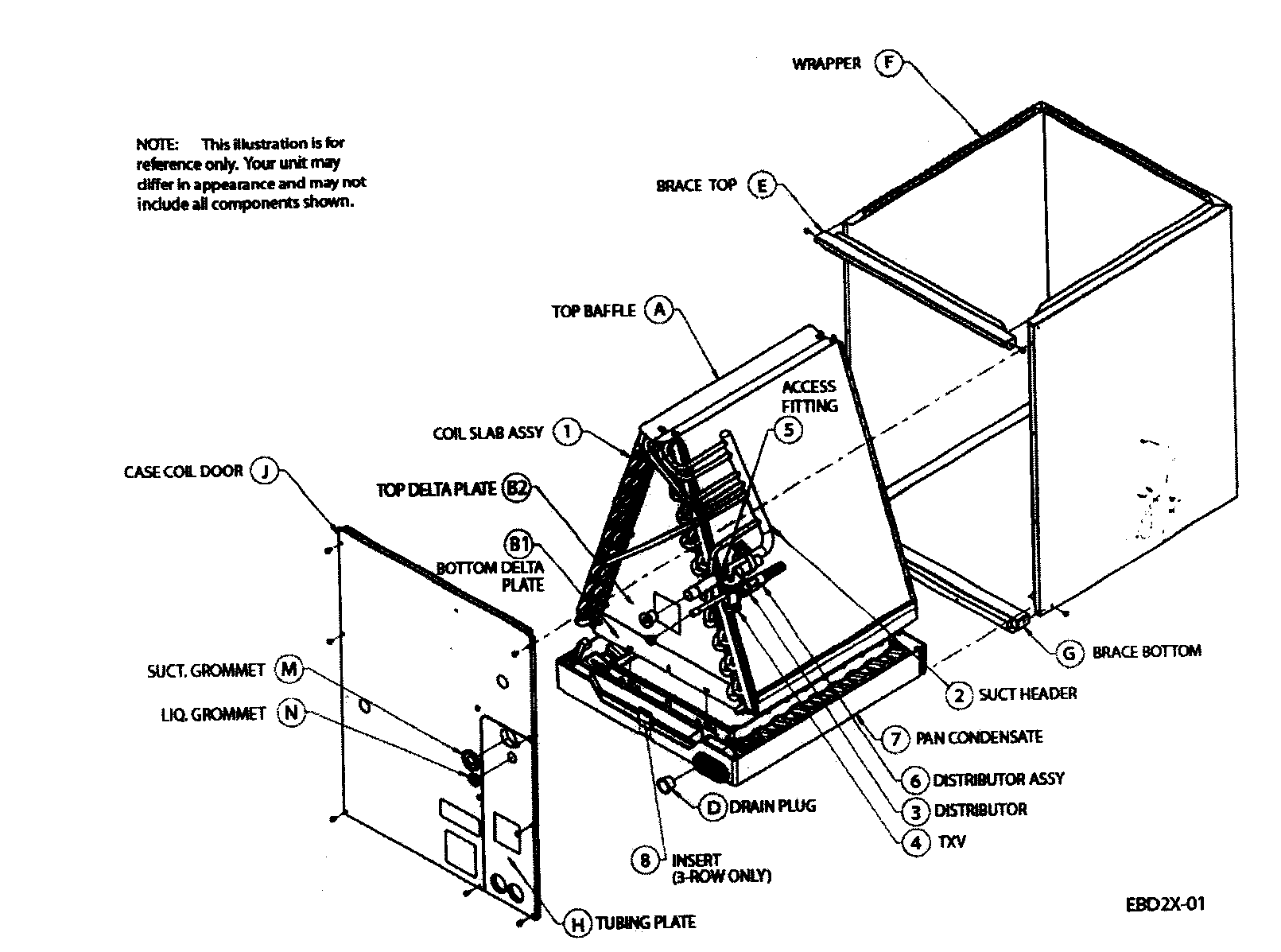

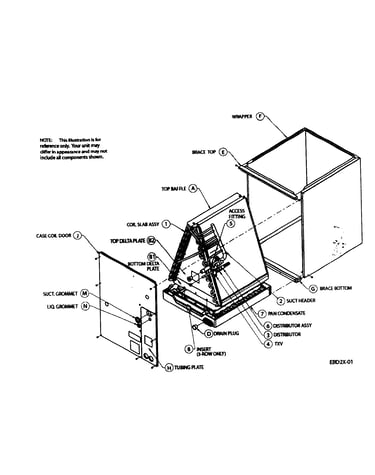

Cabinet parts diagram

Grommet

Part #1173160

This item is not returnable

$2.86

In Stock

Qty

Cabinet parts diagram

Fitting

Part #1171507

This item is not returnable

$4.51

In Stock

Qty

Cabinet parts diagram

Pan cond

Part #1173098

$242.16

In Stock

Qty

Cabinet parts diagram

Grommet

Part #1173157

This item is not returnable

$2.16

In Stock

Qty

Cabinet parts diagram

Adapter

Part #1085010

$10.20

In Stock

Qty

#4A

Cabinet parts diagram

Valve txv

Part #1174452

$244.65

In Stock

Qty

#B1

Cabinet parts diagram

Plate delta bottom

Part #1173112

This item is not returnable

$4.54

In Stock

Qty

Cabinet parts diagram

Plate tubing

Part #1173223

The manufacturer no longer makes this part, and there's no substitute part

Cabinet parts diagram

Deck frnt

Part #1173209

The manufacturer no longer makes this part, and there's no substitute part

Cabinet parts diagram

Distributor

Part #1173093

The manufacturer no longer makes this part, and there's no substitute part
