Craftsman
Jointer/Planer

Model # 900277303 Official Craftsman jointer/planer

Here are the diagrams and repair parts for Official Craftsman 900277303 jointer/planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |

Black & Decker Bearing 150057-00
#11

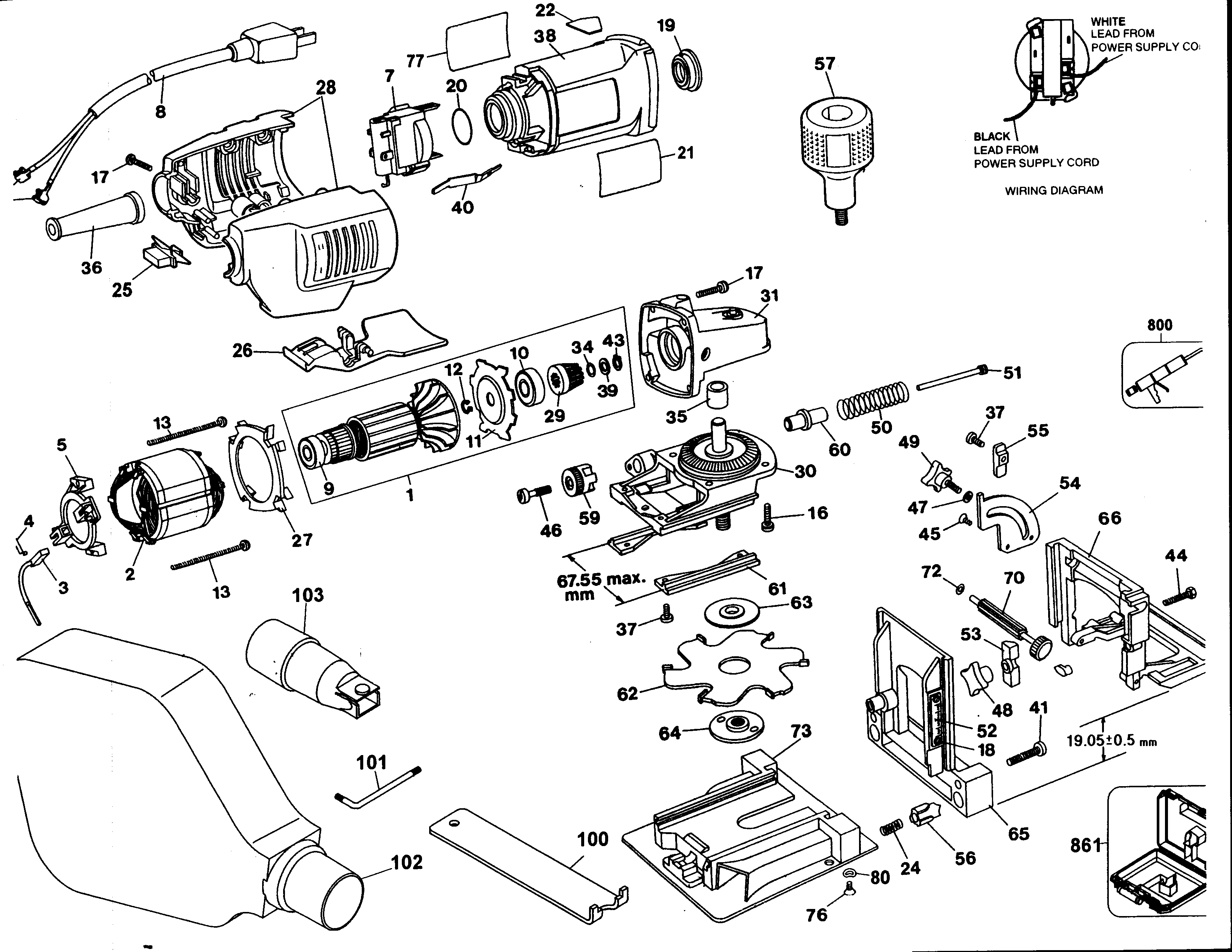

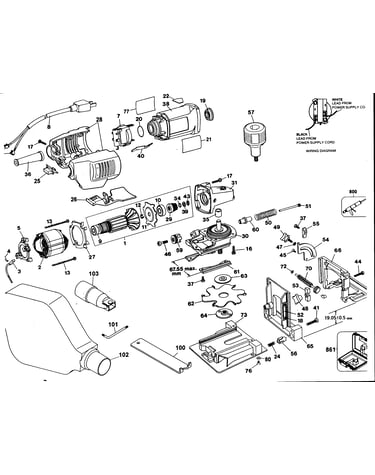

Housing assy diagram

Black & decker bearing

Part #150057-00

The manufacturer no longer makes this part, and there's no substitute part

Clamp 147749-00
#53

Housing assy diagram

Clamp

Part #147749-00

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 445217-02
#19

Housing assy diagram

Sleeve

Part #445217-02

The manufacturer no longer makes this part, and there's no substitute part

Support 147741-00
#65

Housing assy diagram

Support

Part #147741-00

The manufacturer no longer makes this part, and there's no substitute part

Shaft 147759-00
#51

Housing assy diagram

Shaft

Part #147759-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Angle Grinder Motor Brush Ring 449899-05
#5

Housing assy diagram

Black & decker angle grinder motor brush ring

Part #449899-05

The manufacturer no longer makes this part, and there's no substitute part

Stop 147760-00
#59

Housing assy diagram

Stop

Part #147760-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Grease 283484-01
#800

Housing assy diagram

Craftsman grease

Part #283484-01

The manufacturer no longer makes this part, and there's no substitute part

Retaing Ring 38751-00
#43

Housing assy diagram

Retaing ring

Part #38751-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Base Assembly 385914-00
#73

Housing assy diagram

Craftsman base assembly

Part #385914-00

The manufacturer no longer makes this part, and there's no substitute part
